Description

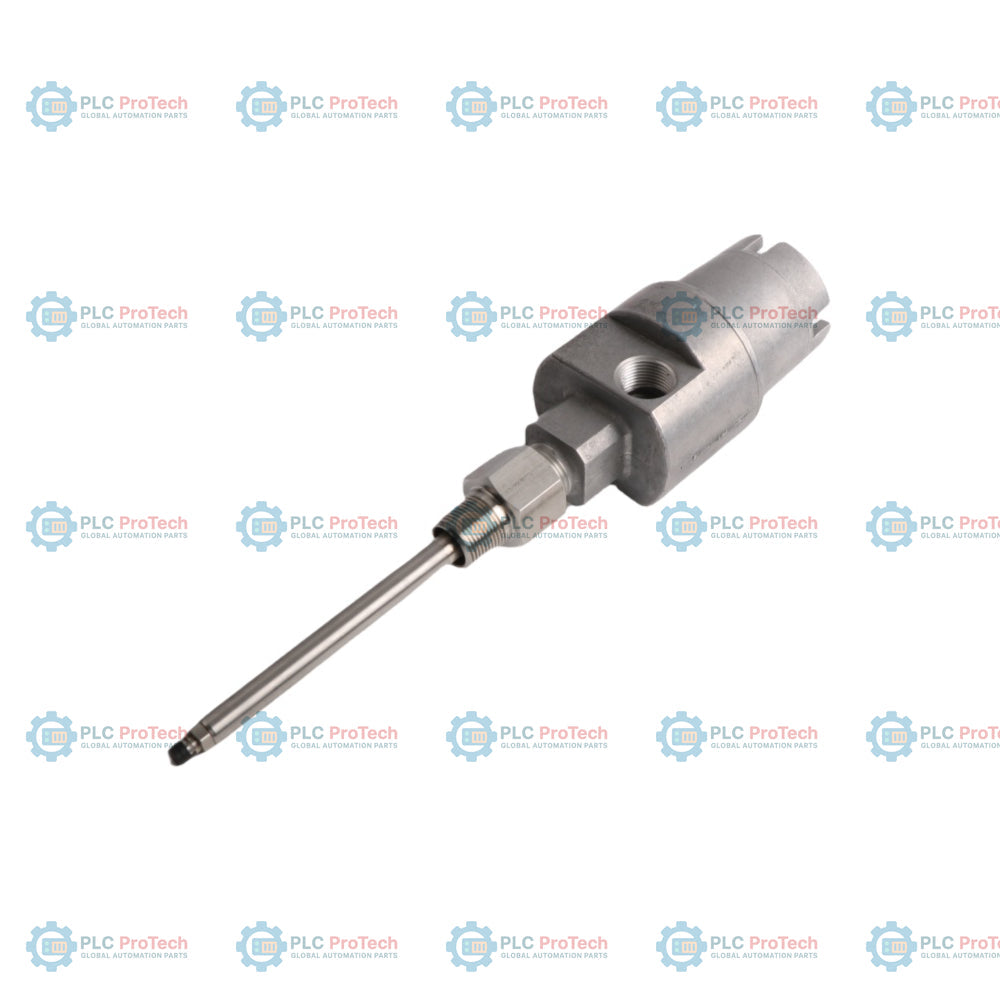

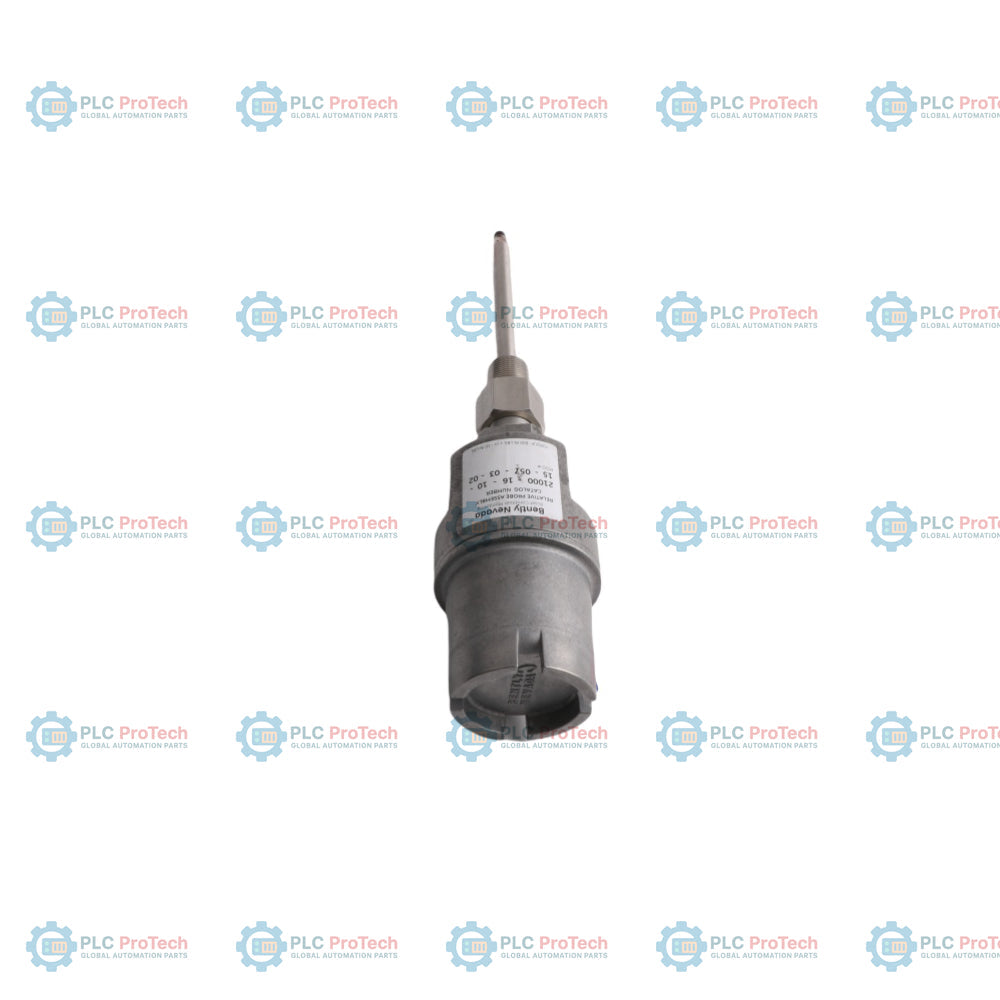

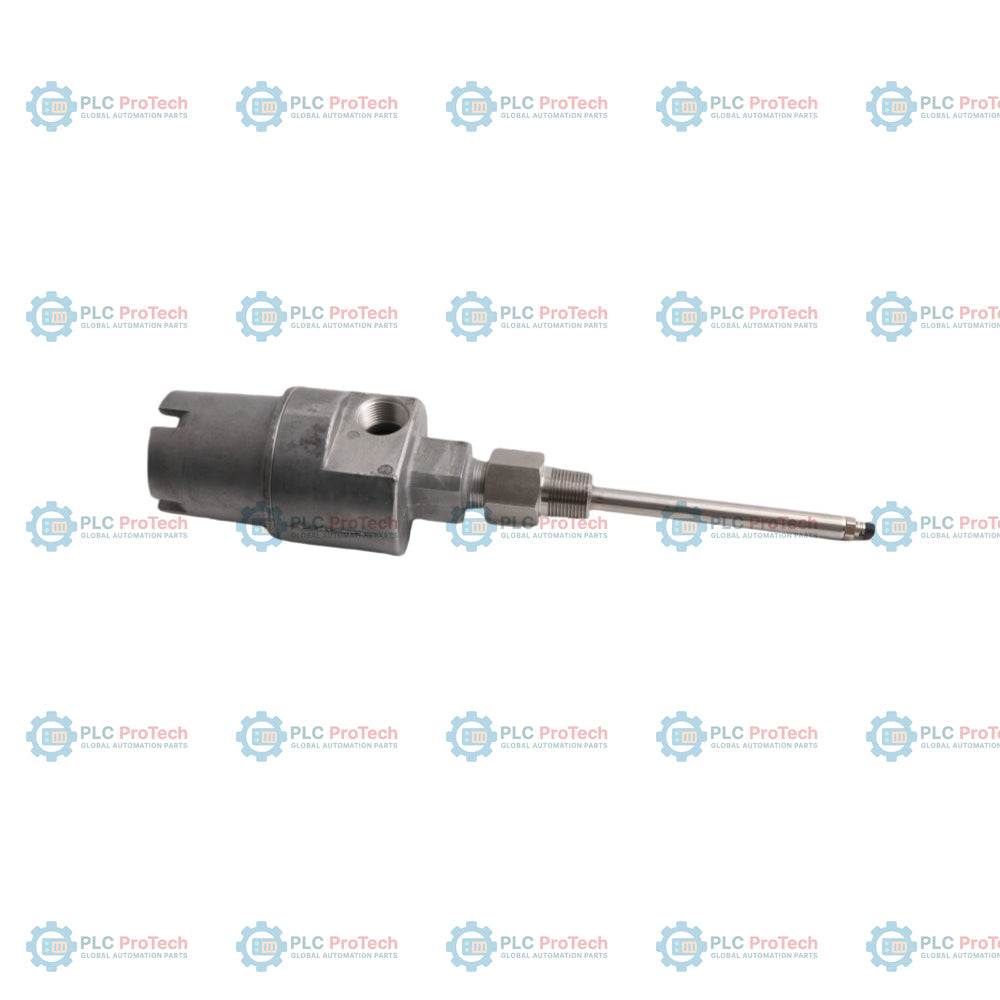

The 21000-16-10-00-120-03-02 is a specialized proximity probe housing assembly designed to protect and position Bently Nevada transducers in industrial machinery. This configuration features an aluminum body with a 304 stainless steel sleeve, configured with a 3300 XL 8 mm probe (Option 16), a 1.0 m probe cable (Option 10), and no standoff adapter (Option 00). The assembly provides a 12.0 in probe penetration (Option 120) and includes two 3/4-14 NPT explosion-proof fittings (Option 03) along with a 3/4-14 NPT mounting thread (Option 02). This housing assembly ensures consistent, stable mounting for vibration monitoring and axial position measurement, aligning with API 670 standards for externally mounted proximity probe housings. The 21000 series is constructed for durability in harsh environments, utilizing high-quality materials to maintain the integrity of the sensing chain while allowing for adjustable penetration depths to suit specific machine installation requirements.

Features

• 3300 XL 8 mm probe integrated configuration
• Aluminum body construction with 304 stainless steel sleeve
• 1.0 m probe cable length
• 12.0 in probe penetration depth (Option 120)
• Two 3/4-14 NPT explosion-proof fittings included
• 3/4-14 NPT mounting thread interface
• Designed to comply with API 670 standards for machinery protection

Applications

• Industrial rotating machinery monitoring
• Fluid film bearing health assessment
• Axial position and shaft vibration measurement
• Hazardous area machinery protection (when installed per applicable standards)
• Heavy-duty power generation and oil and gas compressor monitoring

Ordering Information

Orderable Part Number	21000-16-10-00-120-03-02	21000 Proximity Probe Housing Assembly
A - Probe	16	3300 XL 8 mm probe
B - Probe Cable Length	10	1.0 m (39 in)
C - Standoff Adapter	00	No standoff adapter
D - Probe Penetration	120	12.0 in (305 mm)
E - Fittings	03	One cable seal grip with grommets
F - Mounting Thread	02	3/4-14 NPT

Technical Specifications

Manufacturer	Bently Nevada (Baker Hughes)
Part Number	21000-16-10-00-120-03-02
Housing Material	Aluminum body with 304 stainless steel sleeve
Mounting Thread	3/4-14 NPT
Probe Type	3300 XL 8 mm
Probe Cable Length	1.0 m
Fittings	Two 3/4-14 NPT explosion-proof fittings
Weight	1.1 kg (2.4 lb) typical
Operating Temperature	-51 degC to +177 degC (-60 degF to +351 degF)

Installation Guidelines

Ensure the housing is installed using appropriate thread sealant for the 3/4-14 NPT connections. For probe penetration depths greater than 300 mm (12 in), auxiliary sleeve support is required to minimize potential resonance. Verify that the probe cable length is sufficient for the intended standoff distance. If counter-boring the machine case, ensure no metal components interfere with the probe's side-view or rear-view sensitivity zone.

Compliance and Certifications

• RoHS Directive 2011/65/EU
• Designed to meet API 670 standards
