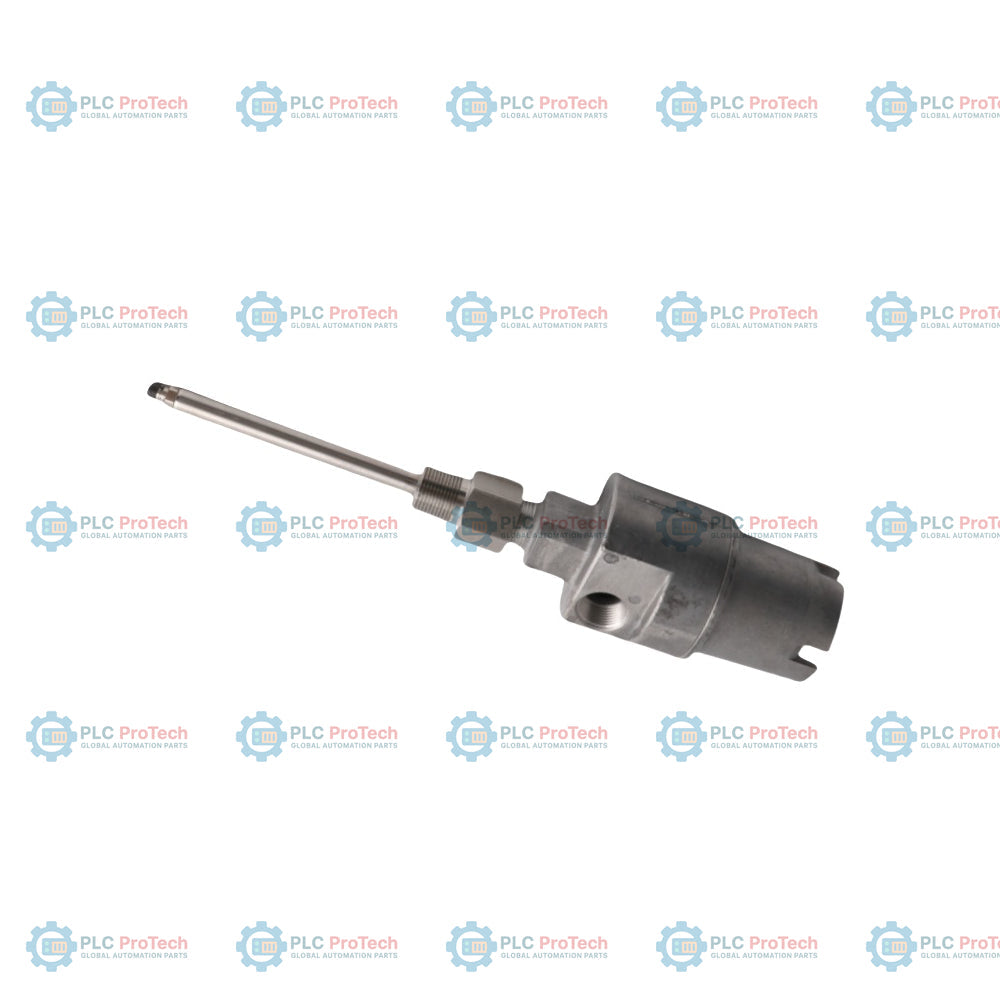

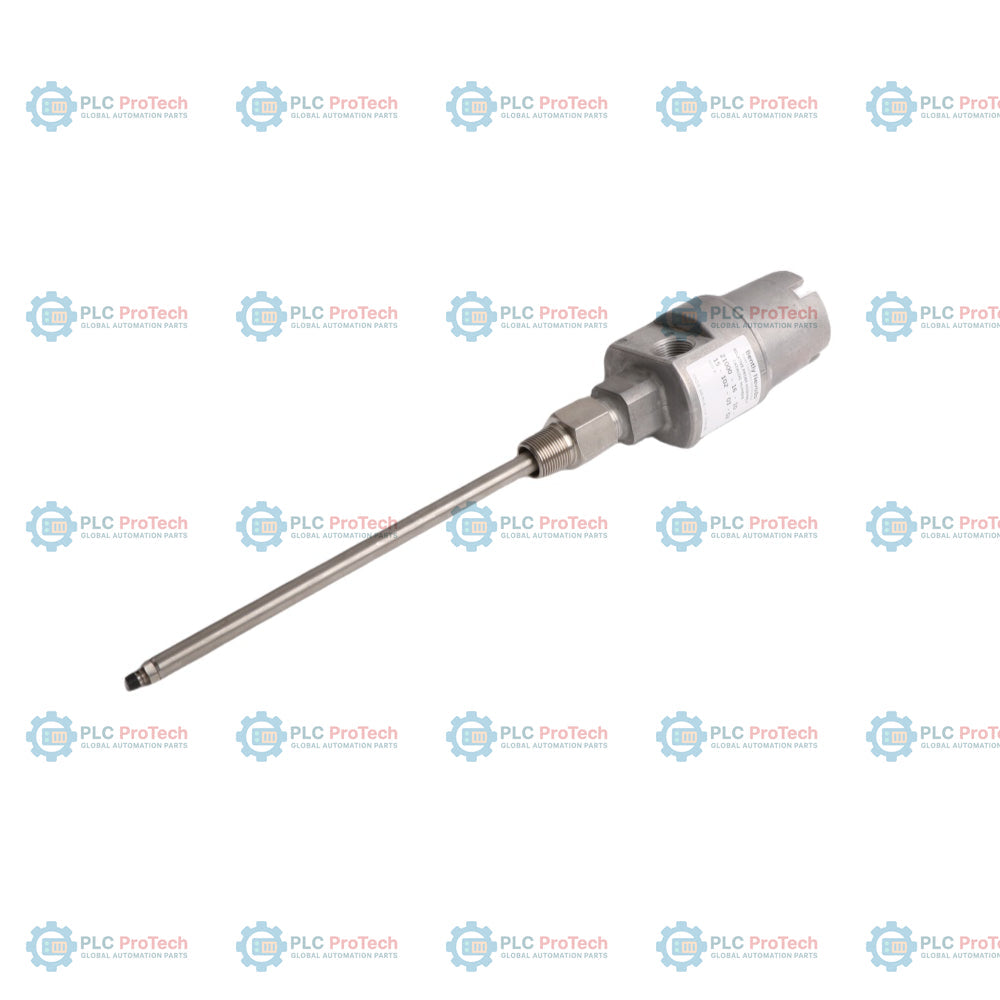

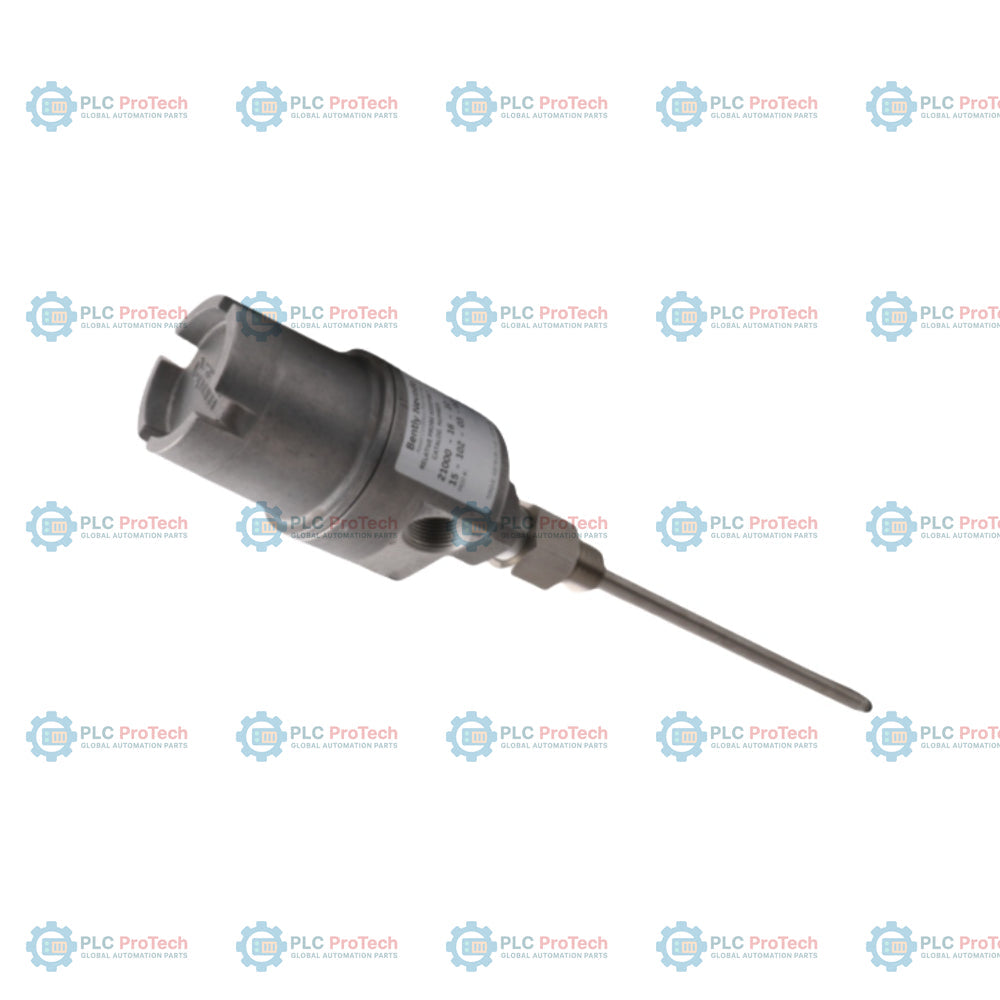

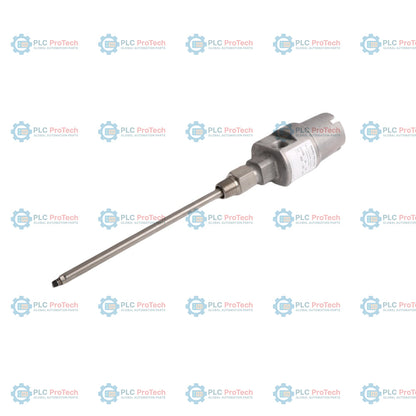

Bently Nevada 21000-28-05-00-057-04-02 Proximity Probe Housing Assembly

System Description

The 21000-28-05-00-057-04-02 is a specialized industrial enclosure system designed to facilitate the external mounting and adjustment of proximity sensors. This housing assembly is a critical component for Turbine Supervisory Instrumentation (TSI) in sectors such as power generation, oil and gas, and wastewater treatment. By utilizing this assembly, engineers can install or replace proximity probes without the need to disassemble machine casings or halt production. This hot-swappable capability is essential for high-availability assets such as centrifugal compressors and large motors, where minimizing downtime remains a primary operational objective. The rugged construction ensures the internal probe remains protected from environmental contaminants while maintaining precise alignment for accurate vibration and axial position monitoring.

Configuration Details

The model code 21000-28-05-00-057-04-02 defines a specific mechanical configuration optimized for hazardous area compliance and intermediate penetration:

• 28: Probe Option with Connector – Includes a 3300 XL 8 mm probe with multiple international agency approvals (ATEX, IECEx, CSA, etc.).
• 05: Probe Cable Length Option – 0.5 meter (20 inches) lead length.
• 00: Standoff Adapter – No standoff adapter included.
• 057: Probe Penetration – Specifies a total penetration depth of 5.7 inches into the machine casing.
• 04: Fittings Option – Equipped with one 3/4-14 NPT plug only.
• 02: Mounting Thread Option – Standard 3/4-14 NPT threads for secure attachment to the machine housing.

Performance Specifications

Operational Questions

How do I adjust the probe gap while using the 21000 series housing?
Adjustment is performed by loosening the internal probe locking nut within the housing. You can then thread the probe in or out while monitoring the DC Gap Voltage at the Proximitor sensor. Once the target voltage (typically -10 VDC) is reached, the probe is locked in place, and the housing cover is secured.

What is the benefit of the Multiple Approvals (Option 28) probe?
The Option 28 probe is certified for use in various hazardous environments worldwide. This simplifies global inventory management because a single part number complies with North American (CSA), European (ATEX), and international (IECEx) explosion-proof and intrinsic safety standards.

Can this housing be used in high-pressure applications?
The 21000 housing is designed to provide an environmental seal. However, for applications involving high differential pressures such as high-pressure steam turbines, it is recommended to verify the pressure ratings of the probe O-ring and the NPT mounting connection to ensure proper process containment.

Installation Recommendations

• Gap Voltage Precision: During installation, always use a digital multimeter to set the gap voltage. For a standard 3300 XL 8 mm system, the linear operating range is between -2 VDC and -18 VDC. Setting the gap to approximately -10 VDC ensures the probe remains centered within the measurement range.
• Thread Protection: Apply an anti-seize compound to the 3/4-14 NPT mounting threads to prevent galling, especially when installing into stainless steel machine casings. Ensure the compound is compatible with the process environment such as oil, steam, or chemical exposure.
• Lead Cable Management: The 0.5-meter probe lead must be carefully coiled within the housing to prevent pinching when the cover is installed. Ensure the miniature coaxial ClickLoc connector is fully seated and protected from moisture using the provided seals.
• Explosion-Proof Integrity: To maintain hazardous area certifications, confirm that all NPT fittings are tightened to the specified torque and that the housing cover is fully threaded and locked. Any structural modification will invalidate the safety approvals.
