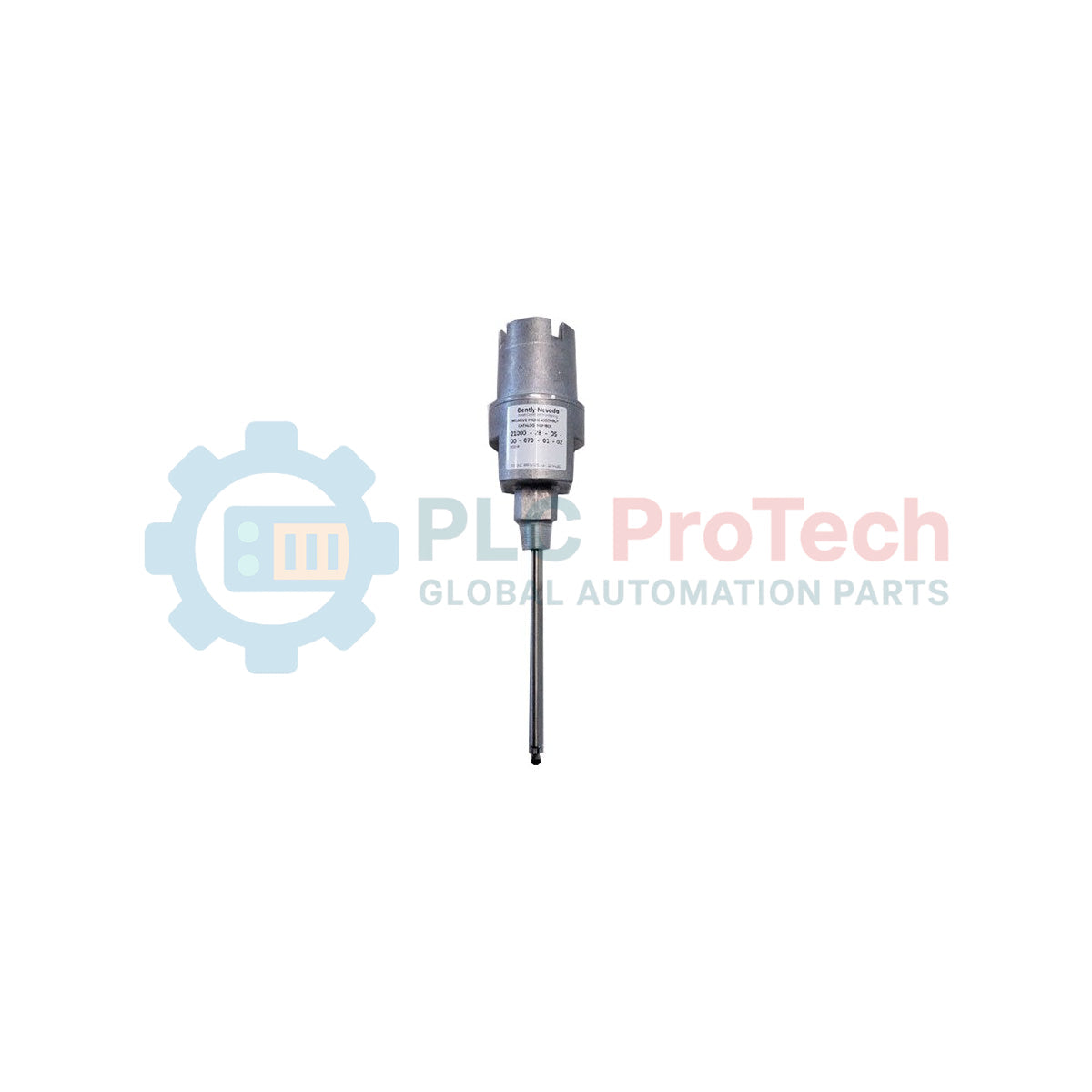

Bently Nevada 21000-28-05-00-067-04-02 21000 Series Proximity Probe Housing Assembly

Description

Optimized for hazardous and demanding industrial environments, the Bently Nevada 21000-28-05-00-067-04-02 is a heavy-duty proximity probe housing designed to protect critical vibration monitoring sensors. As part of the 21000 Series, this rugged assembly simplifies transducer installation and adjustment, allowing external access to proximity probes on rotating machinery. The integration of a 3300 XL 8 mm probe with multi-approval certifications ensures highly reliable eddy current displacement measurements in petrochemical, power generation, and gas processing facilities.

Features

• Robust Material Composition: Constructed with a high-durability aluminum body and a 304 stainless steel sleeve to withstand aggressive atmospheric conditions.
• Pre-installed Sensor Option: Configured with a 3300 XL 8 mm probe featuring multiple hazardous area agency approvals.
• Simplified Field Adjustments: Enables easy setting of the sensor gap from outside the machine casing without requiring teardowns.
• Industrial Seal Threading: Features a rugged 3/4-14 NPT mounting thread and fitting configuration to maintain case seal integrity.

Applications

• Steam, gas, and hydro turbine shaft radial vibration and axial position monitoring.
• Large scale centrifugal and reciprocating compressor protection systems.
• Heavy utility pumps, gearboxes, and industrial fan mechanical health monitoring.
• Environments requiring explosion-proof or flameproof equipment enclosures.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

In modern system standardizations, this specific model (option code 28 for the 3300 XL 8 mm probe with multiple approvals) can be replaced or retrofitted with version 21000-16-05-00-067-04-02 depending on facility-specific regulatory requirements. Always check whether your local installation codes mandate regional approvals (ATEX/IECEx, CSA, or NEPSI) or if the multi-approval package on the option 28 configuration is required to maintain the area classification of your machinery skid.

Application Pitfalls & Engineering Notes

Since this assembly uses the 00 standoff adapter option, the physical probe penetration depth is locked at 6.7 inches. Engineers must verify the structural distance between the outer mounting surface and the target shaft surface prior to installation. Failing to account for this fixed length can cause the probe tip to physically strike the rotating shaft during machine start-up, resulting in catastrophic failure of the transducer tip and potential damage to the shaft journal.

Commissioning & Wiring Tips

During initial gap calibration, avoid twisting the 0.5-meter internal probe cable when threading the housing body. It is highly recommended to uncouple the coaxial connector from the extension cable before rotating the housing assembly. Use a high-quality thread sealant on the 3/4-14 NPT mounting threads to prevent oil mist migration and maintain IP66/NEMA 4X environmental ratings.

Installation Guidelines
