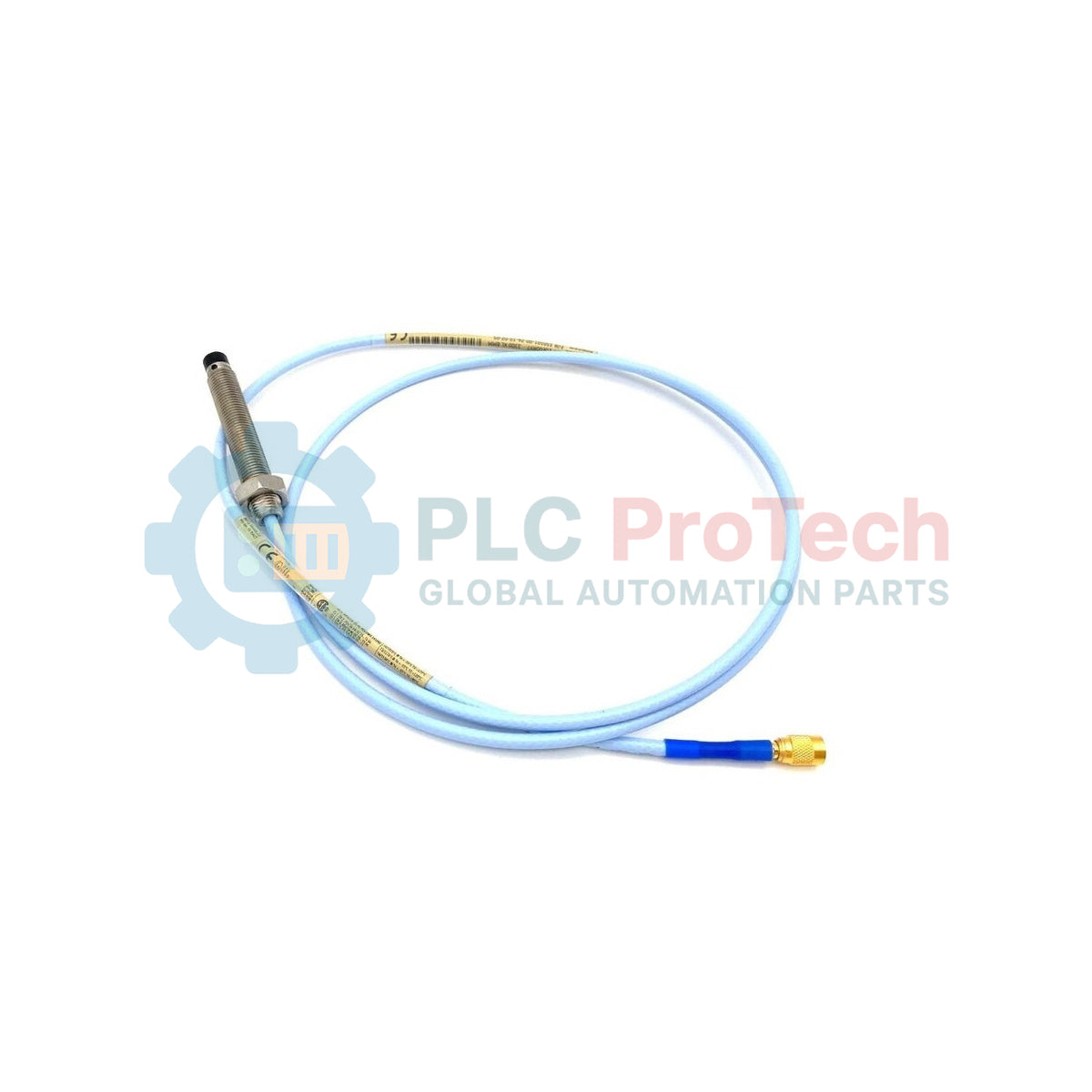

Bently Nevada 330101-00-39-15-11-CN 3300 XL Proximity Probe

Only 4 item(s) left in stock

Manufacturer: Bently Nevada
Product No.: 330101-00-39-15-11-CN
Country of origin:United States
Product Type: Proximity Probes
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months

View full details

Description

Engineered for critical machinery monitoring, the 330101-00-39-15-11-CN is a high-precision 3300 XL 8 mm proximity probe manufactured by Bently Nevada. This eddy current sensor serves as a core component of the 3300 XL Proximity Transducer System, facilitating the non-contacting measurement of radial vibration, axial position, and speed on rotating shaft machinery. Designed to withstand harsh industrial environments, this configuration features a thread-mount housing without armor, utilizing advanced materials to deliver exceptional thermal stability and electrical performance across its entire operating range.

Features

Unarmored probe body configured with a standard 3/8-24 UNF thread.
Integrated FluidLoc cable technology to prevent oil, water, or other process liquids from migrating into the cable assembly.
Miniature coaxial ClickLoc connector with pre-installed connector protector for physical defense in demanding environments.
Fully compatible with Bently Nevada 3300 XL Series Proximitor Sensors and extension cables.
Certified with international hazardous area approvals for safe deployment in explosive atmospheres.

Applications

Steam and gas turbine shaft vibration and axial position monitoring.
Centrifugal compressor and expander diagnostics.
Heavy-duty industrial pumps, fans, and gearboxes.
Hydroelectric generator shaft alignment.
Power generation and petrochemical plant machinery protection systems.

Ordering Information

Option Code Segment	Configuration Parameter	Option Description
330101	Probe Type	3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
00	Unthreaded Length	0.0 inches
39	Overall Case Length	3.9 inches
15	Total Length	1.5 meters (4.9 feet)
11	Connector and Cable Type	Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
CN	Agency Approval	ATEX/IECEx and Chinese NEPSI hazardous area marking

Technical Specifications

Manufacturer	Bently Nevada
Part Number/Model	330101-00-39-15-11-CN
Series	3300 XL 8 mm
Thread Size	3/8-24 UNF
Unthreaded Length	0.0 in
Overall Case Length	3.9 in
Total Probe Length	1.5 meters (4.9 feet)
Connector Type	Miniature coaxial ClickLoc connector
Cable Type	FluidLoc cable
Connector Protection	Connector protector included
Armor Option	Without armor
Approvals	ATEX, IECEx, NEPSI (hazardous area rated)

Installation Guidelines

Ensure the probe tip is kept clean and free from conductive metal debris during installation.
Maintain minimum clearance requirements from surrounding target metals to eliminate side-viewing cross-talk and calibration errors.
Verify proper thread engagement and apply the recommended mounting torque to prevent physical damage to the thread housing.
Inspect the ClickLoc connection to ensure it is locked into place, and secure the connector protector over the mating junction to block moisture.

Compliance and Certifications

ATEX: Certified for use in potentially explosive atmospheres.
IECEx: International certification for hazardous locations.
NEPSI: Certified for explosive environment safety regulations in China.

Model Number / Title	Condition	Availability	Action
Bently Nevada 330901-00-78-10-02-00 3300 XL NSv Proximity Probe	Original New	In Stock	View Details
Bently Nevada 330104-00-04-10-11-01 3300 XL 8 mm Proximity Probe	Original New	In Stock	View Details
Bently Nevada 330104-00-04-10-02-01 3300 XL 8 mm Proximity Probe	Original New	In Stock	View Details

Key Features:

#Bently Nevada 3300 XL #Proximity Probes

What does the 'CN' suffix indicate in the 330101-00-39-15-11-CN part number?

The 'CN' option specifies that the proximity probe is certified with ATEX, IECEx, and Chinese NEPSI approvals for safe use in hazardous and potentially explosive atmospheres.

What are the physical dimensions of this specific Bently Nevada probe?

This probe configuration features a 3/8-24 UNF thread with a 0.0-inch unthreaded length, a 3.9-inch overall case length, and a total cable length of 1.5 meters (4.9 feet).

What is the benefit of the FluidLoc cable and the ClickLoc connector protector?

The FluidLoc cable prevents oils and other liquids from migrating through the inside of the cable sheath. The ClickLoc connector protector provides a robust physical barrier that shields the miniature coaxial connection from moisture, dust, and mechanical damage.

Does this probe come with protective armor?

No, this specific configuration (330101) is designed without armor on the extension cable.
