Bently Nevada 330101-00-50-15-02-05 3300 XL 8 mm Proximity Probe

Description

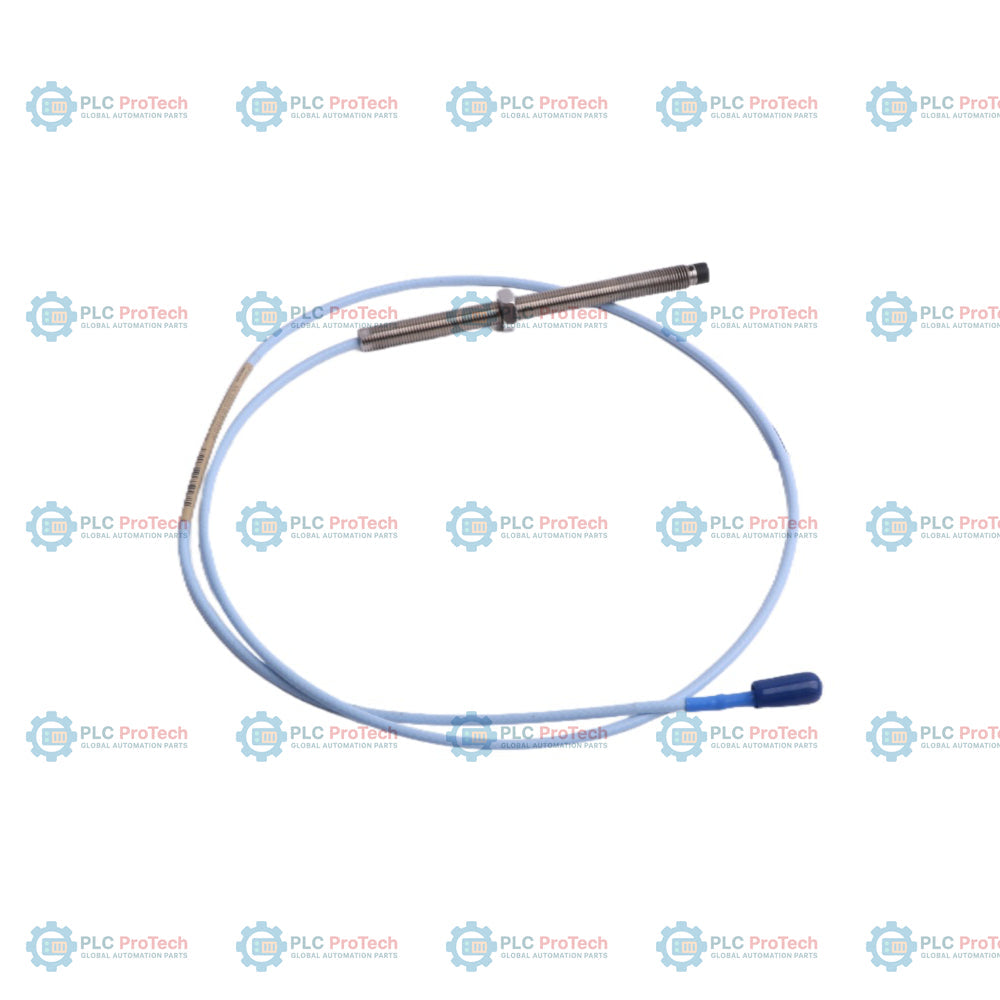

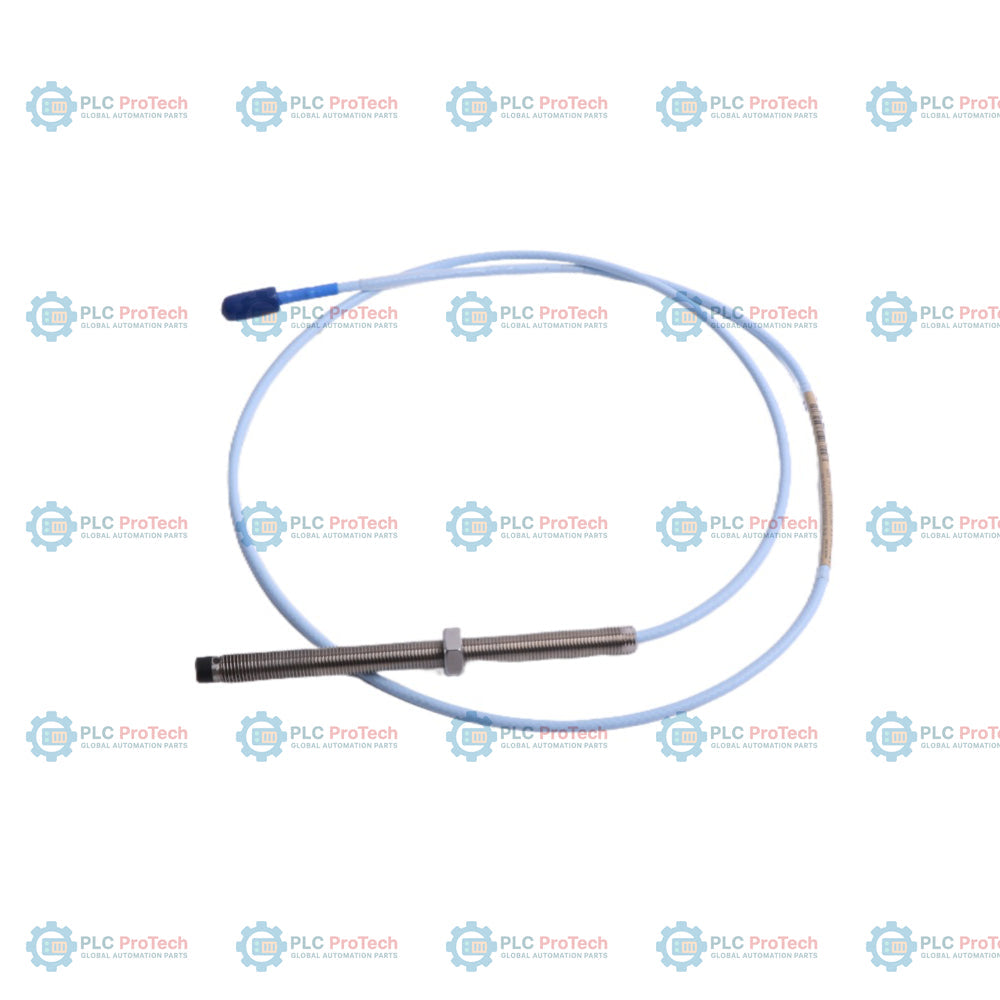

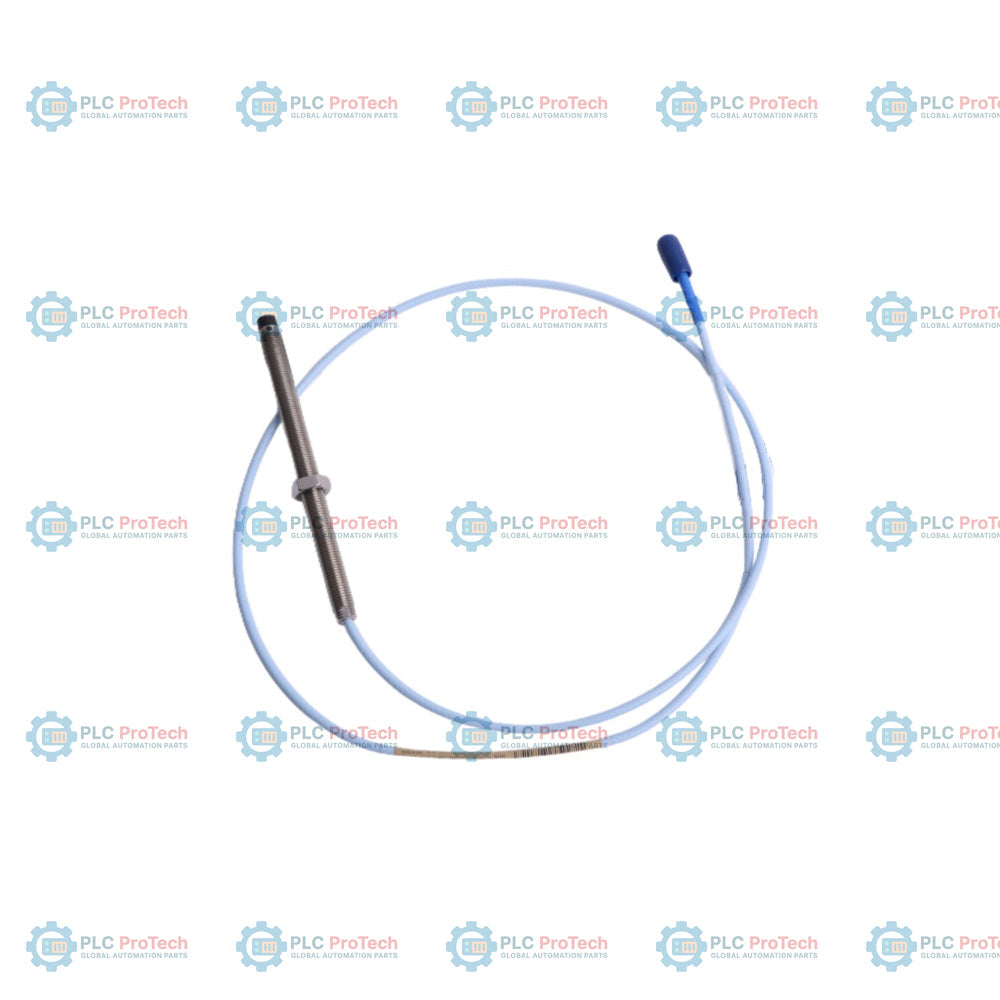

The Bently Nevada 330101-00-50-15-02-05 is a high-precision, non-contact 8 mm proximity probe belonging to the industry-standard 3300 XL series. This specific configuration is distinguished by having a completely threaded case with 0.0 inches of unthreaded length (unthreaded option 00) and an overall case length of 5.0 inches (option 50). To ensure precise signal integrity without the added weight or bulk of stainless steel armor, this probe features a 1.5-meter (4.9 feet) standard cable (option 15) terminated with a miniature coaxial ClickLoc connector (option 02). Additionally, it is certified with CSA, ATEX, and IECEx agency approvals (option 05) for hazardous locations.

This eddy-current transducer is designed to measure static shaft position and dynamic vibration on critical rotating machinery. By pairing with a compatible 3300 XL Proximitor sensor and an extension cable, it forms a complete 3300 XL monitoring chain. The probe is engineered to withstand extreme temperatures and harsh industrial fluids, making it ideal for continuous machinery protection in demanding power generation, oil and gas, and petrochemical processes.

Features

• Fully Threaded 5.0-Inch Case: Designed with zero unthreaded length (0.0 in) for versatile mounting depth adjustment inside threaded machine housings.
• Standard Non-Armored Cable: Includes a lightweight, high-temperature standard cable with a 1.5-meter total length for streamlined cable routing.
• ClickLoc Miniature Coaxial Connector: Features a gold-plated ClickLoc connector that resists vibration loosening while simplifying connections to the extension cable.
• Hazardous Area Certified: Comes pre-approved with CSA, ATEX, and IECEx ratings, ensuring safe operation in Zone 0, Zone 1, and Division 1 environments.
• Rugged Material Construction: Built with a polyphenylene sulfide (PPS) probe tip and a stainless steel body to seal against moisture and high differential pressures.

Applications

The Bently Nevada 330101-00-50-15-02-05 proximity probe is ideal for a wide range of critical machinery monitoring tasks, including:

• Radial vibration measurements in steam and gas turbine bearings.
• Thrust (axial) position monitoring for compressor and pump rotors.
• Shaft eccentricity and speed measurements on major industrial rotating machines.
• Permanently mounted machinery protection systems compliant with API 670 standards.

Ordering Information

This Bently Nevada probe is custom-ordered according to specific physical and electrical options. The table below decodes the options configured on this specific SKU:

Technical Specifications

Installation Guidelines

To ensure optimal system performance and longevity of the Bently Nevada 330101 probe, adhere to the following engineering and installation instructions:

• Thread Engagement: Maximum recommended thread engagement is 0.563 inches (14 mm) to prevent binding during installation.
• Gap Setting: Mount the probe with the appropriate physical gap (typically -9 Vdc or 1.27 mm / 50 mils) corresponding to the system calibration.
• Cable Routing: Ensure the probe cable is routed away from high-voltage wiring, and employ proper shielding and grounding techniques in accordance with standard industrial vibration monitoring practices.
• Environmental Protection: Standard probes operating below -34 degC (-30 degF) may experience a degraded pressure seal. Proper insulation or casing protection is advised in sub-zero locations.

Compliance and Certifications

The 330101-00-50-15-02-05 configuration includes the following major agency approvals:

• CSA: Class I, Div 1, Groups A, B, C, D; Class II, Div 1, Groups E, F, G; Class III
• ATEX/IECEx: Ex ia IIC T5...T1 Ga; Ex ia IIIC T90 Celsius...T280 Celsius Dc
• CE Mark: Compliant with applicable European Union directives
