Description

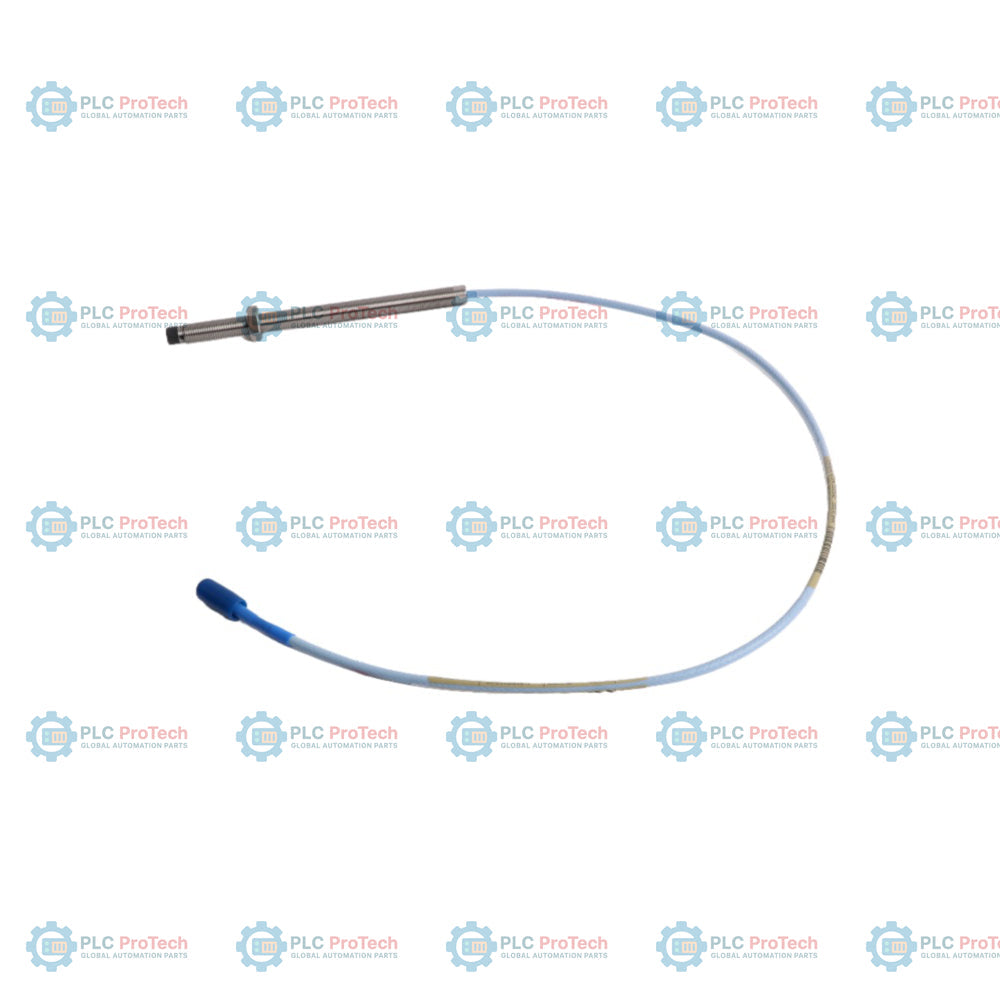

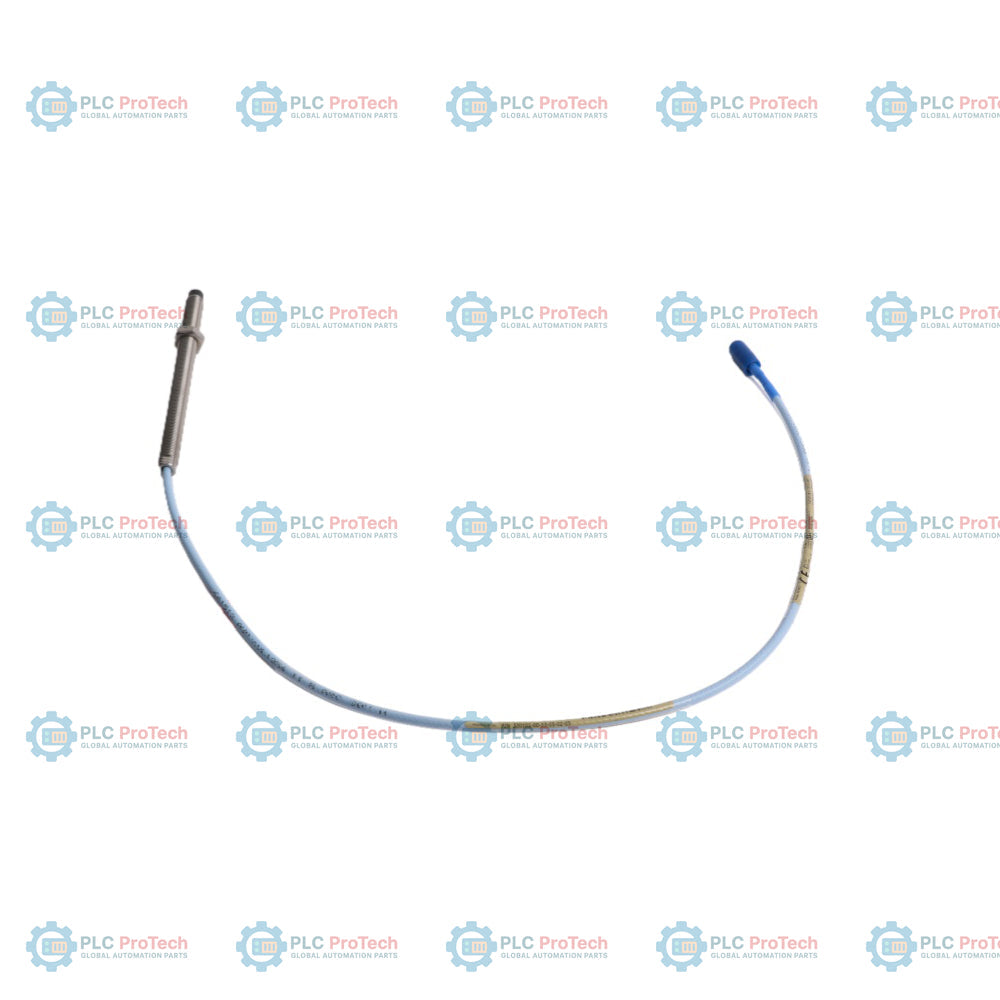

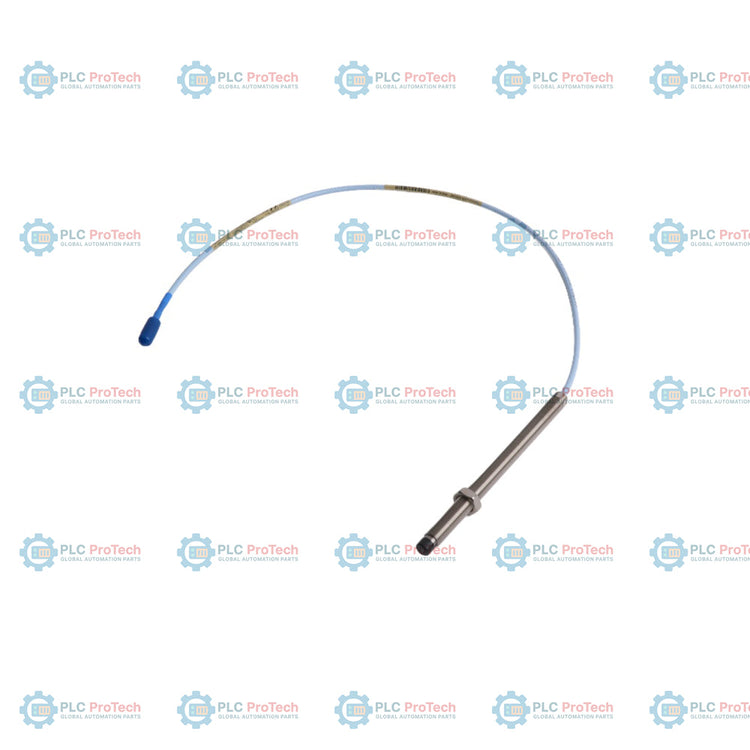

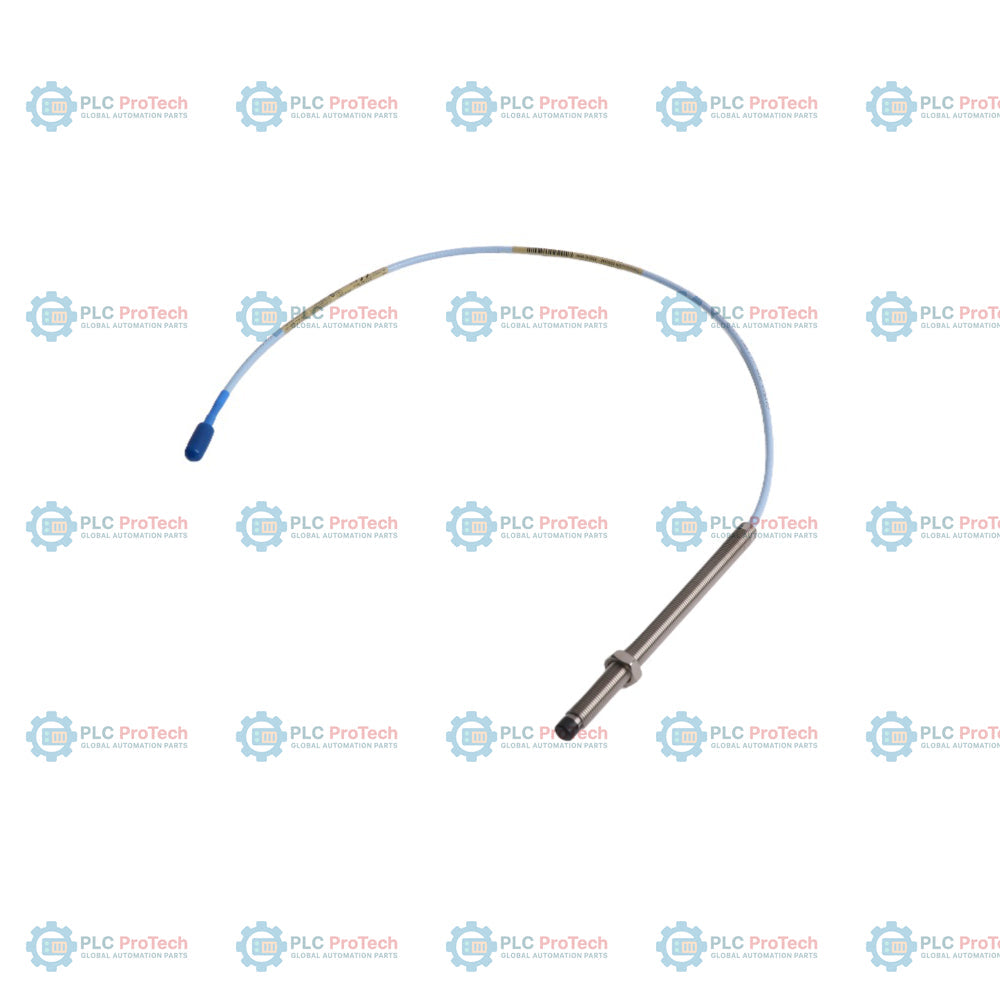

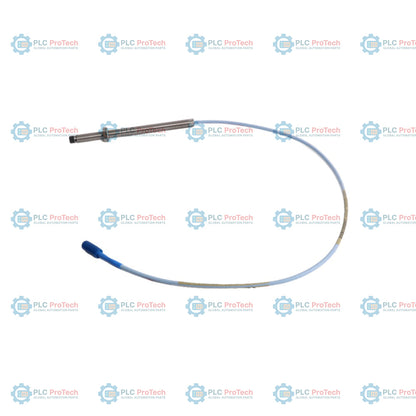

Designed for precise non-contact shaft vibration and displacement monitoring in hazardous industrial environments, the Bently Nevada 330101-00-53-10-02-05 serves as a high-performance proximity probe within the 3300 XL 8 mm transducer family. This specific configuration features a fully threaded 5.3-inch overall case with 0.0 inches of unthreaded length, providing robust mechanical mounting depth directly into bearing housings or machinery casings. Equipped with a 1.0-meter standard coaxial cable terminated with a miniature coaxial ClickLoc connector, it interfaces seamlessly with standard 3300 XL extension cables and Proximitor sensors (such as the 330180 series). This variant comes with option 05 agency approvals, providing complete ATEX, CSA, and IECEx certifications for permanent installation in explosive gas or dust environments without needing heavy-duty protective conduit armor.

Features

• 8 mm Probe Tip: Employs a high-performance eddy-current sensor tip optimized for non-contact shaft vibration and dynamic position measurements.
• Fully Threaded Body: Features a 3/8-24 UNF-2A thread with a 5.3-inch overall case length and 0.0 inches of unthreaded length for versatile, deep-mount applications.
• Standard Coaxial Cable: Integrated 1.0-meter standard cable provides clean signal transmission to the junction box or extension cable connection.
• ClickLoc Connector: Pre-terminated with a miniature coaxial ClickLoc connector, ensuring a secure and moisture-resistant mechanical connection.
• Explosive Area Certification: Pre-approved with CSA, ATEX, and IECEx hazardous location approvals for critical rotating machinery protection in zoned areas.
• Unarmored Design: Offers direct-run installation flexibility in routed cable trays or conduit pathways where flexible metal armor is not required.

Applications

This proximity probe configuration is widely used across heavy industries, including power generation, oil and gas, petrochemicals, water treatment, and mining. Typical application scenarios include:

• Radial shaft vibration and dynamic position monitoring in steam and gas turbines.
• Axial shaft displacement and thrust position measurements in high-speed compressors.
• Rotor and bearing housing displacement detection in critical process pumps.
• Differential expansion and thermal growth tracking in large industrial motors and generators.

Ordering Information

The 330101-00-53-10-02-05 is a multi-segment orderable part number. Below is the detailed configuration breakdown decoded from the official Bently Nevada 3300 XL 8 mm Proximity Transducer System specifications:

Technical Specifications

Installation Guidelines

To ensure precise vibration monitoring and prolong the lifetime of the proximity probe, the following installation guidelines must be followed:

• Probe Gap Calibration: Mount the probe with the appropriate physical gap between the probe tip and the target shaft according to system calibration specifications (typically 1.27 mm or 50 mils for standard 3300 XL systems).
• Threading and Torque: Thread the 3/8-24 UNF body into the mounting bracket or machine housing. Ensure the probe is locked securely with locknuts to prevent loosening due to machinery vibration. Do not exceed maximum torque limits for the 8 mm body.
• Cable Routing: Route the 1.0-meter standard coaxial cable away from high-voltage machinery lines to prevent electromagnetic interference. Maintain appropriate bend radii for standard coaxial cable runs.
• Shielding and Grounding: Ensure proper shielding and grounding practices are executed at the connection junction where the probe cable links to the extension cable and Proximitor sensor.
• Hazardous Areas: Ensure the installation complies with local electrical codes and barriers as required by its CSA, ATEX, and IECEx hazardous area markings.

Compliance and Certifications

The 330101-00-53-10-02-05 configuration complies with global standards for safety and industrial reliability in potentially explosive atmospheres:

• CSA: Approved for hazardous locations and industrial electrical safety in North America.
• ATEX: Certified for use in potentially explosive atmospheres within Europe.
• IECEx: Certified under international standards for explosive dust and gas atmospheres.
