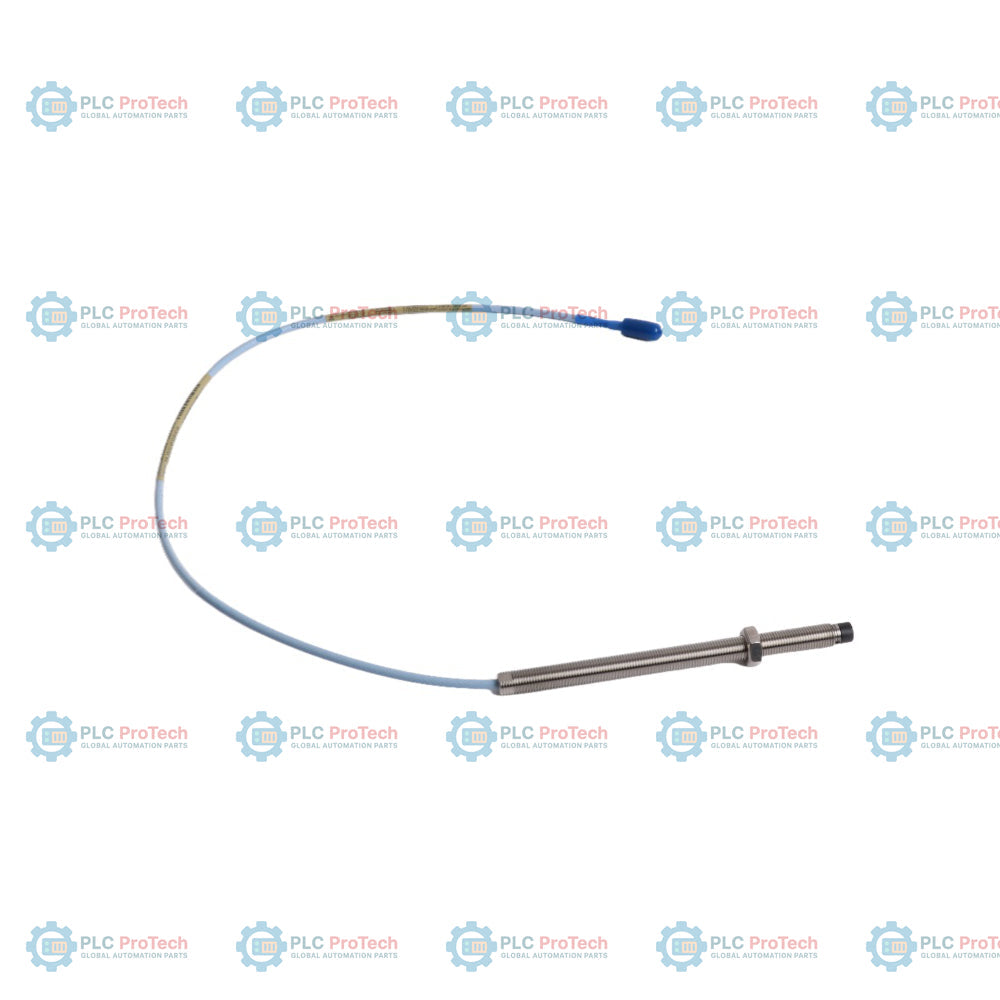

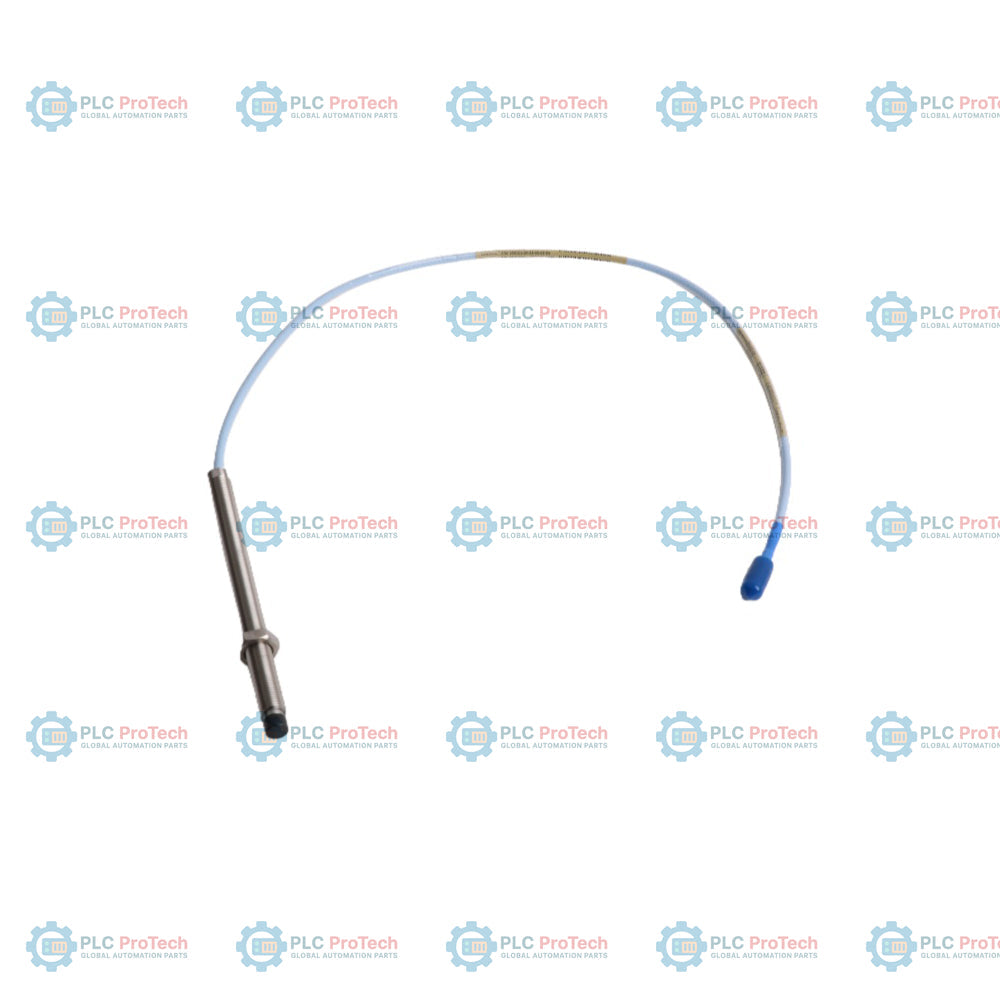

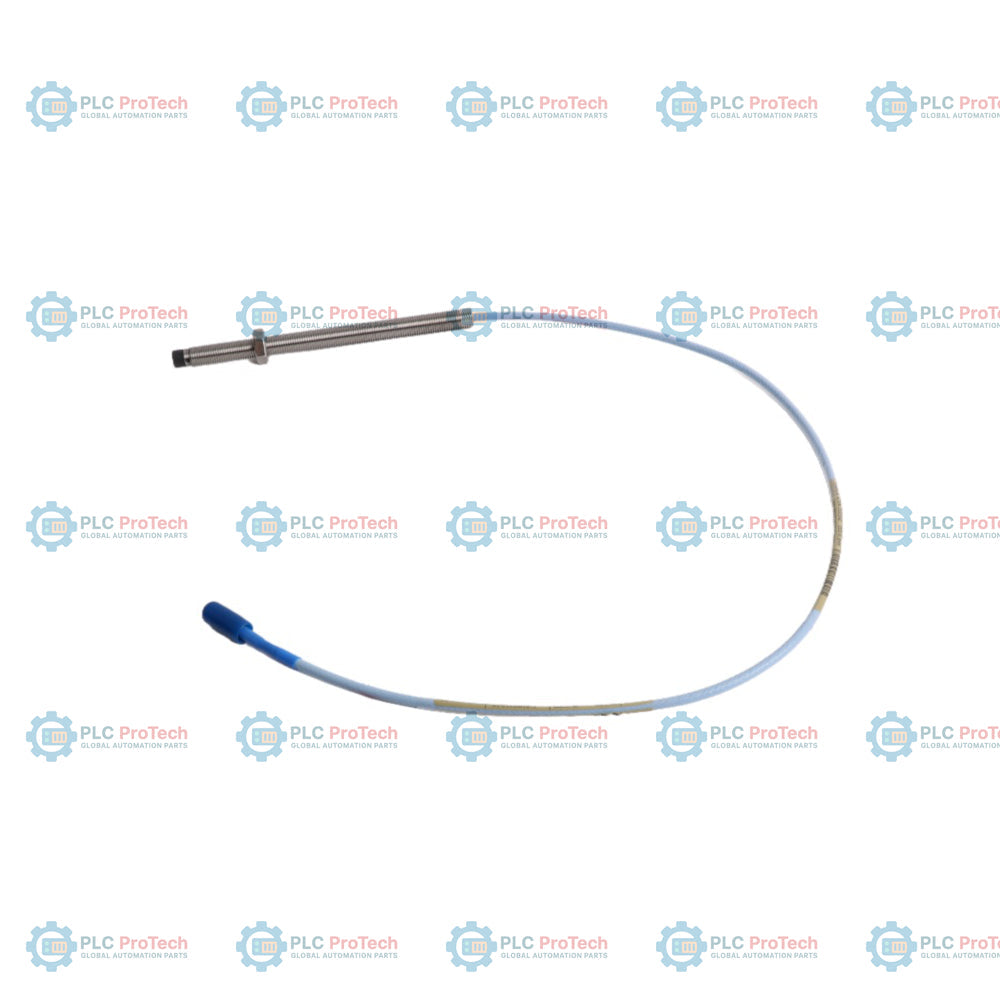

The Bently Nevada 330101-00-57-10-02-05 is a high-precision, non-contact 8 mm Proximity Probe belonging to the industry-standard 3300 XL machinery protection series. This specific configuration features a fully threaded 5.7-inch (145 mm) stainless steel case with no unthreaded portion (0.0-inch unthreaded length), enabling maximum depth adjustability during installation. Designed to be coupled with a 3300 XL extension cable and Proximitor sensor, this 1.0-meter probe plays a critical role in non-contact vibration and shaft position measurements. It is engineered without mechanical armor protection and incorporates a standard ClickLoc coaxial connector. With option 05 agency approval, this proximity probe complies with ATEX, IECEx, and CSA standards for use in explosive and hazardous industrial environments.
| Option / Segment | Code on This SKU | Meaning / Description |
|---|---|---|
| Base Model | 330101 | 3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread, without armor |
| A - Unthreaded Length Option | 00 | 0.0 in (0 mm) unthreaded length (fully threaded case) |
| B - Overall Case Length Option | 57 | 5.7 in (145 mm) case length (ordered in increments of 0.1 in) |
| C - Total Length Option | 10 | 1.0 meter (3.3 feet) total cable length |
| D - Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval Option | 05 | CSA, ATEX, IECEx Approvals (for hazardous locations) |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number / Model | 330101-00-57-10-02-05 |
| Measurement Type | Displacement (proximity) |
| Operating Principle | Eddy current |
| Probe Tip Diameter | 8 mm |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel (SST) |
| Thread Size | 3/8-24 UNF-2A |
| Unthreaded Length | 0.0 in (0 mm) |
| Overall Case Length | 5.7 in (145 mm) |
| Total Probe Length | 1.0 meter (3.3 feet) |
| Connector Type | Gold-plated miniature coaxial ClickLoc connector |
| Cable Type | 75 ohm triaxial, FEP insulated standard probe cable |
| Operating Temperature Range | -52 to +177 Celsius (-62 to +350 Fahrenheit) |
| Linear Range | 2.0 mm (80 mils), starting at 0.25 mm (10 mils) to 2.3 mm (90 mils) |
| System Scale Factor | 7.87 V/mm (200 mV/mil) when paired with matching 3300 XL components |
| Calibration Target | AISI 4140 steel (standard target) |
| Tensile Strength | 330 N (75 lbf) probe case to probe lead; 270 N (60 lbf) at connectors |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Dimensions | 45 mm x 95 mm x 95 mm (H x W x D) |
| Weight | 0.14 kg |
Proper installation of the proximity probe is critical to system performance and accuracy. Mount the probe securely in its bracket or bearing casing, ensuring the probe gap is set to the correct operating voltage (typically -9 Vdc or approximately 1.27 mm / 50 mils for radial vibration applications). Do not exceed the maximum rated thread torque of 33.9 N-m (300 in-lbf) during installation; the recommended mounting torque is 11.2 N-m (100 in-lbf) to prevent casing damage. Ensure that the gold ClickLoc connectors are connected finger-tight. Observe the minimum cable bend radius of 25.4 mm (1.0 in) during cable routing. Ground and shield all cables appropriately per Bently Nevada installation standard practices to avoid electromagnetic interference.
This product configuration (Option 05) complies with major international safety standards for hazardous area use. Verified certifications include:
