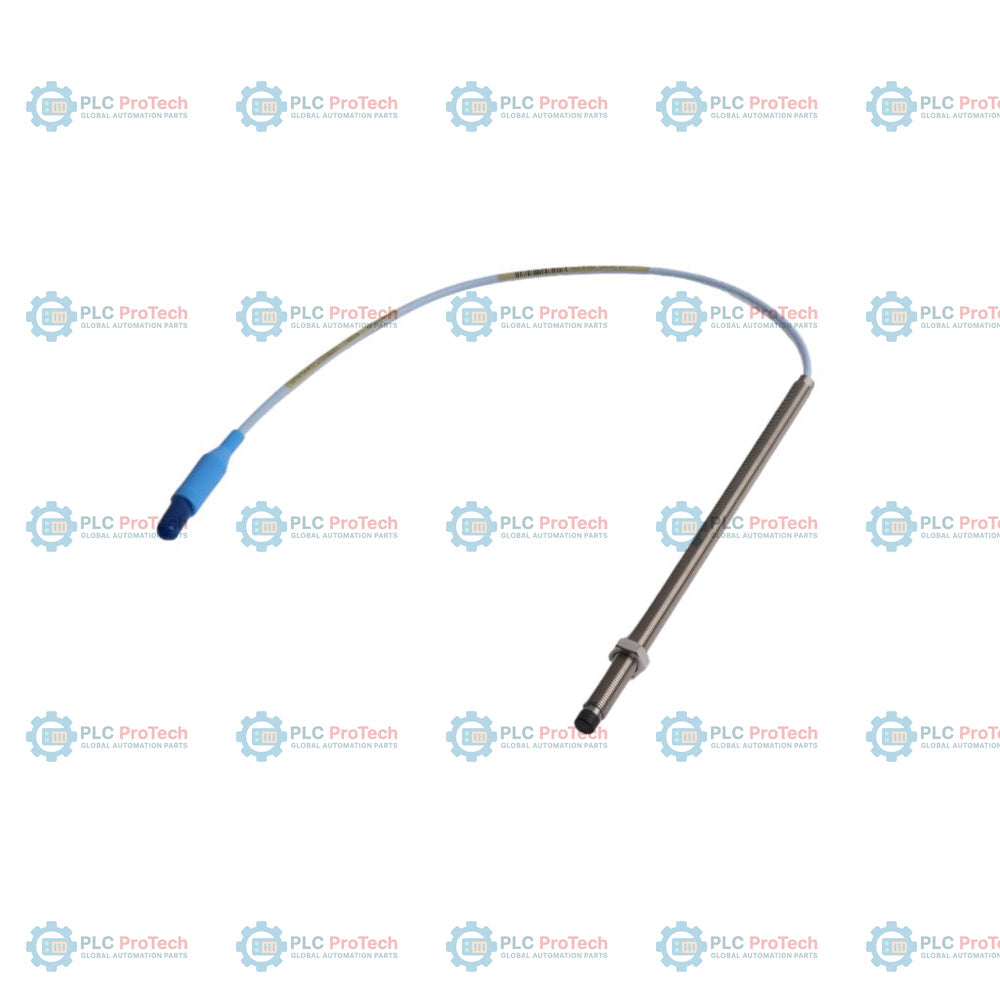

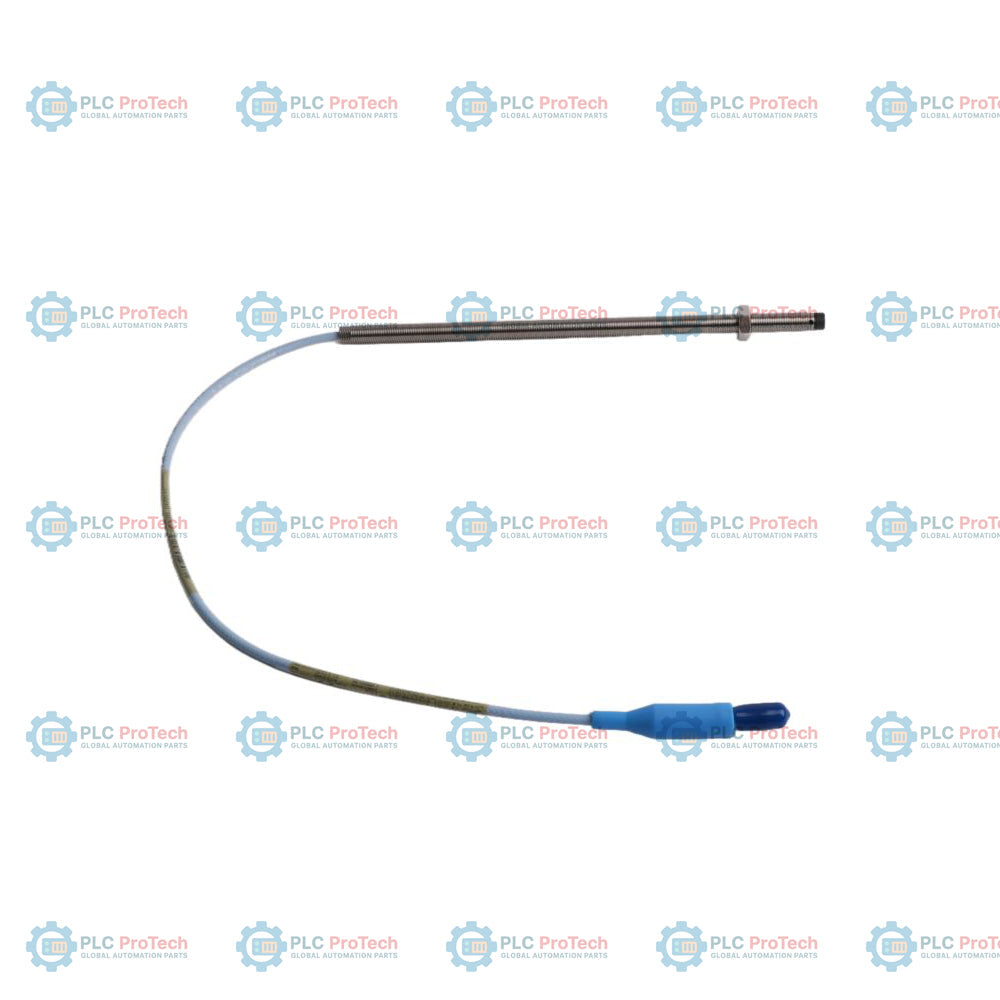

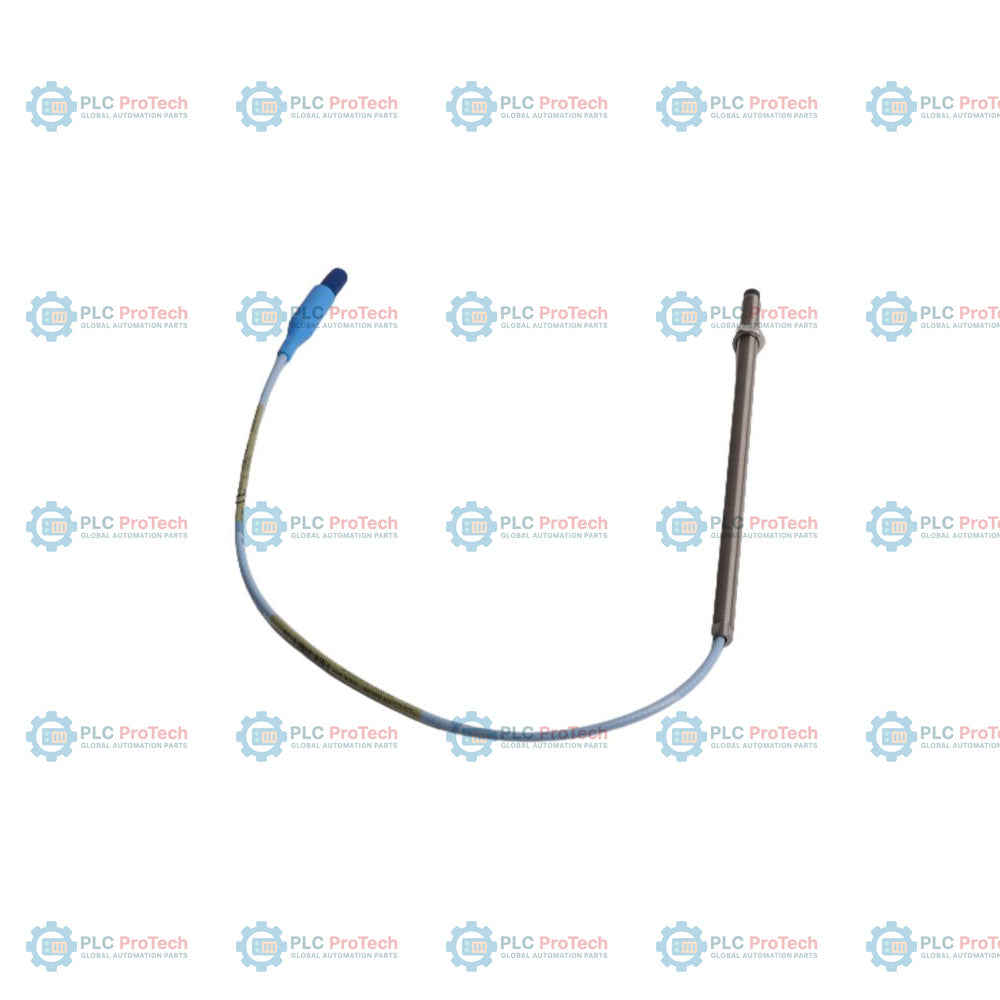

Bently Nevada 330101-00-88-10-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-88-10-02-05 3300 XL 8 mm Proximity Probe

Only 7 item(s) left in stock

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-88-10-02-05

  • Country of origin:United States

  • Product Type: 3300 XL 8 mm Proximity Probe

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 140g

  • Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

The 330101-00-88-10-02-05 is a 3300 XL 8 mm proximity probe configuration designed for non-contact eddy-current displacement measurement in rotating machinery. This specific unit features a 3/8-24 UNF threaded 8 mm probe body with a 0.0 inch unthreaded length (Option 00) and an 8.8 inch case length (Option 88), providing a precise physical fit for diverse mounting requirements.

As part of the 3300 XL 8 mm transducer system, this probe operates in conjunction with a 3300 XL Proximitor sensor and an extension cable to form a complete monitoring chain. This configuration includes a 1.0 meter total system length (Option 10) and uses a standard miniature coaxial ClickLoc connector (Option 02) without a connector protector. It is rated for use in hazardous locations, carrying CSA, ATEX, and IECEx agency approvals (Option 05).

Features

  • 3/8-24 UNF thread, 8 mm probe diameter, unarmored
  • 0.0 in (0 mm) unthreaded length (Option 00)
  • 8.8 in (223.5 mm) case length (Option 88)
  • 1.0 m (3.3 ft) system length (Option 10)
  • Miniature coaxial ClickLoc connector, standard cable (Option 02)
  • CSA, ATEX, IECEx hazardous area approvals (Option 05)
  • Compatible with standard 3300 XL Proximitor sensors and extension cables

Applications

  • Shaft vibration and axial position measurement
  • Critical rotating machinery protection (turbines, compressors, pumps, motors)
  • Hazardous environment monitoring applications
  • Replacement or expansion of existing 3300 XL 8 mm monitoring chains

Ordering Information

Option Code on This SKU Description
Orderable Part Number 330101-00-88-10-02-05 3300 XL 8 mm Proximity Probe
A - Unthreaded Length 00 0.0 in
B - Case Length 88 8.8 in
C - Total Length 10 1.0 m
D - Connector/Cable 02 Miniature coaxial ClickLoc, standard cable
E - Agency Approval 05 CSA, ATEX, IECEx Approvals

Technical Specifications

Manufacturer Bently Nevada (Baker Hughes)
Part Number 330101-00-88-10-02-05
Probe Diameter 8 mm
Thread Size 3/8-24 UNF
Case Length 8.8 in
System Length 1.0 m
Connector Type Miniature coaxial ClickLoc
Cable Type Standard
Agency Approvals CSA, ATEX, IECEx

Installation Guidelines

Ensure the probe is gapped according to the requirements of the specific 3300 XL Proximitor sensor calibration (typically -200 mV/mil). Use only Bently Nevada-approved mounting hardware and ensure the probe body is electrically isolated if required by the application. Maintain a clear installation path for the coaxial cable and secure it to prevent abrasion or fatigue. Ensure proper mating of ClickLoc connectors until the locking mechanism is engaged.

Loading product navigation…

RECOMMENDED RELATED MODELS

Product Image Model Number / Title Condition Availability Action
330901-00-78-10-02-00 Bently Nevada 330901-00-78-10-02-00 3300 XL NSv Proximity Probe Original New In Stock View Details
330104-00-04-10-11-01 Bently Nevada 330104-00-04-10-11-01 3300 XL 8 mm Proximity Probe Original New In Stock View Details
330104-00-04-10-02-01 Bently Nevada 330104-00-04-10-02-01 3300 XL 8 mm Proximity Probe Original New In Stock View Details
Key Features:
#Bently Nevada 3300 XL #Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330101-00-88-10-02-05 3300 XL 8 mm Proximity Probe

Download Open in new tab

What does the 00 option mean for the unthreaded length?
The 00 option code indicates an unthreaded length of 0.0 inches, meaning the probe threading extends to the very base of the probe case.

Is this probe armored?
No, this specific configuration (330101) is the unarmored version of the 3300 XL 8 mm proximity probe.

What does the 05 approval option include?
The 05 option indicates that the probe is certified for use in hazardous areas under CSA, ATEX, and IECEx standards.

Can I use this probe with a 5 meter Proximitor sensor?
No, this probe has a 1.0 meter length (Option 10) and is designed specifically for use with a 1.0 meter total system length (1.0 meter probe + 4.0 meter extension cable = 5.0 meter system). Probes must be matched to the corresponding Proximitor sensor length.
