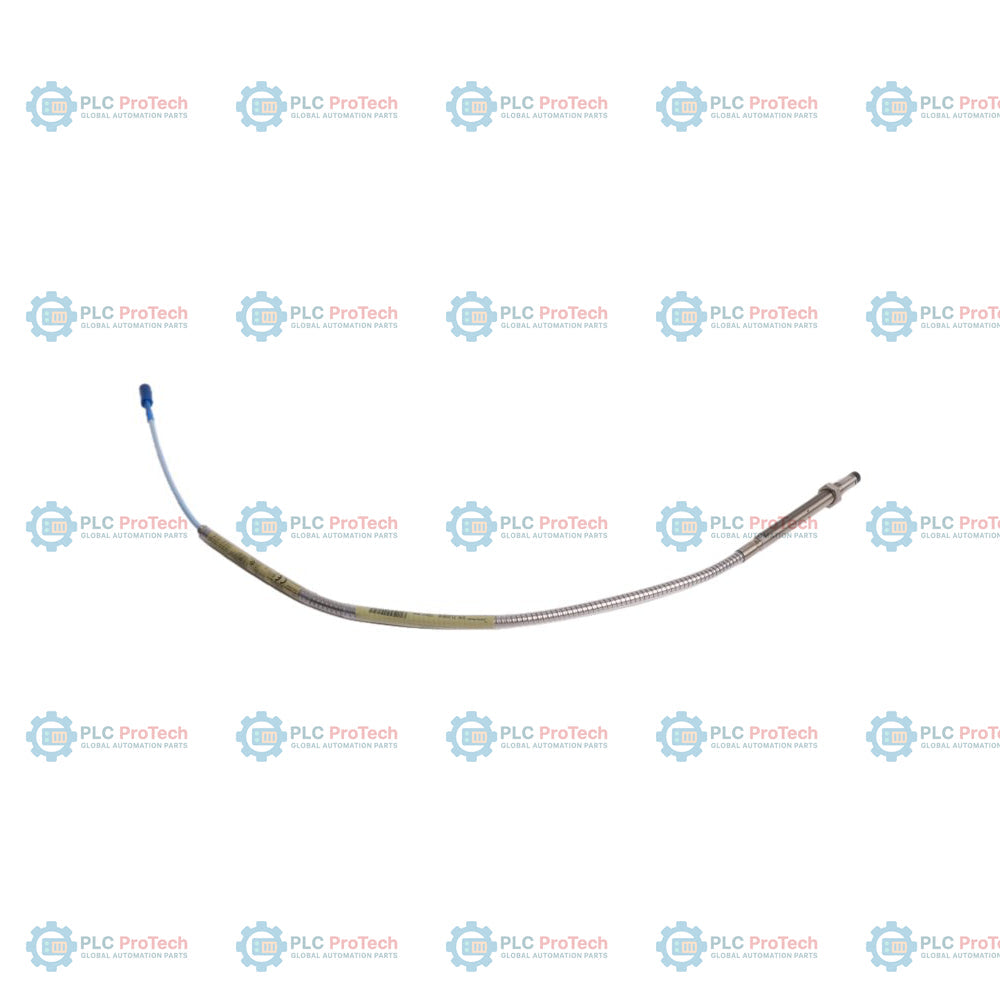

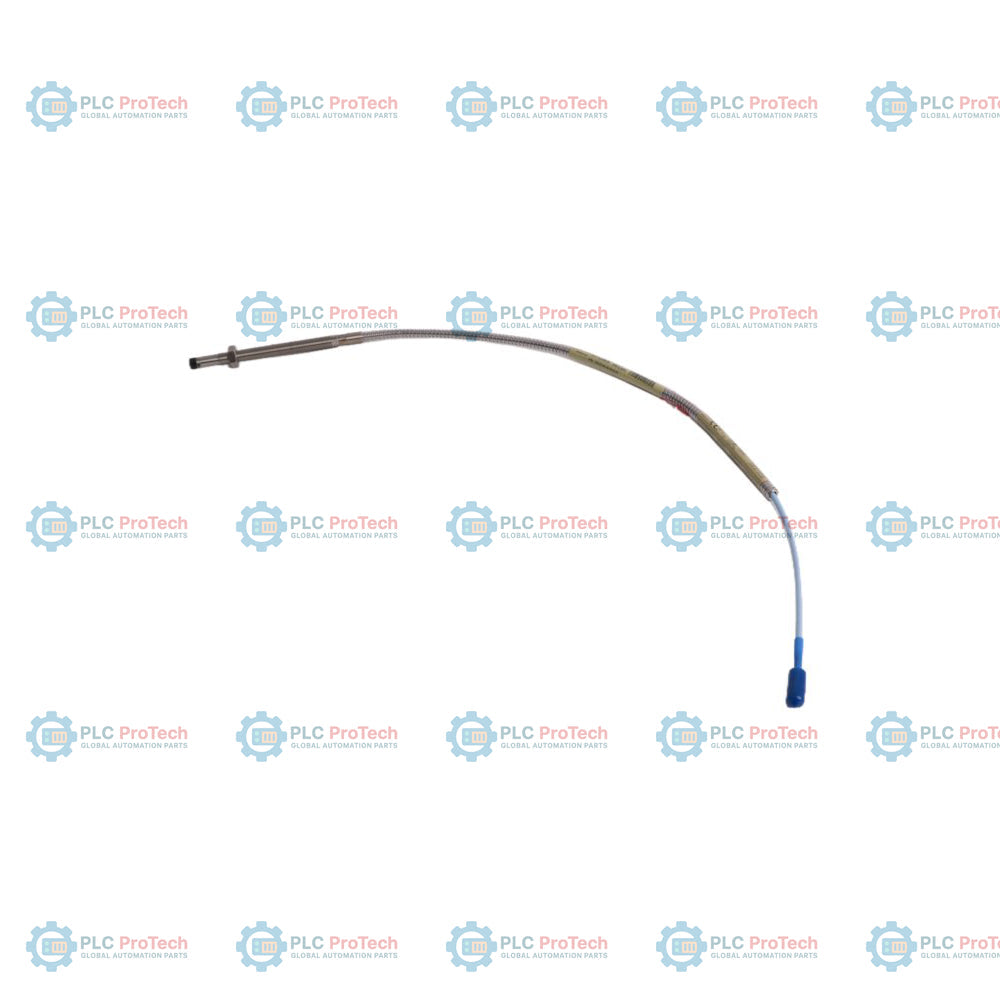

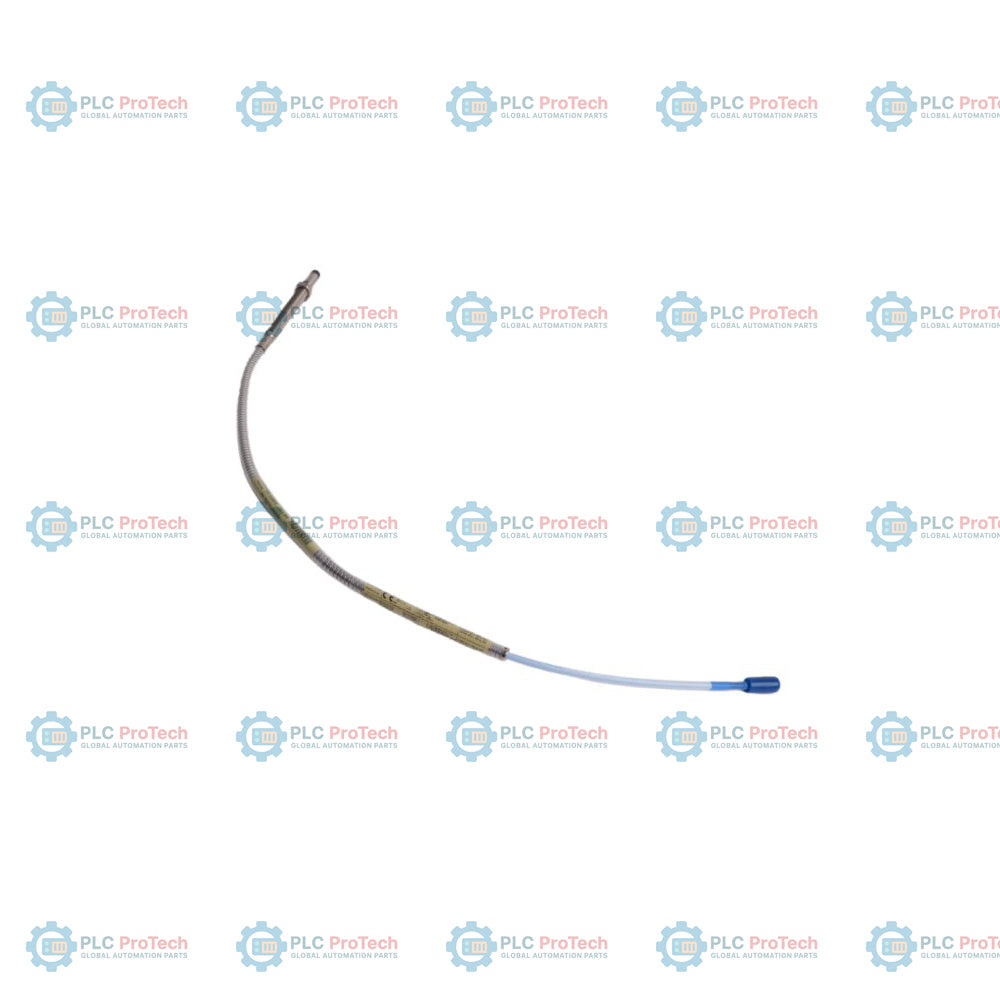

Option 05 (0.5 inches unthreaded length) and Option 40 (4.0 inches overall case length) specify the physical body dimensions of this 3300 XL 8 mm probe configuration — 330102-05-40-05-02-05. This 3300 XL 8 mm proximity probe features integrated stainless steel armor protection (330102 base model) to shield the transmission lead from harsh operational wear. It is configured with a 0.5-meter (1.6 feet) total probe length (Option 05), terminates in a miniature coaxial ClickLoc connector with a standard cable and no connector protector (Option 02), and includes the Option 05 agency approval package for CSA, ATEX, and IECEx hazardous area certifications.
Unlike standard non-armored models in the same family, this variant includes a flexible stainless steel armor jacket over the FEP coaxial lead. It functions as a non-contacting eddy-current transducer within the wider 3300 XL 8 mm Transducer System, producing a continuous voltage proportional to the distance between the sensor tip and a target shaft. The system is calibrated for a standard AISI 4140 steel target and is interchangeable with corresponding 3300 XL series components without requiring manual field calibration.
This proximity probe is used for heavy-industry machinery protection in power plants, oil and gas platforms, petrochemical refineries, and mining facilities. Common monitoring tasks include:
| Option Segment | Code Value | Meaning / Configuration Detail |
|---|---|---|
| Orderable Part Number | 330102-05-40-05-02-05 | 3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread, with armor |
| A: Unthreaded Length Option | 05 | 0.5 inches (13 mm) unthreaded length |
| B: Overall Case Length Option | 40 | 4.0 inches (102 mm) overall case length |
| C: Total Length Option | 05 | 0.5 meters (1.6 feet) total probe length |
| D: Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E: Agency Approval Option | 05 | CSA, ATEX, and IECEx approvals |
| Category | Parameter | Value |
|---|---|---|
| Identification | Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330102-05-40-05-02-05 | |
| Electrical | System Input Compatibility | Pairs with standard 3300 XL 8 mm Proximitor sensor and extension cable |
| Nominal Probe DC Resistance | 7.45 ohm +/- 0.50 ohm (center conductor to outer conductor) | |
| Output Impedance | 50 ohm | |
| Linear Range | 2.0 mm (80 mils) starting at 0.25 mm (10 mils) | |
| Mechanical | Probe Tip Diameter | 8.0 mm (0.31 in) |
| Case Thread | 3/8-24 UNF-2A | |
| Cable Type | 75 ohm triaxial FEP-insulated coaxial cable | |
| Armor Material | Flexible AISI 302 or 304 stainless steel with FEP outer jacket | |
| Tip Material | Polyphenylene sulfide (PPS) | |
| Dimensions | 150 mm x 150 mm x 30 mm (H x W x D) | |
| Weight | 0.16 kg (160 g) | |
| Environmental | Operating Temperature Range | -52 degC to +177 degC (-62 degF to +350 degF) |
| Humidity Resistance | Less than 3% Average Scale Factor (ASF) change under 93% humidity (per IEC 68-2-3) | |
| Pressure Sealing | Viton O-ring dynamic fluid/gas pressure seal |
To establish correct installation and signal performance, follow these guidelines:
This 330102-05-40-05-02-05 configuration complies with global standards for explosive atmospheres under the Option 05 package:
