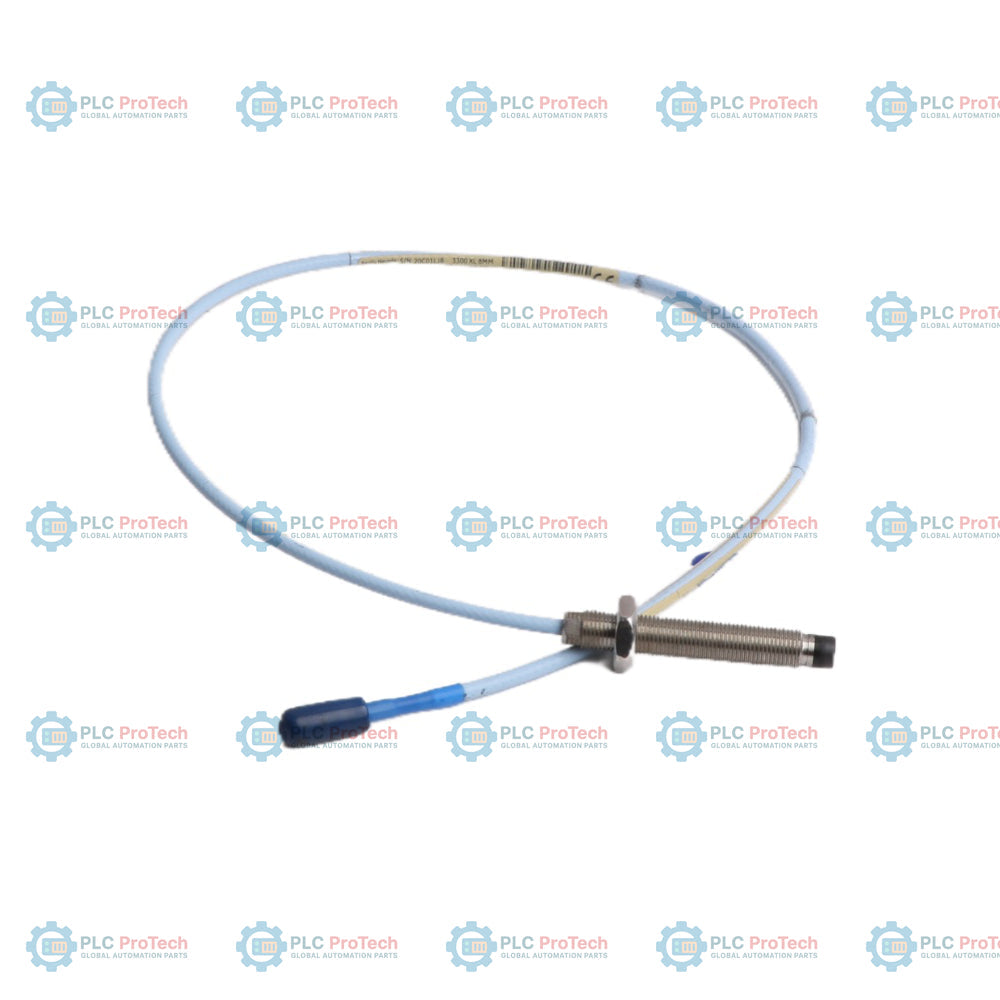

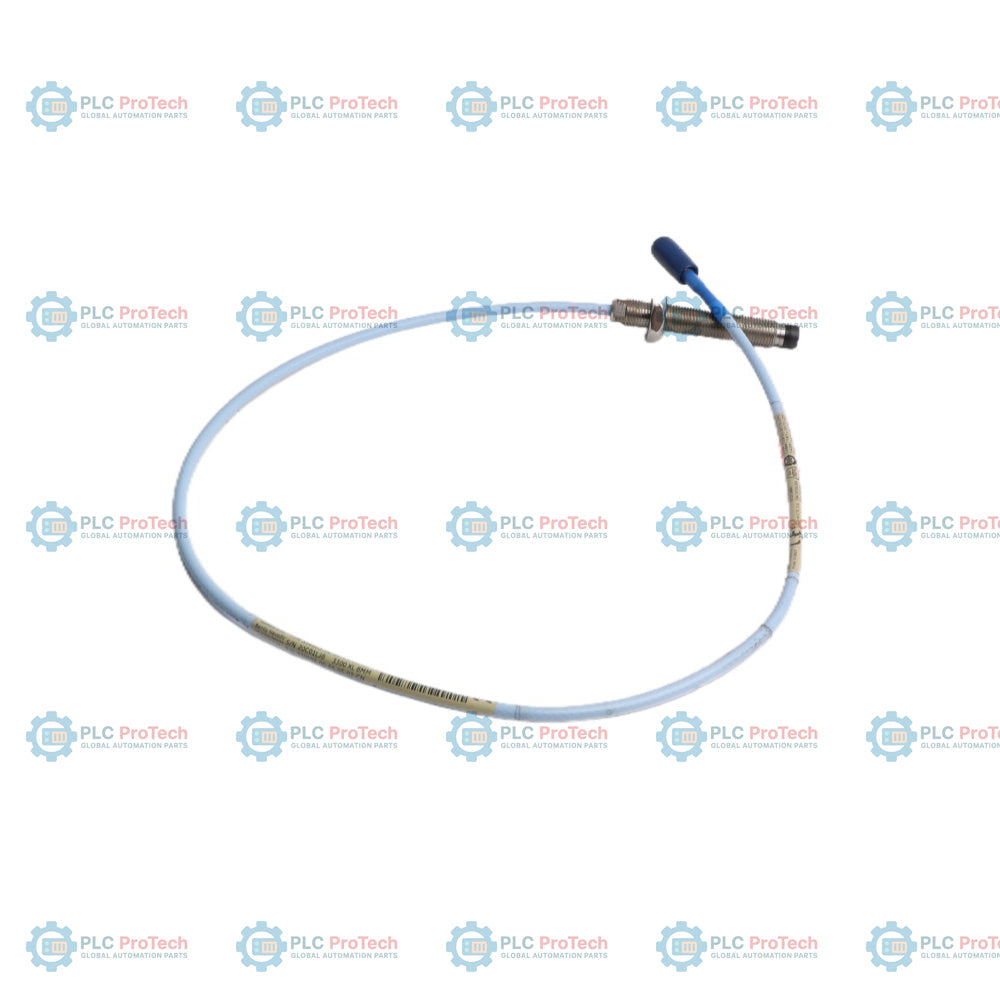

Bently Nevada 330103-00-06-05-12-05 3300 XL 8 mm Proximity Probe

SKU 330103-00-06-05-12-05

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330103-00-06-05-12-05
Origin United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.05 kg
Dimensions: 11 mm x 11 mm x 60 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Fully threaded M10 x 1 metric steel probe body (Option 00) with a 60 mm overall case length (Option 06) and 0.5 m FluidLoc cable (Option 05) featuring a ClickLoc connector (Option 12) defines this 330103-00-06-05-12-05 3300 XL 8 mm proximity probe.

Option 12 specifies a FluidLoc cable without armor, which blocks fluid leakage along the cable interior when deployed inside pressurized machinery casings. The M10 x 1 metric thread mounts directly into tapped machinery housings. Option 05 designates CSA, ATEX, and IECEx approvals for hazardous areas.

Features

M10 x 1 Threaded Case: Standard metric thread interface (without armor) for direct mounting in tapped holes.
FluidLoc Cable Option: Cable design blocks oil or other fluids from leaking out of the machine casing through the cable interior.
0.5-Meter Length: Short-lead configuration optimized for compact enclosures or immediate connections to an extension cable.
0 mm Unthreaded Length: Fully threaded body style allowing maximum adjustment range within the mounting bracket or machine casing.
CSA/ATEX/IECEx Certified: Approved for hazardous environments under standard international directives.
Gold-Plated ClickLoc Connector: Miniature coaxial connector with gold plating for signal transmission integrity.

Applications

Fluid-film bearing machine vibration monitoring
Radial shaft vibration and axial rotor position measurements
Turbine, compressor, pump, and gearbox shaft motion analysis
Speed and Keyphasor reference measurements in industrial rotating machinery

Ordering Information

Option / Segment	Code on This SKU	Description
Orderable Part Number	330103-00-06-05-12-05	3300 XL 8 mm proximity probe, M10 x 1 thread, without armor
A - Unthreaded Length Option	00	0 mm unthreaded length (fully threaded case)
B - Overall Case Length Option	06	60 mm overall case length
C - Total Length Option	05	0.5 meter (1.6 feet) total length
D - Connector and Cable-Type Option	12	Miniature coaxial ClickLoc connector, FluidLoc cable (no connector protector)
E - Agency Approval Option	05	CSA, ATEX, and IECEx Approvals

Technical Specifications

Parameter	Specification Value
Manufacturer	Bently Nevada
Model / Part Number	330103-00-06-05-12-05
Transducer System	3300 XL 8 mm Proximity Transducer System
Thread Size	M10 x 1 (metric)
Armor Option	Without armor
Case Length	60 mm
Unthreaded Length	0 mm
Total Probe Length	0.5 meter (1.6 feet)
Cable Type	75 Ohm triaxial, FluidLoc insulated probe cable
Connector Type	Miniature coaxial ClickLoc connector
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Nominal DC Resistance	7.45 Ohm +/- 0.50 Ohm (center conductor to outer conductor)
Tensile Strength	330 N (75 lbf) probe case to probe lead; 270 N (60 lbf) lead to connectors
Minimum Bend Radius	25.4 mm (1.0 in)
Operating Temperature Range	-52 degC to +177 degC (-62 degF to +350 degF)
Pressure Seal Rating	Designed to seal differential pressure between tip and connector
Dimensions	11 mm x 11 mm x 60 mm (H x W x D)
Weight	0.05 kg

Connections and Interfaces

Connection Interface	Pin / Conductor	Function
ClickLoc Coaxial Connector	Center Conductor	Signal Input/Output
ClickLoc Coaxial Connector	Outer Conductor	Shield / Common Return

Installation Guidelines

Ensure the probe tip has at least 20 mm clearance from adjacent metal to prevent cross-talk and side-loading errors.
Clean and inspect the tapped M10 x 1 mounting hole before threading the probe to prevent thread binding.
Thread engagement should not exceed 15 mm to prevent mechanical interference.
Tighten the probe case to the recommended torque of 7.5 N-m (66 in-lbf).
Maintain a minimum cable bend radius of 25.4 mm (1.0 in) for both probe cable and extension cable routing.
Ensure the ClickLoc connector is finger-tight during final assembly.

Compliance and Certifications

This proximity probe is certified under option code 05 for use in hazardous areas. Approved standards include:

CSA: Class I, Division 1, Groups A, B, C, and D
ATEX: Zone 0/1/2, Ex ia IIC Ga/Gb
IECEx: Zone 0/1/2, Ex ia IIC Ga/Gb

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What does the FluidLoc cable option specify for this proximity probe?

The FluidLoc cable (Option 12) prevents oil, moisture, or other process fluids from leaking out of the machine housing through the internal spaces of the probe cable, which is critical for pressurized machine installations.

What is the physical thread configuration of the probe?

This probe has an M10 x 1 metric thread (330103 base model) with a 60 mm overall case length (Option 06) and 0 mm unthreaded length (Option 00), meaning the probe body is fully threaded.

Which system components are compatible with this probe?

The probe pairs with a 3300 XL standard extension cable and a 3300 XL 5-meter Proximitor sensor. It requires standard -18 Vdc to -26 Vdc system power for operation.
