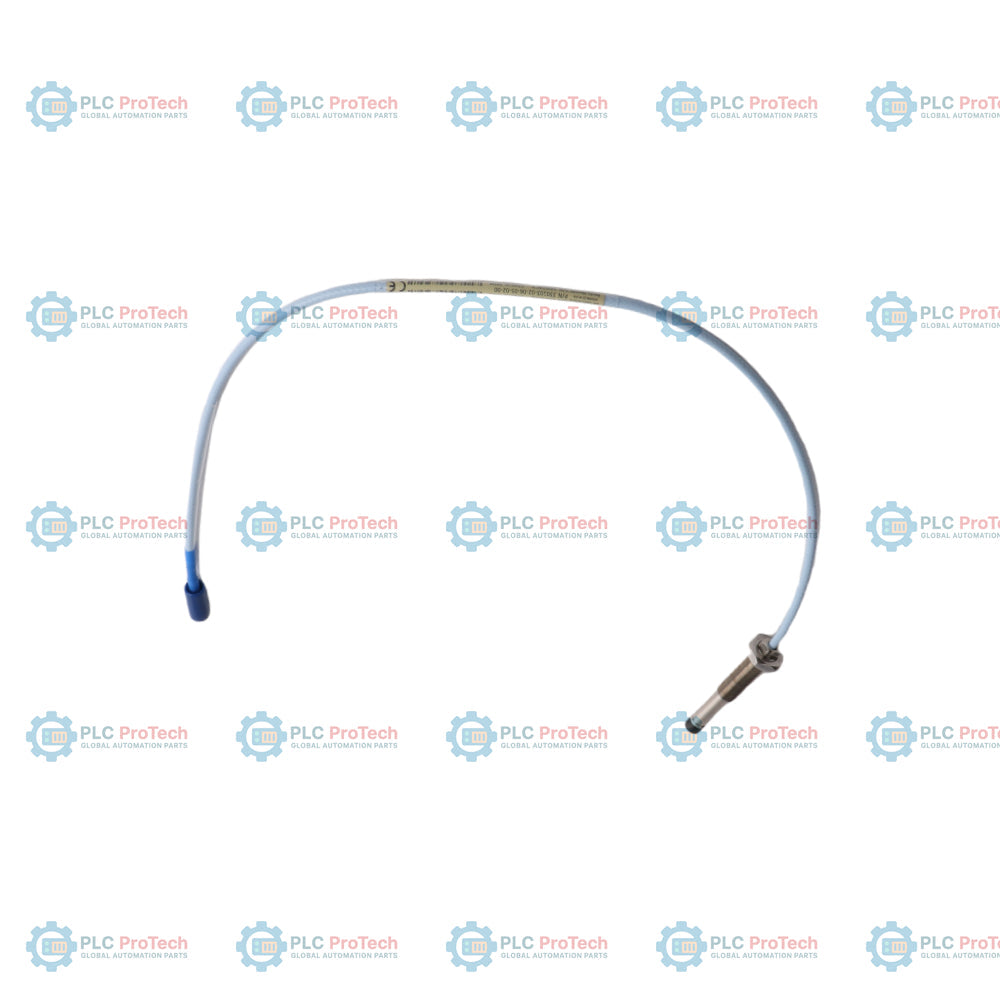

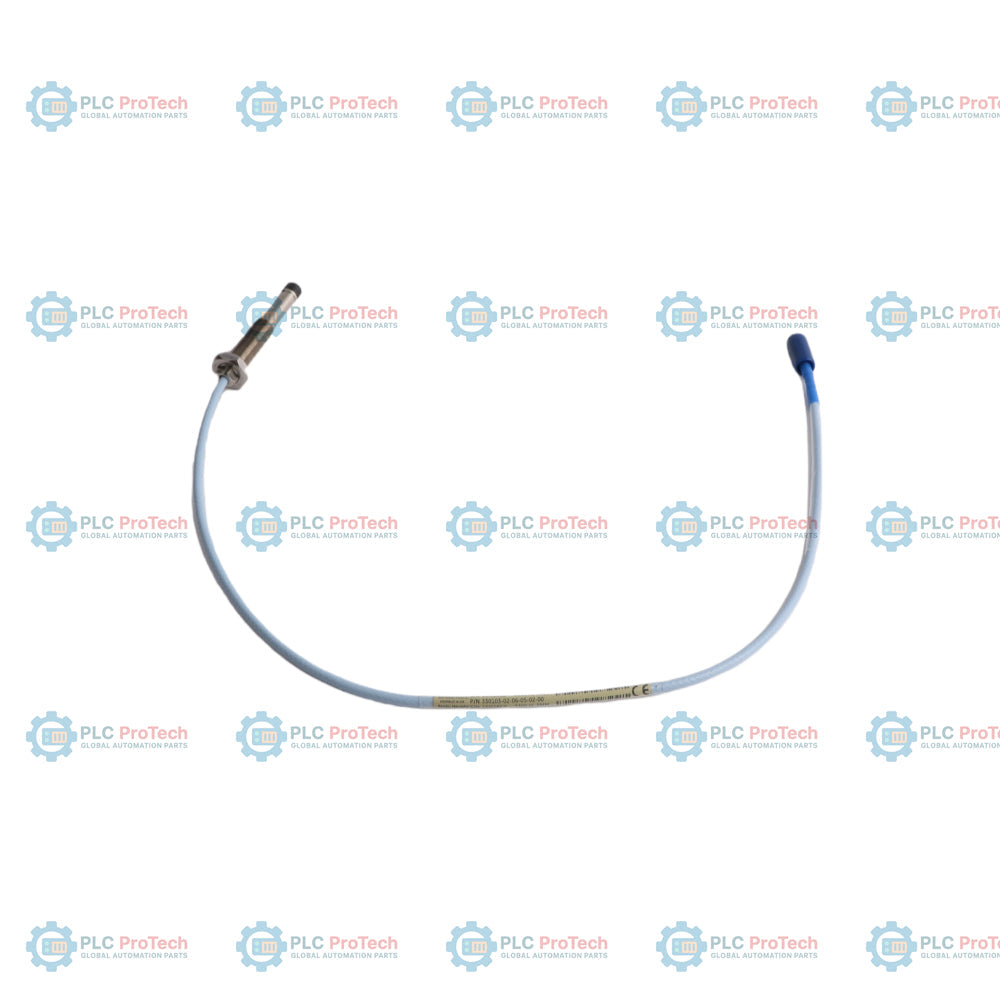

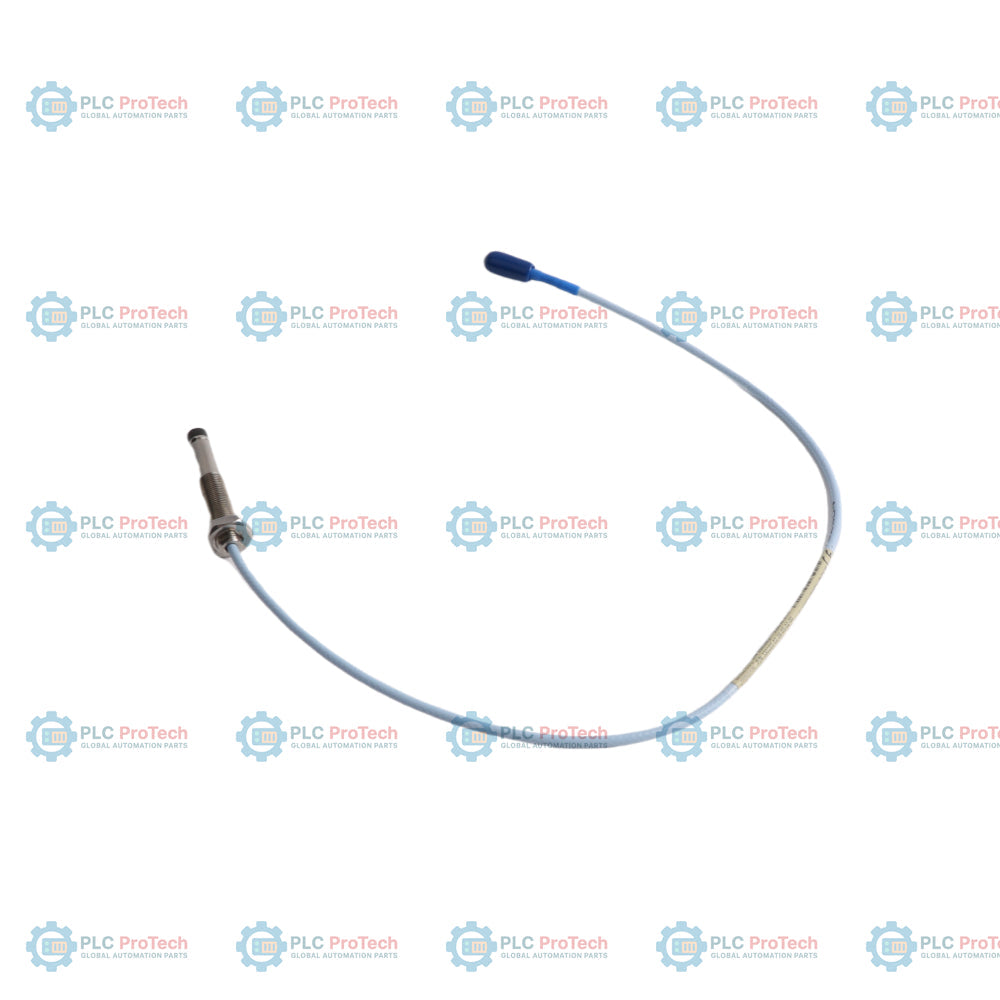

330103-02-06-05-02-00: This 3300 XL 8 mm proximity probe features an M10 x 1 metric thread without armor, configured with a 20 mm unthreaded length and a 60 mm overall case length. Non-contact eddy-current displacement probe for 3300 XL monitoring chains; this unarmored metric configuration is specified by Option 02 unthreaded length and Option 02 miniature coaxial ClickLoc connector with a short 0.5 m total cable length.
Unlike armored variants or those requiring specific hazardous area certifications, this configuration provides a standard coaxial cable link without physical metal armoring or explosive-atmosphere approval ratings. This makes it a cost-effective, straightforward choice for machinery diagnostics and non-hazardous plant zones where space and direct thread engagement are optimized.
Typical applications include radial shaft vibration monitoring and axial thrust position measurement on high-speed industrial rotating machinery. This probe is commonly integrated into non-hazardous area plant installations for compressors, gas turbines, steam turbines, and industrial pumps where an M10 x 1 mounting profile is required.
| Option / Segment | Code on This SKU | Description / Meaning |
|---|---|---|
| Orderable Part Number | 330103-02-06-05-02-00 | 3300 XL 8 mm Probe, M10 x 1 thread, without armor |
| A - Unthreaded Length Option | 02 | 20 mm unthreaded length |
| B - Overall Case Length Option | 06 | 60 mm overall case length |
| C - Total Length Option | 05 | 0.5 meters (1.6 feet) total length |
| D - Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval Option | 00 | Not required / No hazardous area approvals |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model / Part Number | 330103-02-06-05-02-00 |
| Transducer Type | Eddy-current proximity probe |
| Probe Diameter | 8.0 mm |
| Case Thread Size | M10 x 1 |
| Unthreaded Length | 20 mm |
| Case Length | 60 mm |
| Total Cable Length | 0.5 meters (1.6 feet) |
| Connector Type | Miniature male coaxial ClickLoc connector |
| Cable Type | Coaxial standard cable (75 ohm), unarmored |
| Linear Range | 2.0 mm (80 mils) |
| Nominal DC Resistance | 7.45 ohms (center to outer conductor) |
| Operating Temperature Range | -52 degC to +177 degC (-62 degF to +350 degF) |
| Storage Temperature Range | -52 degC to +177 degC (-62 degF to +350 degF) |
| Maximum Thread Engagement | 15 mm |
| Packaging Dimensions | 150 mm x 150 mm x 25 mm (H x W x D) |
| Weight | 0.12 kg |
| Connection Point | Interface Type | Description |
|---|---|---|
| Probe Tip to Target | Non-contact magnetic coupling | Senses eddy-currents in standard AISI 4140 steel targets |
| Probe Coaxial Cable | Miniature coaxial ClickLoc (male) | Secures to 3300 XL extension cable female connector |
To install the probe, thread the case into the mounting bracket or casing up to the specified thread engagement (maximum 15 mm). Set the gap using a voltmeter or calibrated spacer to the center of the linear range. Secure the probe with a lock nut and verify that the coaxial ClickLoc connector is clean and finger-tightened before snapping. Maintain a minimum cable bend radius of 25.4 mm (1.0 inch) to prevent damage to the internal conductor shielding.
This specific configuration (Option 00) is designated for general-purpose environments. It does not carry hazardous area certifications (such as ATEX, IECEx, or CSA approvals). For hazardous location deployments, select a variant configured with Option 05.
