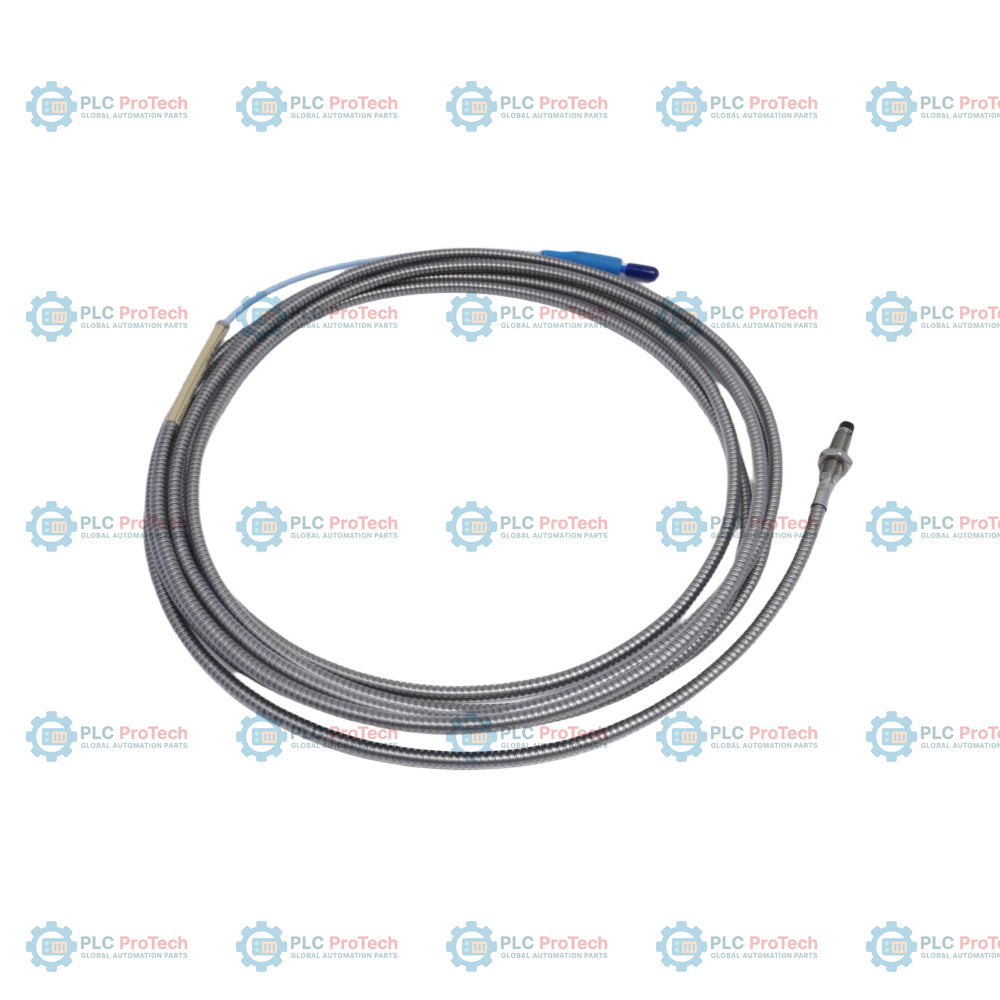

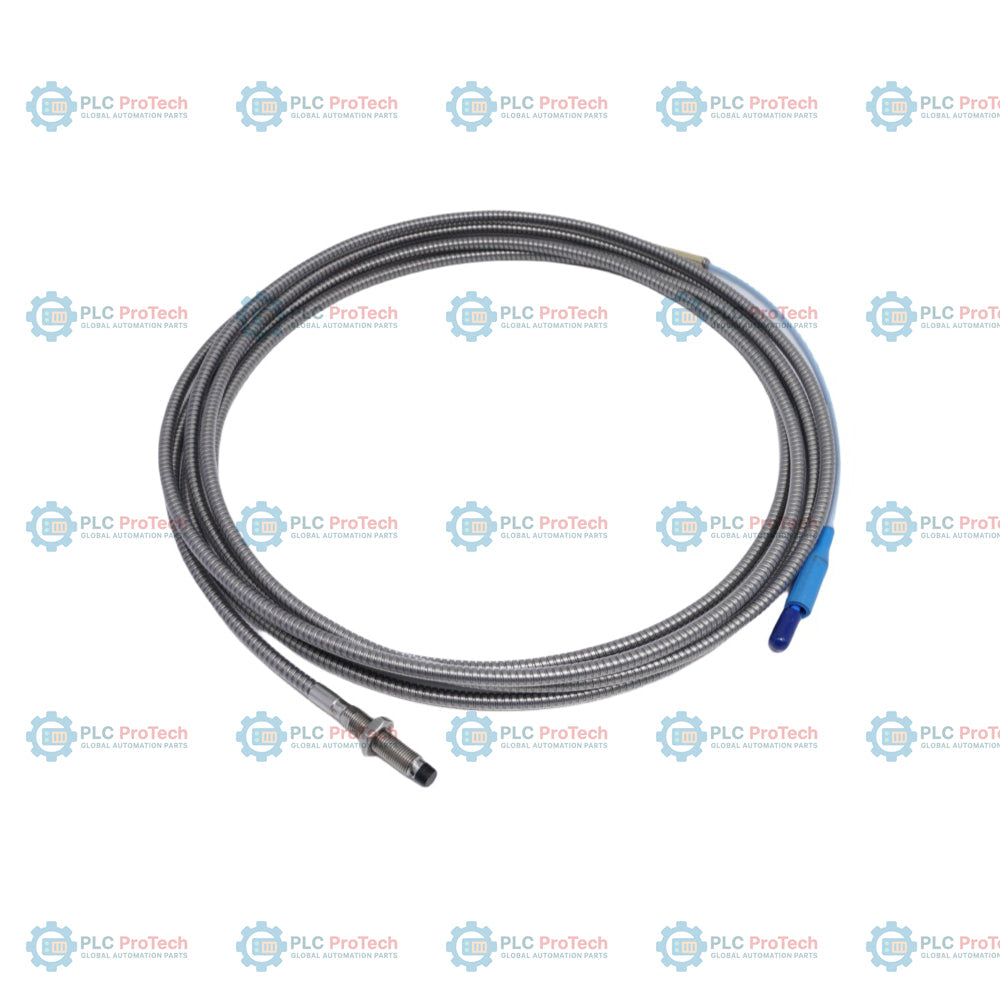

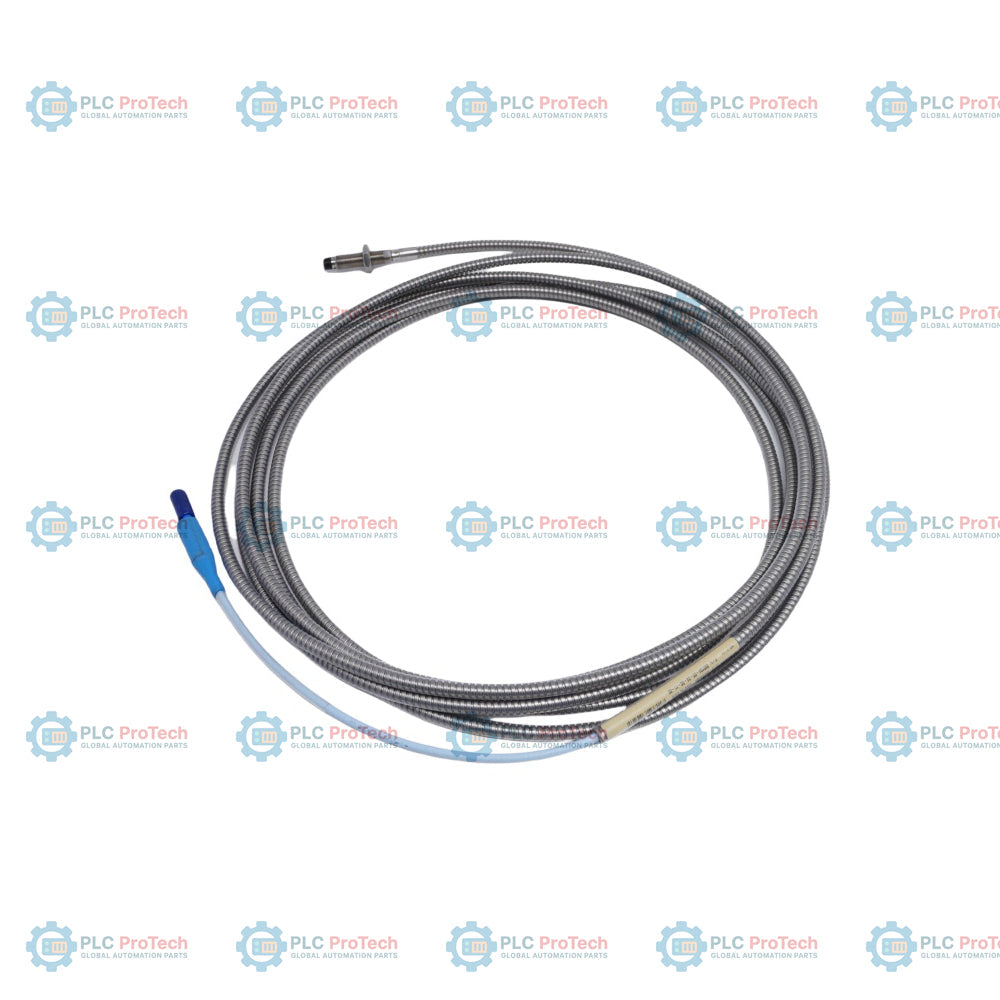

Bently Nevada 330104-00-04-90-02-00 3300 XL 8 mm Proximity Probe

Description

The 330104-00-04-90-02-00 is a 3300 XL 8 mm proximity probe featuring an M10 x 1 thread with integrated armor for enhanced mechanical protection. This configuration includes a 0.0 in unthreaded length (Option 00), 0.4 in case length (Option 04), 9.0 m total system length (Option 90), and a standard miniature ClickLoc coaxial connector (Option 02), with no agency approval required (Option 00). This eddy-current transducer is a critical component of the 3300 XL 8 mm Proximity Transducer System, used extensively for monitoring shaft vibration and axial position in critical rotating machinery such as turbines, compressors, and pumps. The probe works in conjunction with a matching 3300 XL Proximitor sensor and extension cable to provide accurate, non-contact displacement measurements. The inclusion of armor provides increased durability in harsh industrial environments where mechanical abrasion or debris may be present.

Features

• M10 x 1 thread configuration (Option 04) for standard metric mounting
• Integrated armor for mechanical protection of the probe lead
• Total system length of 9.0 m (Option 90) for installation flexibility
• Miniature ClickLoc coaxial connector (Option 02) to ensure a secure, high-integrity connection
• Fully compatible with 3300 XL monitoring chains and Proximitor sensors
• Non-contact measurement principle ensures minimal wear on monitored components

Applications

• Turbine and compressor shaft vibration monitoring
• Rotor axial position measurement
• Critical rotating machinery protection
• Industrial environments requiring armored leads for mechanical protection

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	330104-00-04-90-02-00	3300 XL 8 mm Proximity Probe, M10 x 1 thread, armored
A - Unthreaded Length	00	0.0 in unthreaded length
B - Case Length	04	0.4 in (approx 10 mm) case length
C - Total Length	90	9.0 m total system length
D - Connector/Cable	02	Miniature ClickLoc coaxial connector, standard cable
E - Agency Approval	00	Not required

Technical Specifications

Manufacturer	Bently Nevada
Part Number	330104-00-04-90-02-00
Probe Diameter	8 mm
Thread Size	M10 x 1
Cable Type	Armored
Connector Type	Miniature ClickLoc coaxial
Total System Length	9.0 m
Probe Material	AISI 303 or 304 stainless steel
Operating Temperature	-55 degC to +177 degC

Installation Guidelines

• Ensure the probe is gapped correctly according to the 3300 XL system manual to maintain the linear measurement range.
• Use the appropriate mounting bracket (e.g., M10 x 1 threaded bracket) to secure the probe.
• Avoid sharp bends in the armored cable to prevent damage to the internal coaxial conductor.
• Ensure the total system length (probe + extension cable) matches the calibrated length for the Proximitor sensor (9.0 m in this configuration).

Compliance and Certifications

• CE compliant
• RoHS compliant
