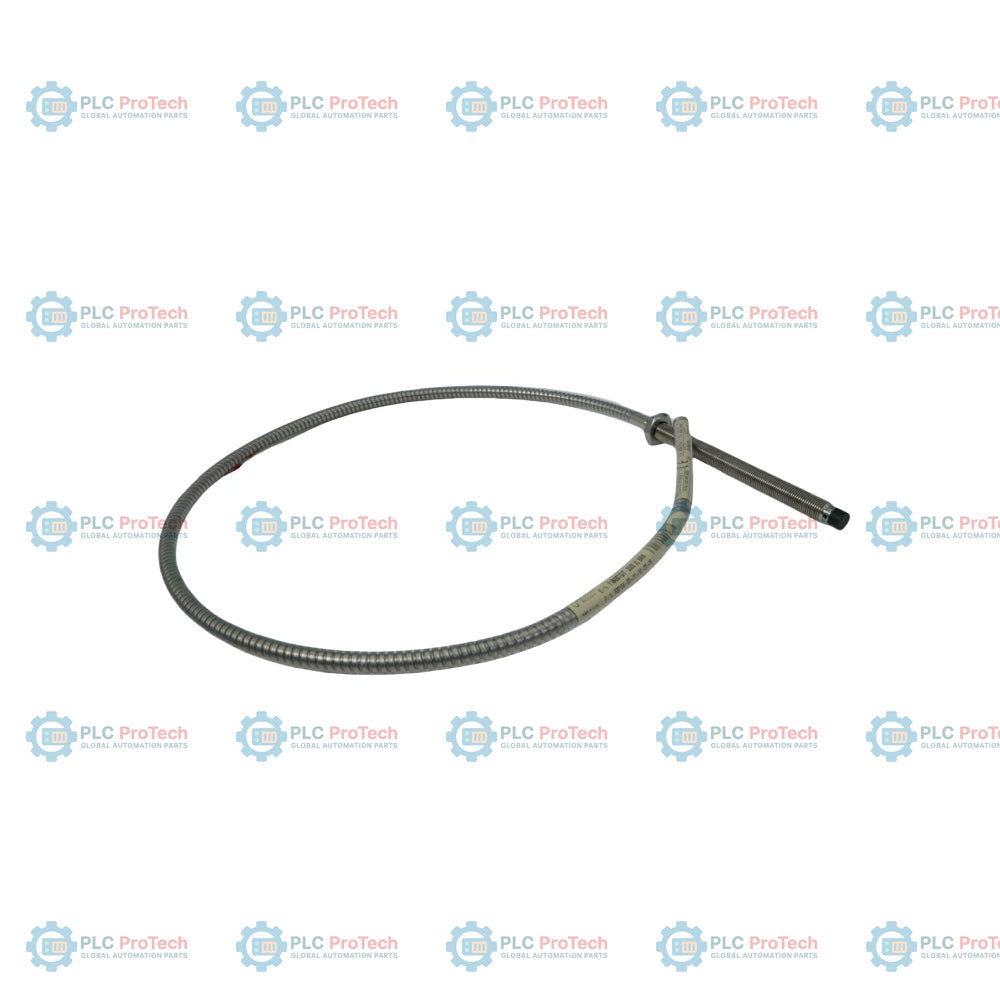

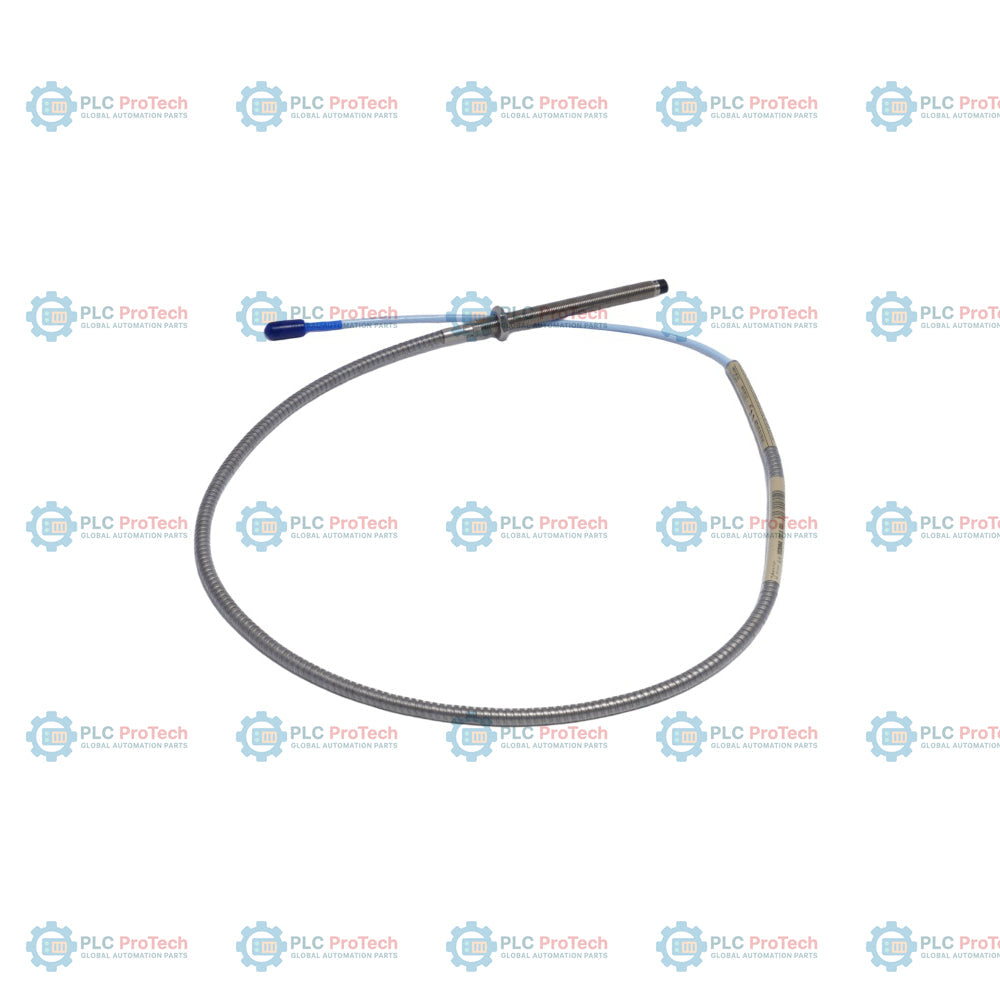

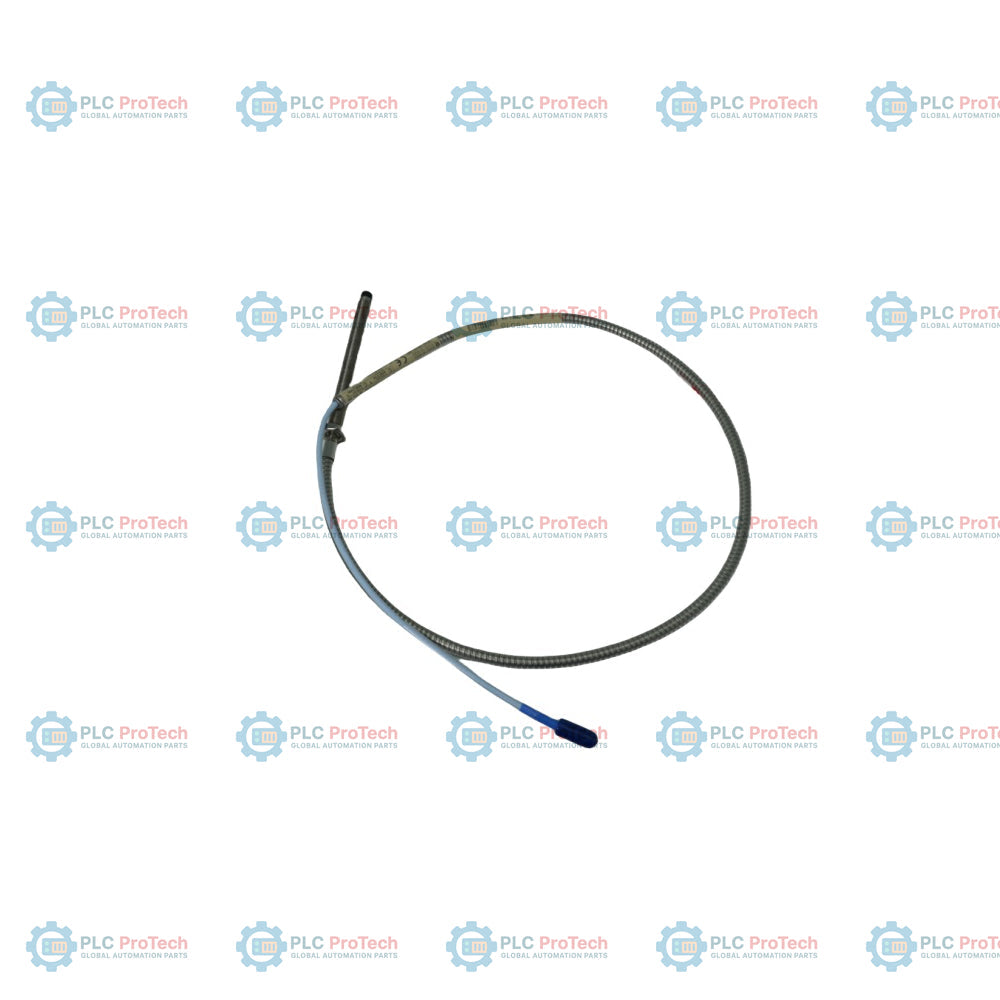

Bently Nevada 330104-00-11-10-02-05 3300 XL 8 mm Proximity Probe with Armor

Description

330104-00-11-10-02-05: This 3300 XL 8 mm proximity probe configuration is defined by an M10 x 1 metric thread with flexible stainless steel armor, a 0 mm unthreaded length (fully threaded case), a 110 mm overall case length, a 1.0 m (3.3 ft) total cable length, and a miniature coaxial ClickLoc connector on standard cable with no connector protector. It is certified with hazardous area agency approvals including CSA, ATEX, and IECEx.

This specific configuration incorporates a protective metal armor sheath over the coaxial cable to guard against abrasive wear, crushing, and cutting in demanding industrial applications. Unlike the unarmored 330103 model series, this armored model provides increased physical shielding. The standard ClickLoc connector without a protector allows for straightforward routing through tight conduits and standard bulkhead fittings. Designed as part of a complete non-contact eddy-current transducer system, this probe provides static (position) and dynamic (vibration) measurements when paired with a matching 3300 XL extension cable and Proximitor sensor.

Features

• Option 00 specifies a 0 mm unthreaded length, rendering the M10 x 1 case fully threaded for versatile installation depth.
• Option 11 specifies an overall case length of 110 mm to accommodate deep-well machine casing penetrations.
• Option 10 provides a 1.0 meter (3.3 feet) total cable length, suitable for bridging short distances to the junction box.
• Option 02 provides a miniature coaxial ClickLoc male connector on standard cable without an external connector protector sleeve.
• Option 05 provides hazardous area agency approvals including CSA, ATEX, and IECEx certifications.
• Stainless steel armor casing protects the internal coaxial cable from hot oils, flying debris, and mechanical stresses.
• Polyphenylene sulfide (PPS) probe tip is chemically sealed and bonded to the threaded case for resistance to industrial lubricants.

Applications

• Shaft radial vibration monitoring in gas and steam turbines
• Axial rotor position measurement in centrifugal and axial compressors
• Thrust position and casing expansion tracking in large industrial pumps
• Eccentricity and shaft alignment measurements on generators and motors
• Gearbox shaft relative motion diagnostics in heavy rotating machinery

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Thread Engagement: Do not exceed 15 mm of thread engagement inside the bracket or machine housing to prevent mechanical binding.
• Tightening Torque: Tighten the probe case to a maximum torque of 9.9 N-m (88 in-lb) using a 10 mm hexagonal wrench.
• Connector Assembly: Align and press the male and female ClickLoc connectors together finger-tight. Do not use pliers or other tools to tighten standard gold ClickLoc connections.
• Conduit Clearance: Ensure the armored cable is not pulled taut over sharp edges. Maintain a minimum bend radius of 25.4 mm to prevent armor fatigue.

Compliance and Certifications

• CSA: Class I, Division 1, Groups A, B, C, D; Class I, Zone 0, Ex ia IIC T4/T5/T6
• ATEX: II 1 G, Ex ia IIC T4/T5/T6 Ga
• IECEx: Ex ia IIC T4/T5/T6 Ga
• CE Mark: Compliant with applicable European directives for electromagnetic compatibility and hazardous areas
