Description

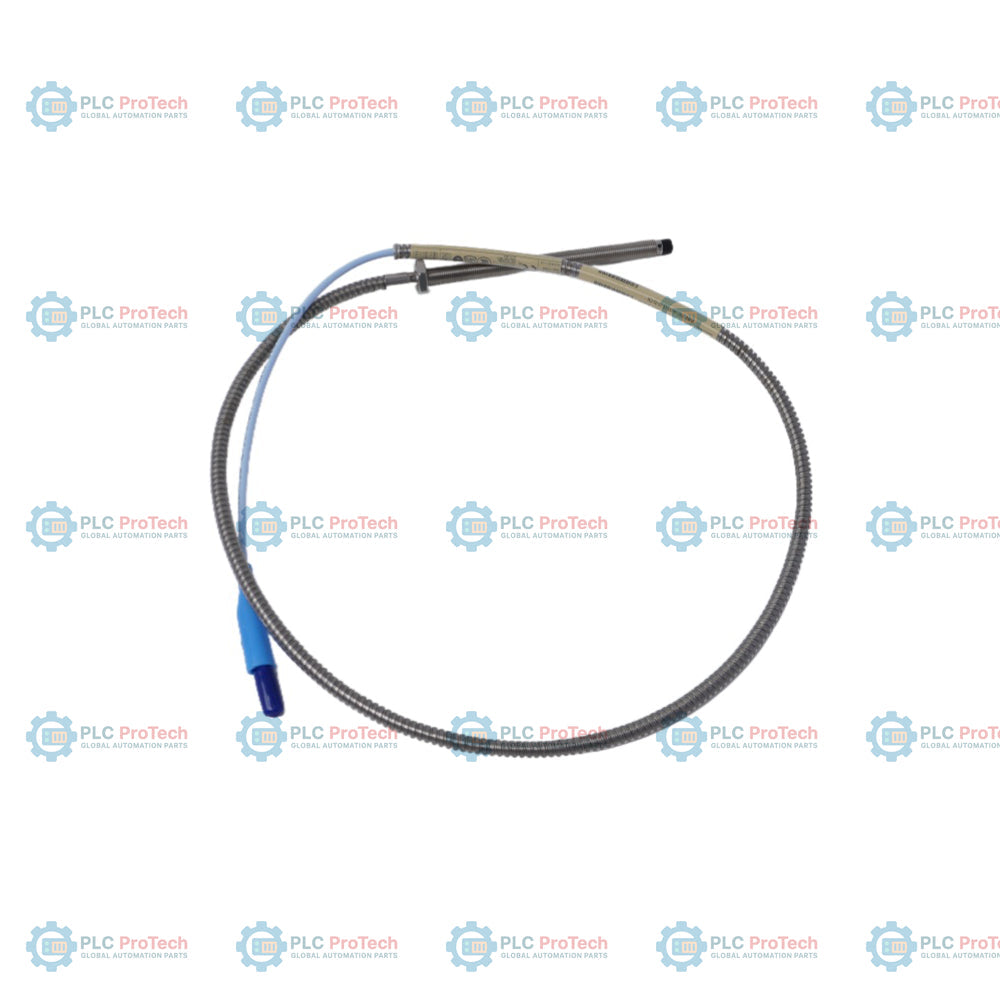

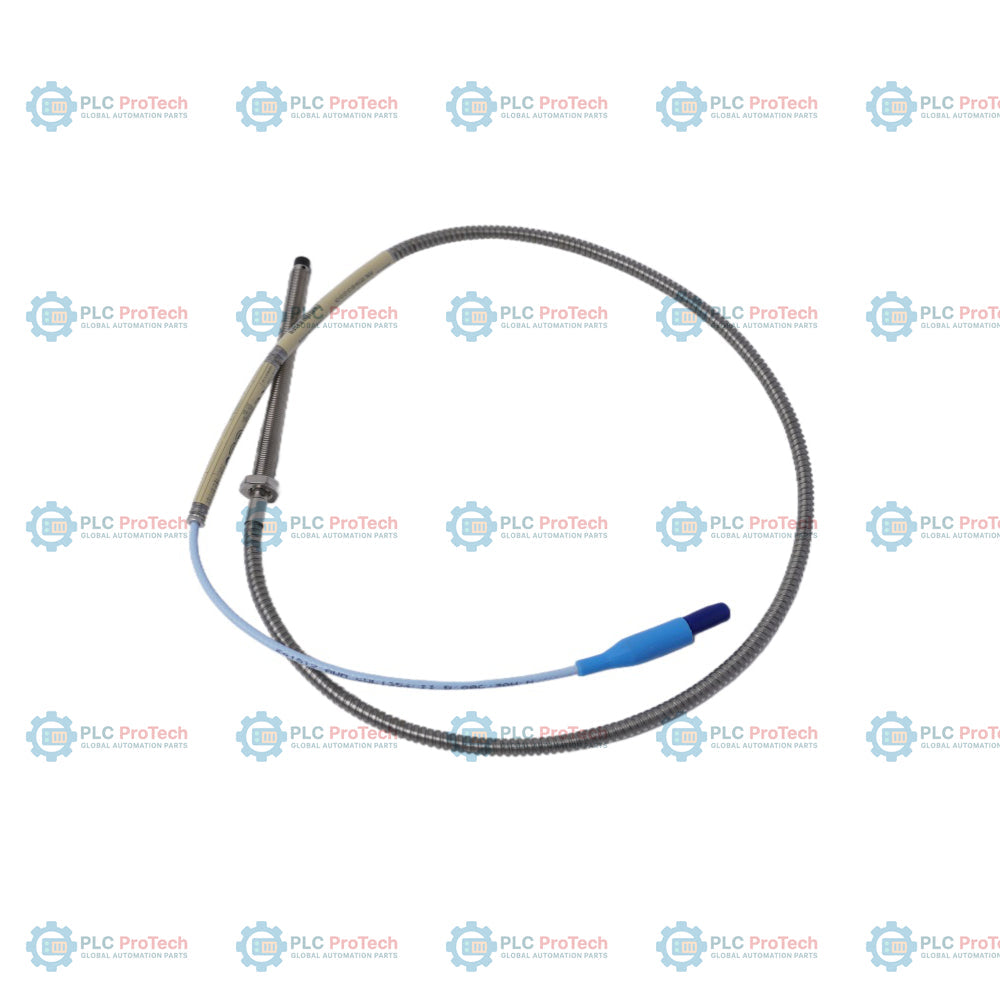

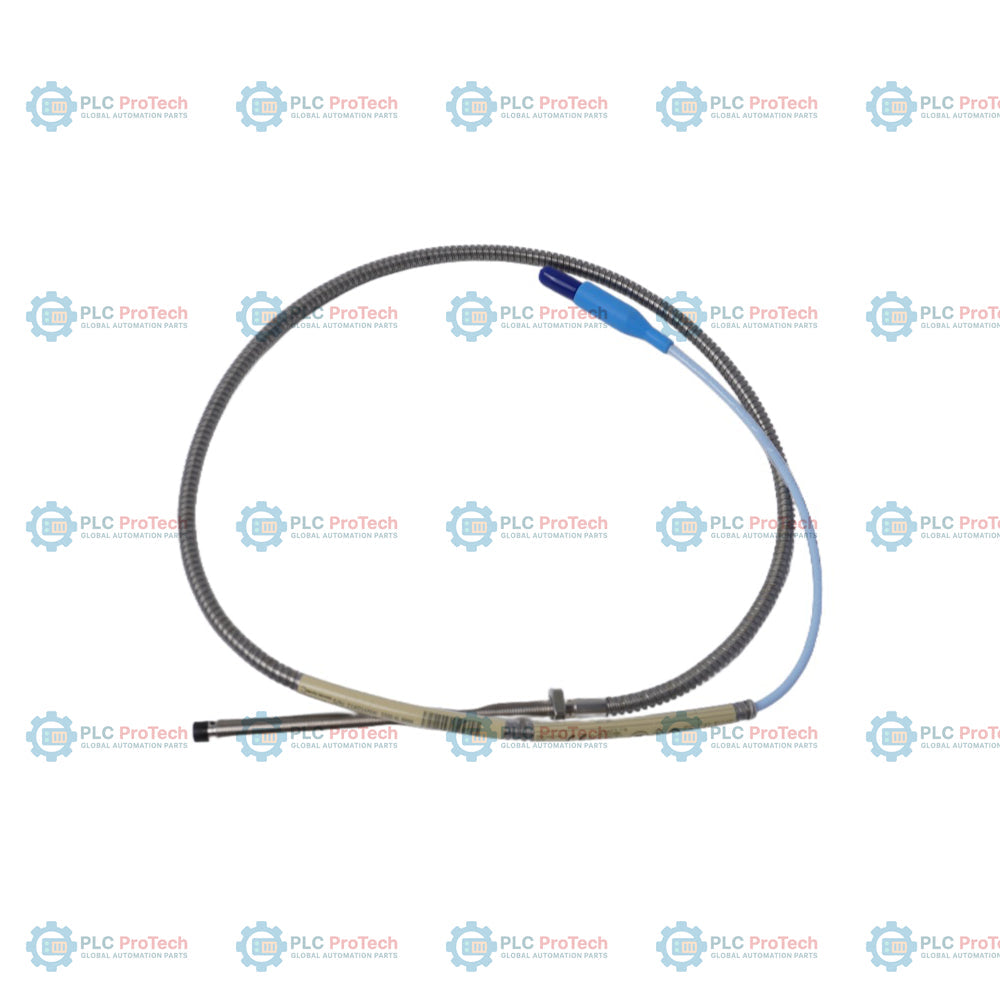

Option 00 (0 mm unthreaded length) and Option 01 (coaxial ClickLoc connector with connector protector) specify this metric threaded 3300 XL 8 mm probe configuration with integrated stainless steel armor — 330104-00-13-10-01-05. This eddy-current proximity probe is used for non-contact shaft displacement and vibration measurements in fluid-film bearing machines. The 130 mm stainless steel case is fully threaded with M10 x 1 threads, enabling precise mounting depth adjustment directly within a machine's bearing housing or brackets. The integrated flexible stainless steel armor provides protective coverage over the 1.0-meter probe cable, guarding against physical abrasion, mechanical stress, and aggressive machine fluids.

As a certified component of the 3300 XL 8 mm Proximity Probe family, this configuration features complete electrical and mechanical interchangeability with other 3300 XL components, eliminating the need for custom calibration or bench matching. In a typical monitoring loop, the probe couples to a standard 3300 XL extension cable and a 3300 XL Proximitor Sensor to output a nominal sensitivity of 7.87 V/mm (200 mV/mil). This setup is ideal for turbomachinery protection applications under ATEX, IECEx, or CSA hazardous area classifications.

Features

• M10 x 1 Metric Case: Features a fully threaded 130 mm case length (Option 13) with 0 mm unthreaded length (Option 00) for deep-reach structural configurations.
• Integrated Stainless Steel Armor: Flexible AISI 302 or 304 stainless steel armor protects the cable lead from physical wear and harsh environmental conditions.
• 1.0-Meter Total Length: Compact 1.0 m total cable length (Option 10) suitable for installations close to junction boxes or local connection housings.
• ClickLoc Coaxial Connector: Features a gold-plated miniature male ClickLoc connector with an integrated protector sleeve (Option 01) to seal out contaminants.
• Hazardous Area Approval: Certified under Option 05 for CSA, ATEX, and IECEx standards in dangerous environments.
• High-Durability Tip: Constructed from polyphenylene sulfide (PPS) to resist harsh turbine oils, moisture, and high chemical exposure.
• System Interchangeability: Swaps directly with non-XL 3300 series 5 mm and 8 mm system parts without requiring manual calibration.

Applications

• Radial shaft vibration and dynamic displacement measurements in steam and gas turbines.
• Thrust position and axial shaft displacement monitoring in high-pressure centrifugal compressors and pumps.
• Rotational speed measurement and Keyphasor reference timing on high-speed industrial machinery.
• Machinery protection monitoring loops requiring rugged stainless steel armored cabling in refineries, petrochemical facilities, and power stations.

Ordering Information

Technical Specifications

Installation Guidelines

• Mounting Alignment: Verify the unthreaded length (0 mm) aligns with the bracket or machine wall thickness to position the probe tip correctly in front of the target.
• Torque Limits: Thread the M10 x 1 probe case into the bracket and hand-tighten. Use a torque wrench to tighten to the recommended installation torque of 11.2 N-m (100 in-lbf). Do not exceed 33.9 N-m (300 in-lbf) to prevent casing distortion.
• Cable Management: Route the armored cable preserving a minimum bend radius of 25.4 mm (1.0 in). Avoid routing the lead across sharp mechanical edges or areas subject to continuous pinches.
• Connection Steps: Before joining the ClickLoc coaxial connectors, wipe them free of oil or grease. Push the connectors together until the gold "click" is felt. Slide the pre-installed connector protector sleeve completely over the junction to seal out moisture.

Compliance and Certifications

• CSA: Certified for Canadian electrical and explosion safety standards in Class I, Division 1 and 2 hazardous locations.
• ATEX: Compliant with European Union explosive atmosphere directives for Zone 0, Zone 1, and Zone 2 applications.
• IECEx: Certified for international explosive atmospheres under the IECEx scheme.
• CE Mark: Complies with all relevant European EMC and safety directives.
