Description

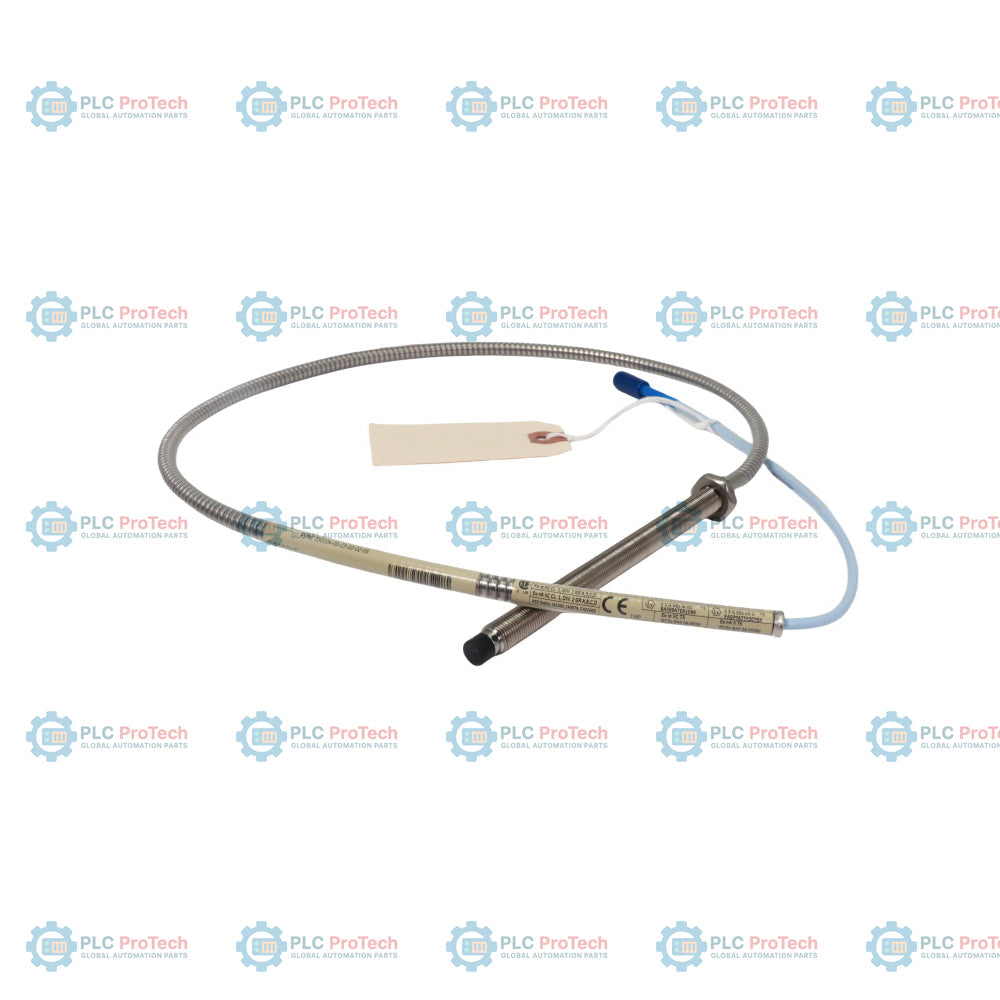

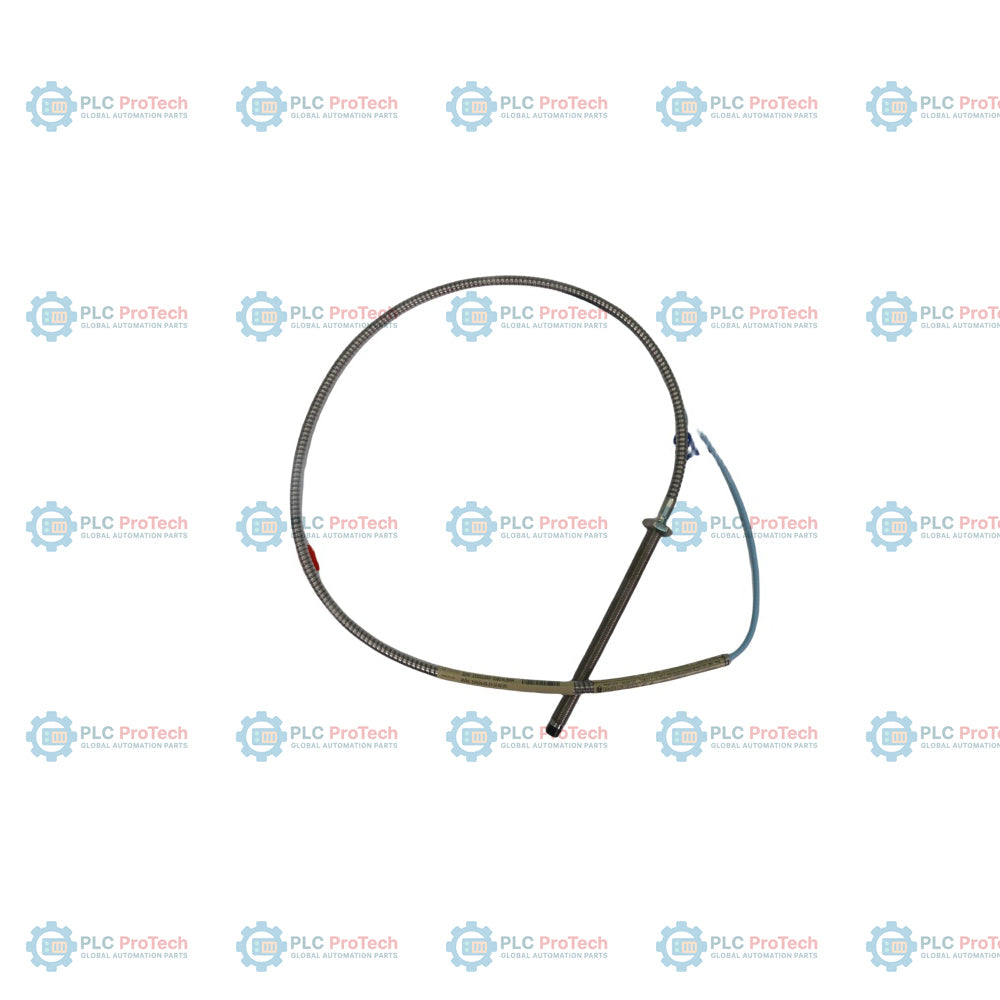

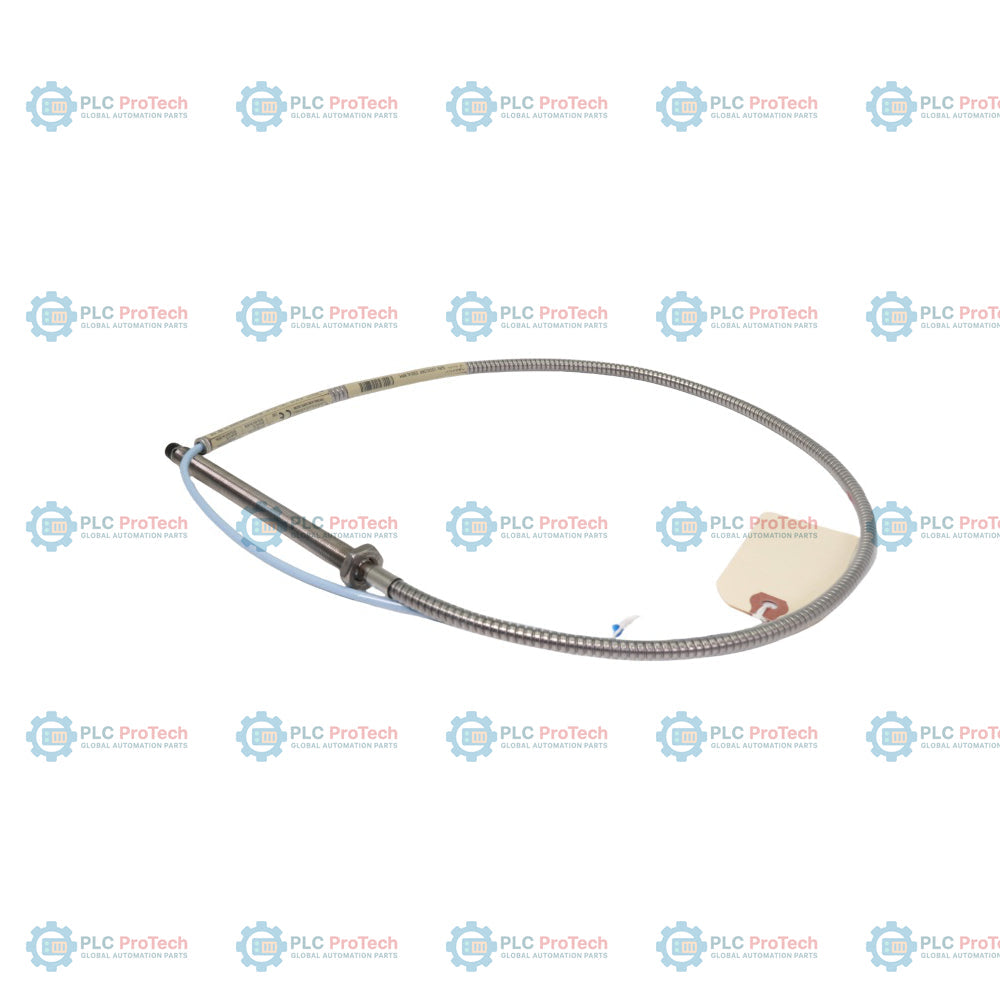

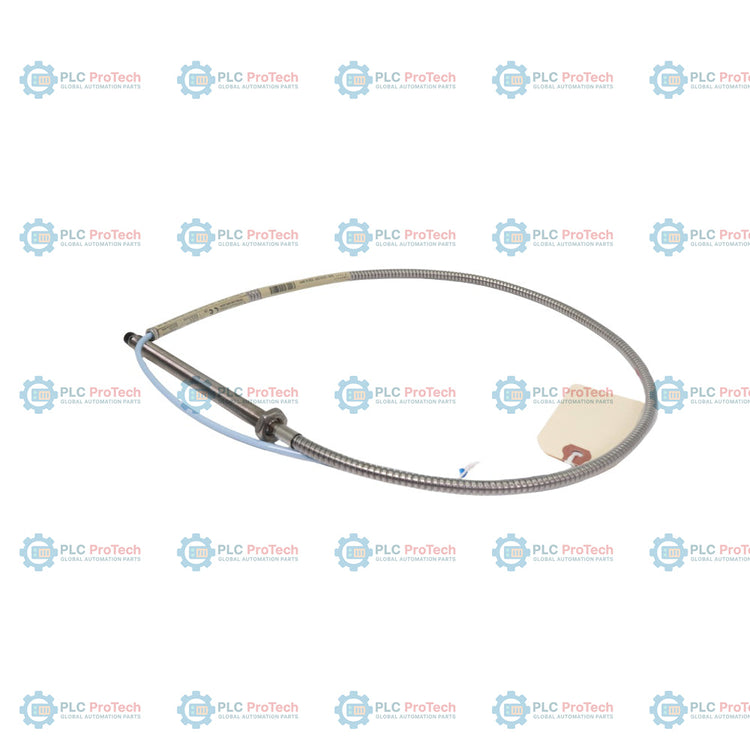

330104-00-13-10-02-05 specifies this 3300 XL 8 mm proximity probe configuration featuring an M10 x 1 metric thread, built-in protective stainless steel armor, a 130 mm case length with 0 mm unthreaded portion (Option 00), a 1.0-meter total cable length (Option 10), a ClickLoc connector without connector protector (Option 02), and CSA/ATEX/IECEx hazardous area approvals (Option 05).

This configuration incorporates a standard FEP-insulated coaxial cable protected by a flexible stainless steel conduit, providing mechanical shielding in abrasive or high-vibration industrial applications. The M10 x 1 threaded body connects directly to machine housings or brackets, operating as part of a 3300 XL transducer system to monitor machinery shaft vibration, dynamic displacement, and axial position. This model differs from the unarmored 330103 metric series by providing physical protection against mechanical wear and impact.

Features

• M10 x 1 Metric Thread with Armor: Features an integrated flexible stainless steel armor casing that shields the coaxial cable from physical damage, debris, and wear.
• 0 mm Unthreaded Length (Option 00): The probe body is fully threaded across the entire 130 mm case length for maximum mounting flexibility and robust engagement.
• 130 mm Case Length (Option 13): Provides extended physical reach into machine casings and bearing housings.
• 1.0 Meter Total Length (Option 10): Configured as a 1.0-meter probe, suitable for pairing with matching extension cables and 3300 XL Proximitor sensors.
• ClickLoc Connector (Option 02): Fitted with a miniature coaxial ClickLoc connector on standard cable without an external connector protector.
• Hazardous Area Approval (Option 05): Certified under CSA, ATEX, and IECEx standards for installation in intrinsically safe and non-incendive environments.

Applications

Typical applications include shaft vibration and axial position measurements on rotating machinery such as steam and gas turbines, centrifugal compressors, pumps, generators, and industrial gearboxes. The integrated stainless steel armor makes this configuration especially suitable for harsh industrial environments where cables are exposed to physical abuse or mechanical interference.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Thread Engagement: When installing the M10 x 1 threaded probe body, ensure that the thread engagement does not exceed the maximum limit of 15 mm to prevent binding or mechanical damage.
• Connector Handling: Hand-tighten the miniature coaxial ClickLoc connector ("finger tight" only). Avoid using pliers or tools on the gold-plated connectors unless mating with a non-XL stainless steel connector.
• Armor Routing: Ensure the stainless steel armored casing is routed with a safe bend radius (minimum 25 mm recommended) to prevent kinking or cracking of the internal coaxial cable.
• Mounting Isolation: If electrical isolation is required, use a phenolic threaded mounting bracket instead of metal-to-metal contact with the machine casing.

Compliance and Certifications

• Agency Approvals (Option 05): CSA, ATEX, and IECEx approvals for intrinsically safe (Zone 0/EPL Ga) and non-incendive (Zone 2/EPL Gc) hazardous area installations.
• Functional Safety: SIL 2 certified (HFT = 0), SIL 3 certified (HFT = 1) under IEC 61508.
• CE Mark: Complies with European Community Directive 2014/30/EU (EMC) and 2011/65/EU (RoHS).
• China RoHS: EFUP designation of 15 years in accordance with SJ/T 11364-2024.
• China Approvals (-CN): This SKU (330104-00-13-10-02-05) represents the standard Option 05 international approvals package; the dedicated "-CN" NEPSI/CCC package is not selected but can be ordered as a separate variant if local Chinese compliance certifications are required.
