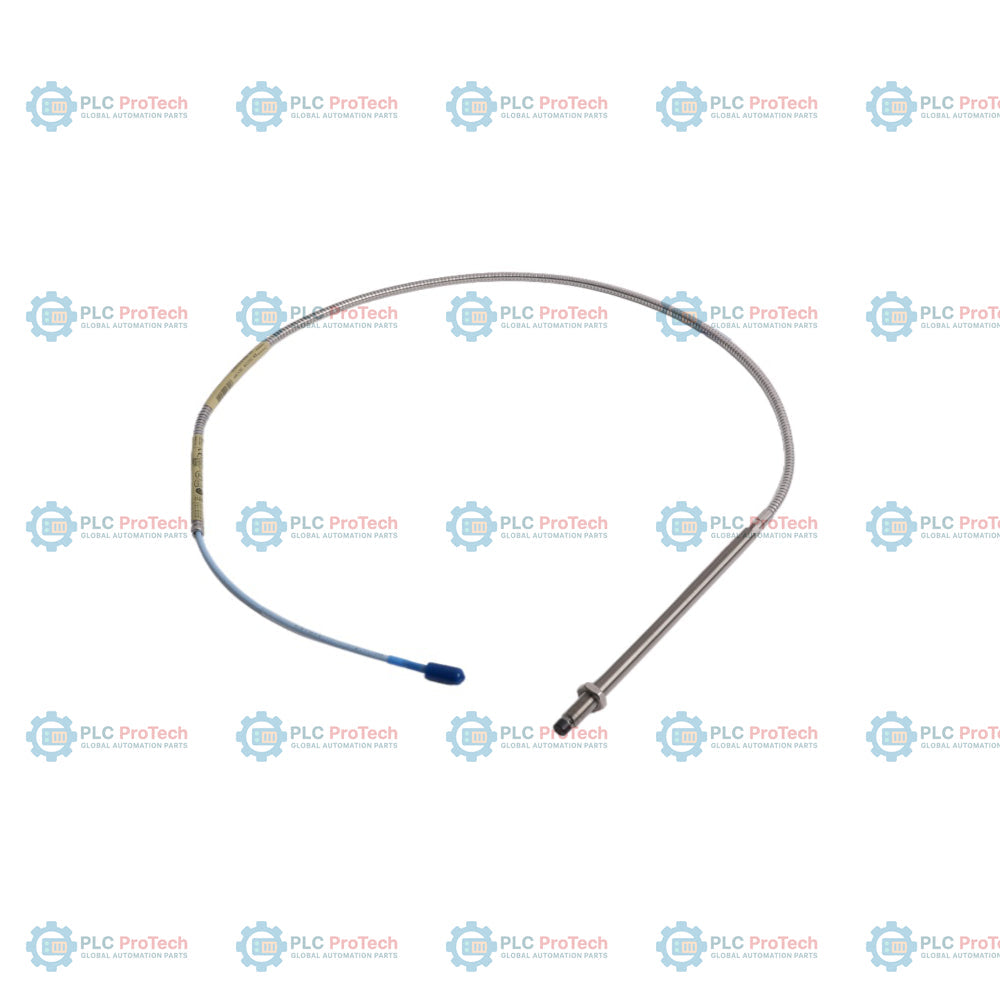

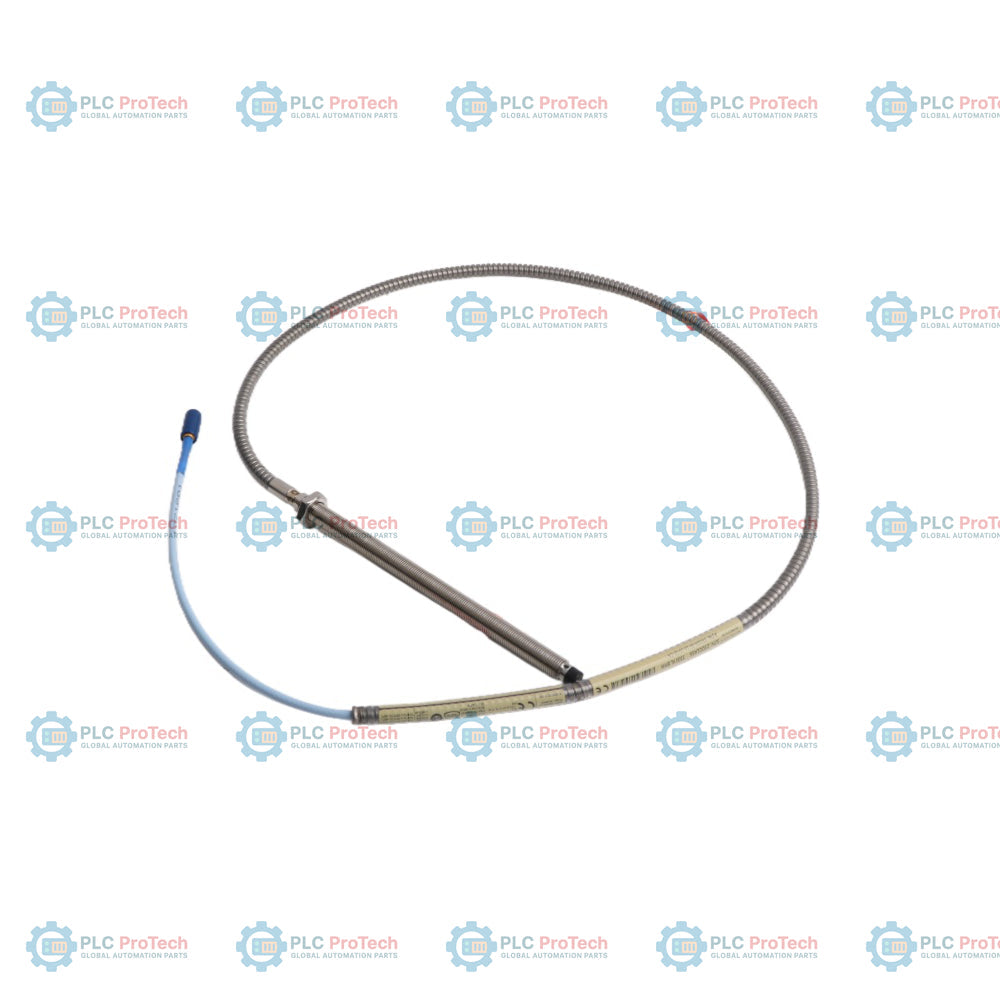

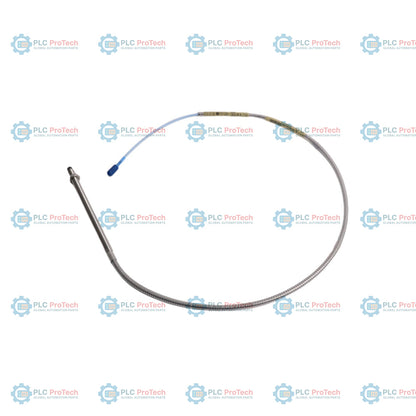

Bently Nevada 330104-00-16-05-02-00 3300 XL 8 mm Proximity Probe

SKU 330104-00-16-05-02-00

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330104-00-16-05-02-00
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Description

330104-00-16-05-02-00 is an 8 mm proximity probe configuration from the Bently Nevada 3300 XL transducer system, featuring an M10 x 1 thread (Option 04 base model series), 0.0 in unthreaded length (Option 00), 1.6 in case length (Option 16), 0.5 m total system length (Option 05), and standard connector/cable type (Option 02). This transducer is designed for use in non-contact eddy-current displacement measurement, specifically for monitoring shaft vibration, axial position, and rotor speed in critical rotating machinery.

This unit includes integrated armor for enhanced mechanical protection in demanding industrial environments. As part of the 3300 XL system, it is calibrated for compatibility with 3300 XL 8 mm Proximitor sensors and extension cables, ensuring high-accuracy signal transmission even across longer cable distances. This specific configuration, with its 0.5 m total length and standard connector, is typically selected for installations where the Proximitor sensor is located in close proximity to the probe termination point.

Features

M10 x 1 threading for secure mounting in metric applications
Integrated armor for mechanical abrasion resistance
0.5 m total system length
Miniature ClickLoc coaxial connector
0.0 in unthreaded length configuration
Standard (non-hazardous) approval rating (Option 00)
Fully compatible with 3300 XL Proximitor sensors and extension cables

Applications

Critical rotating machinery protection
Turbine and compressor shaft vibration monitoring
Axial position (thrust) measurement
Rotor speed and phase reference monitoring
Oil and gas, power generation, and petrochemical processing equipment

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	330104-00-16-05-02-00	3300 XL 8 mm Proximity Probe, M10 x 1, with armor
A - Unthreaded Length	00	0.0 in
B - Case Length	16	1.6 in
C - Total Length	05	0.5 meter (1.6 feet)
D - Connector/Cable	02	Miniature ClickLoc connector, standard cable
E - Agency Approval	00	Not required

Technical Specifications

Manufacturer	Bently Nevada
Part Number	330104-00-16-05-02-00
Probe Diameter	8 mm
Thread Size	M10 x 1
Total Length	0.5 m
Cable Type	Armored
Connector Type	Miniature ClickLoc
Agency Approvals	Not required

Installation Guidelines

Ensure the probe is installed using the appropriate mounting bracket (e.g., M10 x 1 compatible) to maintain the required gap and prevent mechanical interference. Proper grounding and shielding practices should be followed in accordance with the 3300 XL system manual to minimize electromagnetic interference. Use the recommended torque settings for the M10 threads to avoid casing deformation, and route cables away from high-voltage lines or sources of excessive heat to ensure signal integrity.

FAQ

What does the 00 option for unthreaded length mean for this 330104 probe?

The 00 option indicates that there is 0.0 inches of unthreaded length on the probe body, meaning the threads extend fully to the tip of the probe case.

Is this probe compatible with standard 3300 XL Proximitor sensors?

Yes, the 330104 is an 8 mm probe designed for full compatibility with 3300 XL 8 mm Proximitor sensors and extension cables, provided the total system length matches the sensor calibration (0.5 m in this configuration).

Does this probe include armor for protection?

Yes, the 330104 model series includes integrated armor, providing additional mechanical protection for the cable in industrial environments.

View all FAQs →

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.
