Manufacturer: Bently Nevada
Product No.: 330104-00-16-05-02-05
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

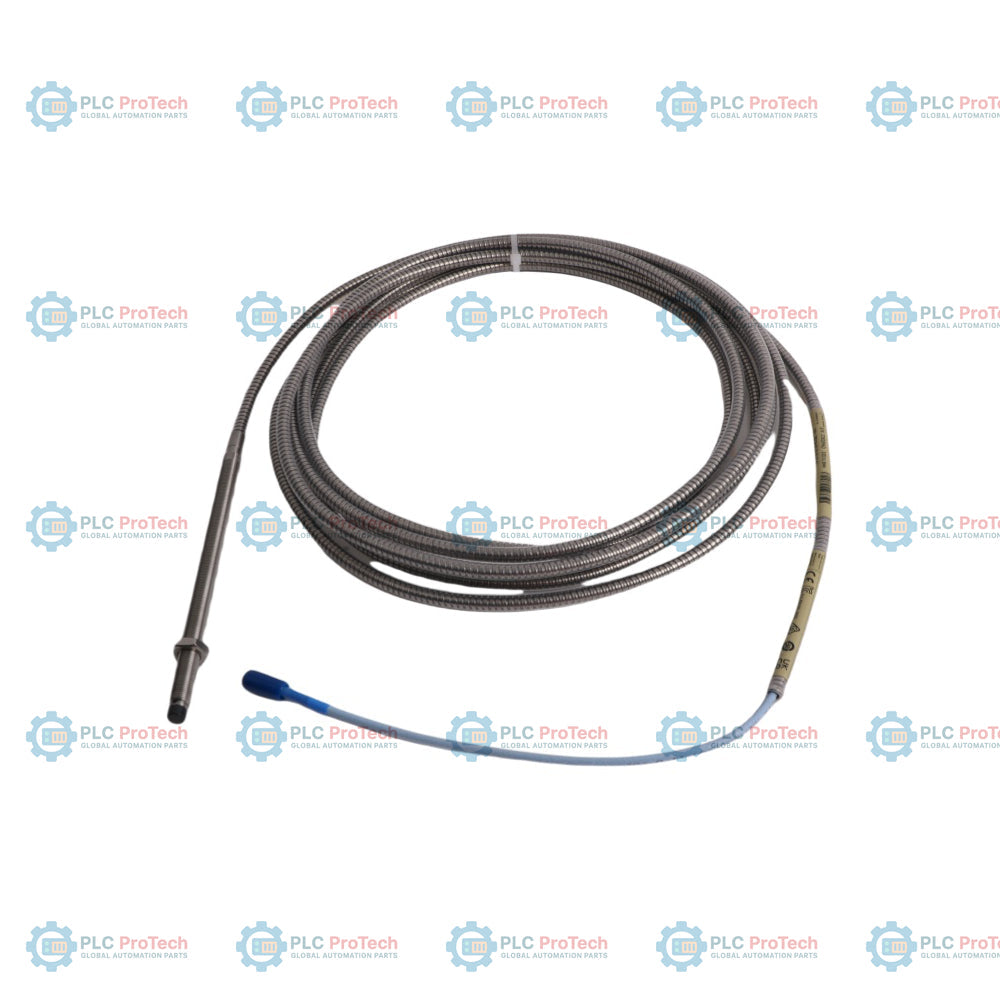

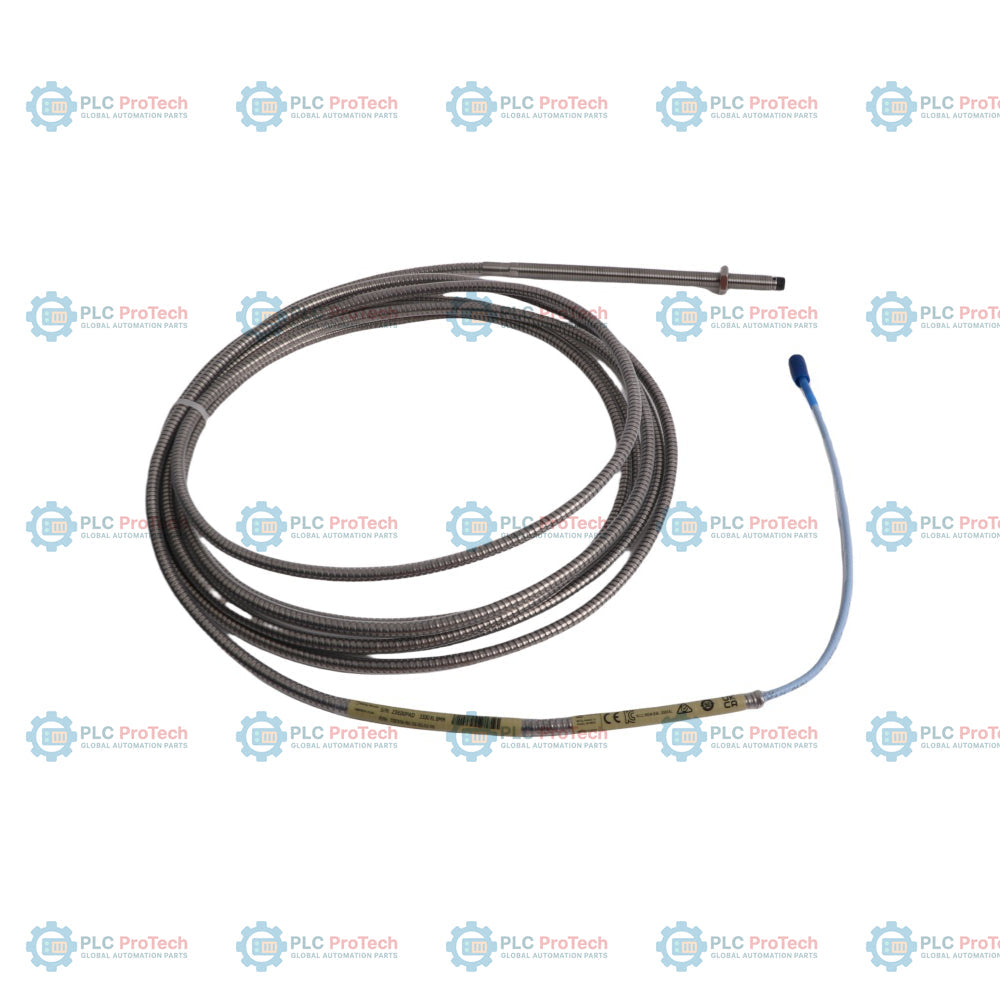

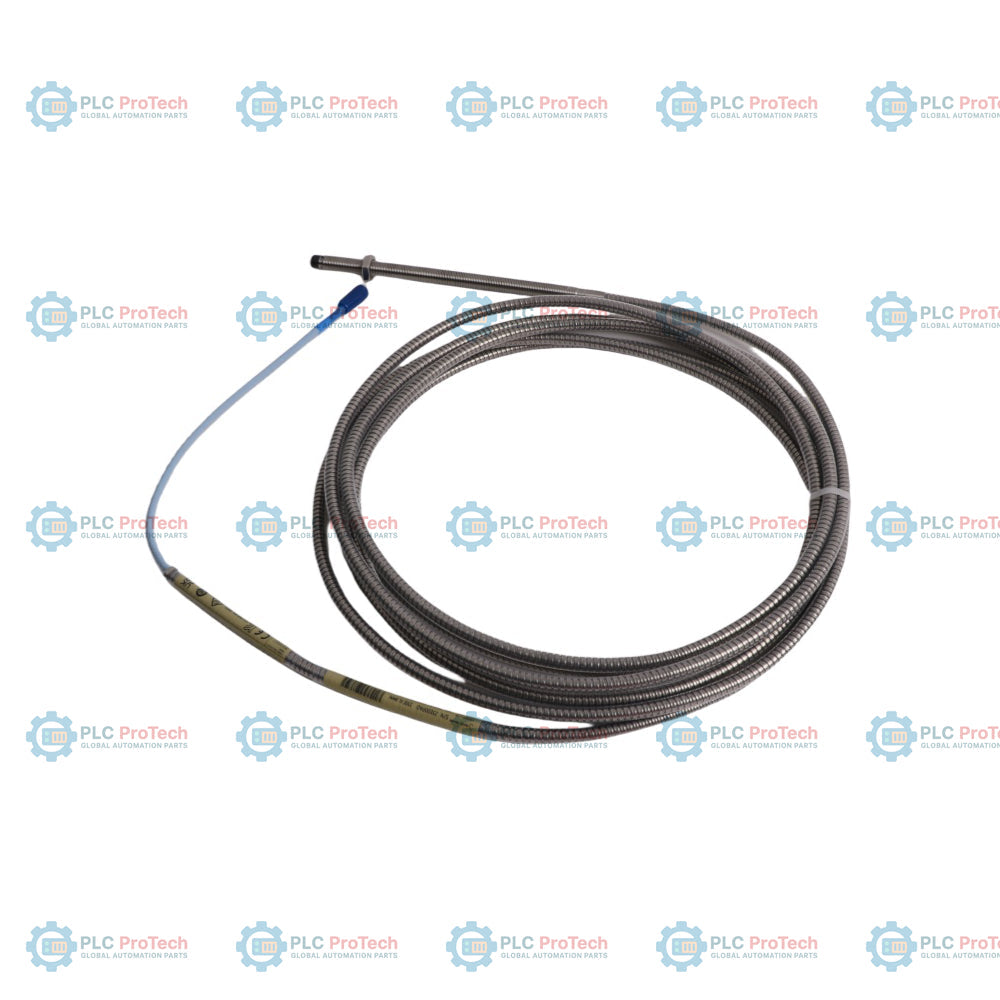

The 330104-00-16-05-02-05 is a 3300 XL 8 mm proximity probe configuration featuring an M10 x 1 thread, an armored cable, and a 0.5-meter total length. This specific variant includes 0.0 mm unthreaded length (Option 00) and 160 mm case length (Option 16), designed for integration into 3300 XL proximity transducer systems to provide non-contact displacement measurements for shaft vibration and axial position monitoring in critical rotating machinery.
This probe configuration utilizes a miniature ClickLoc coaxial connector (Option 02) and meets CSA, ATEX, and IECEx hazardous area approval requirements (Option 05). As an armored model, it provides increased mechanical protection against harsh industrial environments, such as oil and gas, petrochemical, and power generation facilities, where shaft monitoring is required. It is fully compatible with 3300 XL Proximitor sensors and extension cables, forming a complete measurement chain for monitoring turbine, compressor, and pump assets.
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330104-00-16-05-02-05 | 3300 XL 8 mm Proximity Probe, M10 x 1, Armored |
| A - Unthreaded Length | 00 | 0.0 mm |
| B - Case Length | 16 | 160 mm |
| C - Total Length | 05 | 0.5 meter (1.6 feet) |
| D - Connector | 02 | Miniature ClickLoc coaxial connector |
| E - Agency Approval | 05 | CSA, ATEX, IECEx Approvals |
| Manufacturer | Bently Nevada |
| Model | 330104 |
| Probe Diameter | 8.0 mm |
| Thread Size | M10 x 1 |
| Cable Type | Armored |
| Total Length | 0.5 meter |
| Connector | Miniature ClickLoc coaxial |
| Agency Approvals | CSA, ATEX, IECEx |
Ensure the probe tip is correctly gapped according to the Proximitor sensor manual. The M10 x 1 thread should be secured using recommended mounting brackets (e.g., aluminum or phenolic). When installing armored probes, ensure cable routing avoids sharp bends and utilizes proper support to prevent damage to the armor or the cable jacket. The system must be grounded according to site safety regulations, especially in hazardous area installations.
This product is certified for use in hazardous areas under CSA, ATEX, and IECEx standards as specified by Option 05.
