Description

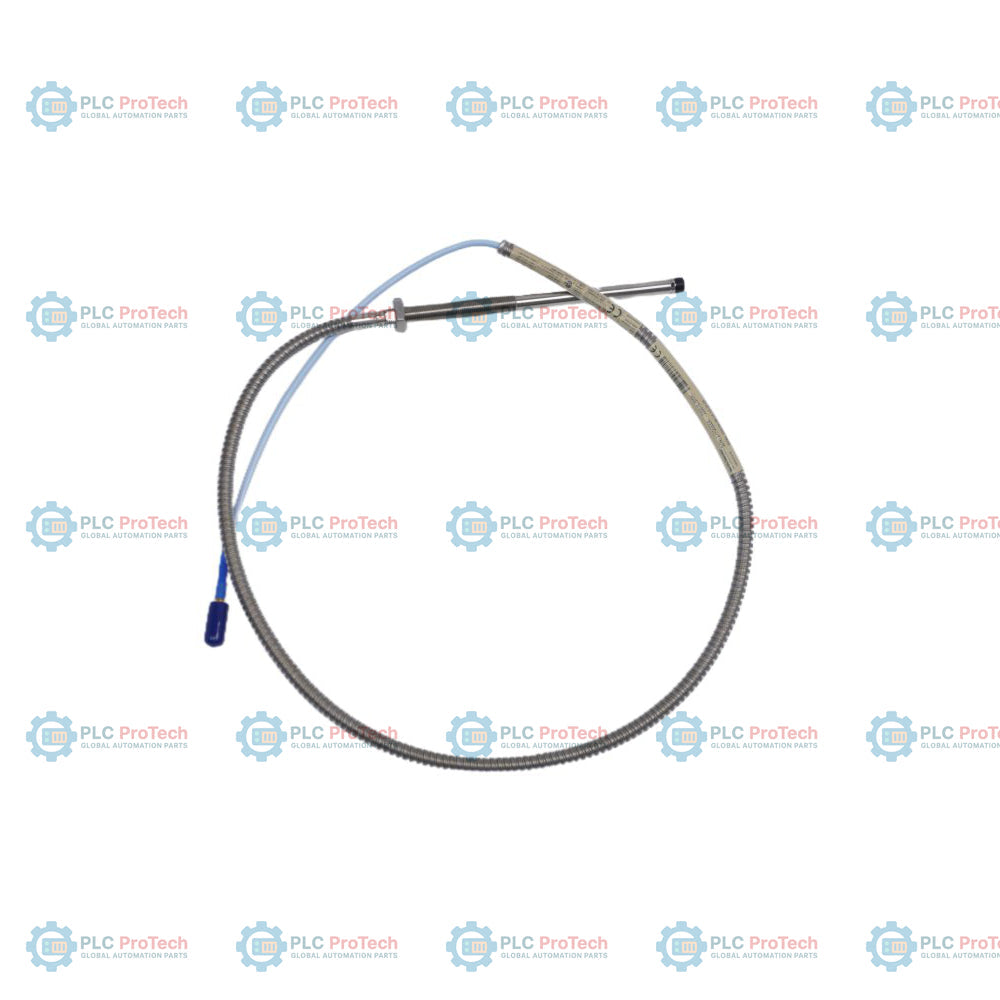

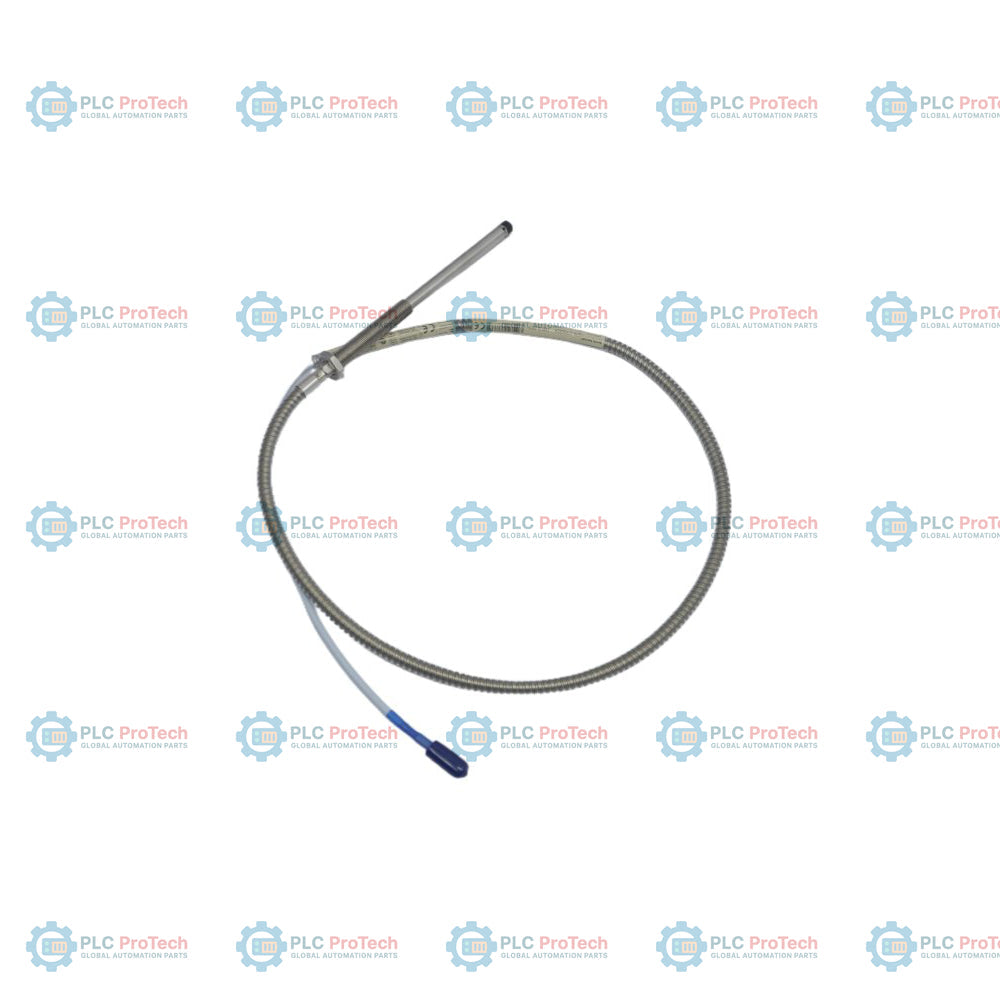

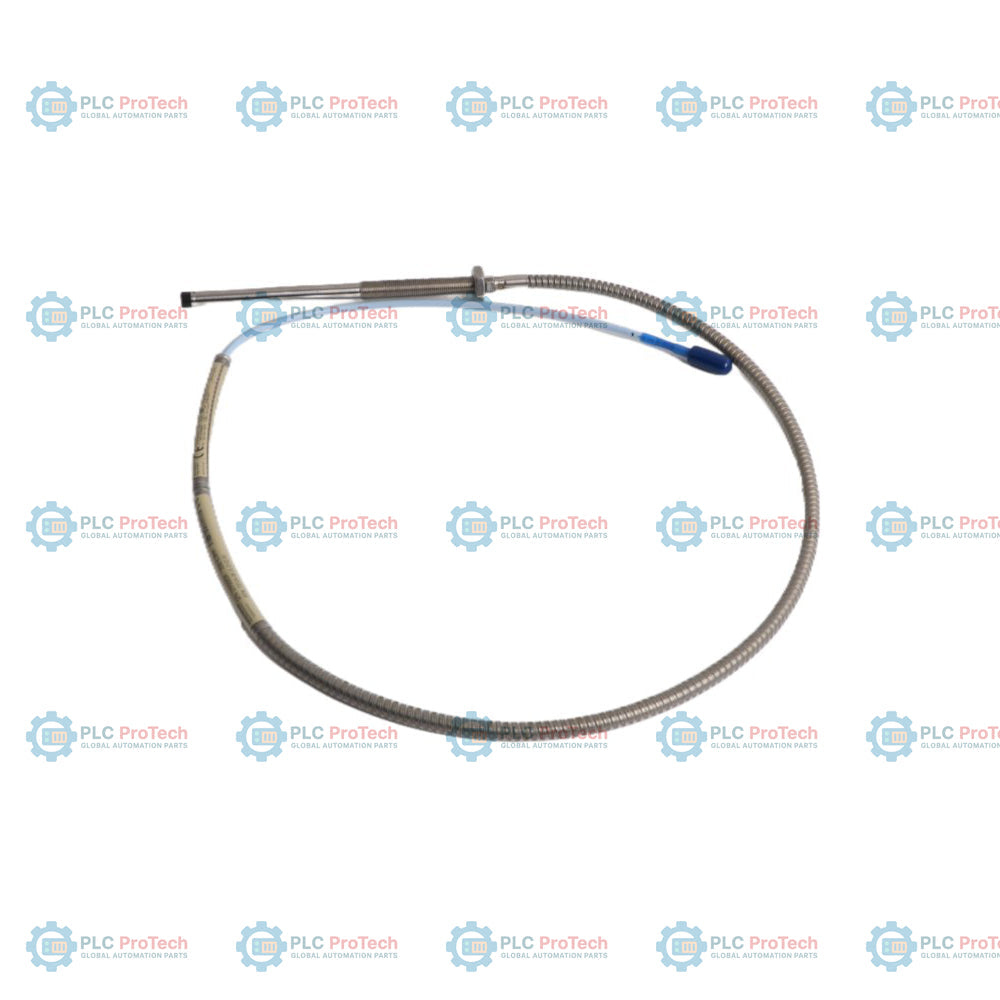

330104-08-15-10-02-05: This 3300 XL 8 mm proximity probe configuration with an M10 x 1 metric thread features integrated stainless steel protective armor, an unthreaded length of 80 mm, a case length of 150 mm, and a total length of 1.0 meter. The built-in armor provides substantial mechanical shielding for the coaxial cable in harsh industrial environments, offering high defense against physical compression and abrasion compared to non-armored variants such as the 330103 series.

Equipped with a miniature coaxial ClickLoc connector (Option 02) and certified for hazardous locations via ATEX, IECEx, and CSA standards (Option 05), this transducer probe operates as a non-contacting eddy-current sensor. It is utilized in 3300 XL 8 mm machinery protection systems to monitor radial shaft vibration, axial position, and speed on key industrial rotating assets. It is fully compatible with standard Bently Nevada 3300 XL extension cables and Proximitor sensors.

Features

• Integrated Armor: Heavy-duty stainless steel armor jacket shields the coaxial cable from mechanical damage, abrasion, and environmental hazards.
• Metric Mounting Thread: M10 x 1 threaded body with a 150 mm overall case length and a defined 80 mm unthreaded portion for precise mechanical standoff adjustment.
• Miniature ClickLoc Connector: Gold-plated coaxial connection system requires only finger-tight torque to establish a secure and signal-stable link.
• High-Stability Sensor Tip: Standard 8.0 mm tip constructed for consistent signal response and resistance to chemical corrosion in industrial liquids.
• Agency Approvals: Option 05 certification for intrinsically safe and non-incendive operations in hazardous environments (CSA, ATEX, IECEx).

Applications

This armored proximity probe is engineered for heavy rotating machinery monitoring where physical protection of the cabling is critical. Typical industrial installations include:

• Centrifugal and axial compressors in petrochemical processing.
• Steam and gas turbine bearing housing monitoring.
• High-pressure water pump shaft vibration and axial thrust measurement.
• Industrial gearboxes and generator bearings in power plants.
• Draft fan systems in manufacturing and mining environments.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting Alignment: Carefully thread the probe into the mounting bracket or casing using the integrated M10 hexagonal flat. Do not exceed 15 mm of thread engagement depth to prevent binding or thread deformation.
• Gap Setting: Align and gap the probe to a nominal bias voltage of -9 Vdc (approximately 1.27 mm or 50 mils) relative to the AISI 4140 steel target surface.
• Cable Handling: Maintain a minimum cable bend radius of 25.4 mm (1.0 inch) for the armored section. Avoid twisting or pulling on the armor sheath during installation.
• Connector Assembly: Secure the gold-plated miniature ClickLoc connector by tightening finger-tight. Do not use pliers, as this can degrade the gold finish and connection integrity.

Compliance and Certifications

• Option 05 HazLoc Certifications: Intrinsically Safe and Non-Incendive ratings when installed according to Bently Nevada control drawings.
• North American Approvals: Class I, Zone 0, AEx ia IIC T5...T1 Ga; Class I, Div 1, Groups A, B, C, D (Intrinsically Safe with barriers).
• European/International: ATEX and IECEx II 1 G, Ex ia IIC T5...T1 Ga; II 3 G, Ex nA/Ex ec IIC T5...T1 Gc for Zone 2.
• CE Mark: Complies with relevant European Union electromagnetic compatibility and environmental directives.
