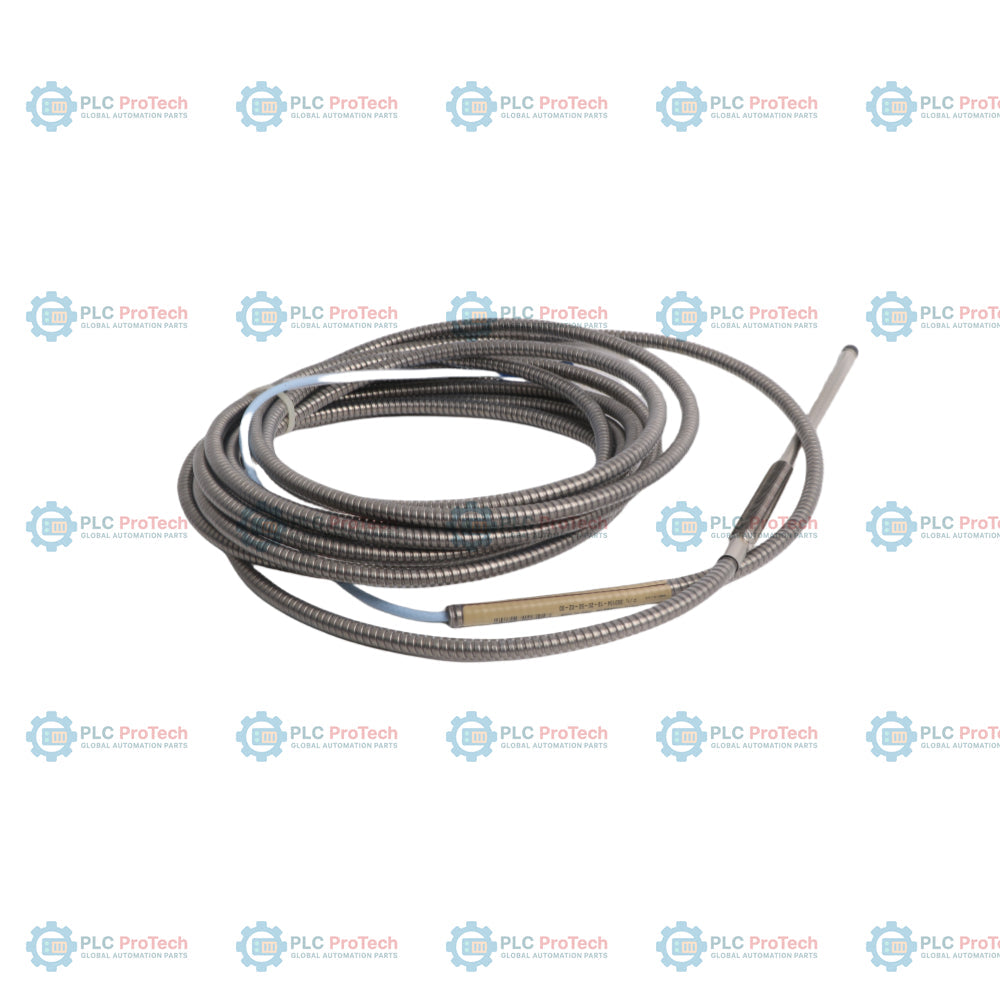

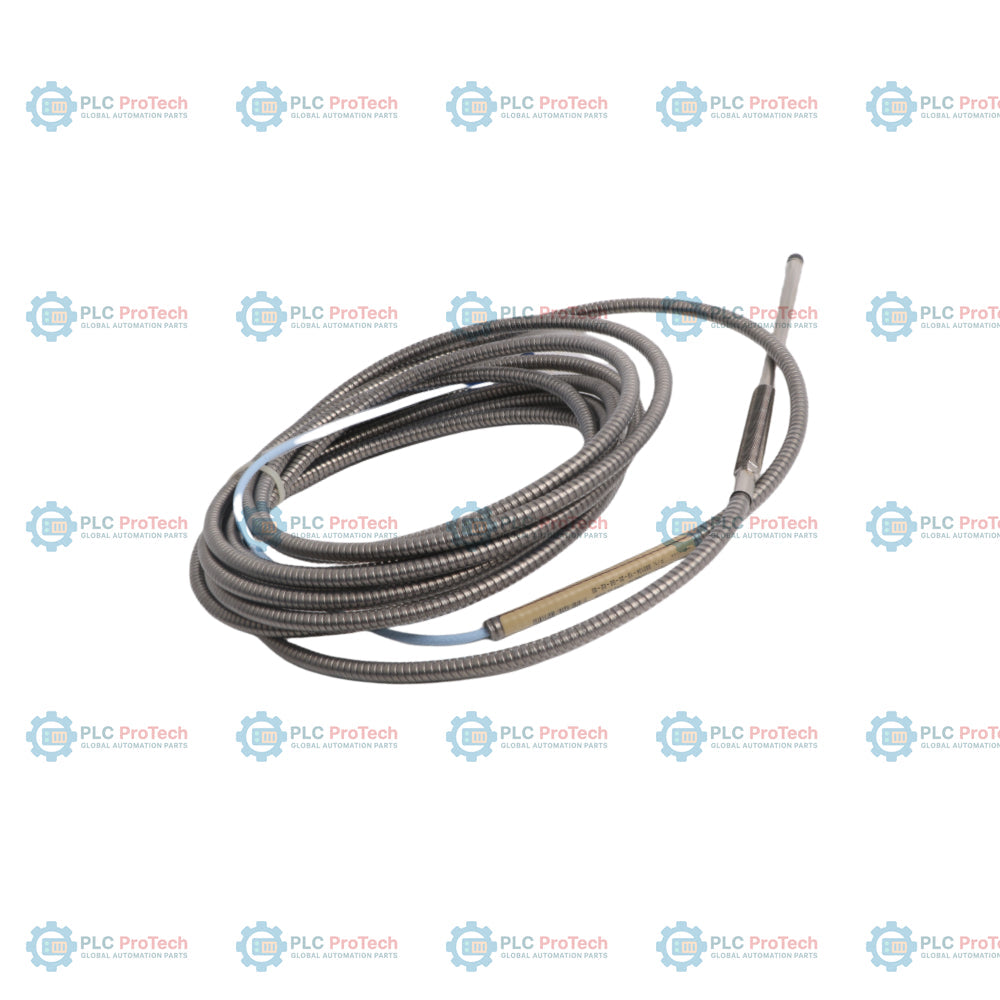

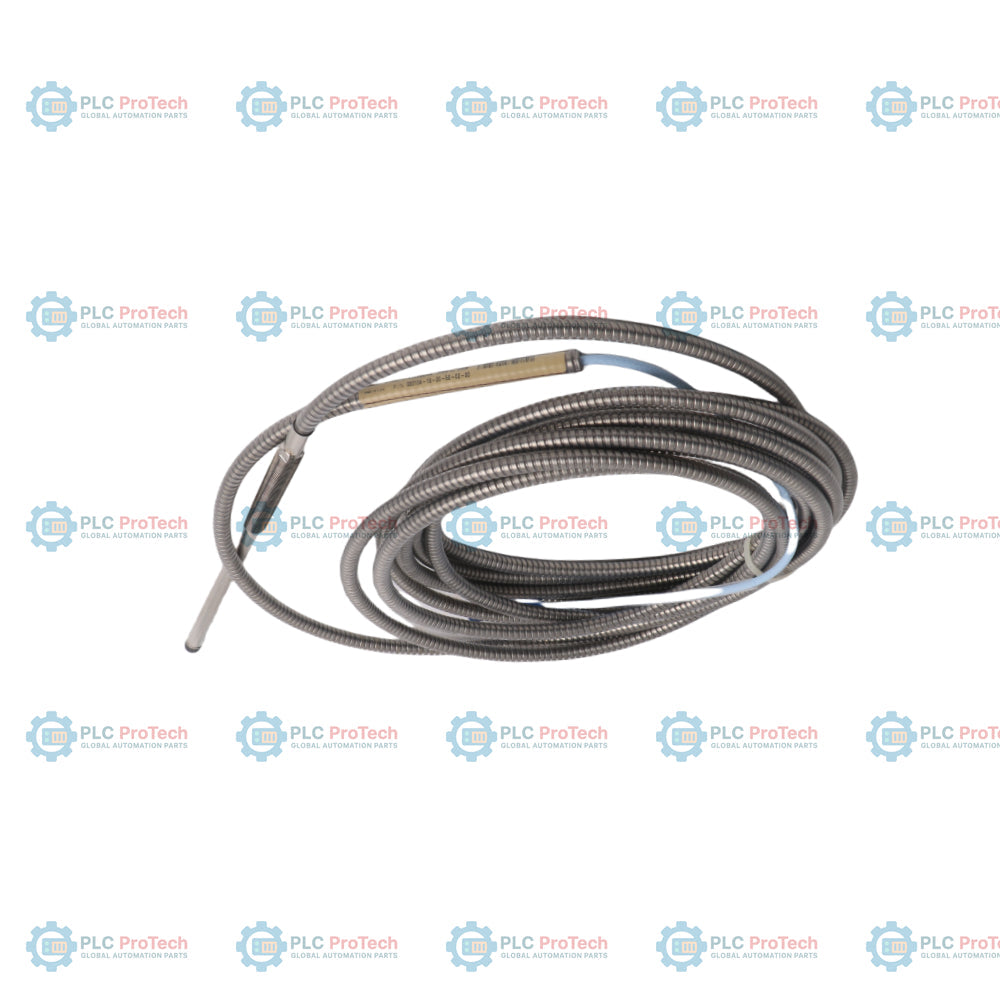

330104-13-20-50-02-00 specifies this armored 3300 XL 8 mm proximity probe configuration, featuring a metric M10 x 1 threaded body with 130 mm of unthreaded length (Option 13) and an overall case length of 200 mm (Option 20). This specific configuration provides 5.0 meters of total length (Option 50), terminated with a miniature coaxial ClickLoc connector on a standard cable (Option 02) with no agency approvals required (Option 00).
This metric-threaded proximity probe incorporates integrated stainless steel armor, which provides mechanical protection against abrasion and physical damage in harsh rotating machinery environments. Sibling configurations such as the 330103 offer unarmored cables, whereas this 330104 variant is designed specifically for applications requiring heavy mechanical shielding over the probe lead. With a 5.0-meter total length, this probe pairs directly with a 5-meter Proximitor sensor without requiring a separate extension cable, simplifying the installation path and reducing connector-related signal losses.
| Option Segment | Code on This SKU | Description / Meaning |
|---|---|---|
| Orderable Part Number | 330104-13-20-50-02-00 | 3300 XL 8 mm Proximity Probe (Armored, Metric) |
| Base Model | 330104 | 3300 XL 8 mm Probe, M10 x 1 thread, with stainless steel armor |
| A - Unthreaded Length Option | 13 | 130 mm unthreaded length |
| B - Overall Case Length Option | 20 | 200 mm overall case length |
| C - Total Length Option | 50 | 5.0 meters (16.4 feet) total length |
| D - Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval Option | 00 | Not required (no agency approvals) |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 330104-13-20-50-02-00 |
| Product Series | 3300 XL 8 mm Proximity Transducer System |
| Thread Size | M10 x 1 metric thread |
| Armor Type | Integrated stainless steel protective armor |
| Unthreaded Length | 130 mm |
| Overall Case Length | 200 mm |
| Threaded Length | 70 mm |
| Probe Tip Diameter | 8.0 mm |
| Total Length | 5.0 meters (16.4 feet) |
| Connector Type | Miniature male coaxial ClickLoc connector |
| Nominal DC Resistance | 8.73 ohms +/- 0.50 ohms (center conductor to outer conductor) |
| Cable Type | 75 ohm coaxial with standard FEP jacket |
| Operating Temperature | -52 degC to +177 degC (-62 degF to +350 degF) |
| Pressure Seal | Sealed up to 7.0 bar (100 psi) differential pressure |
| Target Material Calibration | AISI 4140 steel |
| Dimensions | 45 mm x 185 mm x 185 mm (H x W x D) |
| Weight | 0.45 kg (450 g) |
| Connector Component | Function |
|---|---|
| Center Conductor | Signal transmission (connection to Proximitor Sensor) |
| Outer Shield | Signal return and electrostatic shielding |
