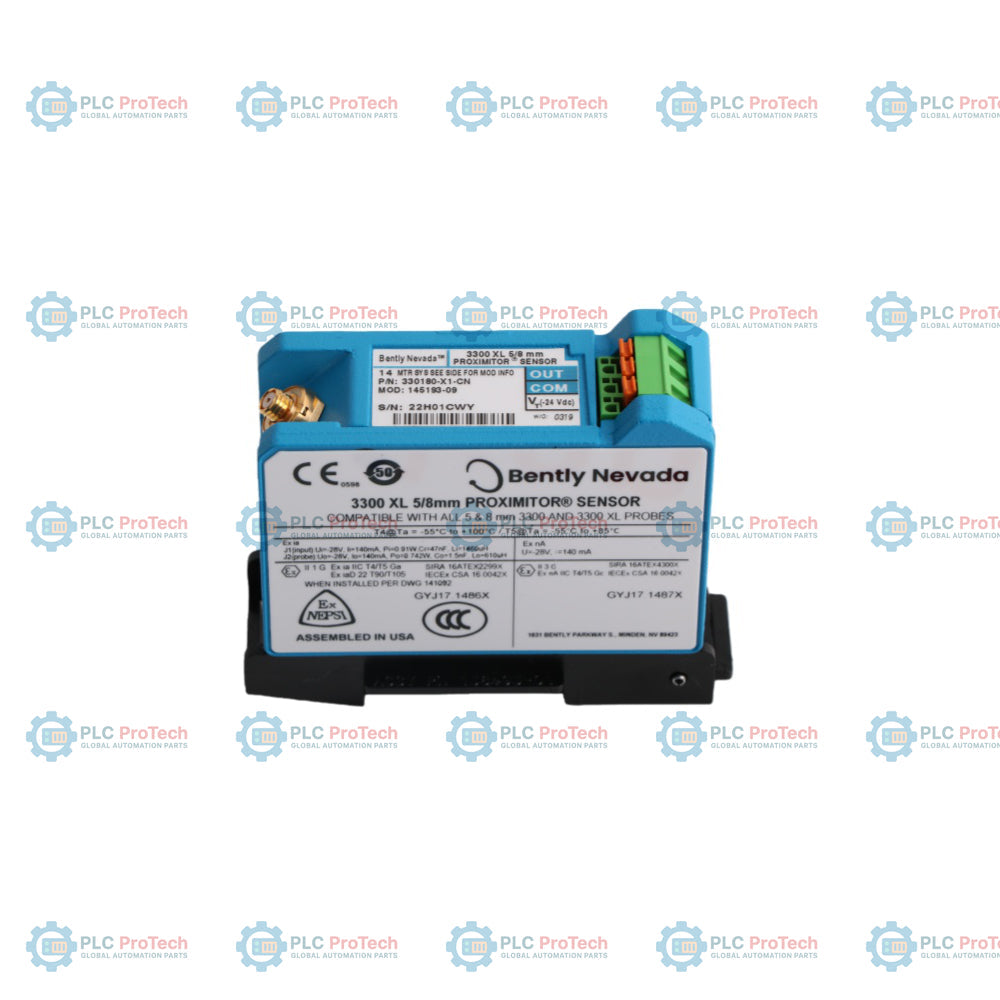

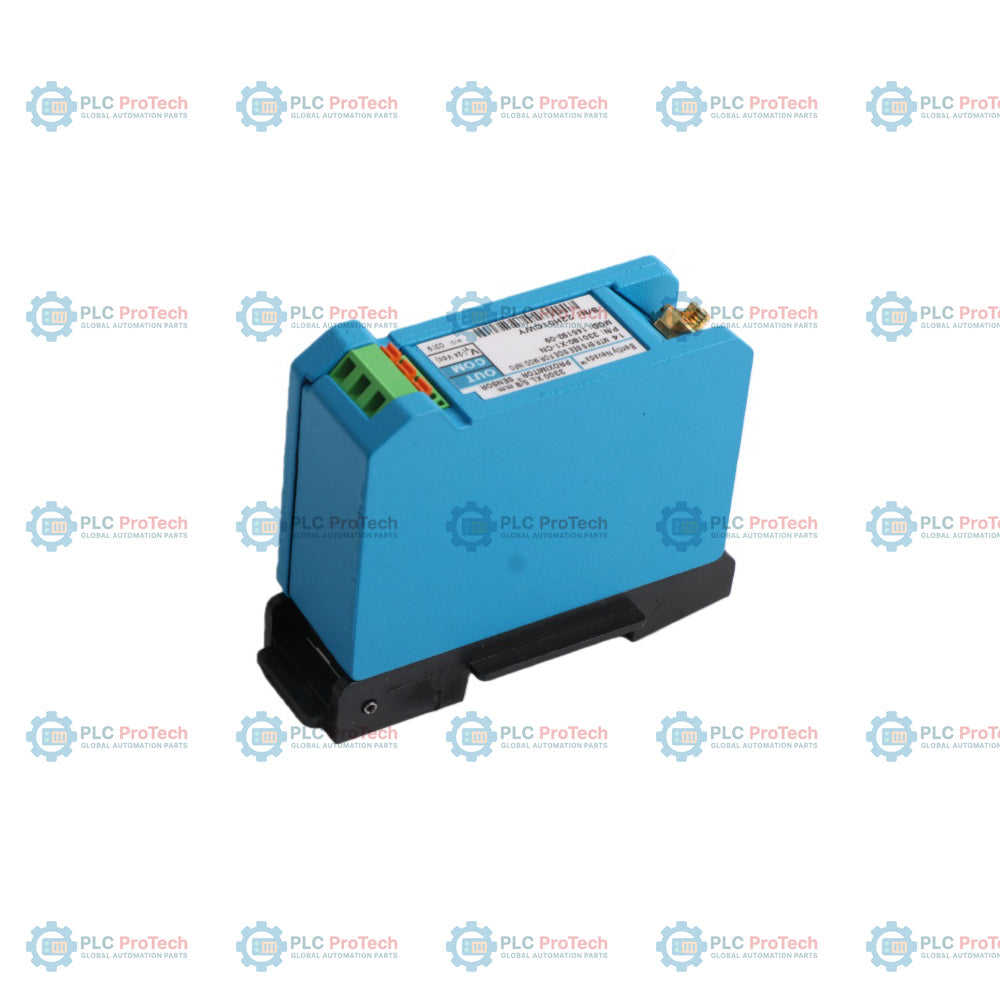

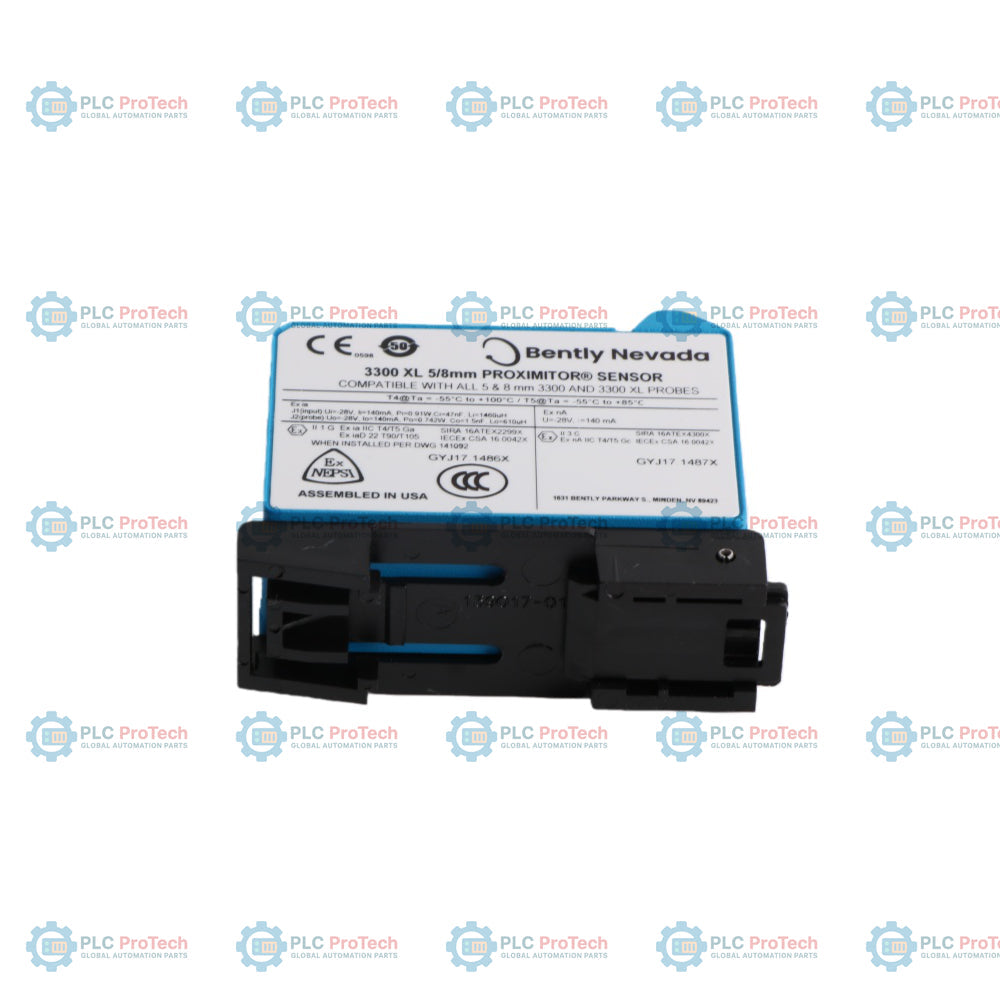

Bently Nevada 330180-X1-CN MOD:143416-05 3300 XL Proximitor Sensor

Product Overview

The Bently Nevada 330180-X1-CN MOD:143416-05 is a high-precision Eddy Current Proximitor Sensor belonging to the 3300 XL 8 mm Proximity Transducer System. This specific unit handles both static displacement (position) and dynamic displacement (vibration) measurements on critical rotating machinery components. The device translates the distance between an 8 mm probe tip and the observed conductive target surface into a proportional analog voltage signal. The X1 configuration specifies a 35 mm DIN rail mount layout, while the CN suffix denotes localized safety compliance, including ATEX/IECEx and Chinese NEPSI hazardous area approvals. The structural designation MOD:143416-05 represents a factory-calibrated modification engineered to provide enhanced electrical durability and target profile optimization inside heavy industrial environments.

Technical Configuration

Ordering Information

Because Bently Nevada transducer components feature internal matching circuits calibrated to exact system loop lengths, procurement must specify both the core part configurations and factory modification tags.

• Component Part Number: 330180-X1-CN

• Factory Modification Suffix: MOD:143416-05

• System Family Code: 3300 XL Proximitor Series


Hardware Configuration & Engineering Guide

Total Loop Length Verification

The 330180 sensor must be paired with an 8 mm probe and extension cable matching the precise overall electrical system length (typically 5.0 meters or 9.0 meters total). Mismatching a 5-meter proximitor module with a 9-meter cable array shifts the eddy current oscillation baseline, resulting in severe scale factor errors, zero-point drift, and inaccurate machine vibration readings.

RFI Immunity and Enclosure Grounding

The 3300 XL sensor design features advanced radio frequency interference (RFI) shielding, satisfying European CE mark parameters without requiring special steel conduits. However, the physical DIN rail mounting strip (X1) must have a direct low-impedance electrical bond to the instrument enclosure ground rail. Avoid mounting the Proximitor board immediately adjacent to high-power variable frequency drive (VFD) output cables or contactor blocks.

Field Coaxial Connector Protection

The coaxial links connecting the field probe lead to the MOD:143416-05 module are highly sensitive to moisture, grease, and mechanical stress. Use specialized connector silicone sleeves during assembly to insulate the raw coaxial threads. Ensure the extension cable minimum bend radius of 25.4 mm (1.0 inch) is strictly observed within the cabinet wire trays to prevent micro-cracks in the inner shield layers.

Frequently Asked Questions

What does the MOD:143416-05 suffix designate?

The MOD:143416-05 designation identifies a factory-engineered modification applied directly to the internal tuning parameters of the 330180 series. This often dictates a altered calibration profile to accommodate non-standard shaft target materials, customized signal gains, or specialty protective coatings on the outer housing block.

Is this sensor hot-swappable while the TSI monitoring rack is online?

Yes, the Proximitor sensor can be replaced while the primary monitoring rack (such as a Bently Nevada 3500 rack) remains powered up. However, disconnecting the sensor will immediately open the loop circuit, driving the corresponding rack channel into an "Unstable/Fault" state. Bypass or inhibit any automated trip relays before swapping the hardware to avoid accidental machinery shutdown.

What do the X1 and CN tags signify in the ordering configuration?

The X1 configuration ensures the Proximitor sensor housing comes fitted with an integrated structural foot designed for standard DIN rail clip mounting. The CN designation indicates that the product adheres to specific regional requirements for China, carrying the NEPSI hazardous area explosion-proof stamps along with ATEX/IECEx data.
