Manufacturer: Bently Nevada
Product No.: 330193-00-02-10-00
Country of origin:United States
Product Type: Proximity Probes
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months

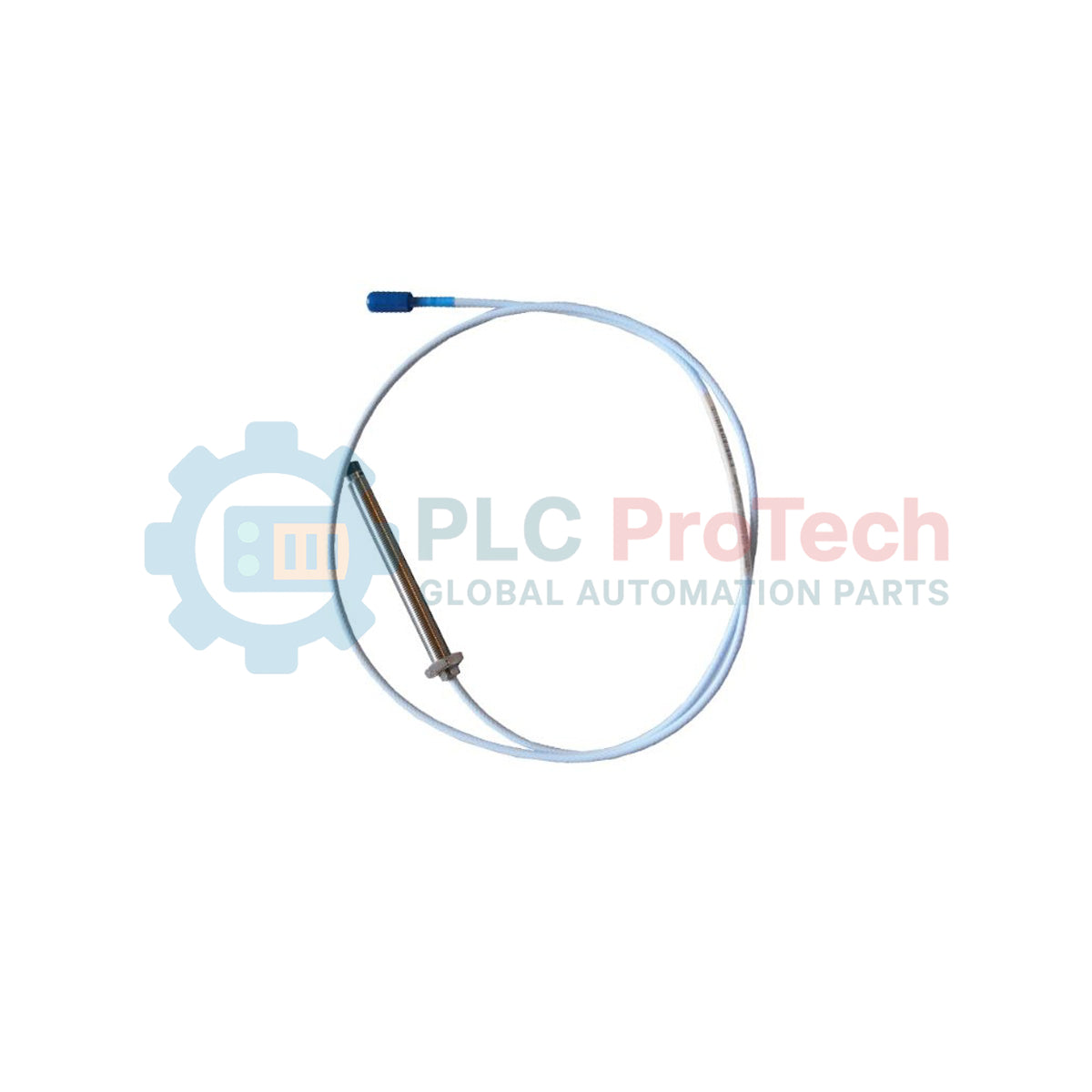

As a critical component in machinery protection systems, the Bently Nevada 330193-00-02-10-00 provides precise, non-contact displacement and vibration measurements under challenging thermal conditions. Engineered specifically for the 3300 XL 8 mm Extended Temperature Range (ETR) series, this proximity probe operates reliably in extreme high-temperature environments where standard sensors degrade. The system utilizes Eddy Current technology to monitor key mechanical parameters, including shaft vibration, radial position, and thrust position on critical rotating machinery.
| Option Code | Configuration Parameter | Value / Description |
|---|---|---|
| 00 | Unthreaded Length | 0 mm |
| 02 | Overall Case Length | 20 mm |
| 10 | Total Length | 1.0 metre (3.3 feet) |
| 00 | Agency Approval | Not required |
| Manufacturer | Bently Nevada |
| Part Number / SKU | 330193-00-02-10-00 |
| Product Series | 3300 XL 8 mm ETR |
| Tip Diameter | 8 mm |
| Case Thread Option | Unthreaded (0 mm length) |
| Physical Case Length | 20 mm |
| Integrated Cable Length | 1.0 metre |
| Connector Style | Miniature coaxial Click-Loc |
| Sensor Type | Eddy Current Proximity Probe |
| Country of Origin | USA |
| Shipping Weight (Calculated) | 1.5 kg (3.3 lbs) |
| Connector Element | Type | Functional Assignment / Requirements |
|---|---|---|
| Coaxial Center Pin | Signal / High-Frequency RF | Carries RF excitation signal from Proximitor Sensor and returns modulated voltage. |
| Coaxial Outer Shield | Return Path / Common | Establishes reference ground path. Must remain isolated from machine ground. |
| Click-Lock Joint | Mechanical Coupler | Locking mechanism. Requires connector protectors if exposed to fluids or oil. |
The 330193-00-02-10-00 probe is strictly designed for integration within the 3300 XL 8 mm Extended Temperature Range system. It must be paired with an ETR extension cable and an ETR-compatible Proximitor Sensor. Mismatching this probe with standard, non-ETR 3300 XL extension cables or Proximitor Sensors introduces substantial linearity deviations and calibration shifts, rendering scale factors unreliable.
When deploying the probe in high-temperature fluid boundaries, assure that the probe case thread interface is securely sealed. Since this unit features a 0 mm unthreaded portion, the case body is fully threaded up to the tip, demanding careful depth calculation within the bracket to prevent internal mechanical interference with the target shaft.
Always check the insulation resistance of the probe before and after installation to confirm that the sensor tip and the coaxial shield have not shorted directly to the machine casing. Connectors must be finger-tightened until the positive Click-Loc detent engages. Do not use pliers or heavy wrenches, as excessive torque will damage the internal coaxial termination.
