330876-01-10-00-00 | Bently Nevada | 3300 XL 50 mm Proximity Probe

Bently Nevada

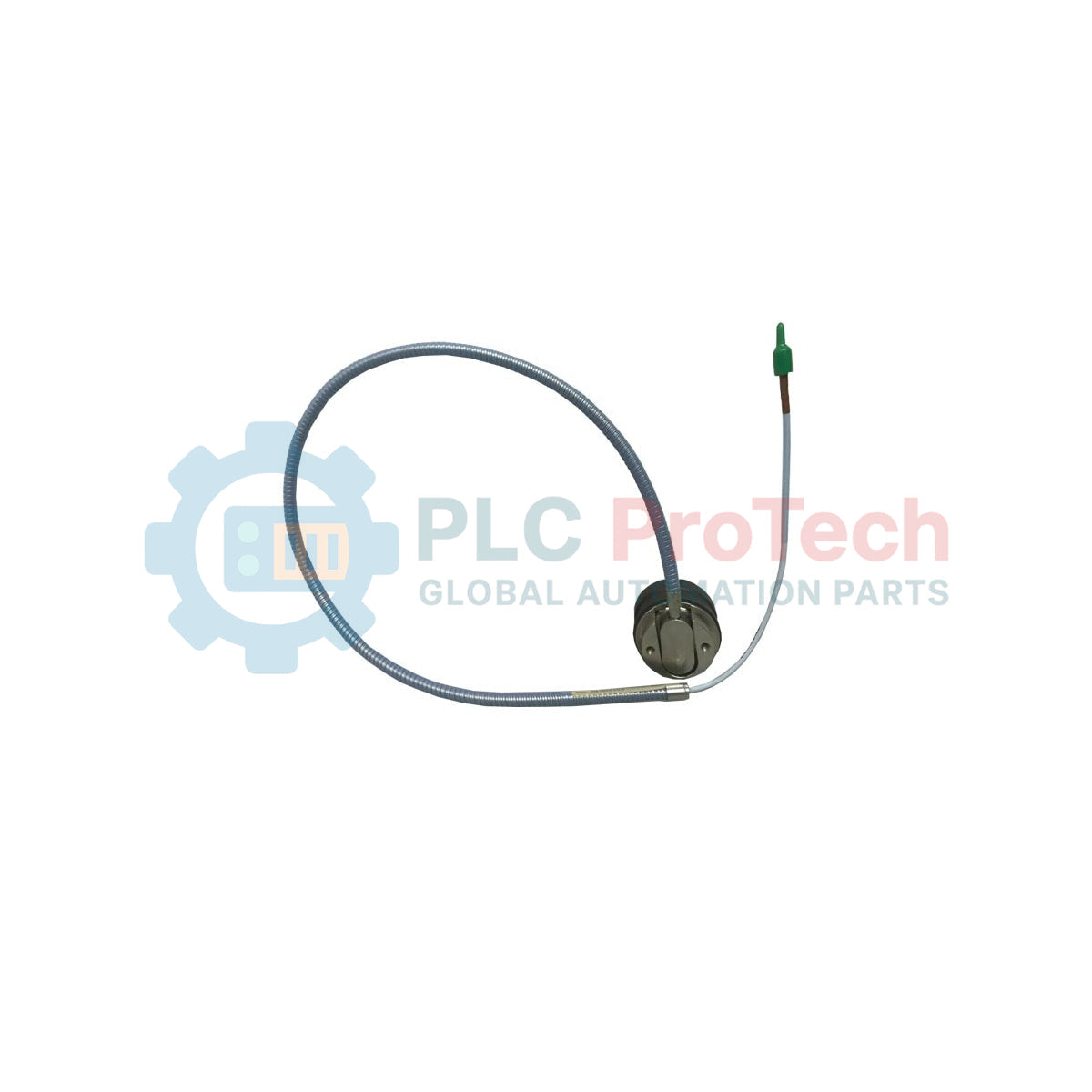

Bently Nevada 330876-01-10-00-00 3300 XL 50 mm Proximity Probe

SKU 330876-01-10-00-00

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330876-01-10-00-00
  • Origin United States
  • Product Type: Proximity Probes
  • Payment: T/T, Western Union
  • Weight: 0.32 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330876-01-10-00-00 3300 XL 50 mm Proximity Probe

Download Open in new tab
Quantity
Call sales Contact

Product Description

Description

Designed for high-displacement, non-contact vibration and axial position measurements, the Bently Nevada 330876-01-10-00-00 belongs to the robust 3300 XL 50 mm proximity transducer family. This probe is engineered to measure shaft displacement, differential expansion, and structural motion in harsh industrial environments. Operating on eddy-current principles, it delivers continuous dynamic measurements when paired with a matching 3300 XL 50 mm Proximitor Sensor. The FluidLoc cable technology prevents process fluids or moisture from bypassing the internal core, ensuring stable signal transmission in wet or demanding conditions.

Features

  • Standard 1/2-20 UNF-2A straight-exit threaded case for standard industrial mounting.
  • Large 50 mm sensor diameter optimized for wide-displacement measuring ranges.
  • FluidLoc cable construction blocks high-pressure or high-temperature fluid migration.
  • High-integrity coaxial connections utilize corrosion-resistant gold-plated brass ClickLoc connectors.
  • Broad temperature operating range suitable for heavy industrial environments.

Applications

  • Differential expansion measurement in utility steam turbines and generators.
  • Shaft axial position and thrust wear monitoring in large-scale rotating machinery.
  • Hydroelectric generator shaft alignment and air gap measurements.
  • Structural deformation and thermal growth tracking in high-temperature utility assets.

Technical Specifications

Manufacturer Bently Nevada
Part Number 330876-01-10-00-00
Series 3300 XL 50 mm Proximity Transducer System
Probe Case Option 1/2-20 UNF thread, straight exit
Total Length Option 1.0 meter (3.3 feet)
Armor Option FluidLoc Cable, No Armor
Agency Approvals No approvals
Operating Temperature Range -35 to 177 degC (-31 to 350 degF)
Probe Tip Diameter 50 mm
Target Material Calibration AISI 4140 steel (standard calibration target)
Connector Type Gold-plated ClickLoc coaxial connector
Country of Origin United States

Installation Guidelines

  • Verify that the mounting bracket supports the probe tip perpendicular to the observed shaft target to eliminate angular calibration errors.
  • Ensure proper physical clearances are maintained around the 50 mm probe tip to prevent side-loading and interference from surrounding metallic components.
  • Keep minimum cable bend radius limits above 25.4 mm (1.0 inch) during routing to prevent internal conductor damage.
  • Use dedicated junction boxes or clean conduit pathways to isolate the proximity probe cable from high-voltage motor or generator power lines.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What standard target material is compatible with the 330876-01-10-00-00 probe?
This probe is calibrated standard for AISI 4140 steel. Using other target metals will affect the output linearity and require custom calibration.
What are the specific parameters represented by the '01-10-00-00' configuration?
The configuration stands for: 01 (1/2-20 UNF thread, straight exit), 10 (1.0 meter total length), 00 (FluidLoc cable without physical armor), and 00 (No agency approvals).
How does the FluidLoc cable function on this Bently Nevada proximity probe?
The FluidLoc cable design features internal sealing that prevents grease, oil, steam, or process fluids from leaking through the inside of the cable jacket into the terminal connection area.
Reviews

More from this brand

Bently Nevada 3300/16-11-01-02-03-02-00 PWA 86739-01 Dual Vibration Monitor
3300/16-11-01-02-03-02-00 86739-01Bently Nevada 3300/16-11-01-02-03-02-00 PWA 86739-01 Dual Vibration Monitor
Bently Nevada 330180-X0-00 MOD 161255-02 3300 XL 5/8 mm Proximitor Sensor
330180-X0-00 161255-02Bently Nevada 330180-X0-00 MOD 161255-02 3300 XL 5/8 mm Proximitor Sensor
Bently Nevada 79492-01 3300/35 Six-Channel RTD Temperature Monitor
Bently Nevada 79492-01 3300/35 Six-Channel RTD Temperature Monitor
Bently Nevada 3500/25 125800-01 Keyphasor I/O Module | PWA 184389-01
3500/25 125800-01Bently Nevada 3500/25 125800-01 Keyphasor I/O Module | PWA 184389-01

330876-01-10-00-00

Stock & lead time on request

Call
  • 330876-01-10-00-00 | Bently Nevada | 3300 XL 50 mm Proximity Probe
1 1

Bently Nevada 330876-01-10-00-00 3300 XL 50 mm Proximity Probe

Only 4 item(s) left in stock

  • Manufacturer: Bently Nevada

  • Product No.: 330876-01-10-00-00

  • Country of origin:United States

  • Product Type: Proximity Probes

  • Payment: T/T, Western Union

  • Weight: 320g

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

Designed for high-displacement, non-contact vibration and axial position measurements, the Bently Nevada 330876-01-10-00-00 belongs to the robust 3300 XL 50 mm proximity transducer family. This probe is engineered to measure shaft displacement, differential expansion, and structural motion in harsh industrial environments. Operating on eddy-current principles, it delivers continuous dynamic measurements when paired with a matching 3300 XL 50 mm Proximitor Sensor. The FluidLoc cable technology prevents process fluids or moisture from bypassing the internal core, ensuring stable signal transmission in wet or demanding conditions.

Features

  • Standard 1/2-20 UNF-2A straight-exit threaded case for standard industrial mounting.
  • Large 50 mm sensor diameter optimized for wide-displacement measuring ranges.
  • FluidLoc cable construction blocks high-pressure or high-temperature fluid migration.
  • High-integrity coaxial connections utilize corrosion-resistant gold-plated brass ClickLoc connectors.
  • Broad temperature operating range suitable for heavy industrial environments.

Applications

  • Differential expansion measurement in utility steam turbines and generators.
  • Shaft axial position and thrust wear monitoring in large-scale rotating machinery.
  • Hydroelectric generator shaft alignment and air gap measurements.
  • Structural deformation and thermal growth tracking in high-temperature utility assets.

Technical Specifications

Manufacturer Bently Nevada
Part Number 330876-01-10-00-00
Series 3300 XL 50 mm Proximity Transducer System
Probe Case Option 1/2-20 UNF thread, straight exit
Total Length Option 1.0 meter (3.3 feet)
Armor Option FluidLoc Cable, No Armor
Agency Approvals No approvals
Operating Temperature Range -35 to 177 degC (-31 to 350 degF)
Probe Tip Diameter 50 mm
Target Material Calibration AISI 4140 steel (standard calibration target)
Connector Type Gold-plated ClickLoc coaxial connector
Country of Origin United States

Installation Guidelines

  • Verify that the mounting bracket supports the probe tip perpendicular to the observed shaft target to eliminate angular calibration errors.
  • Ensure proper physical clearances are maintained around the 50 mm probe tip to prevent side-loading and interference from surrounding metallic components.
  • Keep minimum cable bend radius limits above 25.4 mm (1.0 inch) during routing to prevent internal conductor damage.
  • Use dedicated junction boxes or clean conduit pathways to isolate the proximity probe cable from high-voltage motor or generator power lines.
Key Features:
#3300 XL #Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330876-01-10-00-00 3300 XL 50 mm Proximity Probe

Download Open in new tab

What standard target material is compatible with the 330876-01-10-00-00 probe?
This probe is calibrated standard for AISI 4140 steel. Using other target metals will affect the output linearity and require custom calibration.

What are the specific parameters represented by the '01-10-00-00' configuration?
The configuration stands for: 01 (1/2-20 UNF thread, straight exit), 10 (1.0 meter total length), 00 (FluidLoc cable without physical armor), and 00 (No agency approvals).

How does the FluidLoc cable function on this Bently Nevada proximity probe?
The FluidLoc cable design features internal sealing that prevents grease, oil, steam, or process fluids from leaking through the inside of the cable jacket into the terminal connection area.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .

TECHNICAL SPECIFICATIONS
