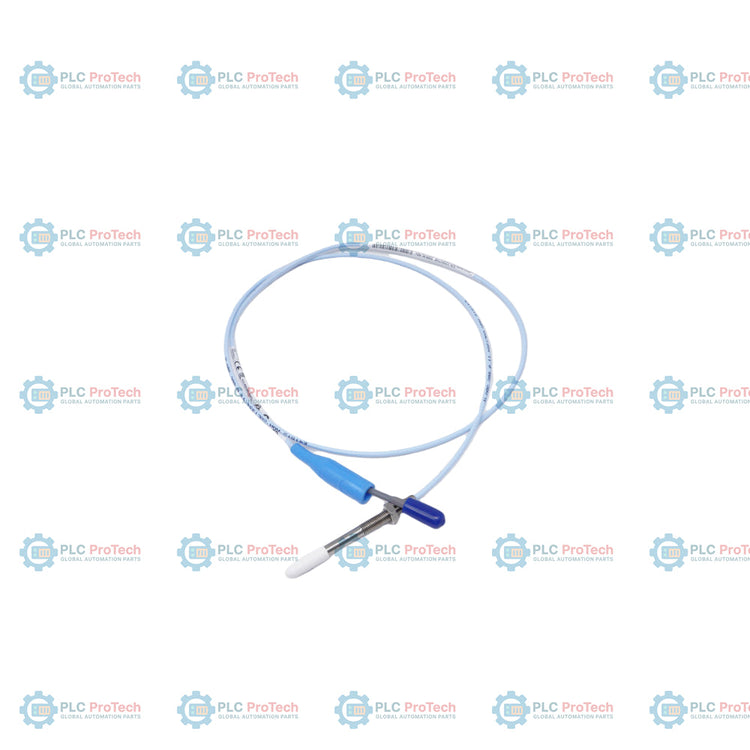

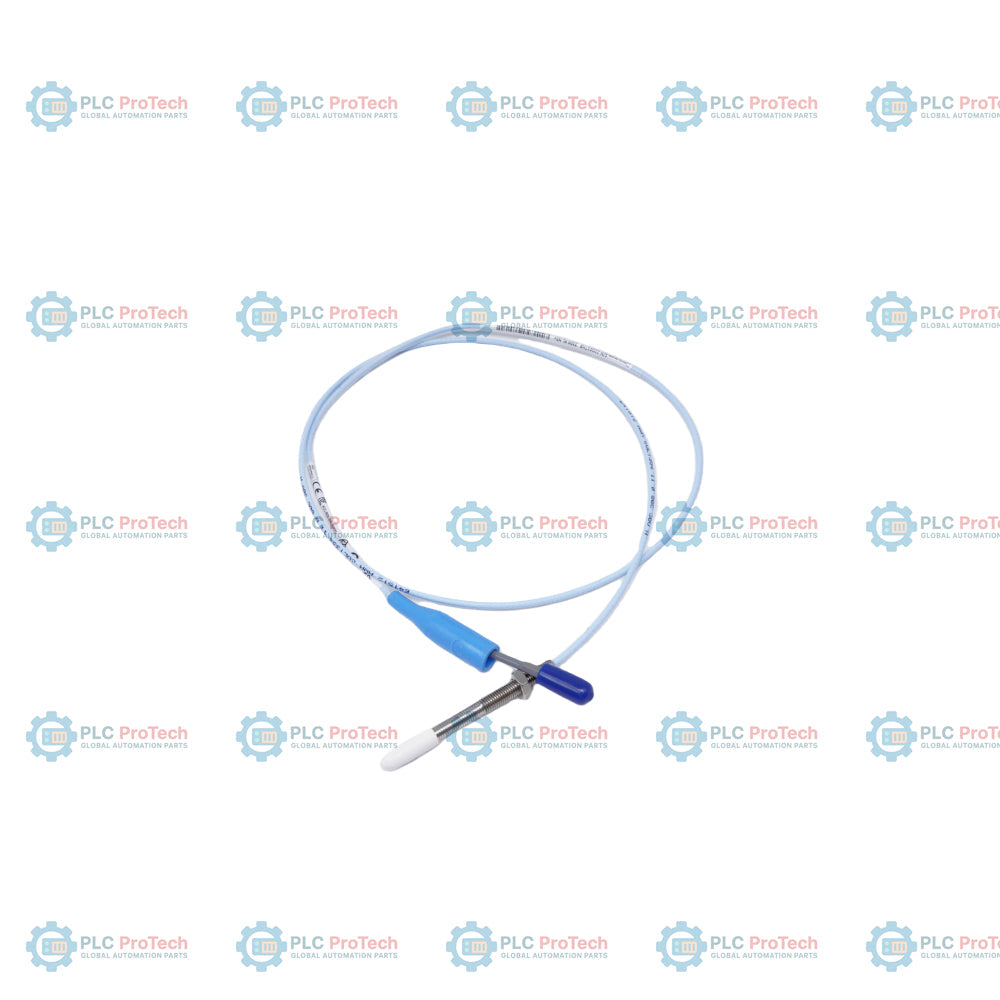

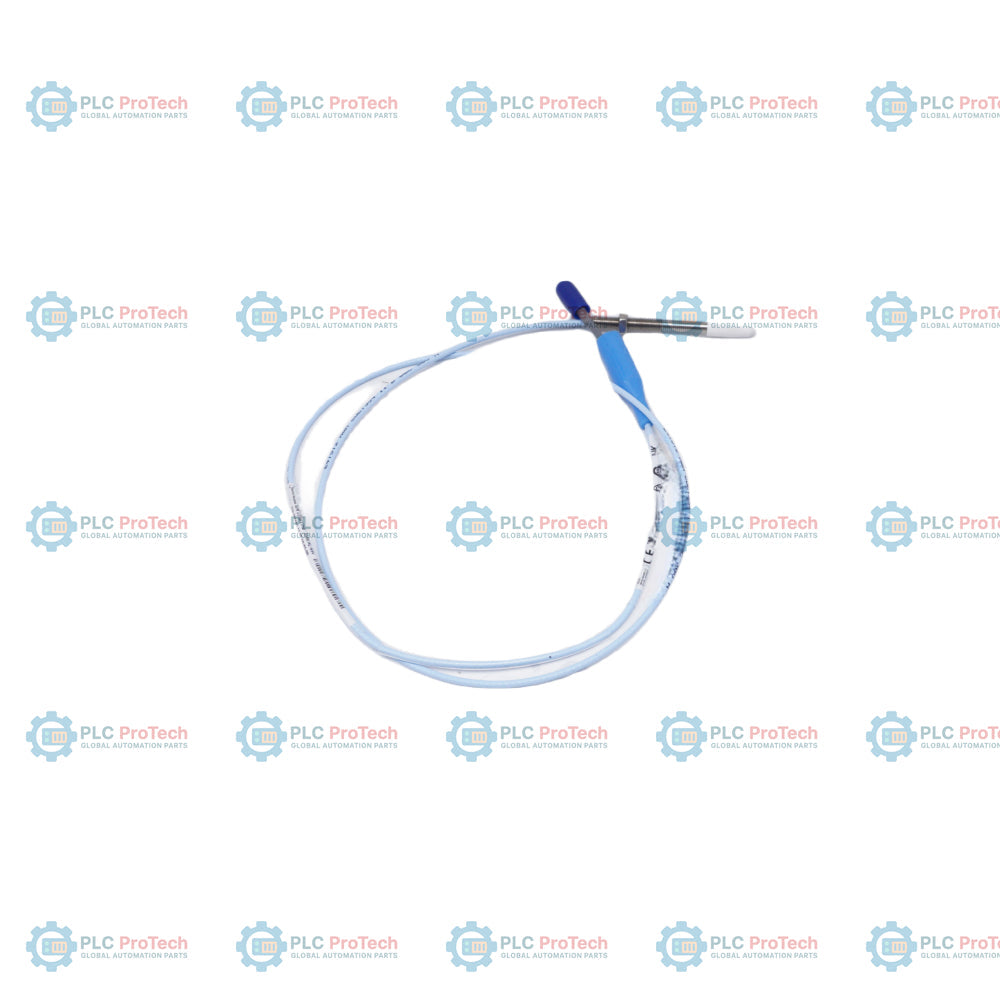

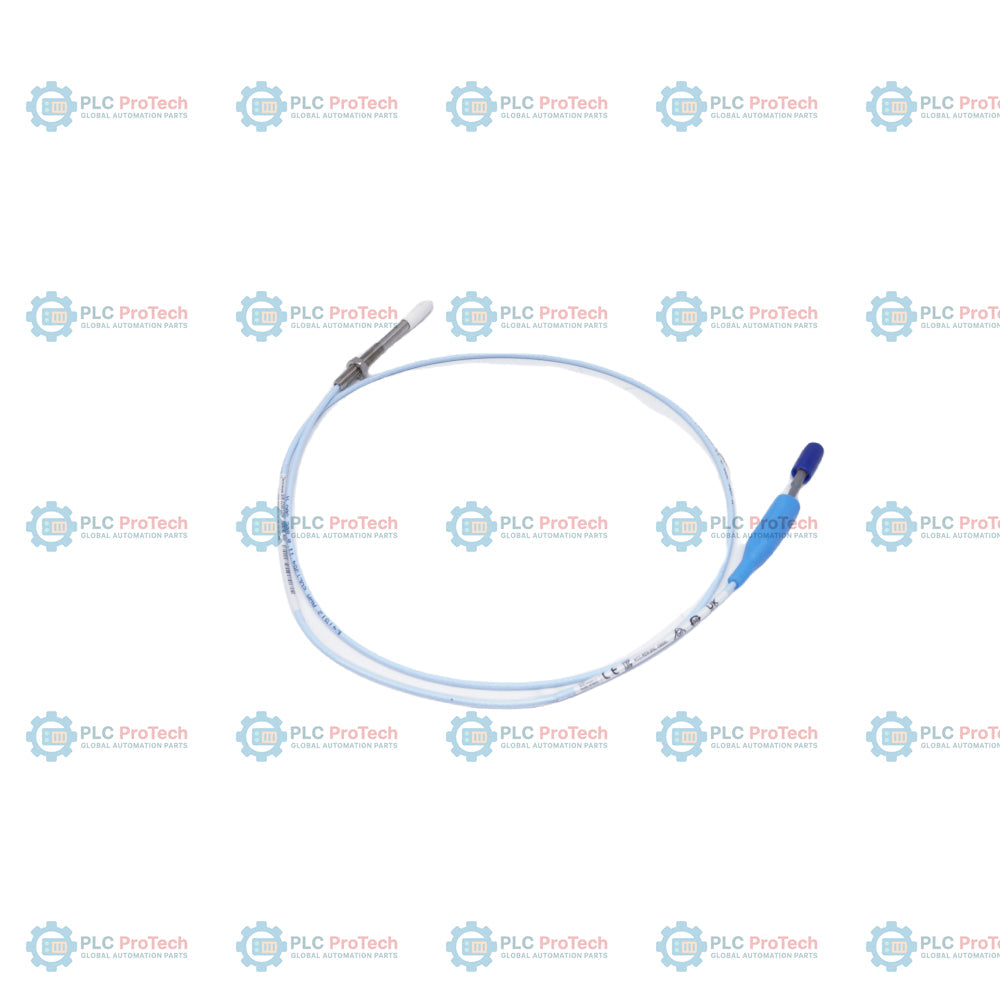

Bently Nevada 330901-11-25-10-01-00 3300 NSv Proximity Probes

SKU 330901-11-25-10-01-00

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330901-11-25-10-01-00
Country of origin:United States
Product Type: 3300 NSv Proximity Probes
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 120g
Dimensions: 45 mm x 90 mm x 90 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Description

330901-11-25-10-01-00: 3300 NSv proximity probe with 1/4-28 UNF threads and no armor, configured with 1.1 in of unthreaded length, a 2.5 in case length, a 1.0 m (39 in) total length, a standard cable with a miniature coaxial ClickLoc connector and connector protector, and no agency approvals.

This probe configuration differs from sibling models by incorporating a 1.1 in unthreaded section alongside a 2.5 in case length, providing specific clearance dimensions suited for small-bore machinery. Unlike variants with stainless steel armor (such as the 330902) or those featuring FluidLoc cables for oil sealing, this unarmored standard cable version with an integrated fluorosilicone connector protector is suited for clean environments requiring tight spatial clearance.

Features

Option 11 specifies a 1.1 in (27.9 mm) unthreaded probe body length.
Option 25 specifies a 2.5 in (63.5 mm) overall threaded case length with 1/4-28 UNF threads.
Option 10 provides a total electrical length of 1.0 m (39 in) of FEP-insulated coaxial cable.
Option 01 supplies a gold-plated brass ClickLoc coaxial connector with an integrated fluorosilicone connector protector.
Option 00 specifies that hazardous area approvals are not required.
Miniature coaxial cable structure with standard 75 ohm characteristic impedance.
Unarmored mechanical design for compact, direct-threaded installations.

Applications

Small-bore machinery vibration monitoring
Shaft vibration and axial position measurement in aeroderivative gas turbines
Fluid film bearing clearance and shaft position sensing
High-speed equipment with limited target geometry and restricted installation clearances
Process compressor shaft displacement monitoring

Ordering Information

Option Segment	Code Value	Meaning / Description
Base Model	330901	3300 NSv Probe, 1/4-28 UNF thread, without armor
A - Unthreaded Length Option	11	1.1 inches (ordered in 0.1 in increments)
B - Overall Case Length Option	25	2.5 inches (ordered in 0.1 in increments)
C - Total Length Option	10	1.0 meter (39 in)
D - Connector and Cable-Type Option	01	Miniature coaxial ClickLoc connector with connector protector, standard cable
E - Agency Approval Option	00	Not required

Technical Specifications

Manufacturer	Bently Nevada
Model/Part Number	330901-11-25-10-01-00
Thread Specification	1/4-28 UNF-2A, standard mount
Armoring Option	Without armor
Unthreaded Length	1.1 in (27.9 mm)
Overall Case Length	2.5 in (63.5 mm)
Cable Material	75 ohm coaxial, fluoroethylene propylene (FEP) insulated
Cable/Total Length	1.0 m (39 in)
Connector Type	Gold-plated brass Miniature coaxial ClickLoc male connector
Connector Protection	Fluorosilicone connector protector installed
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 304 stainless steel (SST)
System Compatibility	Pairs with 330930 NSv extension cables and 330980 NSv Proximitor sensors
Linear Range	1.5 mm (60 mils), spanning from 0.25 to 1.75 mm (10 to 70 mils)
Recommended Gap Setting	1.0 mm (40 mils) (approximately -9.0 Vdc bias)
Incremental Scale Factor (ISF)	7.87 V/mm (200 mV/mil) +12.5% / -20% over 0 degC to 45 degC range
Deviation from Best Fit Straight Line (DSL)	Less than +/-0.06 mm (+/-2.3 mils)
Frequency Response	0 to 10 kHz: +0, -3 dB typical with up to 305 m (1000 ft) field wiring
Operating and Storage Temperature	-52 degC to +177 degC (-62 degF to +351 degF)
Relative Humidity Limits	100% condensing, non-submersible when connectors are protected
Tensile Strength (Maximum Rated)	220 N (50 lb) probe case to probe lead, 220 N (50 lb) at connector
Target Size Requirements	Minimum: 8.9 mm (0.35 in) flat target; Recommended: 13 mm (0.5 in) flat target

Installation Guidelines

Securely mount the 1/4-28 probe case using a standard recommended torque of 5.1 Nm (45 in-lb); do not exceed the maximum rated limit of 7.3 Nm (65 in-lb).
Ensure the minimum bend radius of the coaxial cable does not fall below 25.4 mm (1.0 in) during routing.
Install the integrated fluorosilicone connector protector over the ClickLoc mating interface to prevent liquid contaminants from altering electrical signals.
Maintain at least 25 mm (1.0 in) separation distance between transducer tips for axial measurements, and 23 mm (0.9 in) for radial vibration measurements to eliminate cross-talk interference.

Compliance and Certifications

Electromagnetic Compatibility (EMC): European Community Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
Restriction of Hazardous Substances (RoHS): European Community Directive 2011/65/EU
China RoHS: SJ/T 11364-2024 (15-year Environment Friendly Use Period)
Functional Safety: Certified for use in SIL 2 (HFT = 0) and SIL 3 (HFT = 1) safety systems

FAQ

What do the Option 11 and Option 25 values specify for this 330901 probe?

Option 11 specifies an unthreaded length of 1.1 inches, while Option 25 specifies an overall case length of 2.5 inches. This configuration provides specific insertion clearance dimensions designed for small-bore machinery installations.

Does the 330901-11-25-10-01-00 probe include stainless steel armor?

No, this specific configuration is unarmored (without armor). It features a standard 75 ohm coaxial cable protected by a fluoroethylene propylene (FEP) outer jacket.

What is the function of the connector and cable option 01 on this unit?

Option 01 designates a miniature coaxial ClickLoc connector with an integrated fluorosilicone connector protector. This protective sleeve seals the physical connection between the probe lead and extension cable against oil and moisture ingress.

What are the agency approvals for this specific SKU?

This probe is ordered under Option 00, meaning hazardous area safety approvals are not required or supplied with this physical unit. However, it still complies with general industrial standard CE, RoHS, and China RoHS directives.

View all FAQs →

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.
