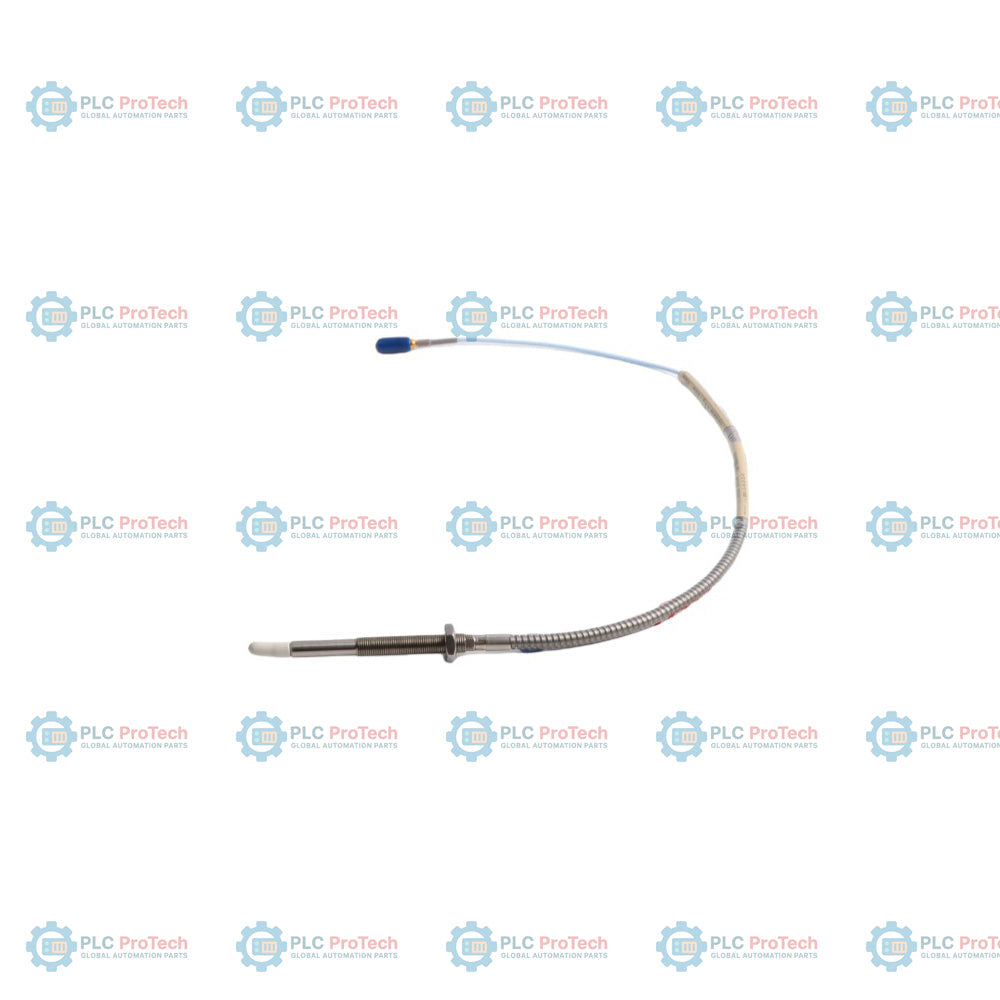

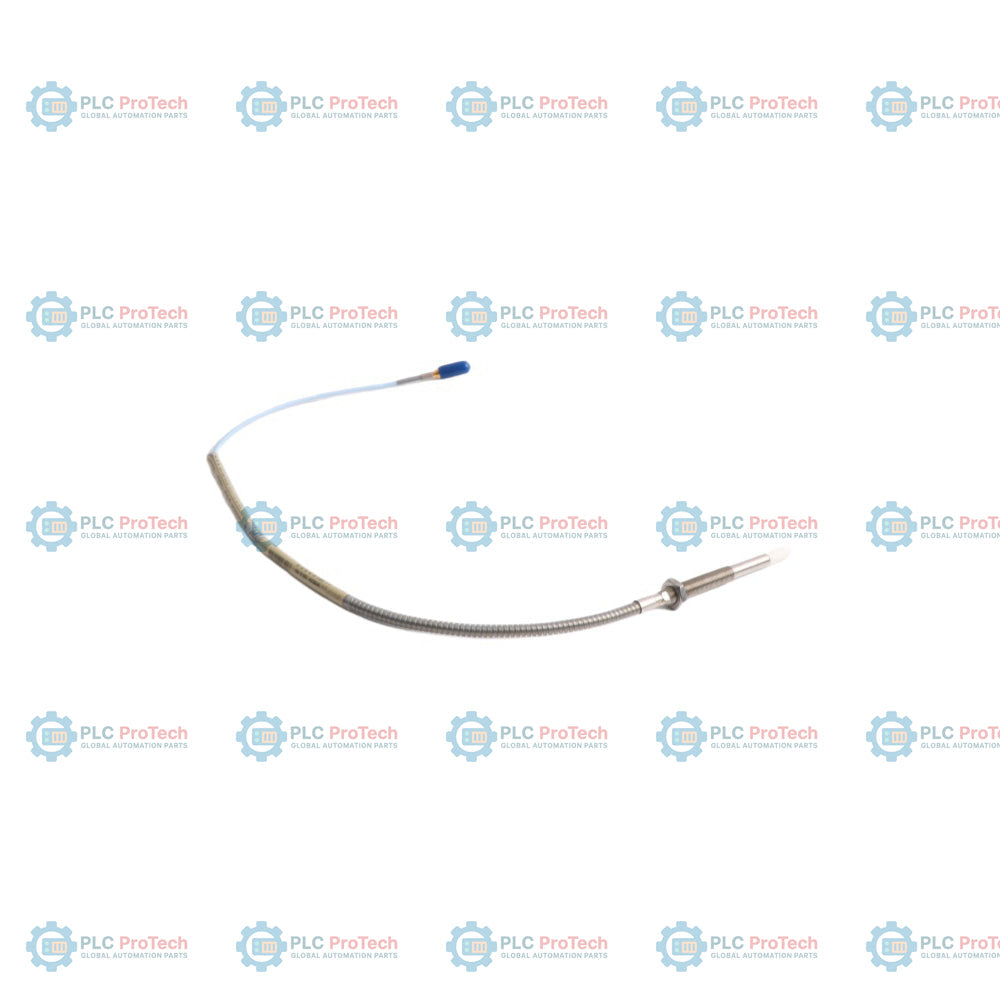

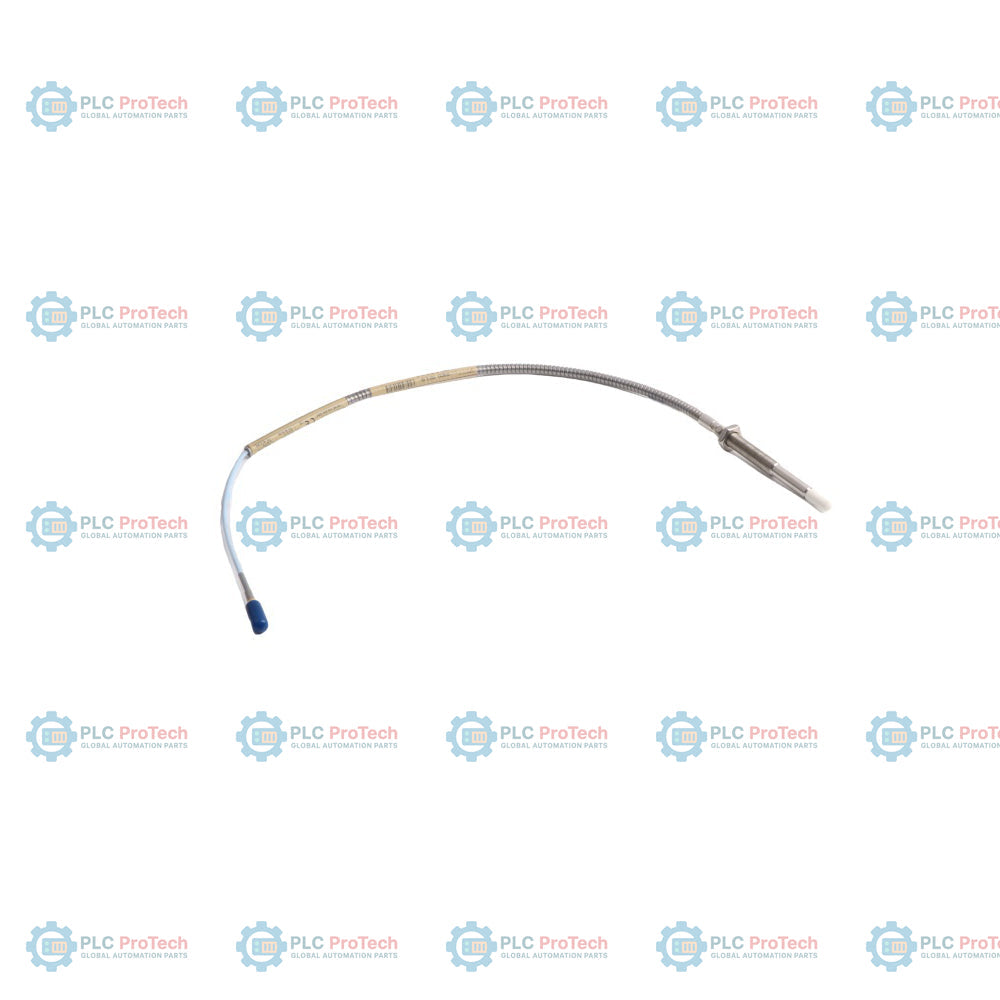

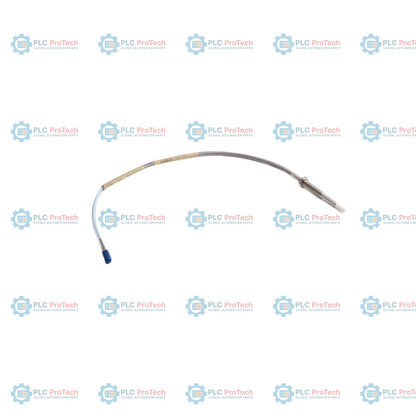

Bently Nevada 330910-03-09-05-02-05 3300 NSv Proximity Probe

Product Overview

The 330910-03-09-05-02-05 is a specialized 3300 NSv (Narrow Side View) proximity transducer engineered for high-precision vibration and position monitoring in constrained industrial environments. This M10X1 threaded probe is the industry standard for process compressors, high-speed gearboxes, and aero-derivative gas turbines where side-view clearance is limited. Utilizing patented TipLoc molding for a robust tip-to-body bond and CableLoc design for 220 N pull strength, this probe offers significantly higher chemical resistance than legacy 3300 RAM models. Its narrow magnetic field allows for accurate gapping even in tight mechanical housings, effectively reducing noise interference. By providing critical shaft dynamic data to the 3500 Machinery Protection System, the 330910-03-09-05-02-05 plays a pivotal role in preventing catastrophic asset failure and optimizing maintenance cycles in petrochemical and power generation facilities.

Suffix Breakdown

The alphanumeric sequence for the 330910-03-09-05-02-05 defines the specific mechanical and certification parameters required for site-specific integration:

• 03 (Unthreaded Length): 30 mm unthreaded case section.

• 09 (Overall Case Length): 90 mm total case length.

• 05 (Total Length): 0.5 meter (20 inch) total lead length.

• 02 (Connector and Cable): Miniature coaxial ClickLoc connector with standard cable and integrated stainless steel armor.

• 05 (Agency Approval): Multiple global approvals including FCC, ATEX, IECEx, and CSA for use in intrinsically safe hazardous areas.

Technical Specifications

Asset Protection FAQs

Is the 3300 NSv probe interchangeable with the older 3300 RAM series?

Yes. The 3300 NSv probe and extension cables are both mechanically and electrically compatible with previous 3300 RAM hardware, allowing for seamless site upgrades with enhanced chemical resistance.

What is the "Narrow Side View" advantage in tight spaces?

Standard probes require a large clear area around the tip to prevent "side-loading" interference from the machine housing. The NSv series has superior side-view characteristics, allowing it to maintain signal accuracy when gapped in narrow channels or near adjacent metal surfaces.

Why is sustained exposure below -34 deg C a concern?

While the probe is rated for operation down to -52 deg C, prolonged exposure to temperatures below -34 deg C (-30 deg F) can degrade the elasticity of the internal Viton O-ring, potentially causing a premature failure of the process pressure seal.

Engineering Installation and Commissioning Guidelines

• Thread Engagement and Torque: For M10X1 probe cases, the maximum thread engagement is limited to 15 mm. During installation, the mounting torque must not exceed 22.6 N-m (200 in-lb) for the first three threads to prevent case deformation. Use a second locknut to secure the final gap setting against vibration-induced drift.

• ClickLoc Connector Integrity: Ensure the gold-plated brass ClickLoc connectors are fully seated and "clicked" into place. This prevents signal attenuation caused by loosening. In turbine oil environments, avoid using silicone tape on the probe-to-extension cable junction; instead, use designated connector protectors to prevent oil ingress.

• Environmental Sealing: The Viton O-ring provides a differential pressure seal between the probe tip and the case. If the application involves high-pressure process gases or specialized chemicals, verify chemical compatibility with Viton and consider pressure testing the seal post-installation if mandated by site safety protocols.

• Gap Voltage Verification: During gapping, utilize a -24 VDC power supply and a 10 kOhm load. Ensure the probe is gapped at 1.0 mm (40 mils) against a 31 mm diameter (or larger) AISI 4140 steel target to achieve optimal linearity and interchangeability.
