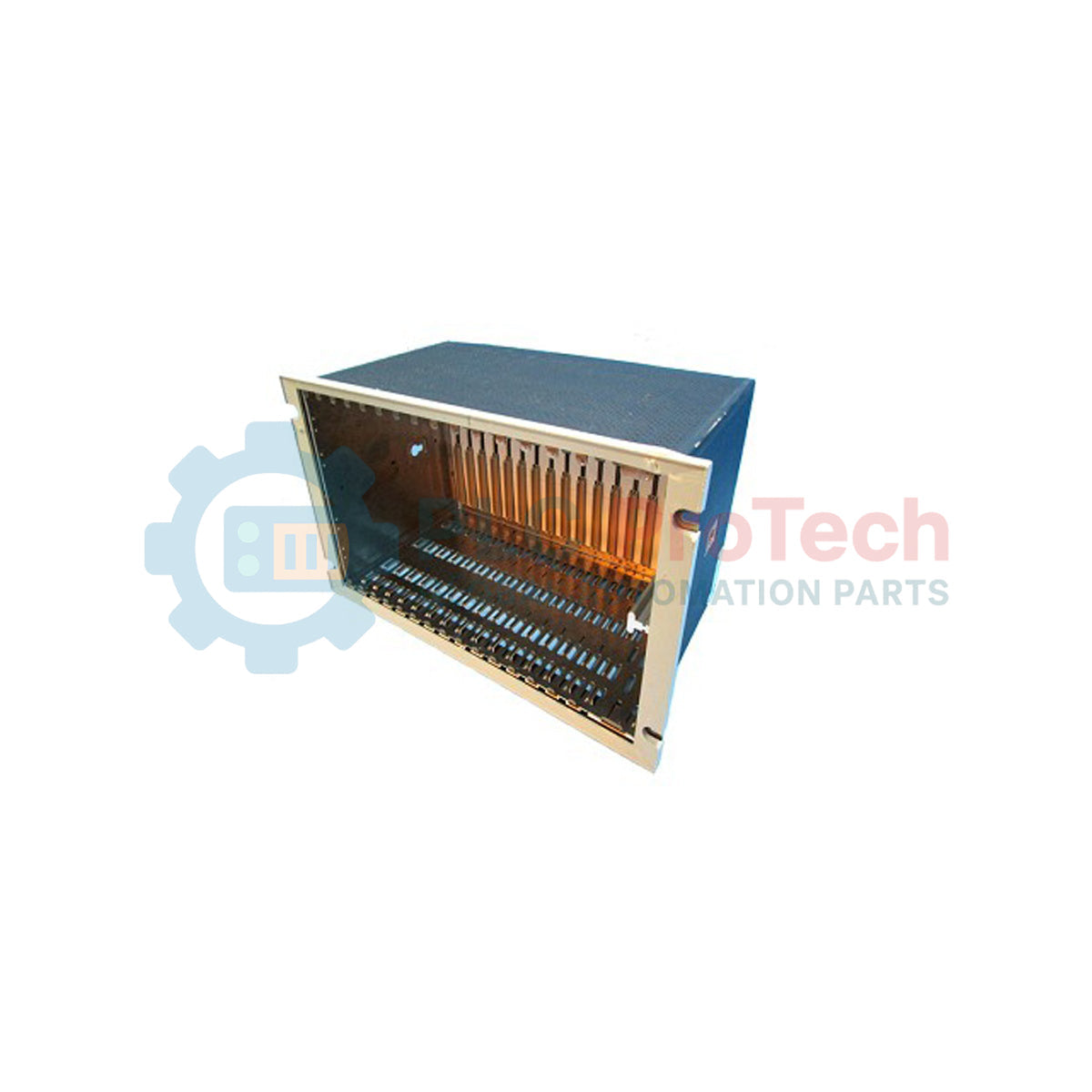

Designed to serve as the structural and communication backbone for machinery protection systems, the Bently Nevada 3500/05-02-04-00-00-01 is a specialized 12-inch Mini-Rack chassis engineered to house and interconnect Bently Nevada 3500 series modules. This rack features 7 available module slots to consolidate vibration monitoring, keyphasor signals, and relay outputs into a compact footprint. It incorporates a high-integrity backplane that facilitates continuous power distribution and high-speed digital data transfer between installed monitoring modules and transient data interfaces, ensuring uninterrupted mechanical diagnostic capabilities for heavy industrial machinery.
| Option Code | Option Description | Selected Configuration Value |
|---|---|---|
| 02 | Rack Size | 12-inch Mini-Rack (7 module slots) |
| 04 | Mounting Options | Panel Mount Option, Mini-Rack |
| 00 | Agency Approval Option | None Specified |
| 00 | Reserved Option | None |
| 01 | European Compliance | CE Certified |
| Specification Parameter | Technical Value / Detail |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/05-02-04-00-00-01 |
| System Series | 3500 Series Machinery Protection System |
| Physical Rack Size | 12-inch Mini-Rack |
| Module Capacity | 7 slots (Includes dedicated power supply and rack interface slots) |
| Mounting Type | Panel Mount (Front-secure installation) |
| Agency Approvals | Standard Industrial (No hazardous area approvals specified) |
| Compliance Standards | CE (European Conformity) |
| Country of Origin | United States (USA) |
| Shipping Weight (Calculated) | 6.0 kg (13.2 lbs) |
The 12-inch Mini-Rack system limits module slots to 7 compared to the standard 19-inch 14-slot 3500/05 rack. If your instrumentation loop expands to require additional monitoring channels, you must transition to a full-sized 19-inch 3500/05 rack configuration. Standard 3500 series input modules and power supplies are backward compatible with this mini-rack backplane, provided that power requirements do not exceed the threshold of the installed mini-rack power supply units.
Because panel-mounted units sit inside enclosed environmental cabinets, thermal management is critical. A fully populated 7-slot mini-rack containing dual power supplies and multiple processing monitors generates significant heat density. Maintain a minimum of 50mm (2.0 inches) of clearance above and below the rack chassis to ensure adequate convective air circulation. Avoid placing heat-sensitive field-wiring barriers directly above the exhaust path of the rack.
Proper chassis grounding is vital to prevent high-frequency noise from corrupting low-voltage proximity probe and accelerometer signals. Connect a low-impedance copper ground strap directly from the designated rack grounding stud to the main panel safety ground bus. Do not rely solely on the panel-mounting screws for establishing an electrical ground pathway. All internal shield connections must be isolated and terminated according to Bently Nevada wiring diagrams to prevent ground loop interference.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 3500/05-02-04-00-00-01
Country of origin:United States
Product Type: Machinery Protection System Racks
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months
