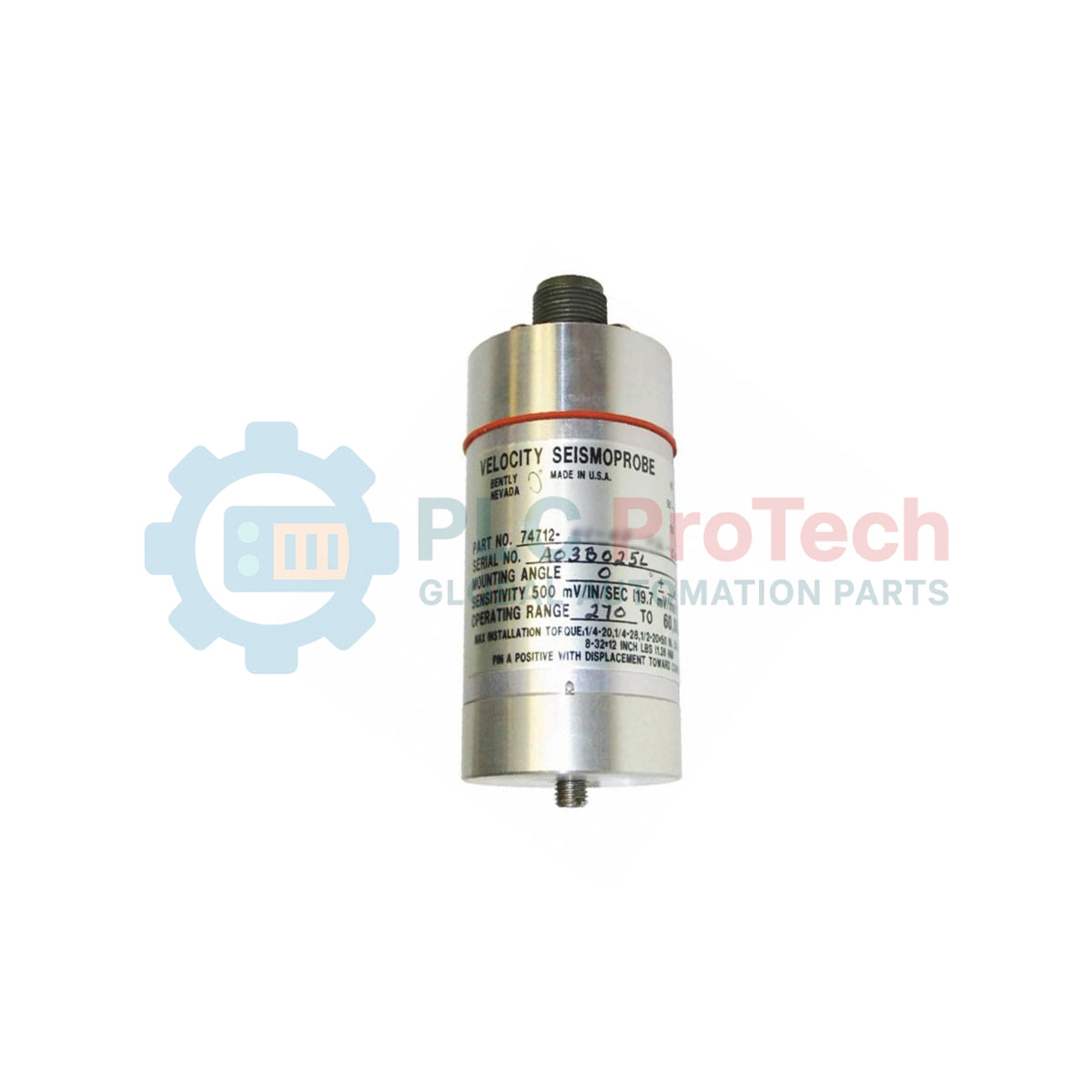

Bently Nevada 74712-06-05-03-00 | 74712 High-Temperature Two-Wire Transducer

The Bently Nevada 74712-06-05-03-00 is a heavy-duty, high-temperature two-wire seismic vibration transducer engineered for aggressive machinery protection systems. This specialized sensor is primarily deployed in gas and steam turbine power plants, petrochemical refineries, and heavy steel mills where standard vibration probes fail due to excessive ambient heat. By generating a continuous, proportional velocity signal from critical rotating machinery castings and bearing housings, it provides instant diagnostic visibility. Installing this highly stable seismic sensor ensures real-time detection of structural imbalance, mechanical looseness, and bearing degradation. This predictive monitoring directly mitigates catastrophic failures, extends operational runtimes, and prevents costly unplanned downtime in critical high-heat processes.

Code Allocation & Suffix Decoupling

The specialized model number structure of the 74712-06-05-03-00 seismic transducer translates to the following factory mechanical configuration:

• 74712: Base model designation for the Bently Nevada High-Temperature Two-Wire Seismic Transducer series.

• 06: Transducer Mounting Angle/Minimum Operating Frequency Option specifying a 0 plus/minus 100 degrees mounting orientation with a 10 Hz (600 cpm) minimum operating frequency threshold.

• 05: Mounting Base Option designating no integrated base, utilizing a standard 1/2-in 20 UNF-3A mounting stud.

• 03: Connector Option featuring a ruggedized, top-mounted integrated terminal block for simplified field wire connections.

• 00: Agency Approval Option denoting a standard, non-certified build for non-hazardous industrial areas.

Certified Mechanical & Electrical Parameters

Performance Diagnostics & Integration FAQs

• Q: What is the primary operational advantage of the 10 Hz (600 cpm) low-frequency limit specified by Option 06?

  A: The 10 Hz low-frequency limit enables the sensor to accurately monitor low-speed structural vibrations and bearing casing movements common in heavy industrial machinery, filtering out slow-frequency thermal expansion while preserving high-frequency rotational data.

• Q: How does the top-mounted terminal block option simplify installation compared to integrated cables?

  A: The "03" top-mount terminal block design allows field technicians to terminate existing industrial field cabling directly onto the sensor body. This eliminates the need for expensive molded proprietary connectors and simplifies cable replacements in tight, high-temperature conduits.

• Q: Can this transducer be mounted in any orientation?

  A: No. The "06" option limits the functional orientation to 0 plus/minus 100 degrees (typically vertical or near-vertical). Mounting this transducer outside of this specified angular tolerance will cause the internal seismic mass to drift off-center, leading to inaccurate readings and physical internal wear.

Field Engineering & Installation Manual

• Precision Mechanical Coupling: Ensure the mounting surface of the machine housing is flat, clean, and free of paint or rust before mounting. Thread the 1/2-in 20 UNF-3A mounting stud into the machine casing. Apply a thin layer of silicone grease to the mating surfaces and tighten the transducer to the recommended installation torque to ensure perfect acoustic coupling for dynamic vibration transfer.

• High-Temperature Cable Strain Relief: When wiring the top-mounted terminal block in extreme temperature zones, use high-temperature rated, shielded twisted-pair cabling. Provide a generous cable loop (strain relief) immediately exiting the terminal block to prevent high-amplitude mechanical vibration from putting physical stress on the wire termination screws.

• Shielding and Ground Loop Prevention: Connect the cable shield wire to the instrument common ground at the monitor or DCS end only. Do not ground the cable shield at the transducer terminal block or machine casing. This single-point grounding layout prevents ground loops and blocks electromagnetic interference (EMI) from adjacent high-power motor drivers.
