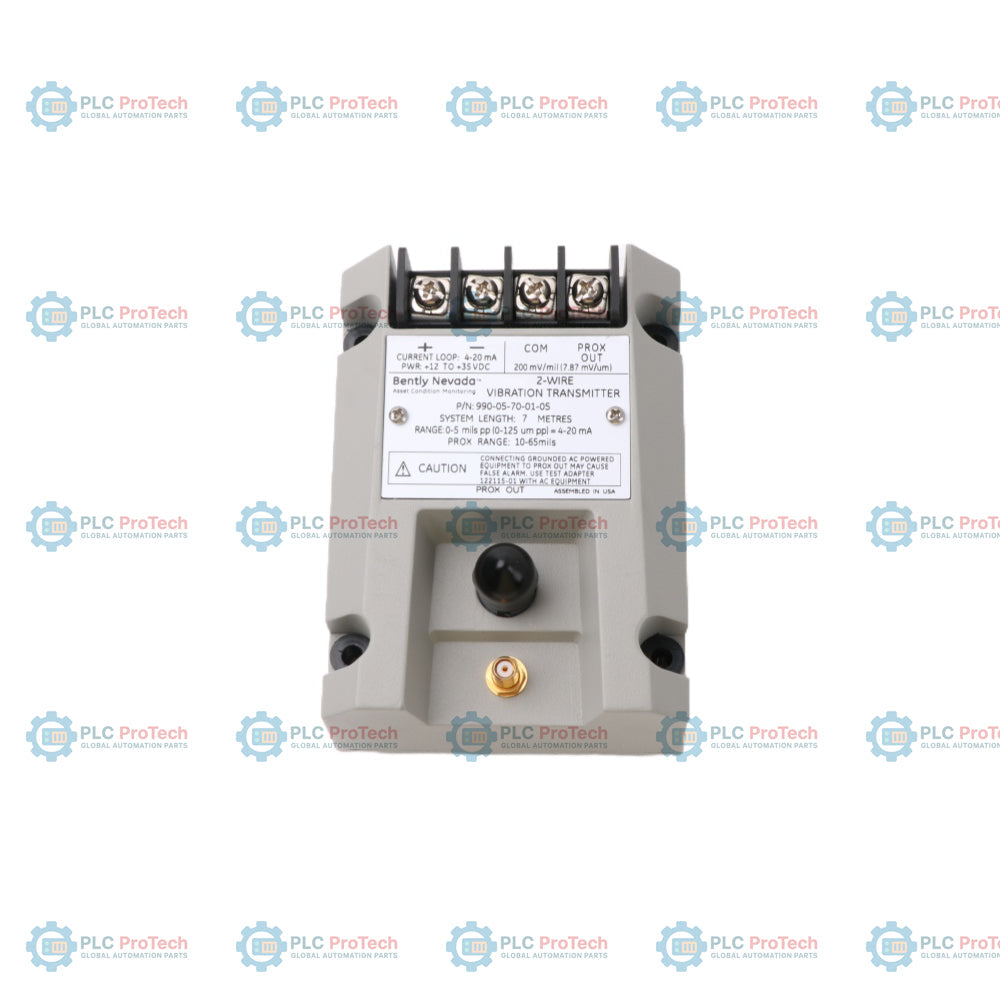

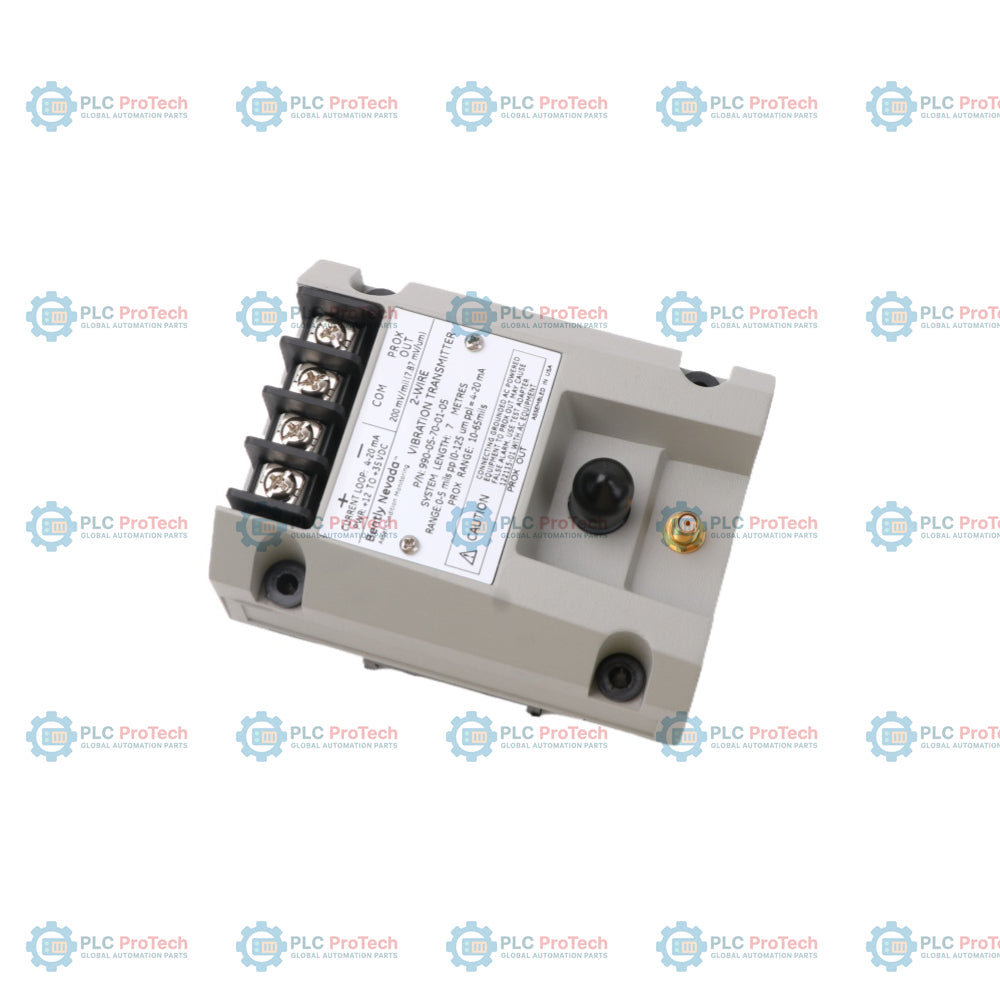

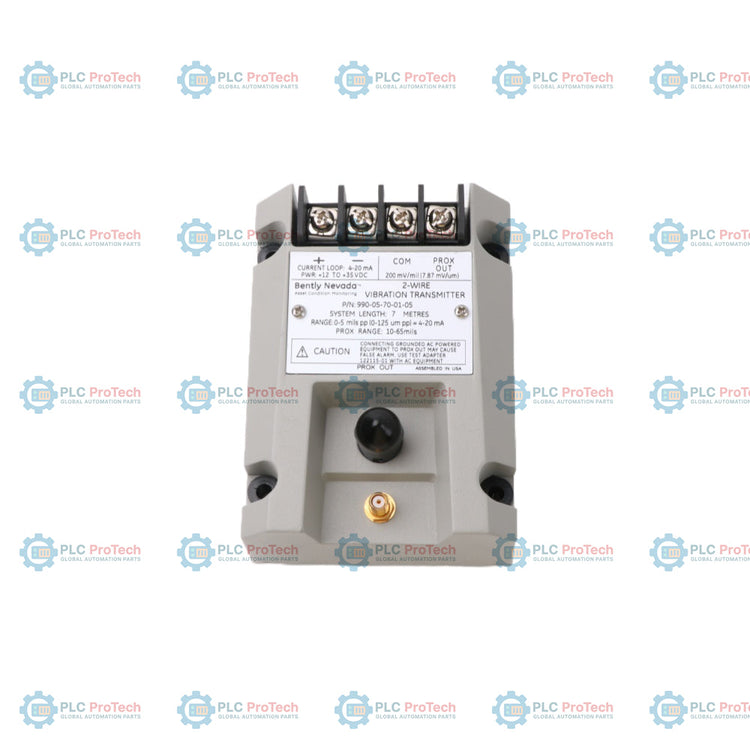

Bently Nevada 990-05-70-01-05 2-Wire Vibration Transmitter

Description

The 990-05-70-01-05 is a 2-wire, loop-powered vibration transmitter designed to integrate continuous machinery protection into distributed control systems (DCS), programmable logic controllers (PLCs), or standard industrial SCADA architectures. It conditions raw proximity probe signals into a linear, proportional 4-20 mA current loop that represents total radial vibration or shaft dynamic displacement.

This transmitter interfaces directly with a non-contacting eddy current probe system, executing signal conversion locally without the requirement of an intermediate machinery monitoring rack. The hardware manages the high-frequency probe drive and demodulates the return signal to extract peak-to-peak displacement trends. It maintains full architectural compatibility with specific proximity transducers and calibrated extension cables to deliver accurate, stable scale factors under varying industrial conditions.

Features

• Standard 4-20 mA current loop output proportional to peak-to-peak machinery vibration
• Direct interface capability with 3300 NSv proximity probe systems
• Integrated signal conditioning electronics contained in a rugged, field-mountable housing
• 35 mm DIN rail mounting hardware for high-density control cabinet installations
• Wide input voltage tolerance to accommodate industrial loop resistance variations

Applications

• Radial shaft vibration monitoring on high-speed pumps and centrifugal compressors
• Structural and bearing housing vibration tracking on industrial fans and blowers
• Electric motor, generator, and auxiliary rotating machinery protection loops
• Balance-of-plant equipment integration into standard factory control systems
• Predictive maintenance loop logging in petrochemical, oil, gas, and power facilities

Ordering Information

Technical Specifications

Connections/Interfaces

Installation Guidelines

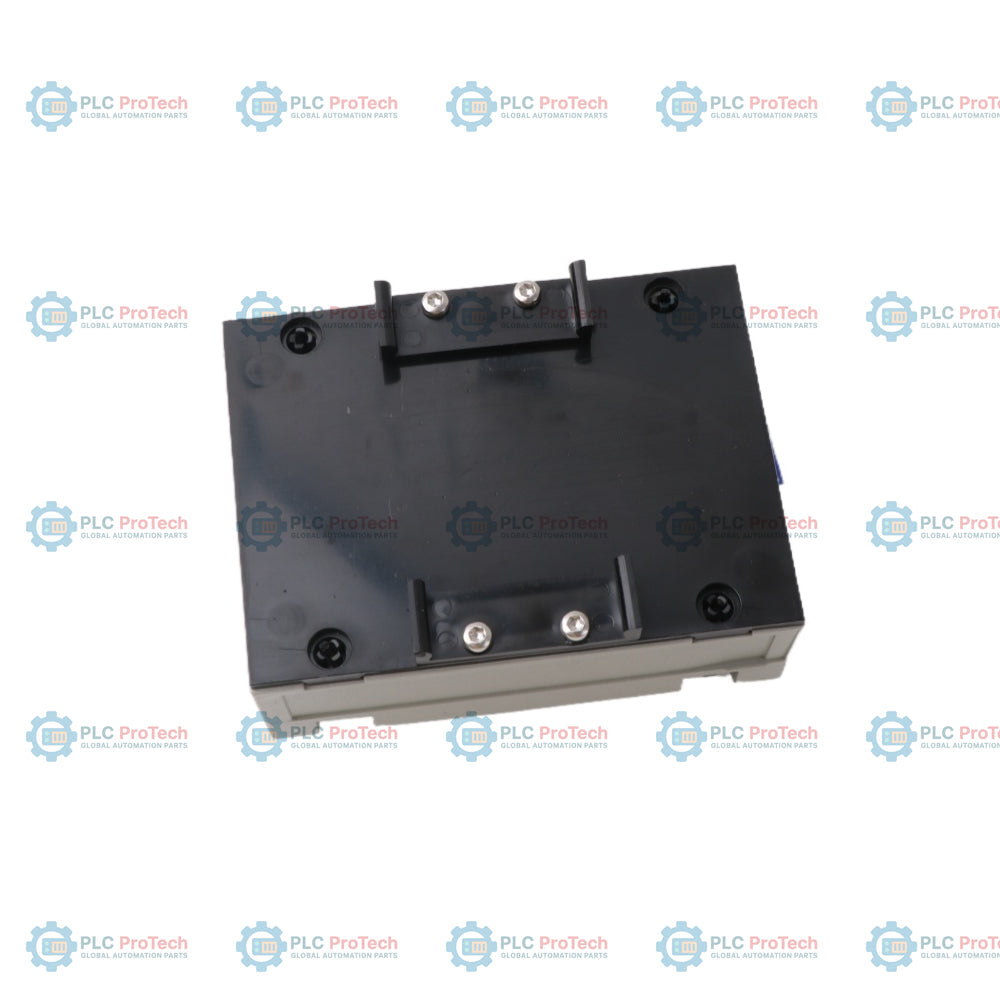

• DIN Rail Installation: Snap the transmitter base securely onto a standard 35 mm DIN rail inside an environmental enclosure. Ensure the module is rigidly fixed to prevent sliding or mechanical disconnection caused by cabinet vibrations.
• Probe Gap Adjustment: Use a digital voltmeter connected across the GAP and COM terminals to measure the static DC voltage. Adjust the physical mechanical gap of the 3300 NSv proximity probe until the target bias voltage is reached, ensuring operation within the sensor's linear zone.
• Cable Routing and Shielding: Route the 7.0-meter extension cable through dedicated, grounded steel conduit away from high-current AC power cables. Connect the overall cable shielding network to the designated instrumentation ground at the control panel to minimize electromagnetic interference.
• Hazardous Area Precautions: For environments requiring intrinsically safe deployment, install an approved zener barrier or galvanic isolator in the loop circuit between the power source and the transmitter terminals in strict accordance with local electrical codes.

FAQ

What sensor input is required for this specific transmitter model?

The unit requires connection to exactly one non-contacting 3300 NSv proximity probe and its matching extension cable configured for a total calibrated system length of 7.0 meters.

How do you verify the probe's physical gap setting without removing the sensor?

The transmitter features a dedicated front-accessible GAP terminal that provides a raw DC voltage output directly proportional to the physical distance between the probe tip and the observed shaft surface.

Can this transmitter model be deployed in hazardous industrial environments?

Yes, this specific configuration includes the 05 agency approval option, which certifies the device for intrinsically safe and non-incendive applications under CSA, ATEX, and IECEx standards when paired with appropriate isolation barriers.
