Delta VFD037CB23A-20 C200 Series Economy Vector Control Drive

Industrial System Overview

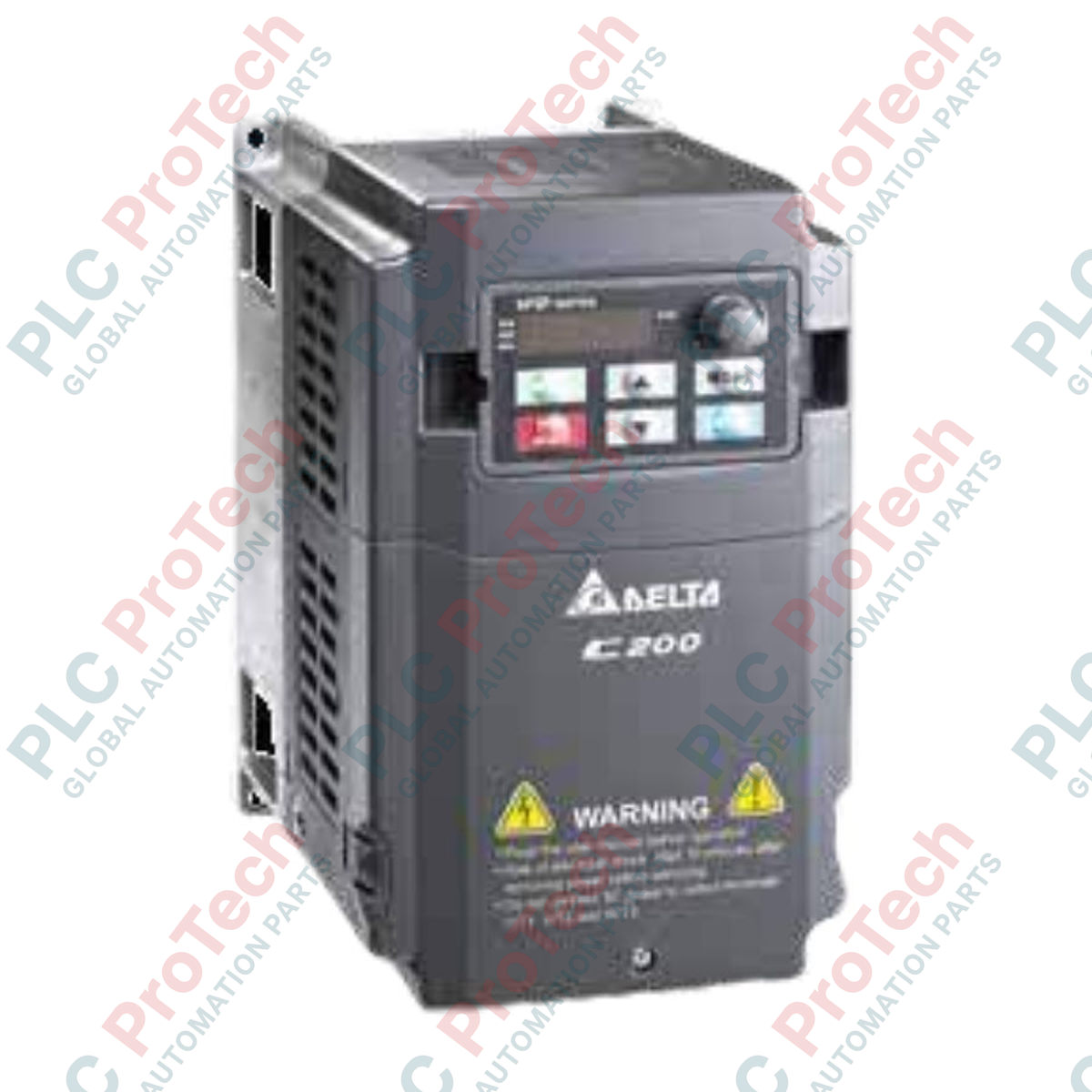

The Delta VFD037CB23A-20 (VFD037CB23A-20) is an intelligent, cost-effective variable frequency drive engineered within the Delta C200 smart vector control family. Deployed globally across decentralized commercial and industrial automation processes—such as heavy-duty packaging machinery, high-speed textile winders, woodworking machinery, and multi-zone conveyor configurations—this drive regulates three-phase induction motors. By packing high-performance vector algorithms into a compact, wall-mounted frame, the drive ensures stable speed regulation, lowers operating overhead, and protects delicate transmission components from sudden starting torque shocks.

Power Architecture and Vector Control Dynamics

This wall-mount frequency converter operates on a 230 V three-phase input supply, drawing a nominal input current of 20 A to deliver an applicable motor capacity of 3.7 kW (5 HP). It features four software-selectable control methods: standard V/F control, Sensorless Vector Control (SVC), V/F control with encoder feedback (VF+PG), and Field Oriented Control with encoder feedback (FOC+PG). Designed with dual-rating operational thresholds, the drive achieves a maximum output frequency of up to 600.00 Hz under Normal Duty parameters, or up to 300.00 Hz under Heavy Duty parameters, backed by a maximum torque limit threshold of 200% torque current.

Technical Performance Matrix

Industrial Diagnostics and FAQs

How do you determine whether to configure the C200 drive for SVC versus FOC+PG mode?

Sensorless Vector Control (SVC) should be selected for standard high-performance applications where an encoder cannot be physically mounted to the motor shaft, as it calculates rotor position mathematically using internal electrical models. Field Oriented Control with PG card encoder feedback (FOC+PG) must be implemented for advanced processes requiring precise speed regulation near zero RPM, absolute position holding, or high dynamic torque responsiveness.

What action must be taken if the drive trips on an overcurrent fault (OC) during sudden starting phases?

An instantaneous OC trip during initialization indicates that the output current exceeded the safety threshold. First, verify that the active motor nameplate metrics match the data inside the drive's parameter bank. Next, check the mechanical line for binding or jams, and evaluate the torque limit parameter; the VFD037CB23A-20 can handle up to 200% torque current, so increasing the acceleration time or adjusting the V/F curve offset can often stabilize high-inertia starting cycles.

Does this drive require an external cooling fan unit for enclosed control panels?

The drive features an integrated heatsink structure sized to dissipate the heat generated by the 3.7 kW power stage. However, because it carries an IP20 open-type rating, it must be mounted inside a ventilated electrical enclosure. Ensure the air flowing through the cabinet is free of conductive metallic dust and moisture mist to protect the exposed power terminals.

Field Commissioning and Wiring Guidelines

• Main Potential Rail Connections: Land the incoming 230 V three-phase utility power lines exclusively onto terminals R/L1, S/L2, and T/L3. Connect the output cables going directly to the induction motor terminals onto U/T1, V/T2, and W/T3. Never land raw utility power onto terminals U, V, or W, as applying line voltage directly to the inverter switching block will instantly destroy the internal solid-state output transistors.

• Encoder (PG Card) Separation: When utilizing the VF+PG or FOC+PG control modes, route the encoder feedback signal cable through separate wire pathways away from the high-voltage motor lines. The encoder cable must utilize shielded twisted pairs with the overall braid grounded at a single point near the drive's chassis ground. This separation prevents PWM switching transients from coupling into the feedback register and causing speed tracking errors.

• Enclosure Mounting Layout and Clearance: Install the wall-mount frame vertically onto a flat, unpainted metallic sub-panel to maximize conductive grounding properties. Maintain an open perimeter boundary of at least 50 mm on both sides and a minimum vertical clearance of 120 mm above and below the drive housing. Inspect the unit regularly to ensure the cooling fins remain clear of airborne fibers or grease, which can degrade thermal efficiency.
