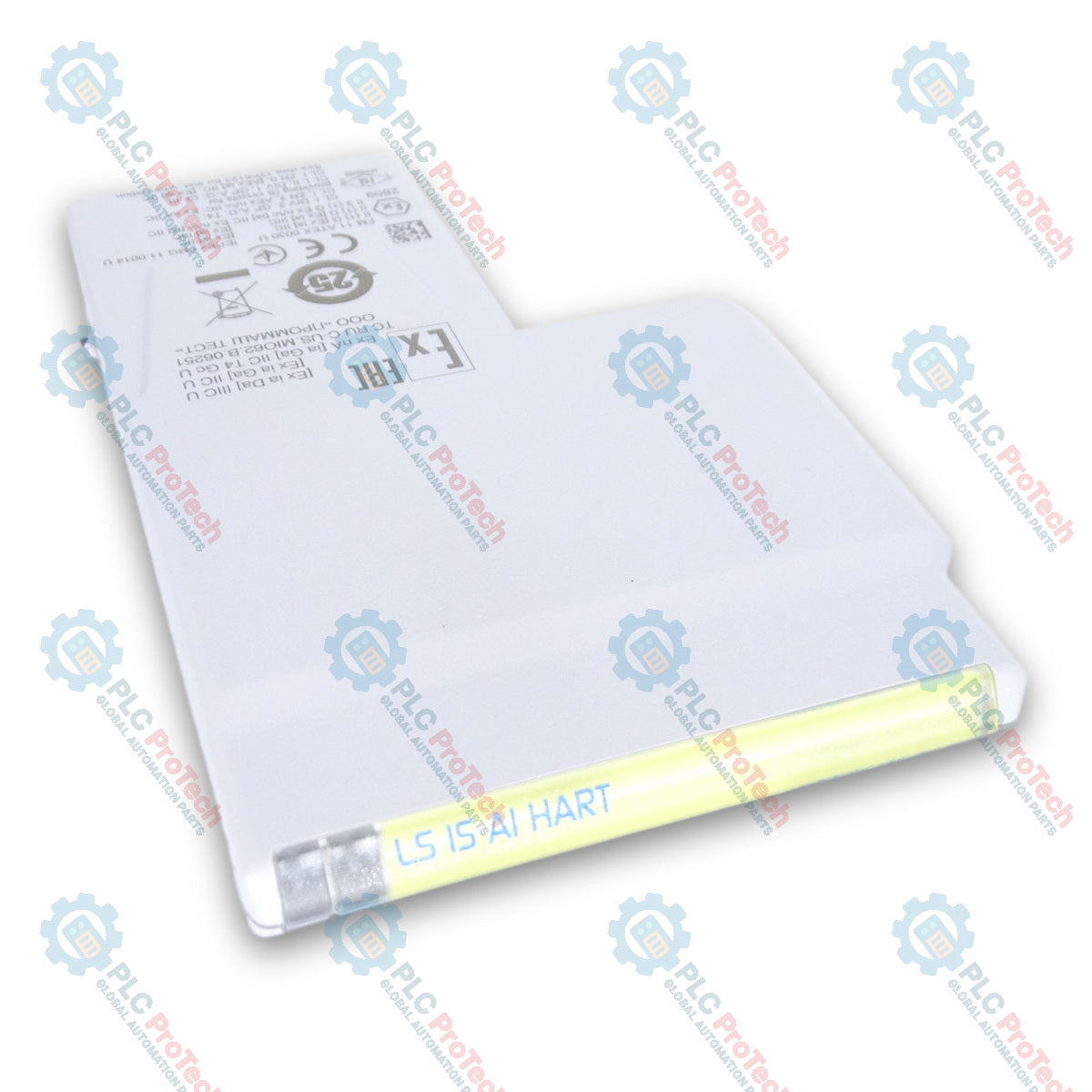

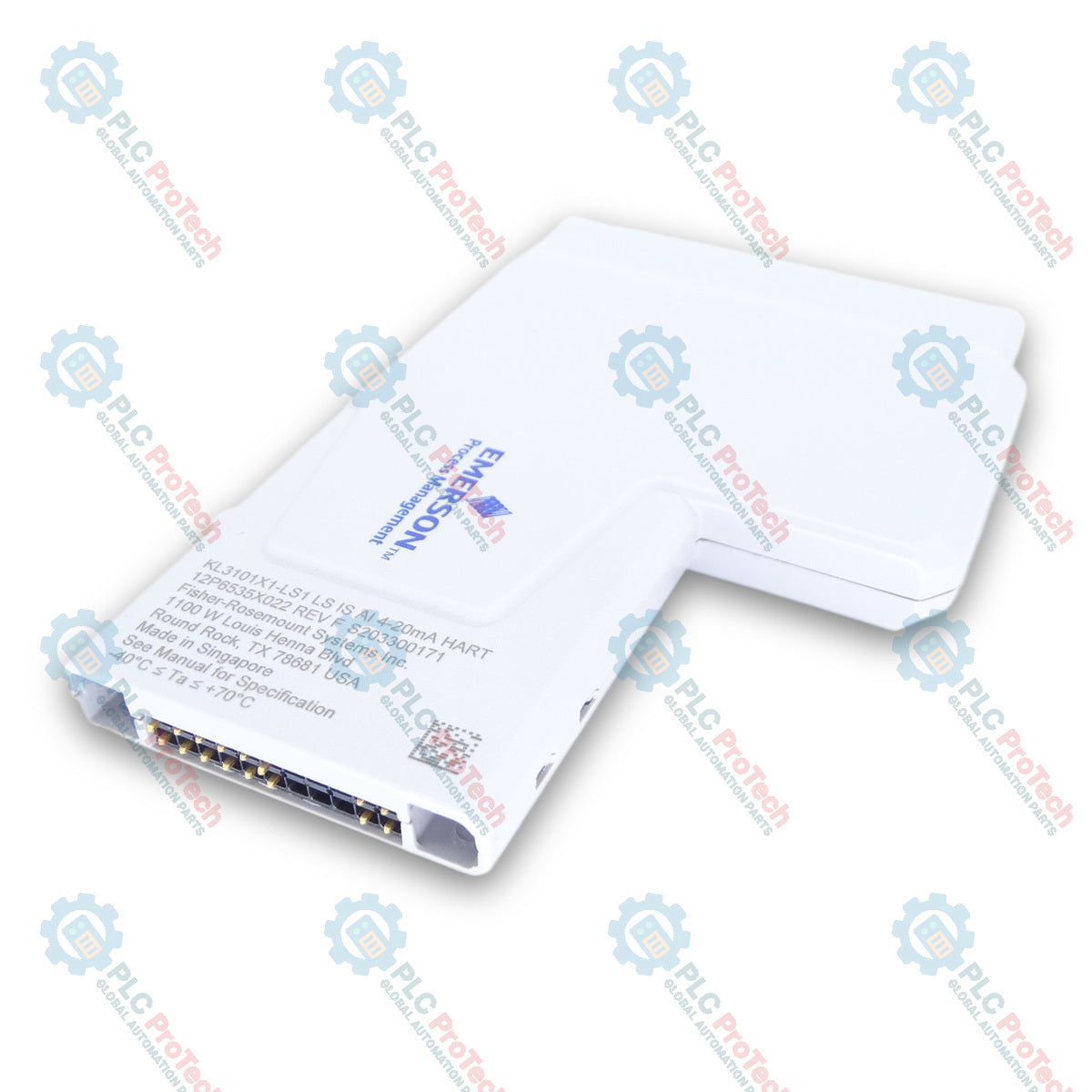

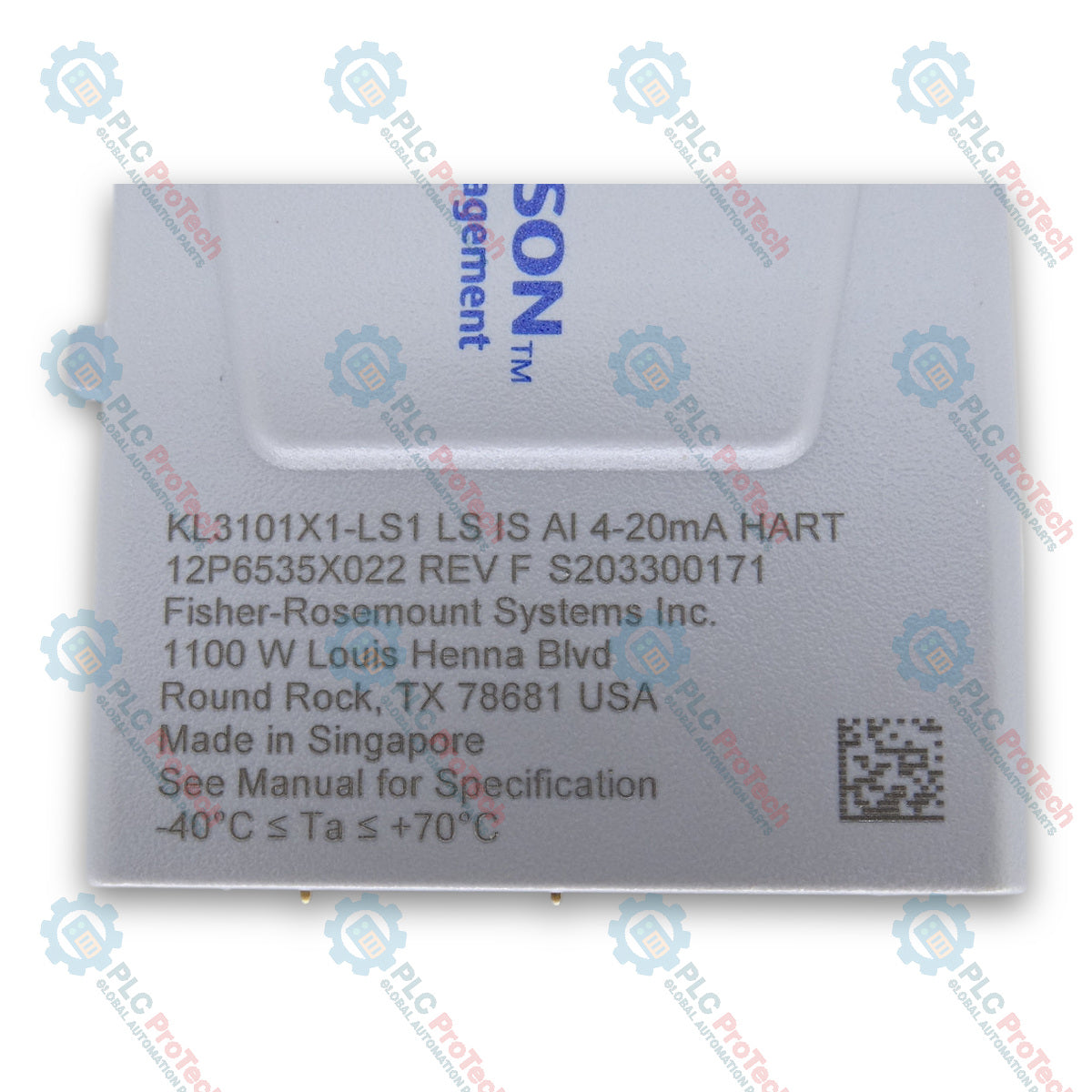

Emerson KL3101X1-LS1 DeltaV LS I.S. AI 4-20 mA HART CHARM

SKU KL3101X1-LS1

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: Emerson

  • Product No.: KL3101X1-LS1

  • Country of origin:United States

  • Product Type: Analog Input Modules

  • Payment: T/T, Western Union

  • Weight: 100g

  • Dimensions: 22 mm x 110 mm x 75 mm (W x H x D)

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The Emerson KL3101X1-LS1 is an intrinsically safe analog input CHARM designed for interface applications requiring 4-20 mA HART signals in hazardous areas. Operated over a CHARM Bus architecture, the KL3101X1-LS1 processes field sensor signals and transfers process variable data to the DeltaV system infrastructure.

Features

  • Provides intrinsically safe interface capabilities for 4-20 mA HART analog inputs
  • Operates directly on the CHARM Bus interface
  • Features standard A1 terminal block key position assignment
  • Maintenance-free design requiring no field calibration

Applications

  • Hazardous area analog sensor process control
  • 4-20 mA loop integration for industrial automation
  • DeltaV I.S. CHARMs field subsystem installations

Technical Specifications

Parameter Specification
CHARM Bus Power Rating +6.3 VDC at 0 A
Field Circuit Power Rating +24 VDC at 60 mA
Operating Temperature -40 degC to +70 degC
Shock 10g 1/2 Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Relative Humidity 5 to 95% Non-Condensing
Airborne Contaminants ISA-S71.04-1985 Airborne Contaminants Class G3
Terminal Block Key Position A1

Installation Guidelines

  • Ensure system power is de-energized before removing or inserting the unit.
  • Align the module with terminal block key position A1 prior to mounting.
  • Refer to document 12P6523 for ATEX/IECEx hazardous area installation procedures.
  • Follow DeltaV IS-CHARMS control drawings 12P6122 and 12P6123 for wiring and intrinsic safety boundaries.
  • Maintain proper airborne contaminant protections in accordance with ISA-S71.04-1985 Class G3 standards.

Compliance and Certifications

  • ATEX: II 3(1) G Ex ec [ia Ga] IIC Gc, II 3G (1D) Ex ec [ia IIIC Da] IIC Gc (FM11ATEX 0030U)
  • IECEx: IECEx FMG 11.0014U
  • UKEX: FM21UKEX0156U
  • cFMus: CL I, DIV 2, GP A-D; Associated CL I, II, III, DIV 1, GP A-G; CL I, ZN 2 AEx ec [ia Ga] IIC Gc; CL I, ZN 2 AEx ec [ia IIIC Da] IIC Gc (FM20US0096U; FM20CA0044U)
  • CE
  • UKCA

FAQ

Can the module be replaced while system power is energized?
The module cannot be removed or inserted with system power energized.

What is the required terminal block key position for installation?
The module requires terminal block key position A1 for proper mechanical keying.

What power rating is supplied to the field circuit?
The field circuit provides a power rating of +24 VDC at 60 mA.
