Emerson PR6426/010-030 CON021/916-160 Eddy Current Sensor System
Emerson PR6426/010-030 CON021/916-160 Eddy Current Sensor System
Emerson PR6426/010-030 CON021/916-160 Eddy Current Sensor System
1 / 3

Emerson

Emerson PR6426/010-030 CON021/916-160 Eddy Current Sensor System

SKU PR6426/010-030 CON021/916-160

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Emerson
  • Product No.: PR6426/010-030 CON021/916-160
  • Origin United States
  • Product Type: Eddy Current Sensor
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.92 kg
  • Dimensions: 24cm x 22cm x 5cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Eddy Current Sensors

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Emerson PR6426/010-030 CON021/916-160 Eddy Current Sensor System

Download Open in new tab
Quantity
Call sales Contact

Product Description

Description

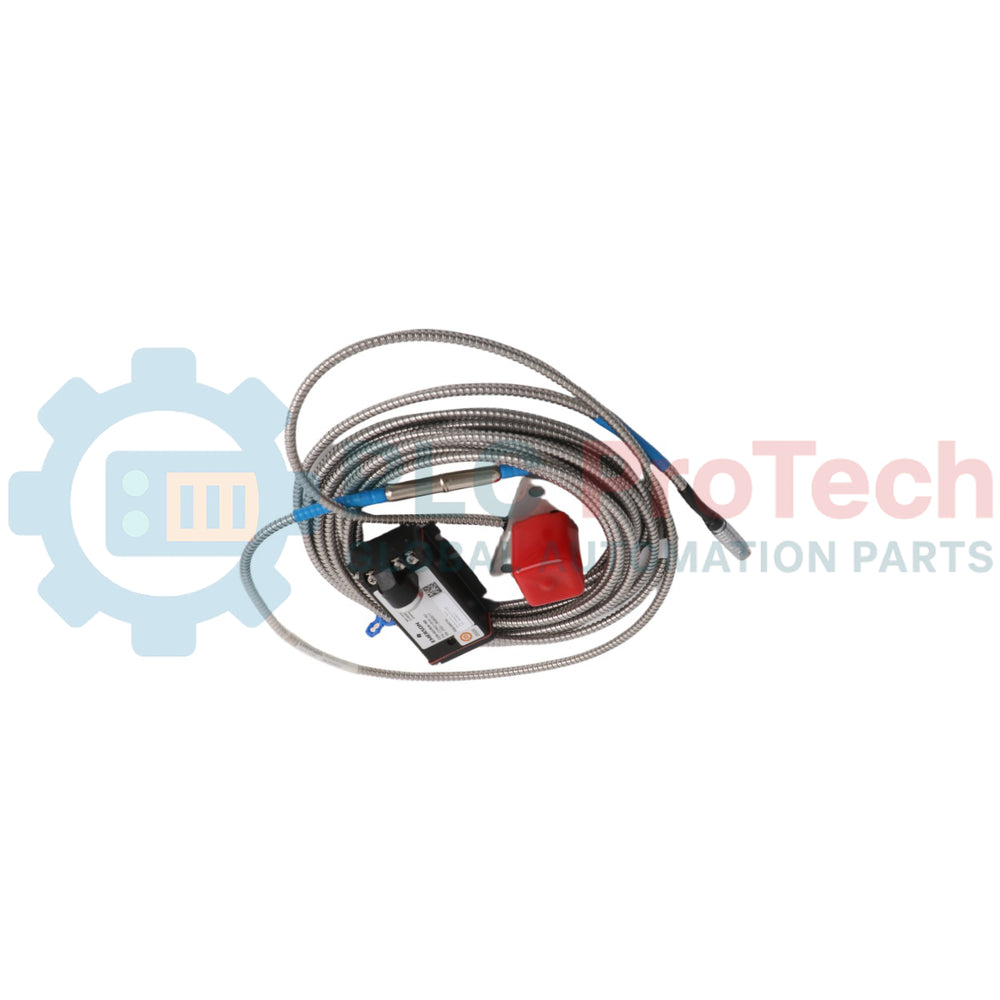

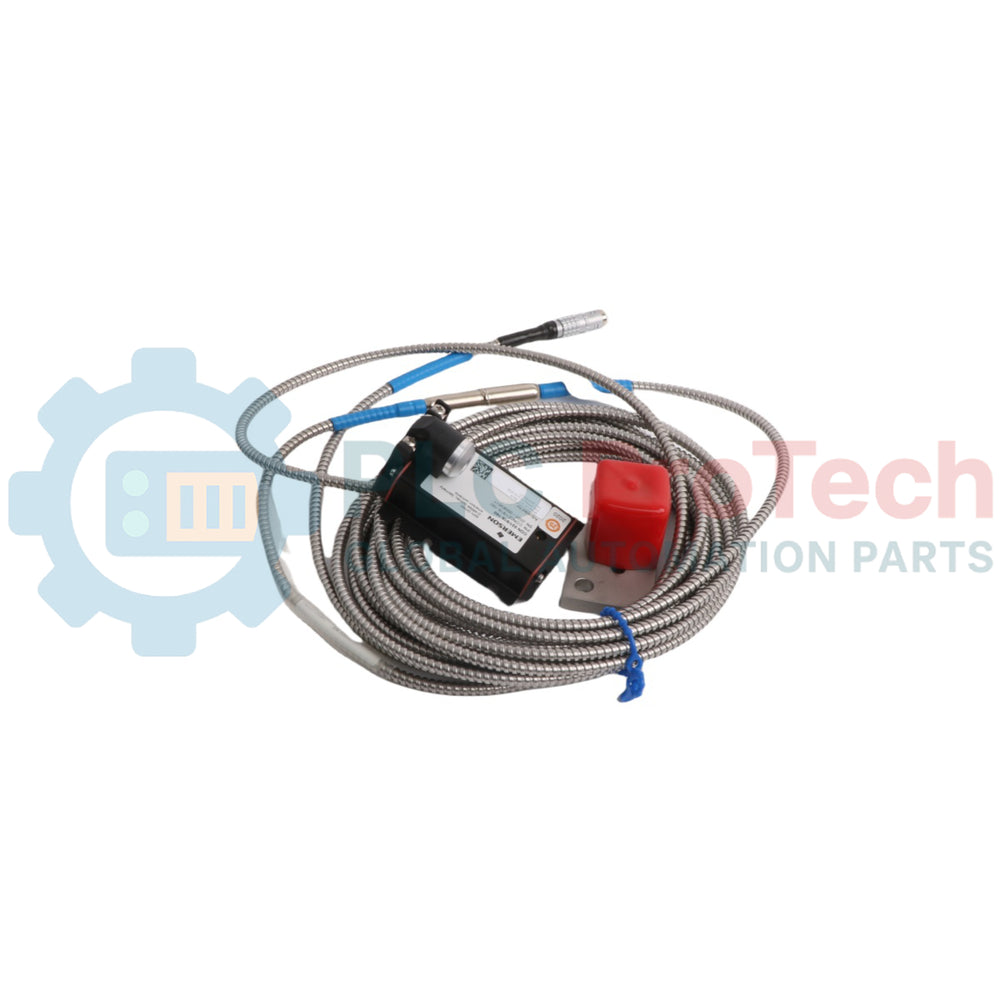

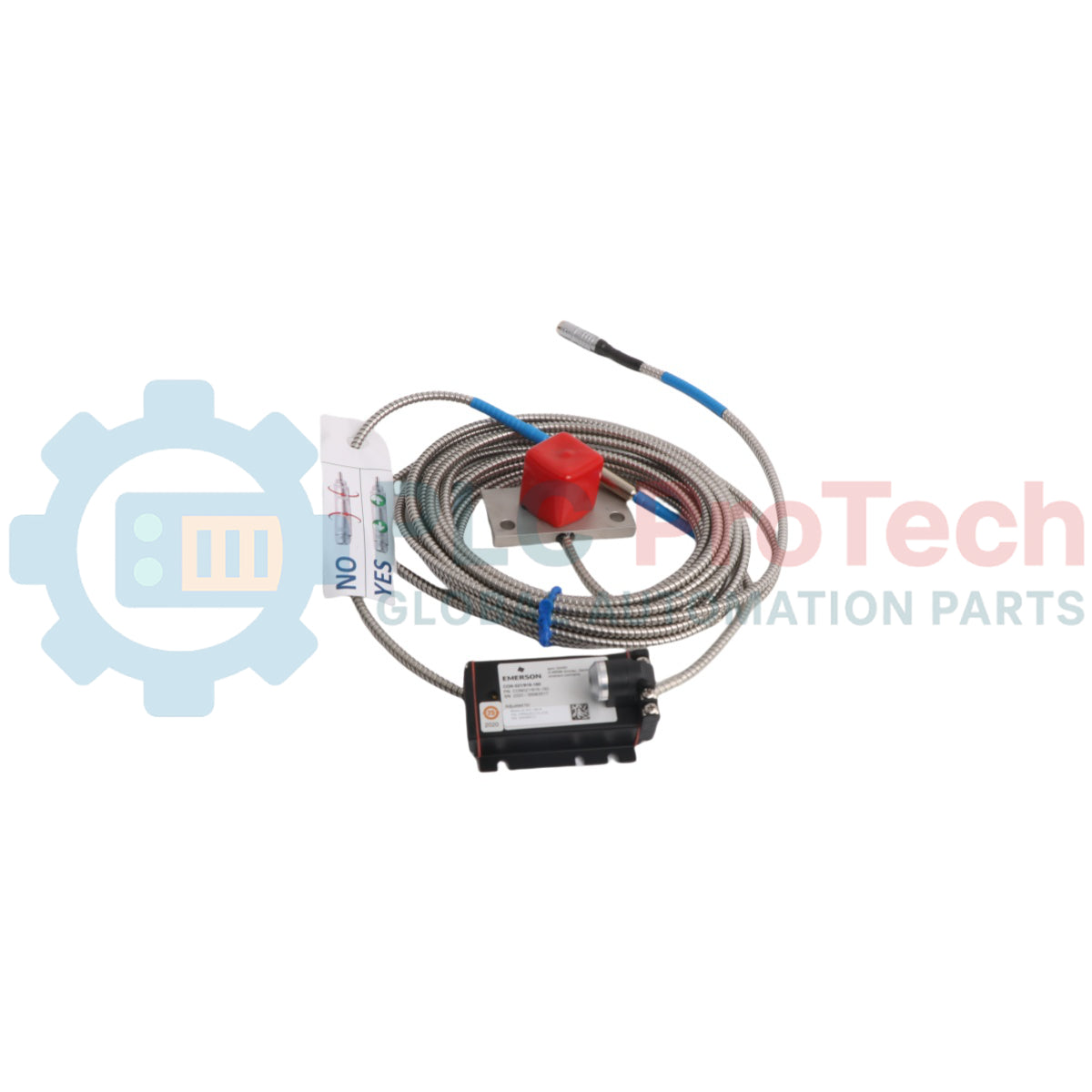

The Emerson PR6426/010-030 non-contact sensor combined with the CON021/916-160 signal converter forms an advanced eddy current measurement system designed for critical turbomachinery applications, such as steam, gas, and hydro turbines, compressors, pumps, and fans. The PR6426 eddy current sensor specializes in measuring radial and axial shaft displacement, position, eccentricity, and motion under demanding industrial environments. The processed information is transferred via the CON021/916-160 converter to provide a stable electrical output for machine protection and TSI monitoring systems.

Features

  • Non-contact eddy current measurement principle for precise tracking of industrial machine conditions
  • High-temperature durability with sensor head operation up to 175 degC
  • Built-in protection resisting pressures up to 6,500 hpa at the sensor head
  • Extended measurement range capacity up to 16.0mm optimized for large displacement detection
  • Rugged design with a standard stainless steel sleeve and high-end PTFE insulation

Applications

  • Radial and axial shaft displacement monitoring
  • Turbomachinery position, motion, and eccentricity verification
  • Critical machinery protection systems for gas/steam turbines and heavy compressors

Ordering Information

Model Number Sensor Type Measuring Range Linearity Error
PR6426/010-030 32mm Eddy Current Sensor +/-4.0 mm (Standard Range) / 16.0mm Extended <= 1.5% max (Sensor)
CON021/916-160 PR6426 16.0mm (Extended Range) <= 2.0%

Technical Specifications

CON021/916-160 Signal Converter Specifications

Parameter Specification
Manufacturer Emerson
Frequency Range (-3 dB) 0 to 20000 Hz
Rise Time <15 us
Operating Temperature Range -30 to 100 degC (-22 to 212 Fahrenheit)
Shock and Vibration 5g @ 60 Hz @ 25 degC (77 Fahrenheit)
Protection Class IP20
Supply Voltage Range (-24V config) -23V to -32V (Output Range: -4V to -20V)
Supply Voltage Range (-2V config) -21V to -32V (Output Range: -2V to -18V)
Housing Material LMgSi 0.5 F22
Weight ~120 grams (4.24 oz)
Mounting Hardware 4 Screws M5x20

PR6426 Eddy Current Sensor Specifications

Parameter Specification
Tip Diameter 32mm
Sensitivity 2 V/mm (50.8 mV/mil) <= +/-1.5% max
Air Gap (Center) Approx. 5.5 mm (0.22") Nominal
Long Term Drift <0.3%
Target/Surface Material Ferromagnetic Steel (42 Cr Mo 4 Standard)
Maximum Surface Speed 2,500 m/s (98,425 ips)
Minimum Shaft Diameter 200 mm (7.87")
Operating Temperature Range -35 to 175 degC (-31 to 347 Fahrenheit)
Temperature Excursions (<4 Hours) 200 degC (392 Fahrenheit)
Maximum Cable Temperature 200 degC (392 Fahrenheit)
Pressure Resistance to Sensor Head 6,500 hpa (94 psi)
Shock and Vibration 5g (49.05 m/s2) @ 60Hz @ 25 degC (77 Fahrenheit)
Sleeve Material Stainless Steel
Cable Material PTFE
Weight (Sensor & 1M Cable, no Armor) ~800 grams (28.22 oz)

Connections/Interfaces

Connector Pin / Terminal Function
Transducer Connection Self-Locking Lemo-Plug
Supply/Output Connection Screw Terminal Type (max. 1.5mm2 wire)

Installation Guidelines

  • Observe the minimum cable bending radius rules: 35 mm for armored configurations and 25 mm for non-armored cables.
  • Keep a clear zone of at least 80 mm diameter around the sensor head free of unintended ferrous materials.
  • Set the center air gap to approximately 5.5 mm nominal during initial probe gap adjustment.
  • Ensure proper grounding and use external current limiting, such as safety barriers, when installing in certified hazardous areas.

Compliance and Certifications

  • CE: 2014/30/EU (EN 61326-1), 2014/34/EU, 2011/65/EU, DIN EN 50581
  • ATEX: EN 60079-0, EN 60079-11 (II 2 G Ex ia IIC T4 Gb, -20 degC <= Ta <= 80 degC)
  • IEC-Ex: IEC 60079-0, IEC 60079-11, IEC 60079-26 (Ex ia IIC T4 Gb, -20 degC <= Ta <= 80 degC)
  • CSA: CAN/CSA-C22.2 NO. 0-M91, NO. 157-92, NO. 213-M1987, CAN/CSA-E60079-15-02, NO. 25-1966, NO. 61010-1-04 (Class I Division 1, Groups A, B, C, D, T4; Class I Division 2, Groups A, B, C, D Ex nA II T3..T4)
  • Standards: ANSI/UL Standard 913-2004, ANSI/UL Standard 1604-1995, UL 60079-15 2002, UL 61010-1
Shipping &amp; Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the certified measurement range for this specific configuration?
This system matches the device with an extended range converter, providing a linear measurement range of 16.0mm.
What are the temperature classifications for the sensor component?
Depending on the final area classification and paired converter, the sensor temperature limits are rated up to T6 for temperatures less than or equal to 64 degC, T4 up to 114 degC, and T3 up to 160 degC.
What material is used for the sensor sleeve and internal cable insulation?
The device features a high-grade stainless steel sleeve construction coupled with heavy-duty PTFE cable insulation.
Reviews

More from this brand

Emerson KL2101X1-BB1 12P8775X052 DeltaV CHARM I/O Card 2 (CIOC2)
KL2101X1-BB1Emerson KL2101X1-BB1 12P8775X052 DeltaV CHARM I/O Card 2 (CIOC2)
Emerson KL3101X1-LS1 DeltaV LS I.S. AI 4-20 mA HART CHARM
KL3101X1-LS1Emerson KL3101X1-LS1 DeltaV LS I.S. AI 4-20 mA HART CHARM
Emerson Ovation 5X00226G01 OCR400 I/O Interface Module
5X00226G01Emerson Ovation 5X00226G01 OCR400 I/O Interface Module
Emerson PR6423/10R-030-CN Eddy Current Displacement Transducer
PR6423/10R-030-CNEmerson PR6423/10R-030-CN Eddy Current Displacement Transducer

PR6426/010-030 CON021/916-160

Stock &amp; lead time on request

Call
  • Emerson PR6426/010-030 CON021/916-160 Eddy Current Sensor System
  • Emerson PR6426/010-030 CON021/916-160 Eddy Current Sensor System
  • Emerson PR6426/010-030 CON021/916-160 Eddy Current Sensor System
1 3

Emerson PR6426/010-030 CON021/916-160 Eddy Current Sensor System

Only 8 item(s) left in stock

  • Manufacturer: Emerson

  • Product No.: PR6426/010-030 CON021/916-160

  • Country of origin:United States

  • Product Type: Eddy Current Sensor

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 920g

  • Dimensions: 24cm x 22cm x 5cm

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

The Emerson PR6426/010-030 non-contact sensor combined with the CON021/916-160 signal converter forms an advanced eddy current measurement system designed for critical turbomachinery applications, such as steam, gas, and hydro turbines, compressors, pumps, and fans. The PR6426 eddy current sensor specializes in measuring radial and axial shaft displacement, position, eccentricity, and motion under demanding industrial environments. The processed information is transferred via the CON021/916-160 converter to provide a stable electrical output for machine protection and TSI monitoring systems.

Features

  • Non-contact eddy current measurement principle for precise tracking of industrial machine conditions
  • High-temperature durability with sensor head operation up to 175 degC
  • Built-in protection resisting pressures up to 6,500 hpa at the sensor head
  • Extended measurement range capacity up to 16.0mm optimized for large displacement detection
  • Rugged design with a standard stainless steel sleeve and high-end PTFE insulation

Applications

  • Radial and axial shaft displacement monitoring
  • Turbomachinery position, motion, and eccentricity verification
  • Critical machinery protection systems for gas/steam turbines and heavy compressors

Ordering Information

Model Number Sensor Type Measuring Range Linearity Error
PR6426/010-030 32mm Eddy Current Sensor +/-4.0 mm (Standard Range) / 16.0mm Extended <= 1.5% max (Sensor)
CON021/916-160 PR6426 16.0mm (Extended Range) <= 2.0%

Technical Specifications

CON021/916-160 Signal Converter Specifications

Parameter Specification
Manufacturer Emerson
Frequency Range (-3 dB) 0 to 20000 Hz
Rise Time <15 us
Operating Temperature Range -30 to 100 degC (-22 to 212 Fahrenheit)
Shock and Vibration 5g @ 60 Hz @ 25 degC (77 Fahrenheit)
Protection Class IP20
Supply Voltage Range (-24V config) -23V to -32V (Output Range: -4V to -20V)
Supply Voltage Range (-2V config) -21V to -32V (Output Range: -2V to -18V)
Housing Material LMgSi 0.5 F22
Weight ~120 grams (4.24 oz)
Mounting Hardware 4 Screws M5x20

PR6426 Eddy Current Sensor Specifications

Parameter Specification
Tip Diameter 32mm
Sensitivity 2 V/mm (50.8 mV/mil) <= +/-1.5% max
Air Gap (Center) Approx. 5.5 mm (0.22") Nominal
Long Term Drift <0.3%
Target/Surface Material Ferromagnetic Steel (42 Cr Mo 4 Standard)
Maximum Surface Speed 2,500 m/s (98,425 ips)
Minimum Shaft Diameter 200 mm (7.87")
Operating Temperature Range -35 to 175 degC (-31 to 347 Fahrenheit)
Temperature Excursions (<4 Hours) 200 degC (392 Fahrenheit)
Maximum Cable Temperature 200 degC (392 Fahrenheit)
Pressure Resistance to Sensor Head 6,500 hpa (94 psi)
Shock and Vibration 5g (49.05 m/s2) @ 60Hz @ 25 degC (77 Fahrenheit)
Sleeve Material Stainless Steel
Cable Material PTFE
Weight (Sensor & 1M Cable, no Armor) ~800 grams (28.22 oz)

Connections/Interfaces

Connector Pin / Terminal Function
Transducer Connection Self-Locking Lemo-Plug
Supply/Output Connection Screw Terminal Type (max. 1.5mm2 wire)

Installation Guidelines

  • Observe the minimum cable bending radius rules: 35 mm for armored configurations and 25 mm for non-armored cables.
  • Keep a clear zone of at least 80 mm diameter around the sensor head free of unintended ferrous materials.
  • Set the center air gap to approximately 5.5 mm nominal during initial probe gap adjustment.
  • Ensure proper grounding and use external current limiting, such as safety barriers, when installing in certified hazardous areas.

Compliance and Certifications

  • CE: 2014/30/EU (EN 61326-1), 2014/34/EU, 2011/65/EU, DIN EN 50581
  • ATEX: EN 60079-0, EN 60079-11 (II 2 G Ex ia IIC T4 Gb, -20 degC <= Ta <= 80 degC)
  • IEC-Ex: IEC 60079-0, IEC 60079-11, IEC 60079-26 (Ex ia IIC T4 Gb, -20 degC <= Ta <= 80 degC)
  • CSA: CAN/CSA-C22.2 NO. 0-M91, NO. 157-92, NO. 213-M1987, CAN/CSA-E60079-15-02, NO. 25-1966, NO. 61010-1-04 (Class I Division 1, Groups A, B, C, D, T4; Class I Division 2, Groups A, B, C, D Ex nA II T3..T4)
  • Standards: ANSI/UL Standard 913-2004, ANSI/UL Standard 1604-1995, UL 60079-15 2002, UL 61010-1
Key Features:
#Eddy Current Sensors

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Emerson PR6426/010-030 CON021/916-160 Eddy Current Sensor System

Download Open in new tab

What is the certified measurement range for this specific configuration?
This system matches the device with an extended range converter, providing a linear measurement range of 16.0mm.

What are the temperature classifications for the sensor component?
Depending on the final area classification and paired converter, the sensor temperature limits are rated up to T6 for temperatures less than or equal to 64 degC, T4 up to 114 degC, and T3 up to 160 degC.

What material is used for the sensor sleeve and internal cable insulation?
The device features a high-grade stainless steel sleeve construction coupled with heavy-duty PTFE cable insulation.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .

TECHNICAL SPECIFICATIONS

Country of origin
United States

Recently Viewed Products

Technical knowledge

Implementing 3-Switch XOR Ladder Logic with Internal Bit — figure 1

Implementing 3-Switch XOR Ladder Logic with Internal Bit

Implement a 3-SPST switch XOR light circuit in LogixPro or RSLogix 500 using an internal relay bit. Includes truth tables, boolean equations, and verified.

Building a Modbus RTU Network with CompactLogix and DeltaV — figure 1

Building a Modbus RTU Network with CompactLogix and DeltaV

Integrate Allen-Bradley CompactLogix, Caterpillar ATS, and generators into DeltaV DCS over Modbus RTU. Covers ProSoft MVI69-MCM, Miille DIN266 gateways.

ONS Instruction Not Energizing OTE in Studio 5000 Ladder Logic — figure 1

ONS Instruction Not Energizing OTE in Studio 5000 Ladder Logic

ONS instruction fires but the OTE coil never latches in Studio 5000 because the one-shot is only true for one scan. Use OTL/OTU or seal-in logic instead.

Kinetix 5500 EtherNet/IP Network Switch Requirements and Topology — figure 1

Kinetix 5500 EtherNet/IP Network Switch Requirements and Topology

Configure Allen-Bradley Kinetix 5500 servo drives on EtherNet/IP. Covers CIP Sync, IEEE 1588 V2 timing, Stratix selection, DLR topology, and HMI.

Honeywell Experion PKS C300 Series C controller (CC-PCNT05) in a DCS cabinet with FTE A/B indicators

Moving Average Filtering in DCS and PLC Analog Control

A moving-average filter is the sliding-window smoother most instrument engineers drop into DCS and PLC analog paths. Here is how the window works, how N and sample time set lag, and when a...

GE Mark VIe turbine control hardware: Ethernet switch, terminal board, I/O packs, and rack controller cards

GE Mark VI Function Blocks for Gas Turbine Control Logic

On Frame 5–9 gas turbines, GE Mark VI and Mark VIe run control as function-block application software. This article maps process, protection, and sequencing functions—and what Toolbox ST access...
