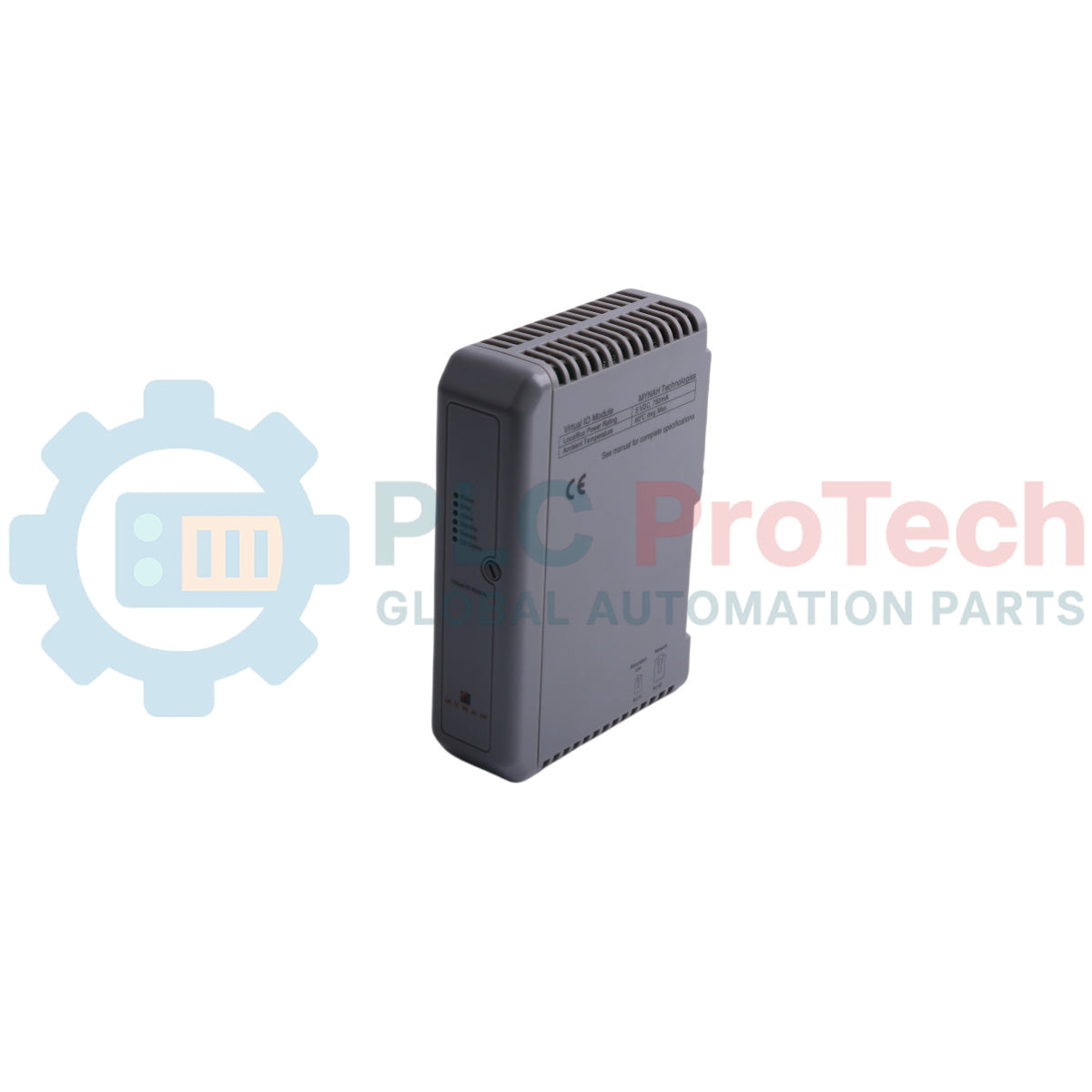

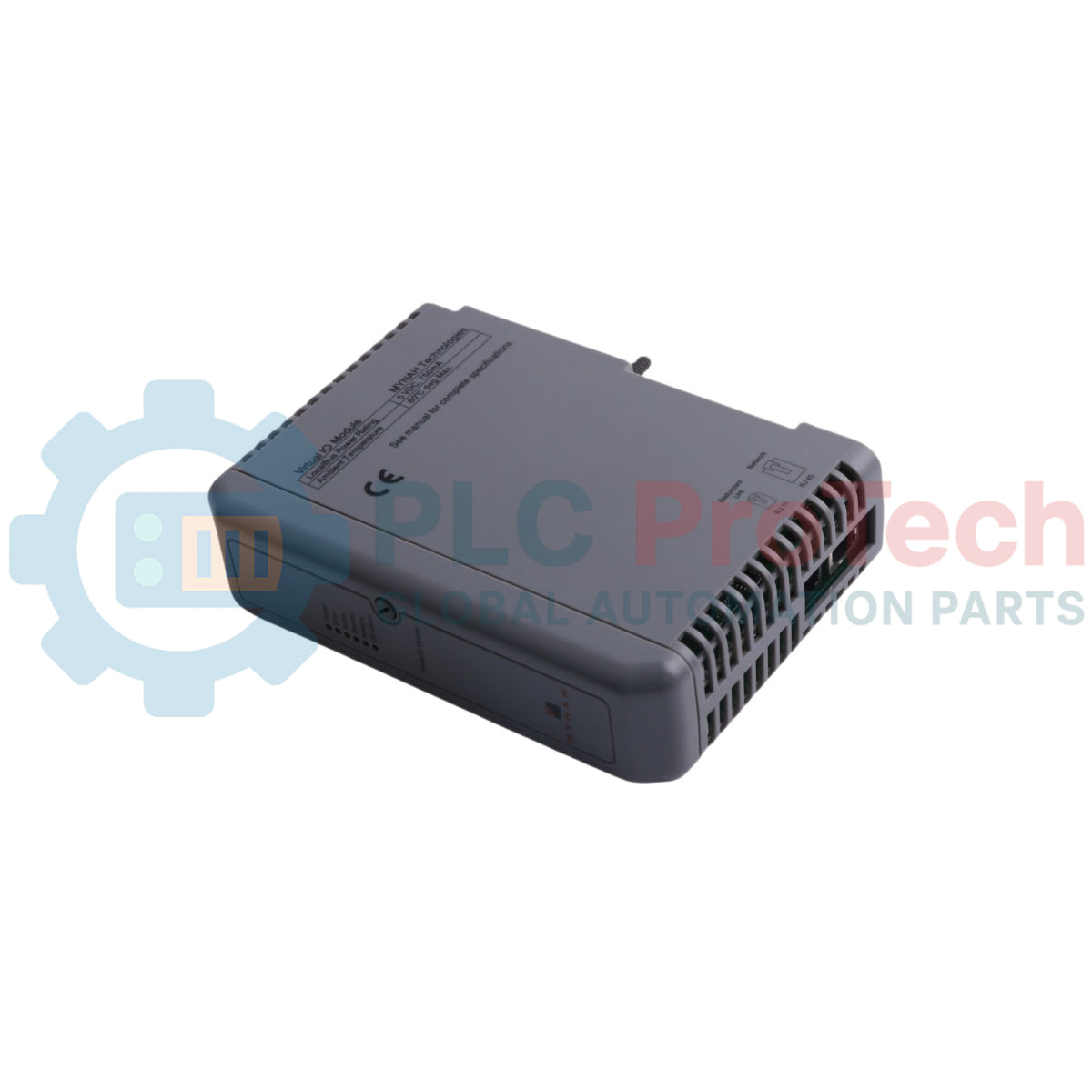

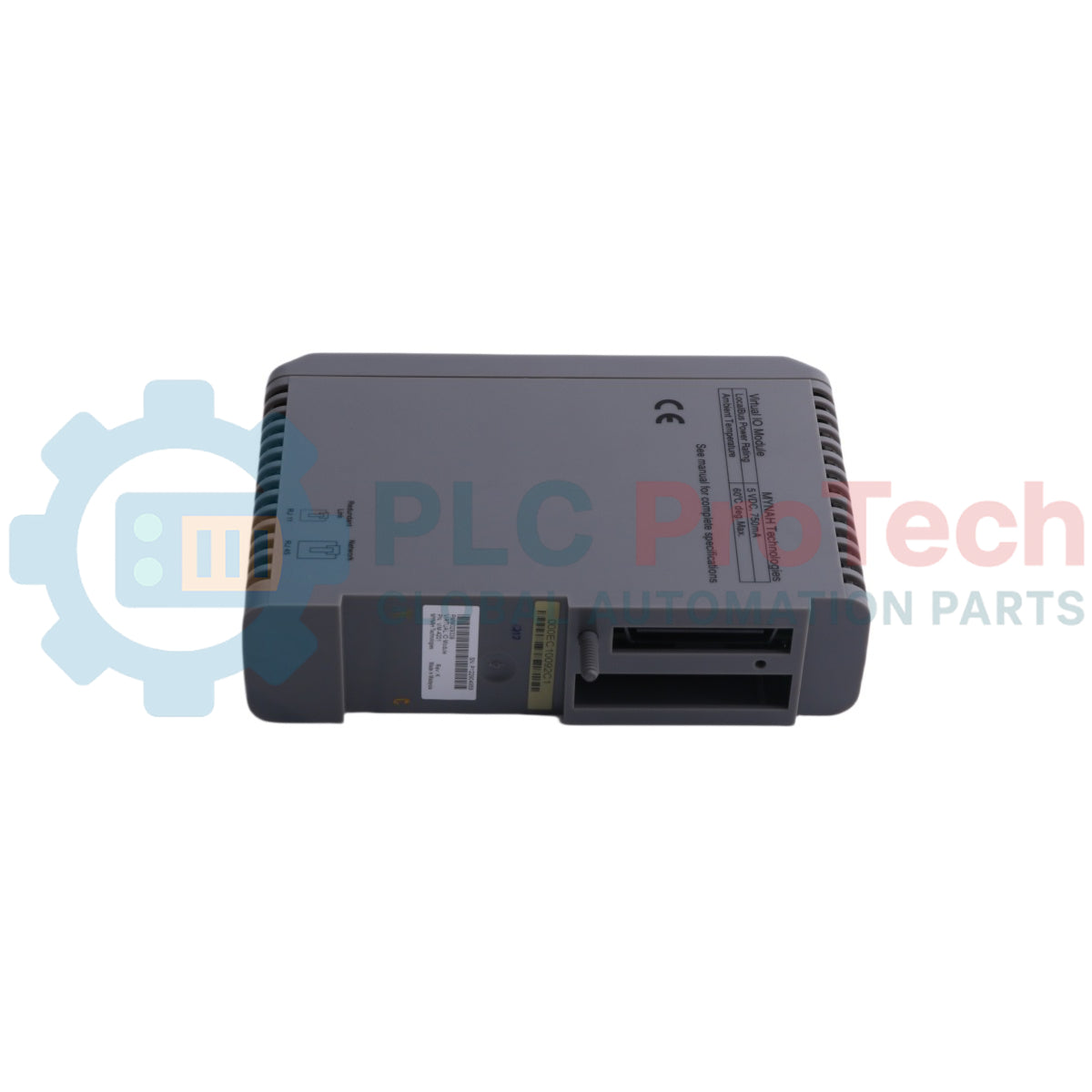

Emerson VIM-4201 DeltaV Virtual I/O Module

SKU VIM-4201

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Emerson
  • Product No.: VIM-4201
  • Origin United States
  • Product Type: Virtual I/O Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.28 kg
  • Dimensions: 4.1cm x 12.5cm x 15.8cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

DeltaV SIS Virtual I/O Module

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Emerson VIM-4201 DeltaV Virtual I/O Module

Download Open in new tab
Quantity
Call sales Contact

Product Description

Description

The Emerson VIM-4201 is a Virtual I/O Module network gateway designed to provide a native DeltaV I/O interface to open plant Ethernet networks and devices. This module enables DeltaV Controllers to read and write signals from plant floor devices operating on Ethernet networks, including programmable logic controllers (PLCs), Motor Control Centers, and weigh scales. The VIM-4201 is specifically designed for redundant installations, allowing two modules to be set up as a redundant pair to provide backup plant network capabilities. It emulates DeltaV Serial Cards, allowing seamless integration where the DeltaV Controller auto-senses the gateway directly within the DeltaV system architecture.

Features

  • Emulates up to 4 DeltaV Serial Cards and supports up to 128 Serial Card Datasets.
  • Provides automated integration with the DeltaV auto-sense I/O function.
  • Supports 1:1 module redundancy with automatic or manual switchover capabilities managed via DeltaV Diagnostics.
  • Equipped with a standard 10BaseT 8-pin RJ-45 connector for external plant Ethernet interface.
  • Features an intuitive setup interface through the VIMNet Explorer Utility with graphical drag-and-drop network configuration.

Applications

  • Redundant network gateway mirroring for open plant Ethernet networks.
  • Interfacing DeltaV Controllers with plant floor PLCs.
  • Motor Control Center status monitoring and control data routing.
  • Process weigh scale integration over Modbus TCP/IP or EtherNet/IP protocols.

Ordering Information

Item Description
VIM-4201



DeltaV Virtual I/O Module for Redundant Installations
MIM-4207 DeltaV Virtual I/O Module
IOD-4101 Modbus TCP/IP Master Driver for DeltaV VIM
IOD-4102 Ethernet/IP Scanner Driver for DeltaV VIM
IOD-4104 Generic Device Ethernet / IP Scanner Driver for DeltaV VIM

Technical Specifications

Parameter Specification
Power Requirement Supplied by System Power Supply through 2-wide Power/Controller Carrier
Maximum Current 2.0 A
Fuse Protection 3.0 A, non-replaceable fuses
Power Dissipation 4.0 W typical, 5.4 W maximum
VIM User Memory 16 MB
External Network Interface One 10BaseT 8-pin RJ-45 Connector
Emulated Cards Capacity 4 Emulated DeltaV Serial Cards
Dataset Capacity 128 data sets per VIM (32 per Emulated Card)
Node Capacity (Redundant Mode) 16 slaves only
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -40 to 85 degC (-40 to 185 degF)
Relative Humidity 5 to 95%, non-condensing
Airborne Contaminants ISA-S71.04-1985 Airborne Contaminants Class G2
Shock 10 g, 1/2-sine wave for 11 ms
Vibration 1 mm peak-to-peak from 5 Hz to 16 Hz, 0.5 g from 16 Hz to 150 Hz

Connections/Interfaces

LED Indicator ON Status Description
Green -- Power Indicates DC power is applied
Red -- Error Indicates an error condition
Green -- Active Indicates that the VIM is commissioned and active
Green -- Standby Not used
Yellow Flashing -- Network Indicates valid network communication
Yellow Flashing - Ctlr I/O Indicates valid DeltaV I/O Bus communication

Installation Guidelines

  • Mounting Location: Install the module on its own 2-wide carrier to the left-hand-side of the DeltaV controller.
  • Power Provision: Ensure each module is supported by a dedicated system power supply connected via the carrier side connector.
  • Network Wiring: Establish communication connections to the plant Ethernet network using the integrated RJ-45 Ethernet port on the module face.
  • Redundant Configuration: Wire the primary and standby modules such that they can monitor each other continuously with status commands across the common Ethernet Network.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
How many DeltaV Serial Cards does the device emulate?
The device emulates up to 4 DeltaV Serial Cards and supports a maximum of 128 Serial Card Datasets.
What are the exact operating temperature limits for the module?
The operating temperature range for the module is from 0 to 60 degC.
What is the maximum power dissipation of the communication module?
The typical power dissipation is 4.0 W, and the maximum power dissipation is 5.4 W.
Reviews

More from this brand

Emerson KL2101X1-BB1 12P8775X052 DeltaV CHARM I/O Card 2 (CIOC2)
KL2101X1-BB1Emerson KL2101X1-BB1 12P8775X052 DeltaV CHARM I/O Card 2 (CIOC2)
Emerson KL3101X1-LS1 DeltaV LS I.S. AI 4-20 mA HART CHARM
KL3101X1-LS1Emerson KL3101X1-LS1 DeltaV LS I.S. AI 4-20 mA HART CHARM
Emerson Ovation 5X00226G01 OCR400 I/O Interface Module
5X00226G01Emerson Ovation 5X00226G01 OCR400 I/O Interface Module
Emerson PR6423/10R-030-CN Eddy Current Displacement Transducer
PR6423/10R-030-CNEmerson PR6423/10R-030-CN Eddy Current Displacement Transducer

VIM-4201

Stock & lead time on request

Call
  • EMERSON VIM-4201
  • EMERSON VIM-4201
  • EMERSON VIM-4201
1 3

Emerson VIM-4201 DeltaV Virtual I/O Module

Only 4 item(s) left in stock

  • Manufacturer: Emerson

  • Product No.: VIM-4201

  • Country of origin:United States

  • Product Type: Virtual I/O Module

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 280g

  • Dimensions: 4.1cm x 12.5cm x 15.8cm

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

The Emerson VIM-4201 is a Virtual I/O Module network gateway designed to provide a native DeltaV I/O interface to open plant Ethernet networks and devices. This module enables DeltaV Controllers to read and write signals from plant floor devices operating on Ethernet networks, including programmable logic controllers (PLCs), Motor Control Centers, and weigh scales. The VIM-4201 is specifically designed for redundant installations, allowing two modules to be set up as a redundant pair to provide backup plant network capabilities. It emulates DeltaV Serial Cards, allowing seamless integration where the DeltaV Controller auto-senses the gateway directly within the DeltaV system architecture.

Features

  • Emulates up to 4 DeltaV Serial Cards and supports up to 128 Serial Card Datasets.
  • Provides automated integration with the DeltaV auto-sense I/O function.
  • Supports 1:1 module redundancy with automatic or manual switchover capabilities managed via DeltaV Diagnostics.
  • Equipped with a standard 10BaseT 8-pin RJ-45 connector for external plant Ethernet interface.
  • Features an intuitive setup interface through the VIMNet Explorer Utility with graphical drag-and-drop network configuration.

Applications

  • Redundant network gateway mirroring for open plant Ethernet networks.
  • Interfacing DeltaV Controllers with plant floor PLCs.
  • Motor Control Center status monitoring and control data routing.
  • Process weigh scale integration over Modbus TCP/IP or EtherNet/IP protocols.

Ordering Information

Item Description
VIM-4201



DeltaV Virtual I/O Module for Redundant Installations
MIM-4207 DeltaV Virtual I/O Module
IOD-4101 Modbus TCP/IP Master Driver for DeltaV VIM
IOD-4102 Ethernet/IP Scanner Driver for DeltaV VIM
IOD-4104 Generic Device Ethernet / IP Scanner Driver for DeltaV VIM

Technical Specifications

Parameter Specification
Power Requirement Supplied by System Power Supply through 2-wide Power/Controller Carrier
Maximum Current 2.0 A
Fuse Protection 3.0 A, non-replaceable fuses
Power Dissipation 4.0 W typical, 5.4 W maximum
VIM User Memory 16 MB
External Network Interface One 10BaseT 8-pin RJ-45 Connector
Emulated Cards Capacity 4 Emulated DeltaV Serial Cards
Dataset Capacity 128 data sets per VIM (32 per Emulated Card)
Node Capacity (Redundant Mode) 16 slaves only
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -40 to 85 degC (-40 to 185 degF)
Relative Humidity 5 to 95%, non-condensing
Airborne Contaminants ISA-S71.04-1985 Airborne Contaminants Class G2
Shock 10 g, 1/2-sine wave for 11 ms
Vibration 1 mm peak-to-peak from 5 Hz to 16 Hz, 0.5 g from 16 Hz to 150 Hz

Connections/Interfaces

LED Indicator ON Status Description
Green -- Power Indicates DC power is applied
Red -- Error Indicates an error condition
Green -- Active Indicates that the VIM is commissioned and active
Green -- Standby Not used
Yellow Flashing -- Network Indicates valid network communication
Yellow Flashing - Ctlr I/O Indicates valid DeltaV I/O Bus communication

Installation Guidelines

  • Mounting Location: Install the module on its own 2-wide carrier to the left-hand-side of the DeltaV controller.
  • Power Provision: Ensure each module is supported by a dedicated system power supply connected via the carrier side connector.
  • Network Wiring: Establish communication connections to the plant Ethernet network using the integrated RJ-45 Ethernet port on the module face.
  • Redundant Configuration: Wire the primary and standby modules such that they can monitor each other continuously with status commands across the common Ethernet Network.
Key Features:
#DeltaV SIS #Virtual I/O Module

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Emerson VIM-4201 DeltaV Virtual I/O Module

Download Open in new tab

How many DeltaV Serial Cards does the device emulate?
The device emulates up to 4 DeltaV Serial Cards and supports a maximum of 128 Serial Card Datasets.

What are the exact operating temperature limits for the module?
The operating temperature range for the module is from 0 to 60 degC.

What is the maximum power dissipation of the communication module?
The typical power dissipation is 4.0 W, and the maximum power dissipation is 5.4 W.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .

TECHNICAL SPECIFICATIONS

Country of origin
United States
