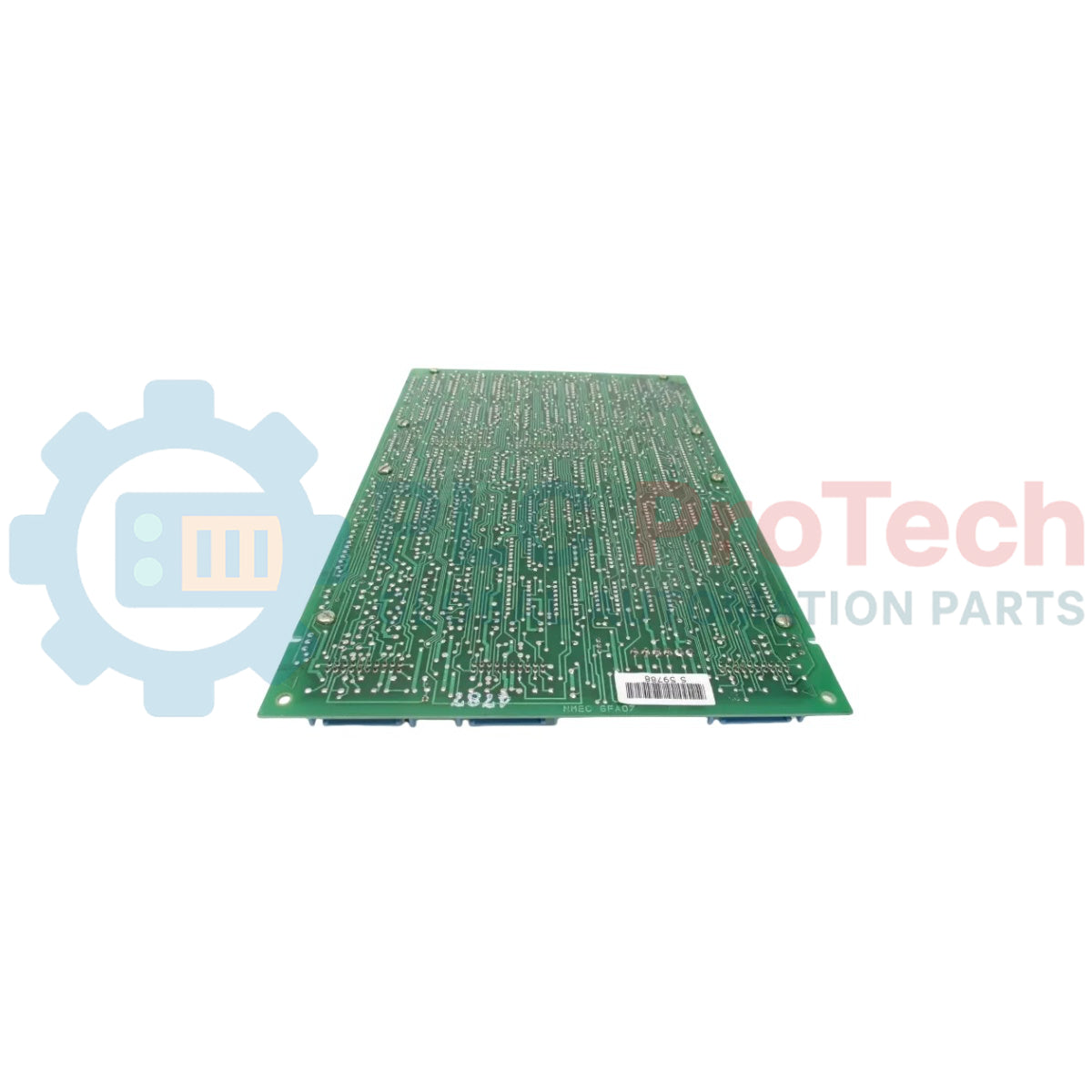

GE DS3800NMEC1K1K Mark IV Motor Field Module

Description

The DS3800NMEC1K1K functions as a dedicated motor exciter control board developed for the Mark IV Speedtronic turbine control platform. This heavy-duty printed circuit board forms an essential part of the excitation control loops tasked with regulating localized motor fields paired with industrial gas and steam turbine generator assemblies.

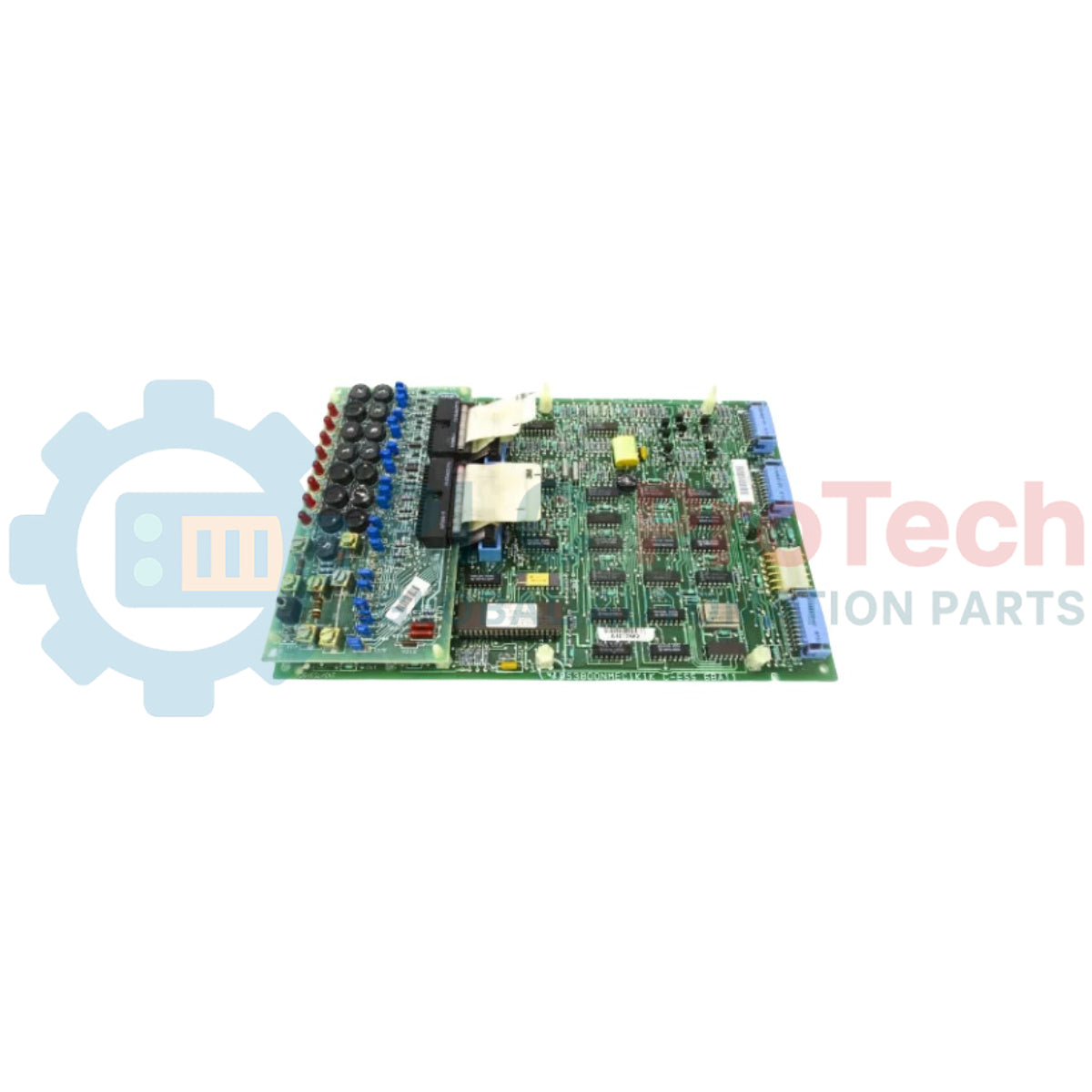

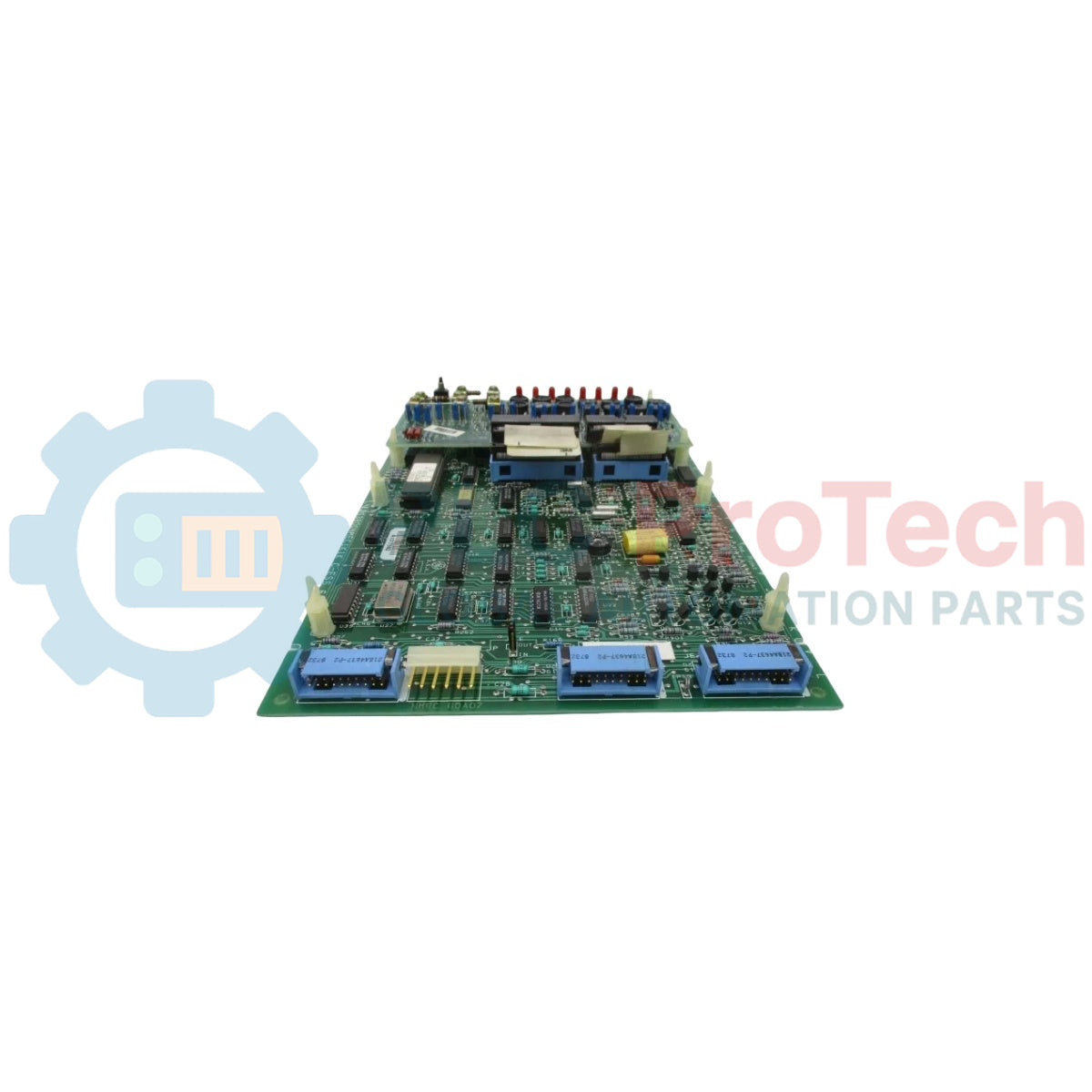

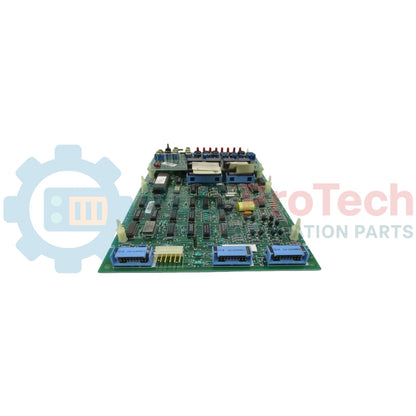

The physical architecture of the DS3800NMEC1K1K relies on robust analog and digital logical structures to sustain precise field current monitoring. It incorporates 35 integrated circuits split into customizable EPROM and fixed non-volatile EEPROM memory arrays to hold system firmware and operational profiling instructions. Dynamic frequency tracking is managed via an on-board silver square crystal oscillator designed to deliver stable internal timing cycles. The analog conditioning layout contains a physical variable resistor featuring a prominent black dial with a white arrow index, enabling manual setpoint tracking calibration from 0 to 100. To prevent feedback interference and handle electrical scaling, the board integrates 10 black semi-conductive transistors, a dedicated configuration of diodes and storage capacitors, and close to 100 current-limiting resistors. Inter-board data processing links are secured via 6 male interface connection terminals to couple the board cleanly with adjacent turbine control segments.

Features

• Dual-Type Integrated Memory Sockets: Utilizes a high-density matrix of 35 integrated circuits comprising modify-capable EPROMs and non-volatile EEPROMs for program security.
• On-Board Calibration Potentiometer: Features an integrated variable resistor knob indexed from 0 to 100 to support precise local field current regulation adjustments.
• Precision Timing Circuitry: Equipped with a dedicated hardware crystal oscillator to maintain a precise micro-clock reference for local signal synthesis.
• Multi-Point Bus Interfaces: Built with 6 heavy-duty male interconnection headers to secure low-latency communication with parallel turbine rack modules.

Applications

• Turbine Exciter System Regulation: Controls field current profiles inside motor exciter modules to manage generator stability on gas or steam turbines.
• Rotary Field Automation Control: Normalizes operational inputs and speed variables within heavy-duty manufacturing and industrial process plants.
• Synchronous Motor Parameter Balancing: Deployed in legacy automation control architectures requiring deterministic current suppression and feedback loop protection.

Technical Specifications

Installation Guidelines

• System Voltage Mitigation: Isolate, lock out, and verify the absolute elimination of all active power supplies feeding the control enclosure prior to commencing card extraction.
• Static Charge Dissipation: Maintenance crew must wear a properly connected and grounded ESD anti-static wrist strap to safeguard volatile memory components against catastrophic electrostatic arcs.
• Interface Cable Seating: Securely plug ribbon connector lines straight onto the 6 male connection pins, ensuring correct terminal registration to avoid signal cross-talk.
• Chassis Alignment Anchoring: Slide the motherboard carefully along the system enclosure tracking lines, checking that the front calibration dial is accessible and completely unhindered before fixing face screws.
