GE Energy IS420UCSCH1B Mark VIe UCSC Quad Core Controller

SKU IS420UCSCH1B

In stock

12-month warranty
Free returns within 30 days

Manufacturer: General Electric
Product No.: IS420UCSCH1B
Country of origin:United States
Product Type: 12-inch display 800 x 600
Payment: T/T, Western Union
Weight: 1200g
Dimensions: 152.15 mm x 203.96 mm x 55.12 mm (D x H x W)
Shipping port: Xiamen
Warranty: 12 months

Description

The GE Energy IS420UCSCH1B is a UCSC Quad Core Controller Module manufactured by GE Energy for the Mark VIe Series. Designed for high-speed, highly-reliable industrial applications, this real-time hypervisor controller runs on a QNX Neutrino multi-task capable operating system powered by a 1.2 GHz AMD G-Series microprocessor.

Unlike other Mark VIe controllers that interface through a backplane, the unit does not use a backplane and hosts no local I/O applications. Its software and hardware architecture ensures no single point of application input is lost during maintenance or shutdown. The controller incorporates Embedded Field Agent (EFA) technology to enable Predix cloud-based applications and utilizes IONet interfaces for external data transfer.

Features

Real-time hypervisor controller operating on a QNX Neutrino multi-tasking OS.
Embedded Field Agent (EFA) technology supporting Predix cloud connectivity.
Backplane-free design ensuring no application input loss during repair or shutdown.
Integrated support for EFA, Embedded EtherCAT, and Embedded PPNG platform features.
Convection-cooled vertical mounting configuration.
Non-replaceable 4 A 125 V DC rated internal surge protection fuse.

Applications

High-speed industrial turbine control and process automation.
Predix cloud-connected industrial edge computing.
Simplex, Dual, and Triple Modular Redundant (TMR) control architectures.

Technical Specifications

Parameter Category	Specification
Manufacturer (OEM)	GE Energy
Part Number	IS420UCSCH1B
Product Name	UCSC Quad Core Controller
Series	Mark VIe
Functional Abbreviation	UCSC
CPU Architecture	Quad-core 1.2 GHz AMD G-Series Microprocessor
Operating System	QNX Neutrino (Version 6.5 or 7.1)
Memory	2 GB DDR3-1066 SDRAM with Error Correcting Code (ECC)
NVSRAM Capacity	3067 Nonvolatile Program Variables, 64 Totalizers, 338 Forces
Supported Features	EFA, Embedded EtherCAT, Embedded PPNG
Redundancy Configurations	Simplex, Dual, TMR (Triple Modular Redundant)

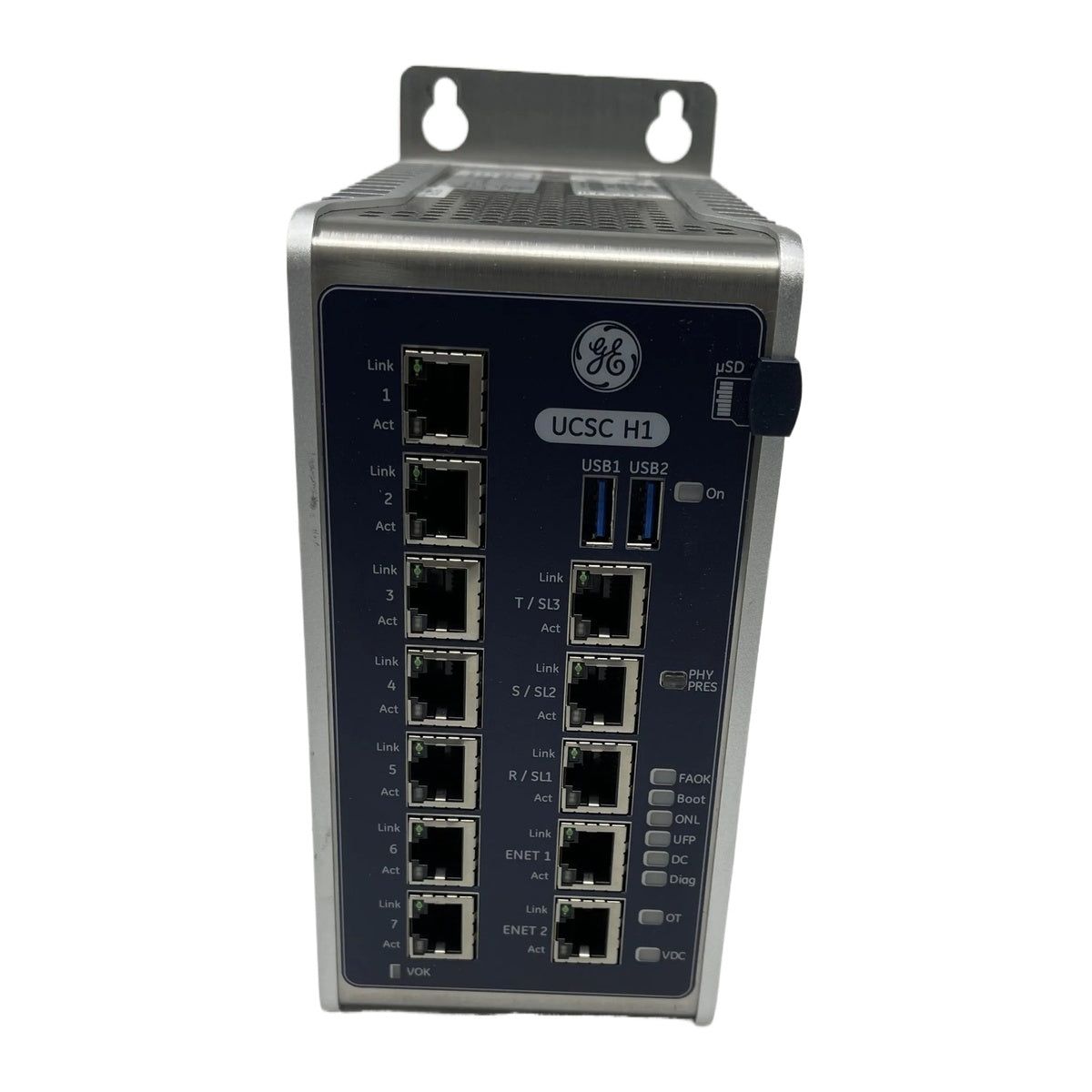

Ethernet Interfaces	6 Ports (5 Front Panel RJ45, 1 Bottom Panel for Predix)
Ethernet Protocols / Physical Layer	IONet, 10Base-TX/100Base-TX Twisted Pair
HMI Compatibility	ControlST V07.00.00C or Later
Operating Altitude	0 to 1000 m at 101.3 to 89.9 kPa
Storage Temperature	-40 to 85 degC (-40 to 185 degF)
Cooling Type	Convection
Orientation Capability	Vertical
Surge Protection Fuse	Non-replaceable 4 A 125 V DC rated; Nominal melting: 26 A2 sec
Country of Origin	Assembled in the USA
Dimensions with Mounting	8.03 in H x 5.99 in D x 2.17 in W (203.96 mm H x 152.15 mm D x 55.12 mm W)

Connections/Interfaces

Connector Pin / Port	Function
Front Ethernet Ports (5x RJ45)	IONet interfaces / Redundancy connectivity (R/SL1, S/SL2, TMR ports)

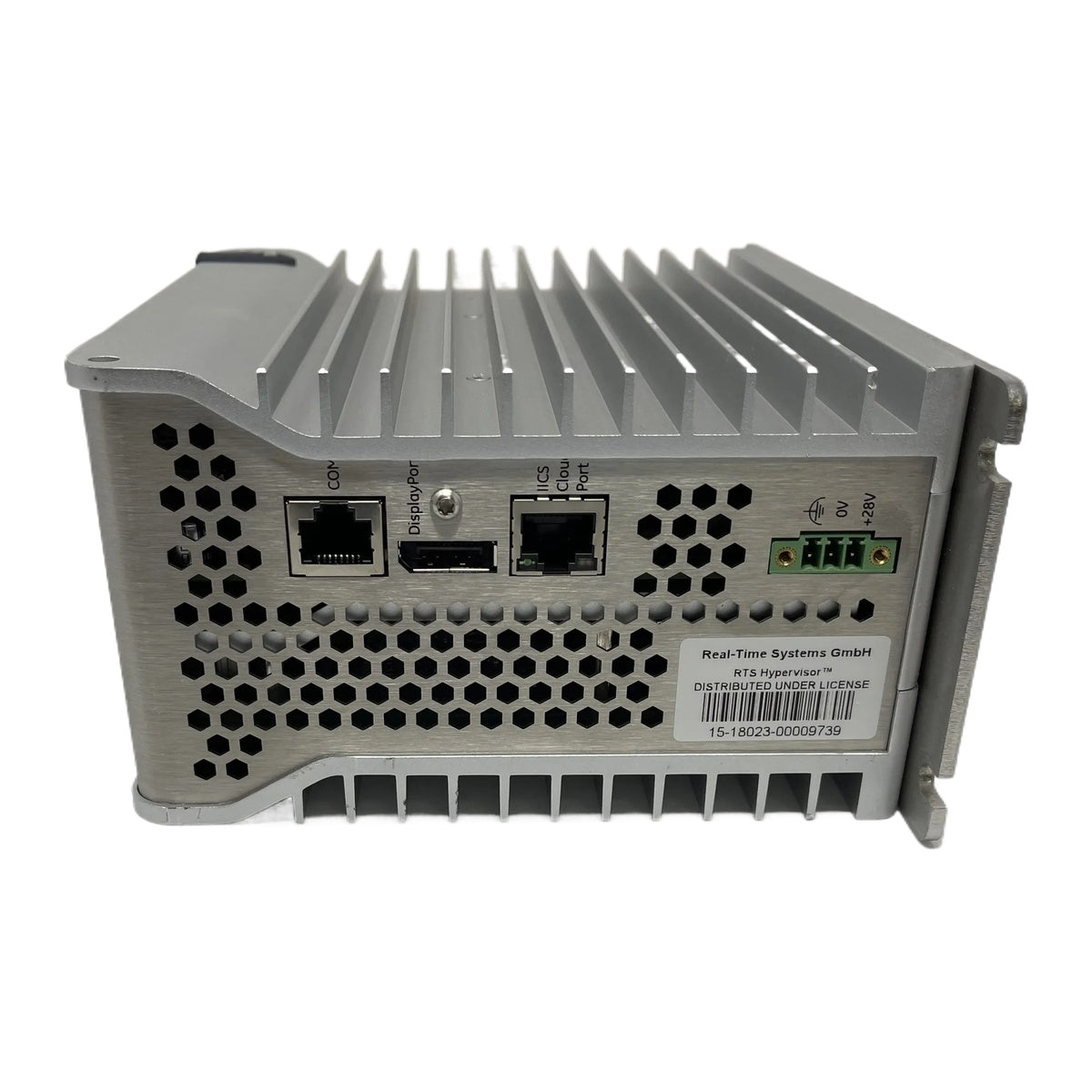

Bottom Ethernet Port (1x RJ45)	Dedicated Predix Connectivity / Embedded Field Agent (EFA)

Installation Guidelines

Orientation: Install vertically to ensure proper natural convection cooling across the housing.
Ethernet Cabling: Use standard 10Base-TX/100Base-TX twisted pair cables with RJ45 connectors for all redundancy and IONet connections.
Redundancy Wiring: Connect all three designated redundancy ports in TMR configurations, or ports S/SL2 and R/SL1 in Dual redundant setups.
Altitude Limits: Operate within normal nominal atmospheric conditions of 0 to 1000 m altitude (101.3 to 89.9 kPa).

FAQ

What system software version is required to interface with the controller?

The device requires ControlST software version V07.00.00C or later for HMI and system operation.

How are external data transfers handled by the unit?

External data is transferred to and from the unit using dedicated IONet interfaces.

Which operating systems are utilized by this module?

The module runs a QNX Neutrino real-time operating system (version 6.5 or 7.1).

How many network ports are located on the controller?

The unit features six Ethernet ports in total: five on the front panel and one on the bottom panel for Predix connectivity.
