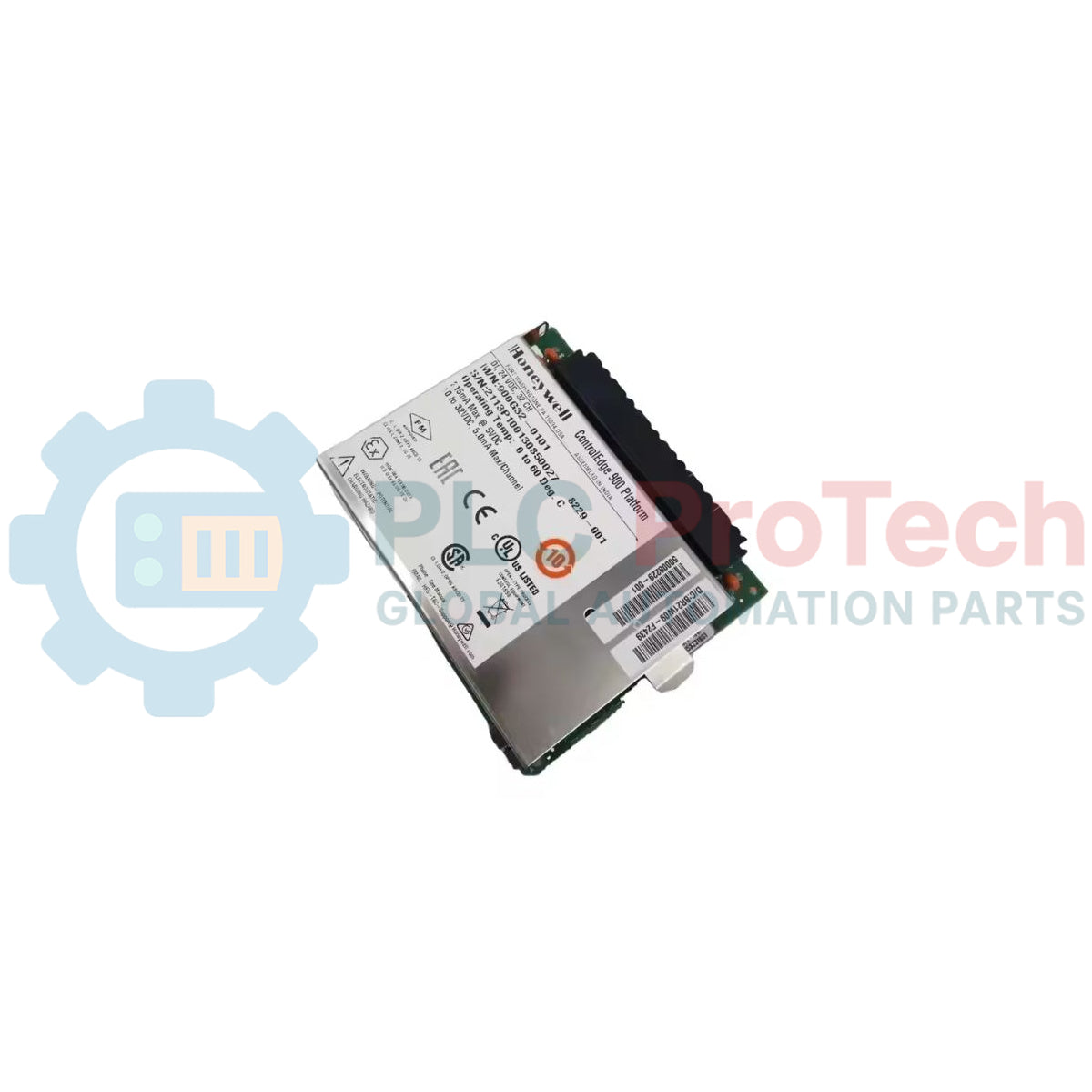

Honeywell 900G32-0301 Digital Input 24 VDC Module

The Honeywell 900G32-0301 is a high-density Digital Input Module engineered for the ControlEdge HC900 system, providing 32 sinking input channels. This module is designed to monitor a wide range of 24 Vdc field signals, offering robust performance in harsh industrial environments with an extended operating temperature range. With integrated galvanic isolation split into two groups of 16, this module effectively separates field-side electrical activity from the internal backplane, enhancing system reliability and protecting critical control components from voltage transients.

Features

• High Channel Density: 32 sinking input channels per module
• Wide Operating Range: Compatible with signal voltages from 10 Vdc to 32 Vdc
• Galvanic Isolation: Two isolated groups of 16 inputs for enhanced noise immunity
• Fast Response: Consistent 5 ms response time for both ON-to-OFF and OFF-to-ON transitions
• Robust Thermal Specs: Certified for extended operation from -40 degC to 70 degC

Applications

• Remote monitoring of digital sensors, limit switches, and contact closures
• High-density I/O acquisition for DCS or PLC architectures
• Safety-related process interlock monitoring
• Industrial machinery diagnostic feedback loops

Technical Specifications

Installation Guidelines

• Module Seating: Insert the module into the HC900 rack carefully to ensure the backplane pins are not bent; ensure the locking mechanism is fully engaged.
• Sinking Configuration: Ensure field devices are wired for a sinking configuration, where the module provides the ground path for the input signal.
• Isolation Management: Distribute field wiring to respect the two isolated groups of 16 inputs to maintain the electrical integrity provided by the module design.
• Environment: The module supports extended operating temperatures; however, ensure adequate airflow within the cabinet to prevent localized hot spots that may exceed the 70 degC limit.
• Shielding: For inputs routed through long cable runs, utilize shielded twisted-pair cabling and bond the shield to the common ground at the cabinet entry point.
