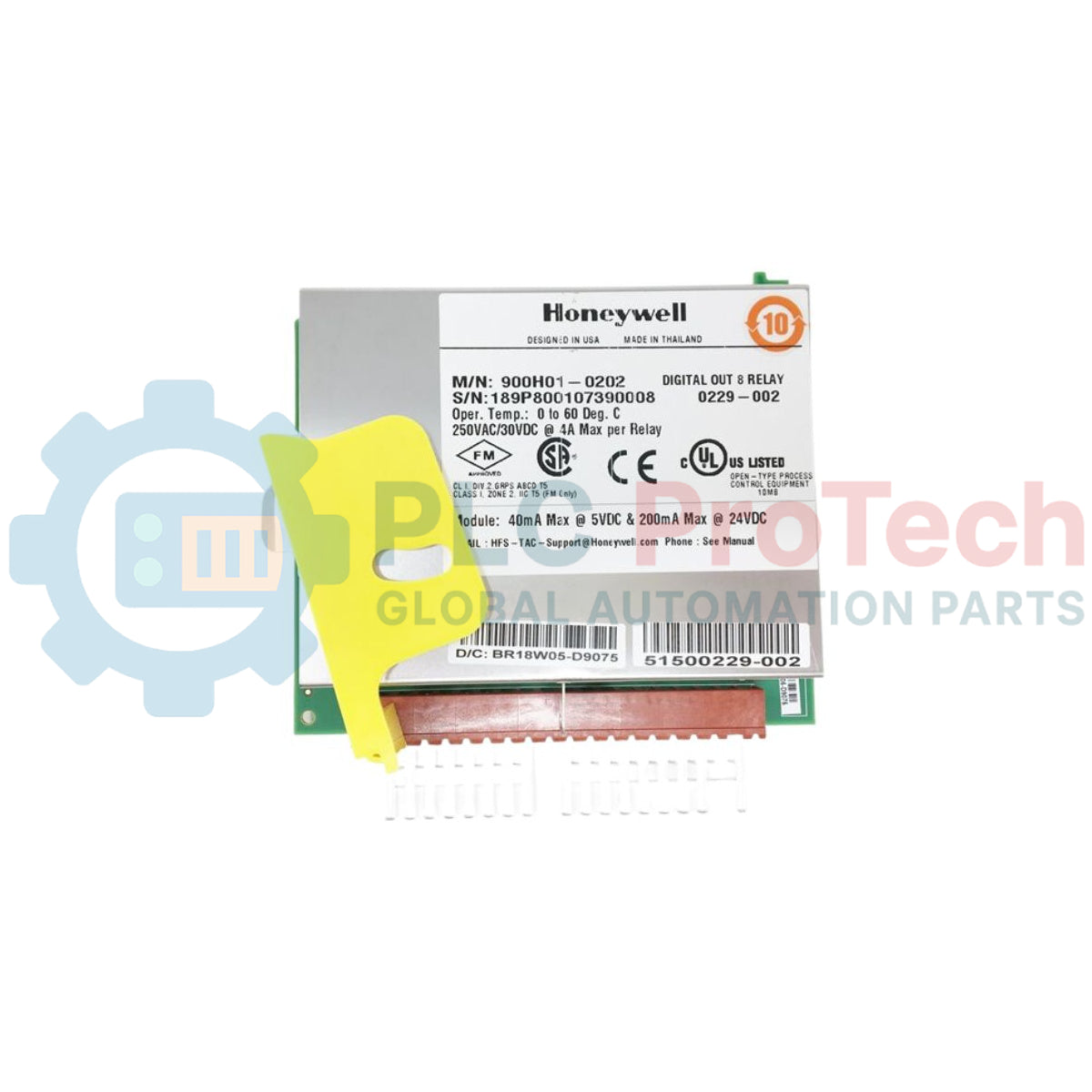

Honeywell 900H01-0202 Digital Output Relay Module

The Honeywell 900H01-0202 is an 8-channel Digital Output Relay Module designed for the ControlEdge HC900 system, providing robust switching capabilities for industrial loads. This module features a combination of 4 Form A and 4 Form C electromechanical relays, offering versatile control for both AC and DC field devices. The module is engineered with comprehensive galvanic isolation between output contacts and the logic circuitry, ensuring system safety and noise immunity in high-load industrial environments.

Features

• Relay Versatility: Equipped with 4 Form A (Normally Open) and 4 Form C (SPDT) relays
• High-Capacity Switching: Supports up to 4 A at 240 Vac or 30 Vdc (resistive load)
• Galvanic Isolation: Enhanced protection between output contacts and internal logic
• Long Operational Life: Rated for 5 x 10^7 mechanical operations, ensuring durability for frequent cycling
• Flexible Load Handling: Capable of driving both resistive loads and incandescent lamp loads

Applications

• Direct control of motor starters, solenoid valves, and contactors
• Interface between controller logic and high-voltage field devices
• Alarm and status indicator activation
• Discrete output control in PLC or DCS-based automation systems

Technical Specifications

Installation Guidelines

• Load Suppression: When switching inductive loads (such as coils or solenoids), ensure external snubber circuits or flyback diodes are installed to protect the relay contacts from arcing.
• Mounting: Secure the module firmly into the rack backplane; ensure the connector is fully seated to prevent intermittent contact.
• Wiring: Keep AC and DC wiring separated in the cabinet to reduce cross-talk and potential noise induction into the logic side.
• Maintenance: Due to the electromechanical nature of the relays, schedule periodic operational checks to verify contact integrity, especially in high-vibration applications.
• Thermal Considerations: Ensure the cabinet environment remains within specified temperature limits, as relay contact resistance can increase with elevated temperatures.
