Manufacturer: Honeywell
Product No.: SC-PCMX01 51307195-175
Country of origin:United States
Product Type: Remote Terminal Units
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 700g
Dimensions: 140.5 mm x 98.5 mm x 184.0 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

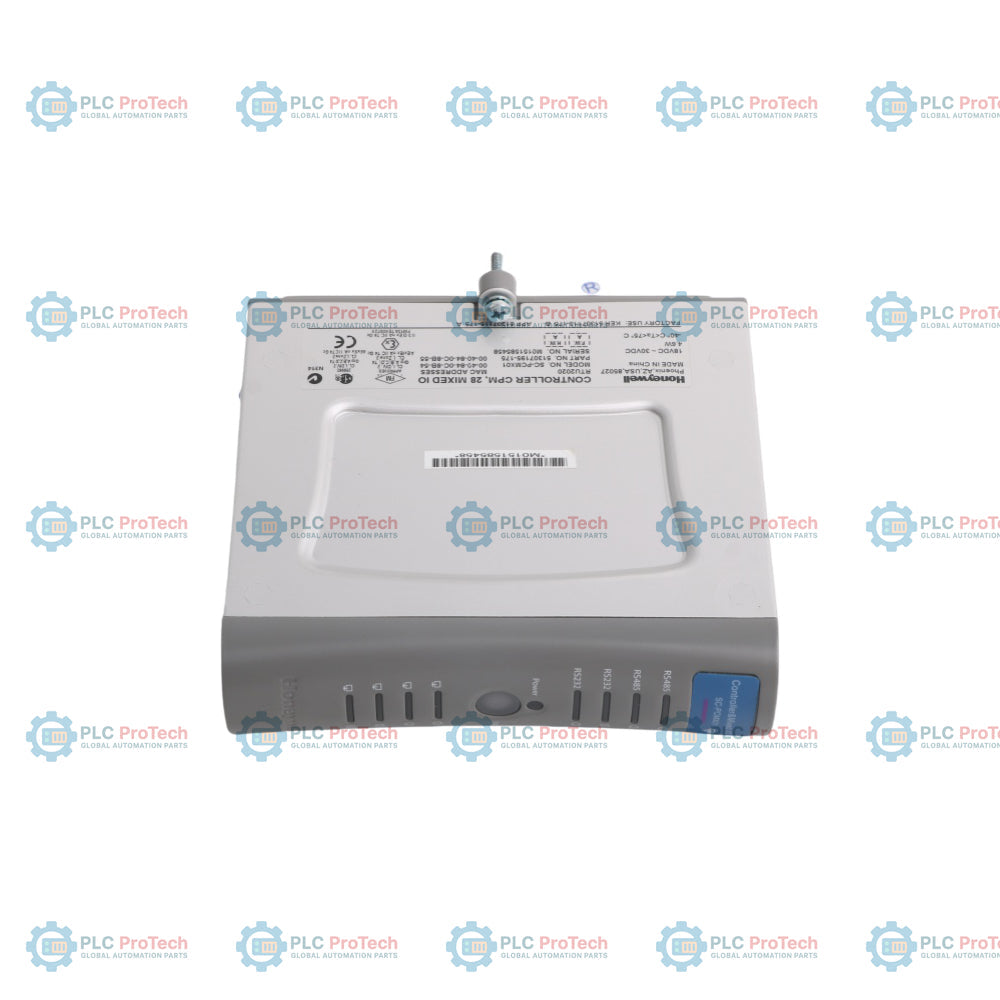

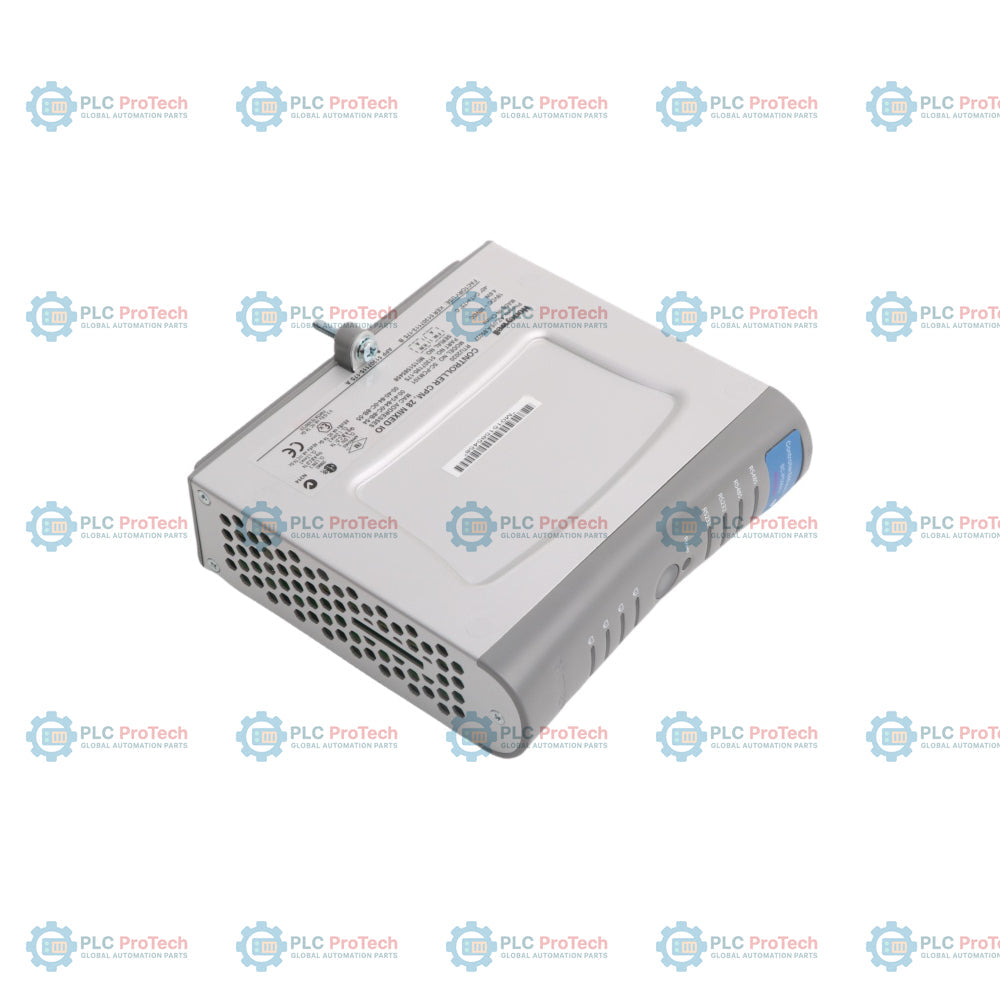

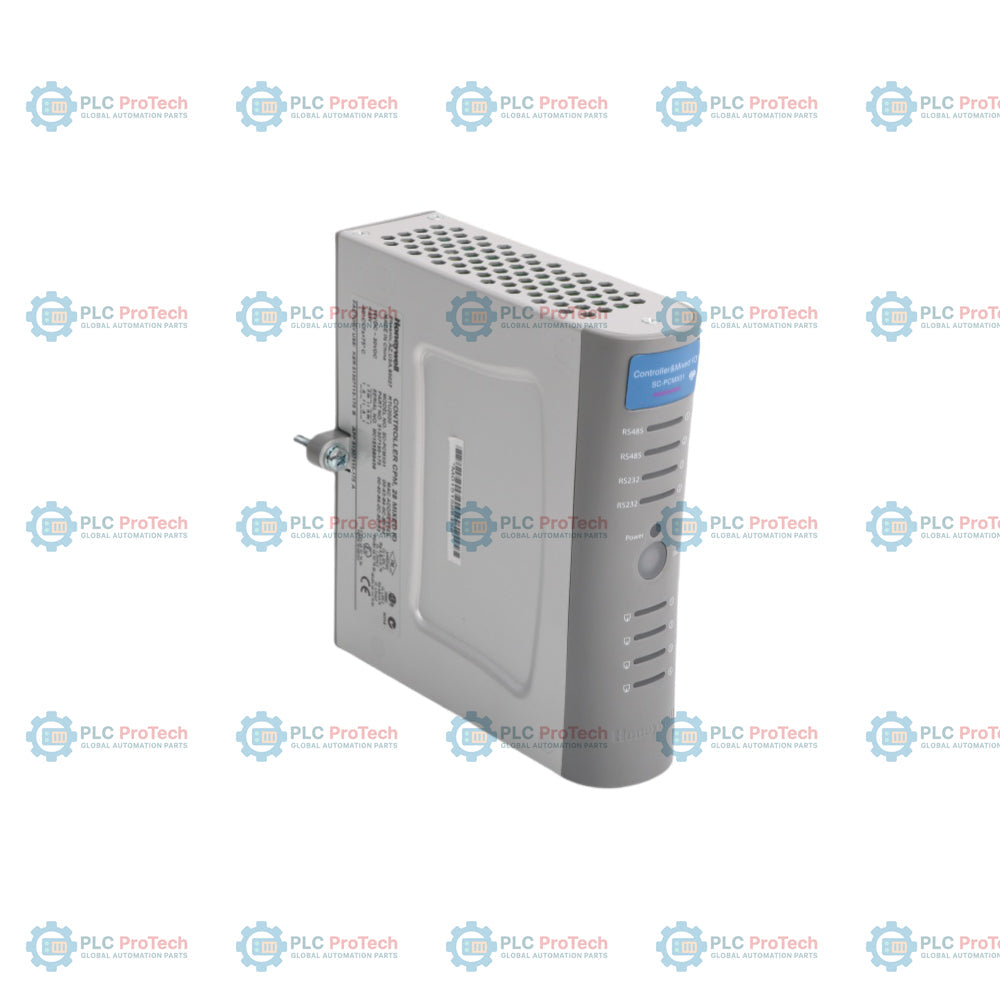

The Honeywell SC-PCMX01 51307195-175 is a control processor module (CPM) designed for the RTU2020 Remote Terminal Unit system. Equipped with 28 mixed onboard I/O, this module provides localized control and interface capabilities for remote automation tasks. The unit features a dual core ARM Cortex-A9 processor running at 667 MHz with a 32-bit data bus, supporting real-time data execution and onboard I/O operations. Integrated HART functionality enables direct digital communication with connected field instrumentation without requiring external expansion hardware. Communication protocols including Modbus RTU/ASCII/TCP, DNP3, and HART-IP are supported across dual Ethernet and four serial ports for seamless integration into SCADA and Experion PKS environments.
| Model Number | Description |
|---|---|
| SC-PCMX01 | RTU2020 controller CPM, 28 mixed onboard I/O |
| SC-UCMX01 | 1 RTU2020 Non-redundant Controller with 28 mixed onboard I/O (Includes 1 x SC-PCMX01 and 1 x SC-TCMX01) |
| SC-TCMX01 | RTU2020 controller IOTA, 28 mixed I/O |
| SP-IHARTP | HART Protocol Enabler License |
| SP-EBLDR1 | RTU Builder software license |
| Parameter | Specification |
|---|---|
| Processor | Dual Core ARM Cortex-A9 Core (32 bit data bus) 667 MHz |
| Dynamic Memory (RAM) | 128 Megabytes |
| Program Memory (Flash) | 32 Megabytes |
| Nonvolatile Memory | 4 Mbits |
| Execution Cycle Time | <= 100 ms |
| Real-Time Clock Resolution | 1 ms |
| Input Voltage | 18 VDC to 30 VDC |
| Input Power (With Field Power) | Full Load: 4.6W; Minimum: 1.6W |
| Analog Inputs (AI) | 8 channels, 4-20mA / 1-5VDC, 16-bit resolution, accuracy +-0.1% at 25 degC |
| Analog Outputs (AO) | 2 channels, 4-20mA, 12-bit resolution, load resistance 50-600 ohm |
| Digital Inputs (DI) | 10 channels, 24VDC (+/-10%), guaranteed ON at 12VDC, OFF at 4VDC |
| Digital Outputs (DO) | 6 channels, 24VDC, 80mA max load per point |
| Pulse Inputs (PI) | 2 channels, 5-10V peak-to-peak, 0 to 10kHz frequency |
| Ethernet Ports | 2x 10/100BaseTx RJ45 ports (isolated 1500V RMS) |
| Serial Ports | 2x RS232 (RJ45), 2x RS485 (2-wire half-duplex screw terminal) |
| Operating Temperature | -40 degC to +75 degC |
| Storage Temperature | -40 degC to +85 degC |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Mounting | DIN rail (TH35-7.5) |
| Dimensions | 184.0 mm x 98.5 mm x 140.5 mm |
| Weight | 700 g |
| Connector Pin | Function |
|---|---|
| Power Input | 18-30 VDC Terminal Connections |
| RS232 Port A (RJ45) | TD, RD, CTS, RTS, CD, DTR, DSR/RI, GND |
| RS232 Port B (RJ45) | TD, RD, CTS, RTS, CD, DTR, DSR/RI, GND |
| RS485 Port C (Screw) | GND, 485+, 485-, Termination |
| RS485 Port D (Screw) | GND, 485+, 485-, Termination |
| Ethernet Port 1 (RJ45) | 10/100BaseTx Network Connection |
| Ethernet Port 2 (RJ45) | 10/100BaseTx Network Connection |
| Onboard I/O Terminals | 28 Mixed Onboard I/O Channels |
