Manufacturer: Mitsubishi Electric
Product No.: QD75MH2
Country of origin:United States
Product Type: Positioning Modules
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

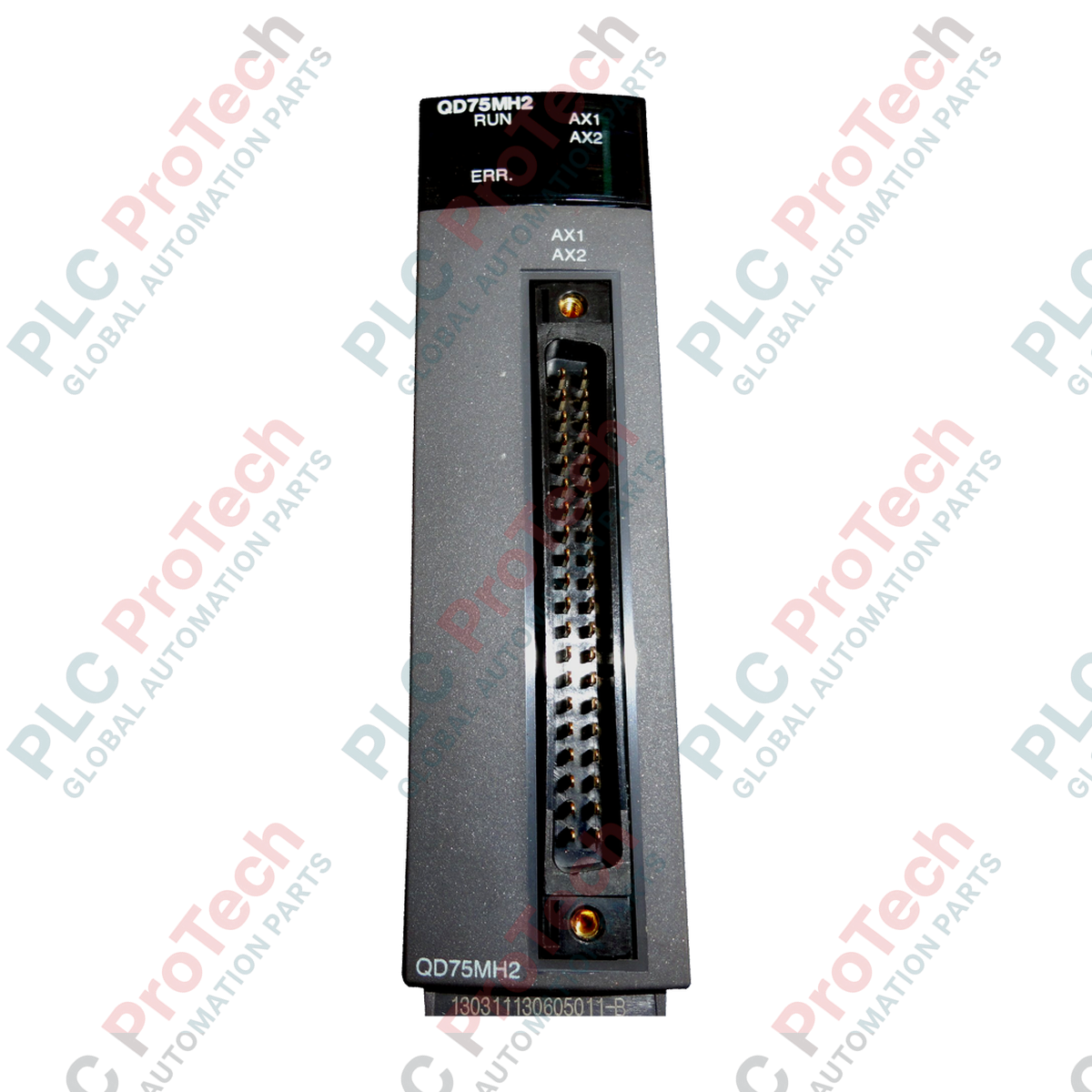

Designed for high-speed, high-accuracy motion control, the QD75MH2 is a 2-axis positioning module engineered for seamless integration with the Mitsubishi Electric MELSEC-Q Series PLC platform. This module facilitates precise motion profiles by managing up to 2 independent axes of motion. By utilizing high-speed serial communication via the SSCNET III interface, the module establishes a direct, noise-immune fiber-optic connection with compatible servo amplifiers, minimizing wiring complexity and improving signal integrity over long distances.
The QD75MH2 positioning module is optimized for complex motion paths, supporting up to 600 positioning data points per axis. With an operation cycle of 1.77 ms, it delivers rapid response times and high-precision synchronization required for modern automated machinery. External interface signals, including limit switches and manual pulse generator inputs, are processed directly on-module to ensure immediate execution of safety and positioning commands.
| Manufacturer | Mitsubishi Electric |
| Part Number/Model | QD75MH2 |
| Series | MELSEC-Q Series |
| Number of Control Axes | Up to 2 axes |
| Positioning Data Capacity | 600 data points per axis |
| Operation Cycle | 1.77 ms |
| Servo Amplifier Interface | SSCNET III (High-speed serial communication) |
| Compatible Servo Amplifiers | Mitsubishi General-Purpose AC Servo (MR-J3-B series) |
| Forced Stop Input | 24VDC level, 1 point per module |
| External Signal Interface | Upper stroke limit, Lower stroke limit, Proximity dog, Stop, Speed/position switching signal (24VDC level, 5 points per axis) |
| Manual Pulse Generator Interface | A-phase/B-phase, 5VDC level, 1 point per module |
| Shipping Weight | 2.0 kg |
| Interface Type | Signal Details | Voltage/Signal Level |
|---|---|---|
| Servo Amplifier Link | SSCNET III Fiber Optic Connection | Optical serial link |
| Forced Stop Input | 1 point per module | 24VDC |
| External Input Signals | Upper/Lower Limit, Proximity Dog, Stop, Speed-Position Switch (5 points per axis) | 24VDC |
| Manual Pulse Generator | A-phase / B-phase (1 point per module) | 5VDC |
