Manufacturer: Omron
Product No.: DRT1-AD04
Country of origin:Japan
Product Type: Analog Input Modules
Payment: T/T, Western Union
Weight: 160g
Shipping port: Xiamen
Warranty: 12 months

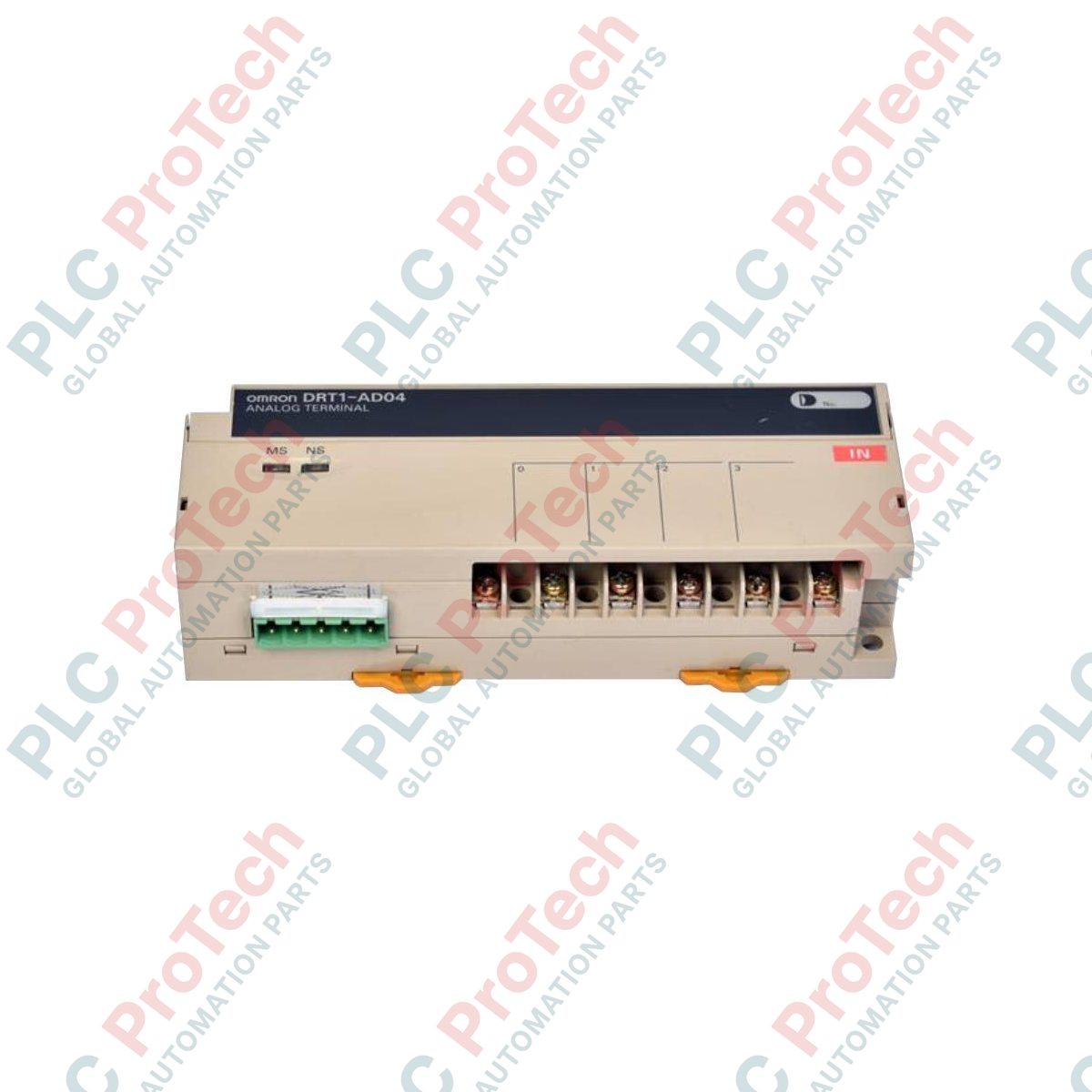

Designed for seamless integration into industrial automation networks, the DRT1-AD04 serves as a high-performance slice I/O module for standard DeviceNet networks. This analog input module converts analog process signals from field sensors into digital data for real-time monitoring and control. It supports multiple voltage and current input ranges, allowing for highly flexible system designs across a variety of manufacturing and process control applications.
The unit features galvanically isolated circuitry to protect sensitive master controllers from field-side electrical noise. Its compact footprint supports both direct panel mounting and DIN rail installation, making it well-suited for high-density control cabinets.
| Manufacturer | Omron |
| Part Number / Model | DRT1-AD04 |
| Input Points | 4 channels |
| Voltage Input Ranges | 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V |
| Current Input Ranges | 0 to 20 mA, 4 to 20 mA |
| Maximum Signal Input (Voltage) | +/-15 V |
| Maximum Signal Input (Current) | +/-30 mA |
| Input Impedance (Voltage) | 1 MOhm minimum |
| Input Impedance (Current) | Approx. 250 Ohm |
| Resolution | 1/6,000 (full scale) |
| Overall Accuracy (Voltage, 25 degC) | +/-0.3% FS |
| Overall Accuracy (Voltage, 0 to 55 degC) | +/-0.6% FS |
| Overall Accuracy (Current, 25 degC) | +/-0.4% FS |
| Overall Accuracy (Current, 0 to 55 degC) | +/-0.8% FS |
| Conversion Time | 2 ms/point (8 ms for 4 channels, 4 ms for 2 channels) |
| Insulation Resistance | 20 MOhm minimum at 250 VDC (between insulated circuits) |
| Communications Power Supply Voltage | 11 to 25 VDC (supplied via DeviceNet network) |
| Internal Power Supply Voltage | 20.4 to 26.4 VDC (24 VDC +10% / -15%) |
| Mounting Method | M4 screw mounting or 35-mm DIN rail mounting |
| Operating Ambient Humidity | 35% to 85% RH (non-condensing) |
| Weight | 0.160 kg |
When installing the module, ensure that the DeviceNet communications cable is routed away from high-voltage motor lines or power cables to prevent electromagnetic interference. Secure the module to either a 35-mm DIN rail or a panel plate using M4 screws, maintaining a clean and dust-free environment. Provide adequate ventilation clearance around the chassis to prevent thermal buildup within the enclosure.
