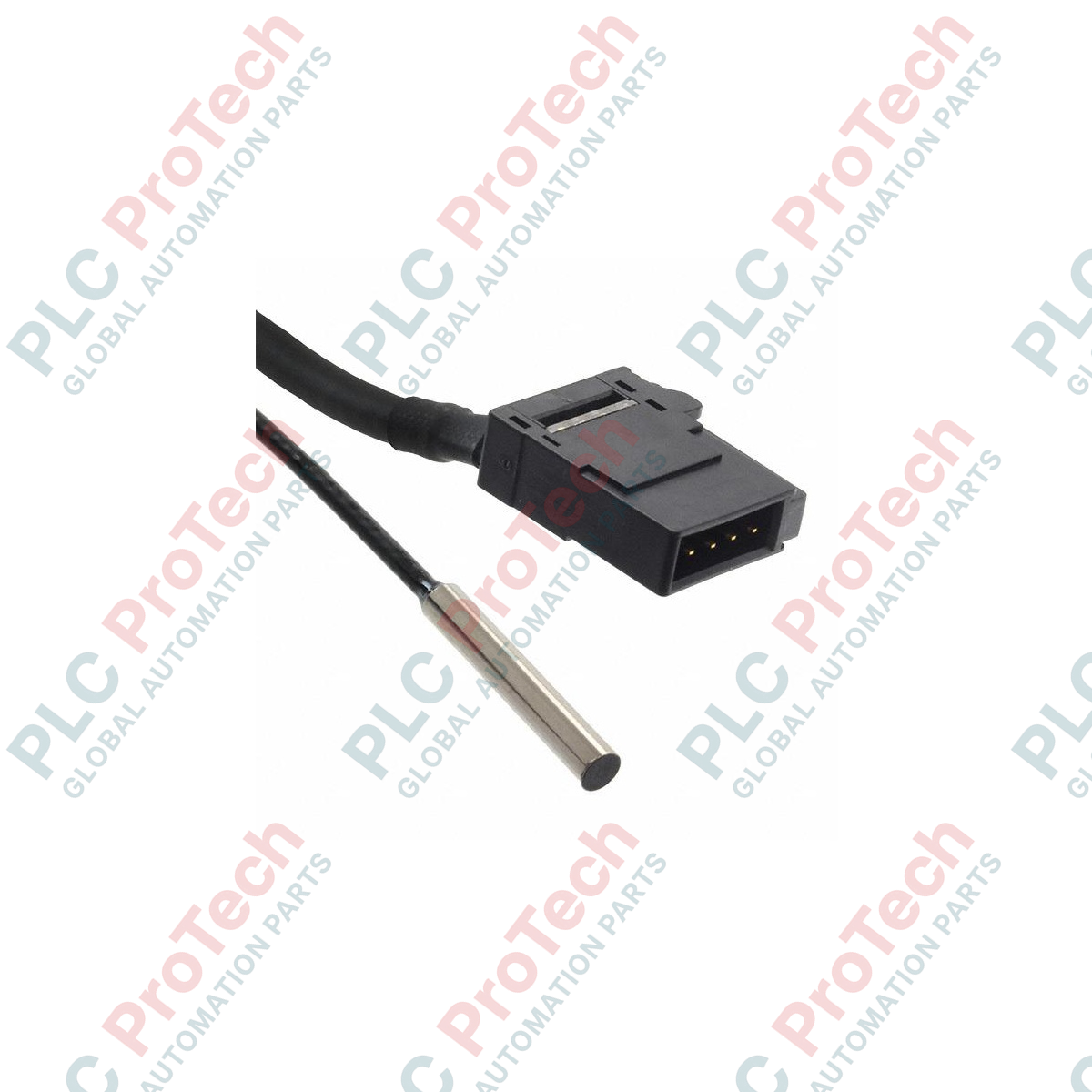

Omron E2C-EDR6-F E2C-EDA High Precision Positioning Inductive Proximity Sensor

SKU E2C-EDR6-F

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: Omron

  • Product No.: E2C-EDR6-F

  • Country of origin:Japan

  • Product Type: Proximity Sensors

  • Payment: T/T, Western Union

  • Weight: 120g

  • Dimensions: 5 x 5 x 3 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

Engineered for micro-positioning and highly precise displacement detection, the E2C-EDR6-F sensor head interfaces directly with E2C-EDA series amplifiers. This high-resolution inductive proximity sensor features an ultra-compact 3 mm diameter cylindrical housing, enabling integration into highly confined mechanical assemblies. It provides sub-micron level repeatable accuracy, making it an excellent choice for tracking magnetic metals in precision automation, semiconductor handling, and quality control systems.

Features

  • Ultra-compact 3 mm diameter by 18 mm length cylindrical body for space-constrained installations.
  • Exceptional repeat accuracy of 1 micrometer for highly reliable micro-positioning tasks.
  • Optimized sensing characteristics for magnetic metal targets, specifically iron (S50C).
  • Variable hysteresis distance adjustable via compatible E2C-EDA amplifier configurations.
  • Low current consumption operating profile (10 mA maximum).

Applications

  • Semiconductor manufacturing (wafer alignment and carrier detection).
  • Precision electronic assembly and component inspection.
  • Automated tooling calibration and metal stamping die monitoring.
  • Laboratory instrumentation, micro-fluidics, and medical device assembly lines.

Technical Specifications

Manufacturer Omron
Part Number / Model E2C-EDR6-F
Compatible Series E2C-EDA Series Amplifiers
Housing Diameter 3 mm
Housing Length 18 mm
Sensing Distance 0.6 mm
Sensing Target Type Magnetic metal
Standard Target Size / Material 5 x 5 x 3 mm, Iron (S50C)
Repeat Accuracy 1 micrometer (1 um)
Hysteresis Variable
Insulation Resistance 50 M Ohm minimum (at 500 VDC)
Current Consumption 10 mA maximum
Ambient Operating/Storage Humidity 35% to 85% RH (non-condensing)
Weight 0.12 kg

Installation Guidelines

  • Mounting: Ensure the sensor head is securely mounted using non-marring mounting brackets. Avoid over-tightening the 3 mm cylindrical body to prevent internal coil damage.
  • Shielding & Grounding: Always ground the companion E2C-EDA amplifier unit and use shielded cabling to shield the high-precision signal path from ambient electromagnetic interference (EMI).
  • Cable Routing: Route the sensor head cable separate from high-voltage AC lines or motor drive cables to prevent electrical noise coupling.

FAQ

What is the repeat accuracy of the Omron E2C-EDR6-F sensor?
The E2C-EDR6-F sensor head features a high repeat accuracy of 1 micrometer (1 um) when detecting standard magnetic metal targets.

Which amplifiers are compatible with the E2C-EDR6-F sensor head?
This sensor head is designed for use with the Omron E2C-EDA series high-precision positioning inductive proximity amplifiers.

What are the physical dimensions of the E2C-EDR6-F sensor head?
The sensor head is cylindrical with an ultra-compact diameter of 3 mm and an overall length of 18 mm.
