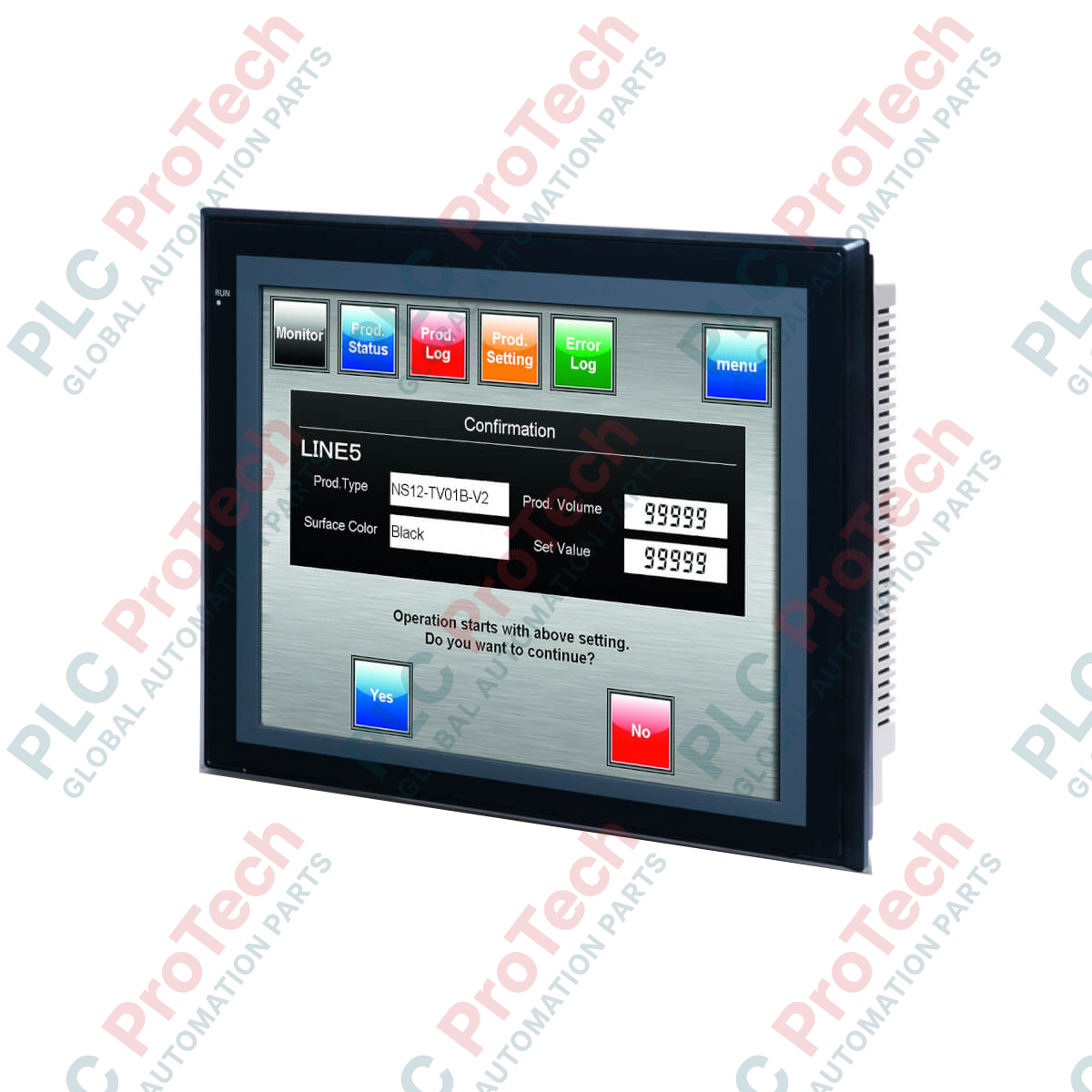

Omron NS12-TS01B-V1 NS Series Programmable Terminal

Description

Engineered for high-performance machine visualization and control, the NS12-TS01B-V1 functions as a high-resolution programmable terminal within factory automation architectures. This 12.1-inch TFT color display offers clear graphical representations of industrial processes, enabling operators to monitor and interact with linked PLC systems and field devices. Designed with a black housing, this unit operates on standard 24 VDC control power, optimizing energy efficiency while maintaining high luminance and responsive touch controls.

Integration with wider Omron automation networks is supported, enabling streamlined screen transfer and troubleshooting of linked systems. The robust mechanical build ensures reliable performance in standard control cabinets, acting as a reliable human-machine interface (HMI) for diverse manufacturing tasks.

Features

• 12.1-inch TFT color display with a resolution of 800 x 600 dots for crisp graphical representation.
• Integrated touch panel interface for precise control input.
• Operates on a standard 24 VDC rated power supply.
• Compact physical depth for direct mounting in shallow electrical control panels.
• Robust black casing designed for standard industrial environments.

Applications

• Automotive assembly lines
• Packaging and labeling machines
• Water treatment facilities
• Material handling systems
• Food and beverage processing plants

Technical Specifications

Installation Guidelines

• Ensure the mounting panel is flat and free of distortion to prevent mechanical stress on the touch screen.
• Provide adequate clearance around the terminal (at least 100 mm) to ensure proper natural convection cooling.
• Connect the terminal's functional ground terminal directly to a dedicated noise ground.
• Separate power supply cables and communication lines to avoid electromagnetic interference (EMI).
