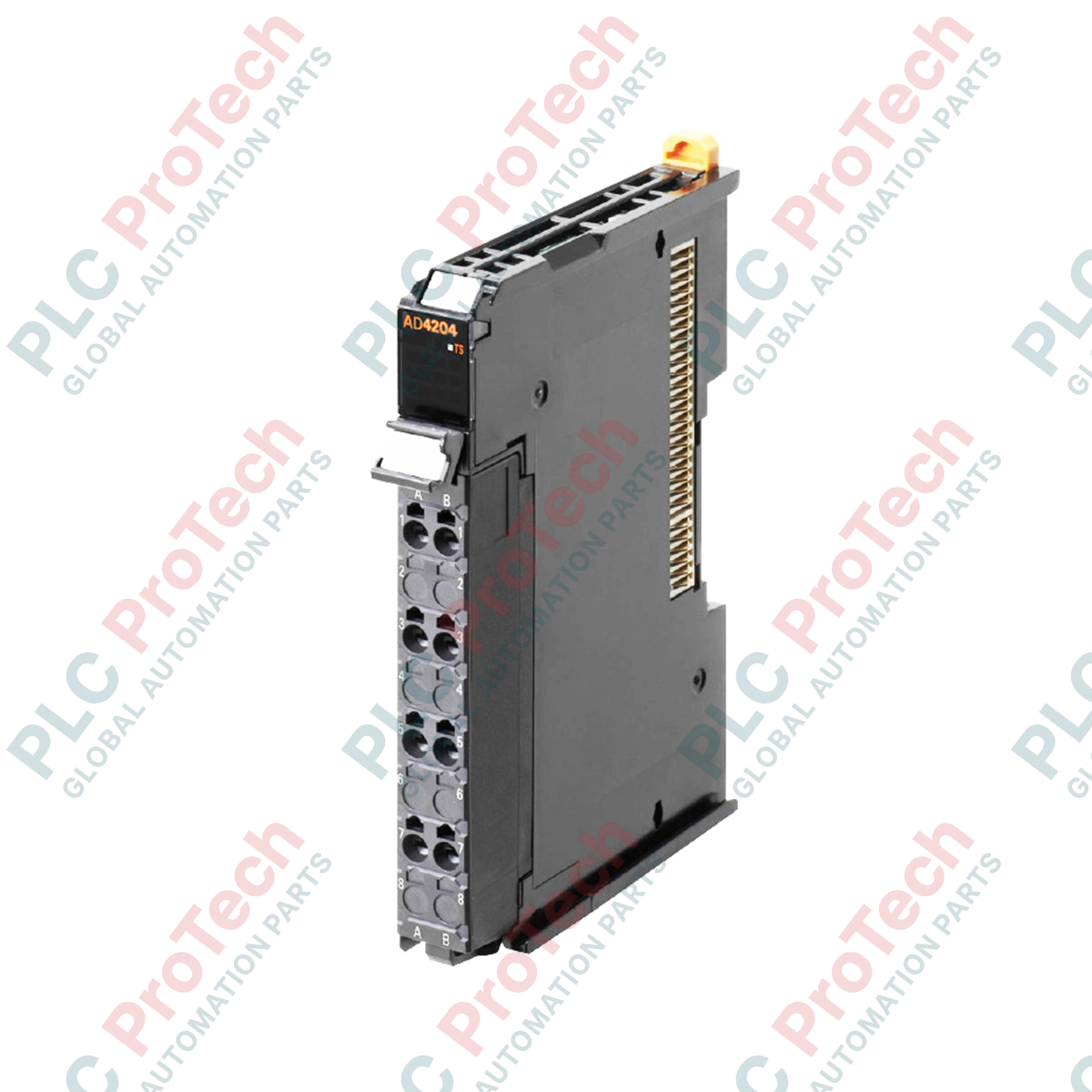

Designed for high-density current monitoring within the Omron Sysmac automation platform, the NX-AD4204 analog input module processes multi-point analog signals with high precision. This component provides 8 differential input channels specifically engineered to interface with standard 4 to 20 mA current loops. Operating on the slice I/O architecture of the NX Series, it facilitates seamless connection to NX-series EtherCAT Coupler Units or EtherNet/IP Coupler Units, allowing direct integration into complex PLC and controller networks.
The NX-AD4204 analog current input unit features a conversion resolution of 1/8000, converting the 4 to 20 mA analog input range into a digital decimal value of 0 to 8000. Operating via the Free-Run refreshing method, the unit ensures stable and continuous data acquisition with a conversion rate of 250 microseconds per point, making it suitable for standard process variable tracking and monitoring systems.
| Manufacturer | Omron |
| Part Number/Model | NX-AD4204 |
| Series | NX Series I/O System |
| Module Type | Analog Input Unit (Current Input) |
| Number of Inputs | 8 points |
| Input Range | 4 to 20 mA |
| Input Method | Differential input |
| Resolution | 1/8000 |
| Conversion Value (Decimal) | 0 to 8000 |
| Overall Accuracy (at 25 degC) | +/-0.2% of full scale |
| Conversion Time | 250 us per point |
| Input Impedance | 85 Ohms |
| I/O Refreshing Method | Free-Run refreshing |
| Shipping Weight | 2 kg |
To ensure optimal performance and electrical noise immunity, mount the NX-AD4204 on a standard 35 mm DIN rail in an upright vertical orientation. Use shielded twisted-pair cables for all 4 to 20 mA current loop connections to minimize electromagnetic interference. The shield wire should be terminated at a designated functional ground terminal. When wiring, utilize the unit's integrated push-in terminal blocks, ensuring that wire strip lengths comply with the official Omron technical manual requirements to maintain gas-tight connections.
