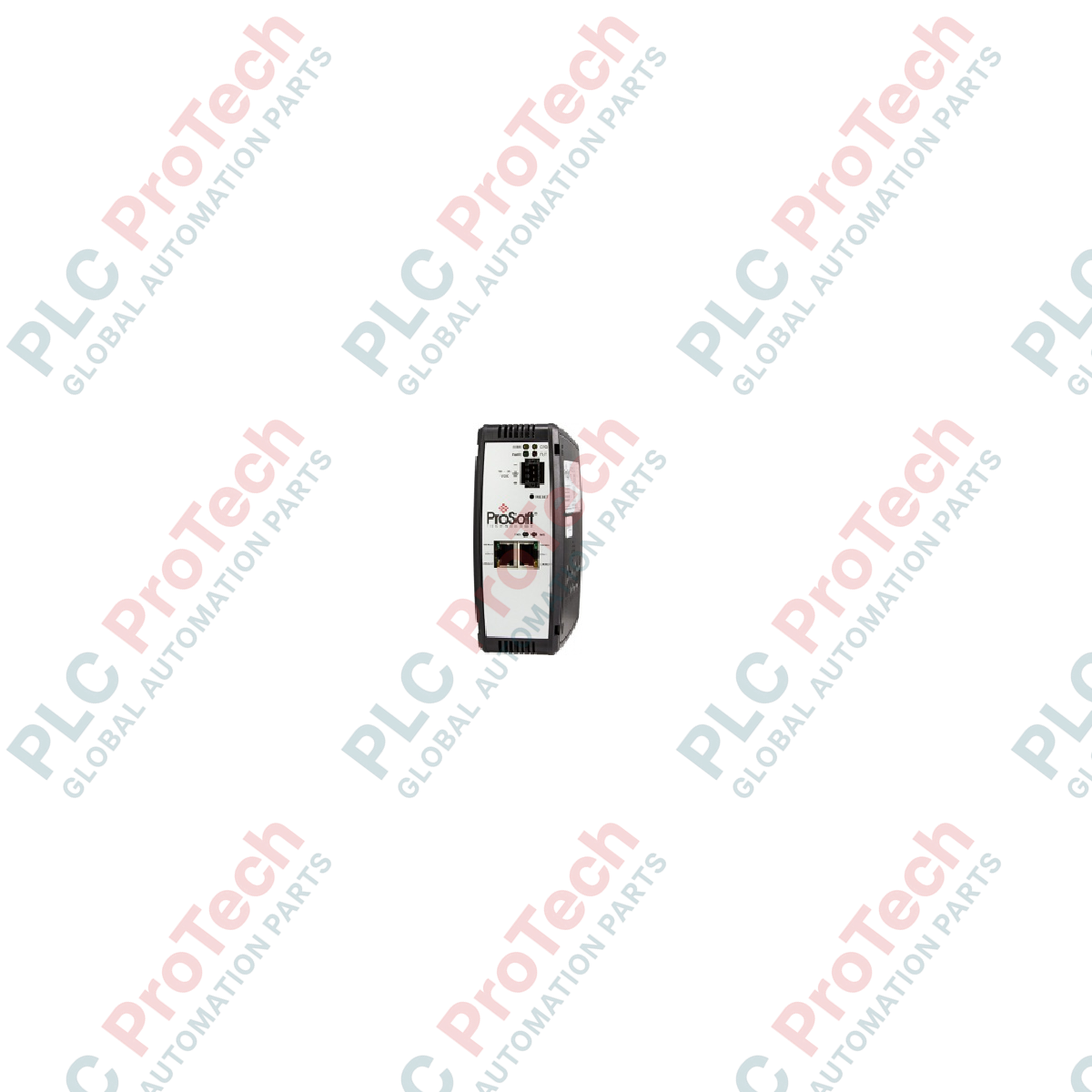

PLX32-EIP-MBTCP ProSoft EtherNet/IP to Modbus TCP/IP Gateway

Industry Application & Overview

The PLX32-EIP-MBTCP (PLX32EIPMBTCP) is a high-performance standalone gateway designed to provide seamless bidirectional data exchange between EtherNet/IP based controllers and Modbus TCP/IP networks. In complex industrial landscapes such as petrochemical refineries, automated wastewater treatment facilities, and smart manufacturing plants, this gateway acts as a critical protocol translator. By allowing Allen-Bradley Logix processors to communicate directly with Modbus TCP/IP field devices (such as power meters, VFDs, and flow computers), the PLX32-EIP-MBTCP eliminates the need for expensive high-level middleware. Its robust architecture supports high-speed I/O connections, ensuring that time-critical process variables are updated with minimal latency, which is essential for reducing system downtime and maintaining precise operational control.

Technical Configuration

The PLX32-EIP-MBTCP features a dual-port design that enables physical separation of the EtherNet/IP and Modbus TCP/IP networks if required, enhancing network security and reducing broadcast traffic interference.

• EtherNet/IP Interface: Supports up to 2 Class 1 I/O connections for real-time control and 5 Class 3 Server connections for messaging. It is fully compatible with legacy PLC-5 and SLC systems via PCCC, as well as modern ControlLogix/CompactLogix systems via CIP.

• Modbus TCP/IP Logic: The gateway functions as both a Client and a Server. The Client mode supports up to 160 configurable commands, while the Server mode supports up to 10 concurrent connections (5 MBAP and 5 Encapsulated), providing extensive flexibility for multi-device polling.

• Data Mapping: Internal memory allows for large-scale data mapping between the two protocols, with support for "Write-only-on-data-change" to optimize network bandwidth.

Technical Specifications

Operations & Maintenance FAQ

Does this gateway support older SLC 500 or PLC-5 processors?

Yes. The PLX32-EIP-MBTCP supports PCCC messaging, which allows legacy Allen-Bradley controllers to exchange data with modern Modbus TCP/IP devices without upgrading the entire control platform.

How many Modbus devices can I connect to a single gateway?

The gateway supports up to 10 Modbus TCP/IP Servers (Slaves) in Client mode and can handle up to 160 fully configurable commands, making it suitable for high-density instrument clusters.

What diagnostic tools are available for troubleshooting?

The gateway provides individual error codes for every Modbus command. These can be mapped back to the PLC memory, allowing operators to see exactly which field device has failed directly on their HMI screen.

Engineering & Installation Guide

• Network Optimization: For high-speed applications, utilize the Class 1 I/O connection (Implicit Messaging) rather than Class 3 (Explicit Messaging). Set the Requested Packet Interval (RPI) to no less than 5 ms to ensure stable data throughput without overloading the gateway processor.

• Industrial Hardening: The PLX32-EIP-MBTCP is rated for an extended temperature range of -25 to 70 deg C. For installations in chemical or high-humidity environments, ensure the gateway is housed in a NEMA 4 or IP66 rated enclosure to protect against corrosive atmospheric elements.

• Power Redundancy: Always use a regulated 24 VDC industrial power supply. Given the module's 15 G operational shock rating, ensure DIN-rail clips are fully engaged and use end-anchors to prevent lateral movement in high-vibration environments such as mining crushers or stamping presses.
