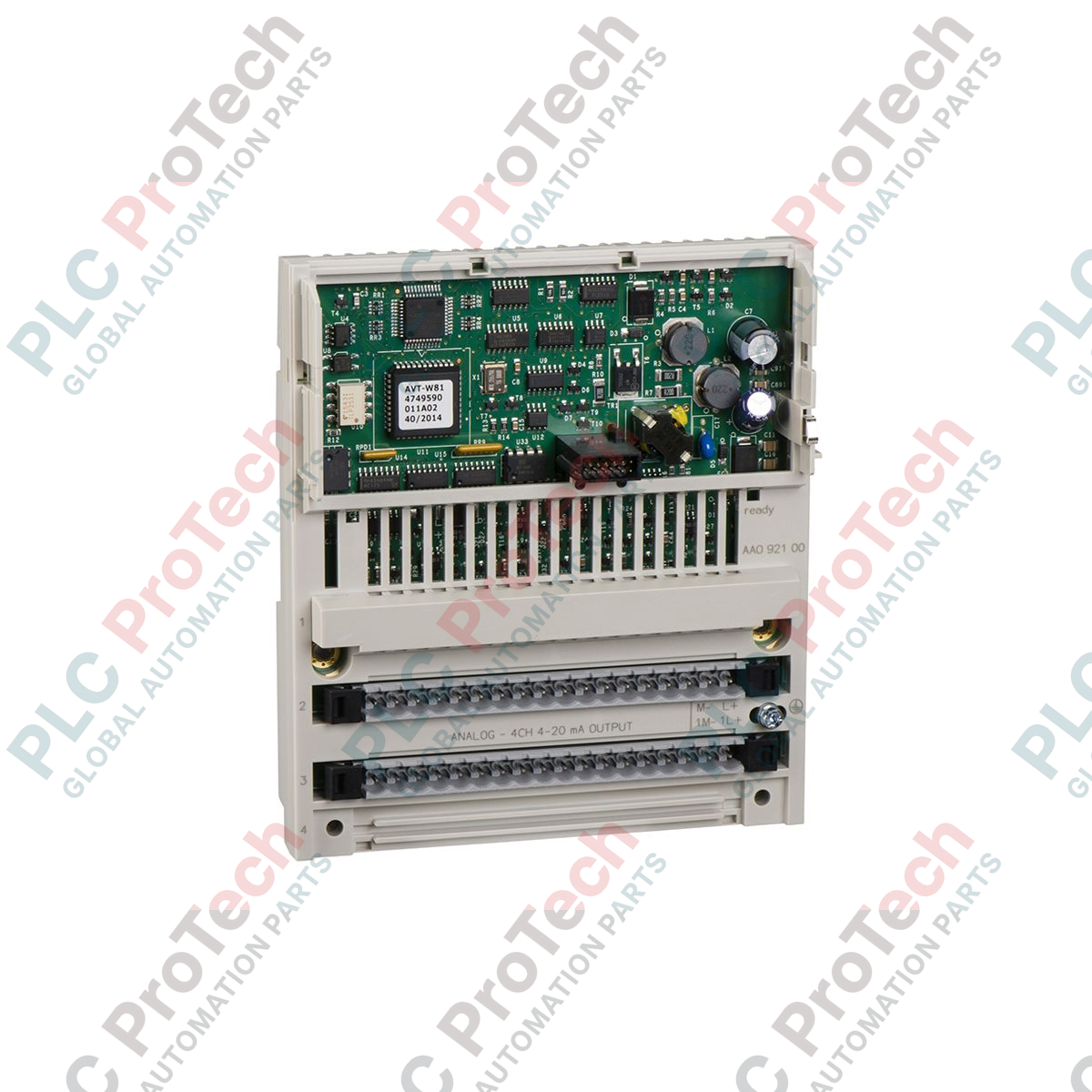

Executing precise current loop control in distributed control architectures, the Schneider Electric 170AAO92100 serves as a high-reliability 4-channel analog output module within the Modicon Momentum series. This hardware component converts digital control signals from the processor or network adapter into 4-20 mA analog outputs, allowing seamless interface connection to control valves, variable speed drives, actuators, and analog indicators. Engineered for modular flexibility, this unit clips directly onto a Momentum communication adapter or processor base, reducing field wiring complexity and optimizing cabinet panel footprint.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Schneider Electric |
| Part Number / SKU | 170AAO92100 |
| Product Range | Modicon Momentum |
| Module Type | Distributed Analog Output Module |
| Number of Outputs | 4 Channels |
| Output Range | 4 to 20 mA |
| Resolution | 12-bit |
| External Power Requirement | 24 VDC (Loop Power) |
| Country of Origin | France |
| Commodity Code | 85381000 |
| Shipping Weight (Calculated) | 0.38 kg |
| Package Dimensions (Calculated) | 26.0 x 18.0 x 5.5 cm |
This module functions as a direct drop-in replacement across legacy Momentum field bus architectures. When migrating older systems to modern Modicon M580 controllers via Ethernet adapters, confirm that the network adapter head module firmware supports the 12-bit diagnostic registers mapped by the 170AAO92100 to prevent system configuration mismatches during hardware assembly scans.
A common point of failure in field installations is the loss of external 24 VDC loop power. While the internal logic of the module remains powered through the network base adapter (allowing bus communication to remain active), a failure of the external loop power supply drops outputs to 0 mA. This can cause downstream devices to interpret the loss of signal as a broken wire fault (below the 4 mA limit threshold).
Always route the 4-20 mA field cables away from high-voltage AC motor lines to prevent electromagnetic induction from distorting output values. Ensure that cable shielding is terminated strictly at the local panel single-point ground. Shield grounding at both ends should be avoided to eliminate ground loop current interferences.
