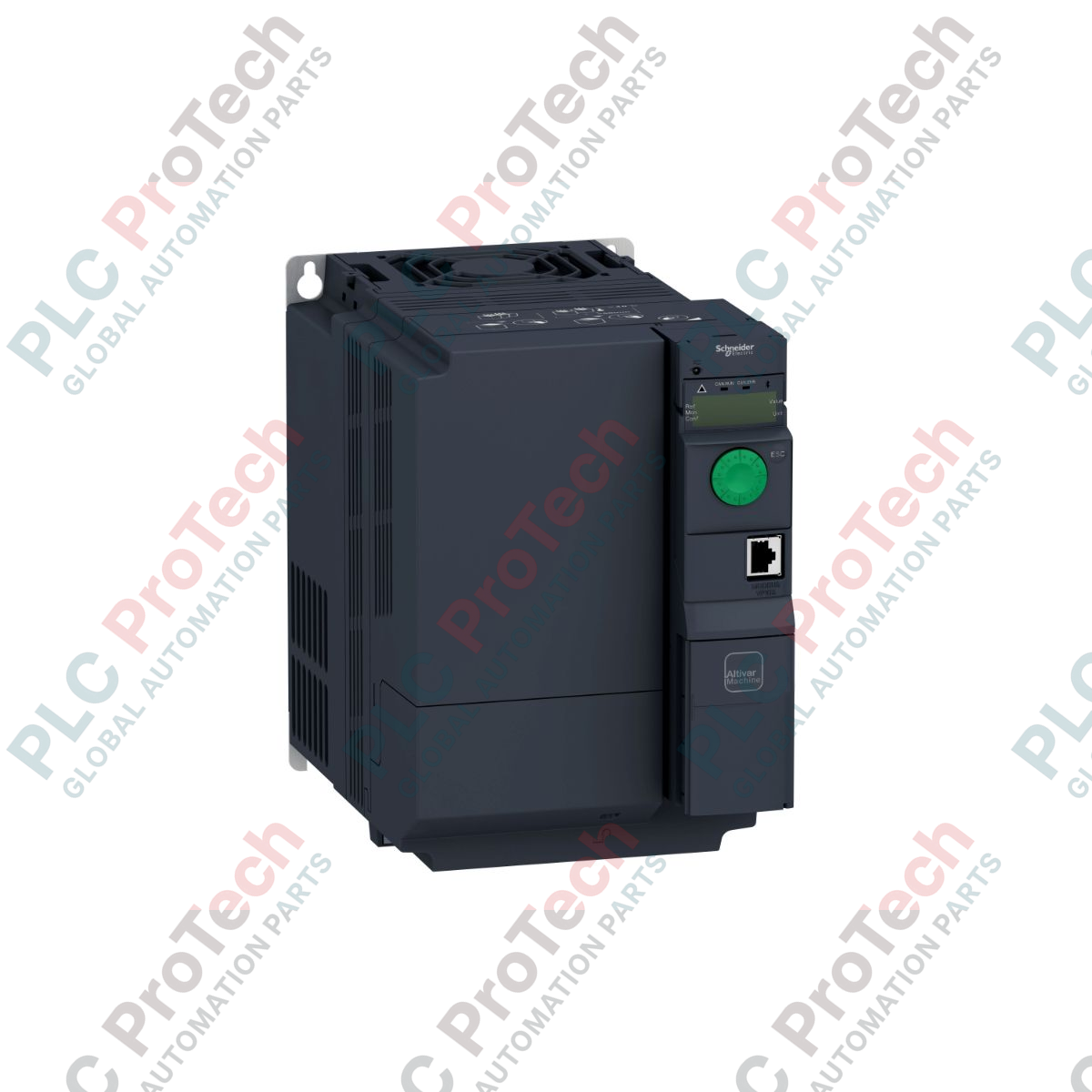

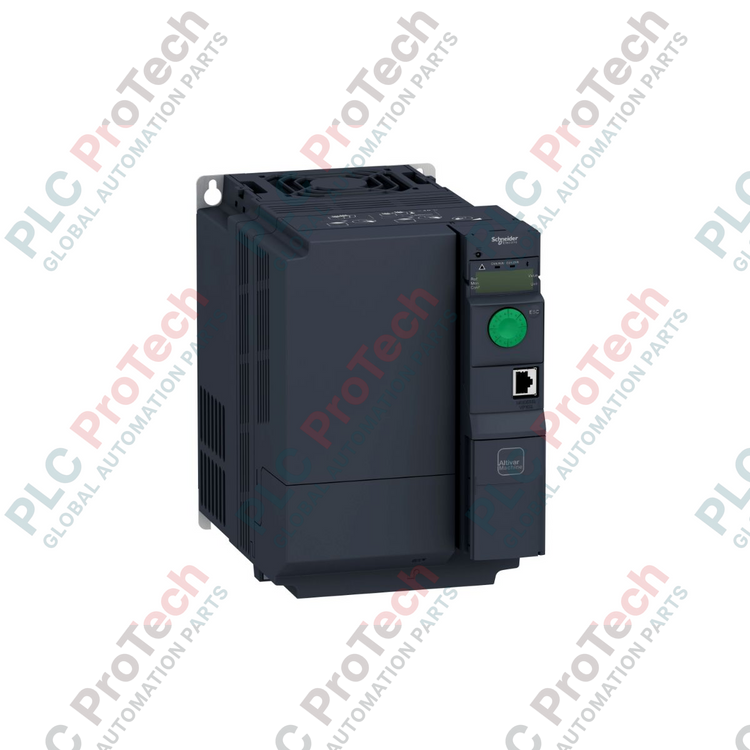

Schneider Electric ATV320U55N4B Altivar Machine ATV320 Variable Speed Drive

Only 6 item(s) left in stock

Manufacturer: Schneider Electric
Product No.: ATV320U55N4B
Country of origin:France
Product Type: Variable Speed Drive
Payment: T/T, Western Union
Weight: 4400g
Dimensions: 150 mm x 308.0 mm x 232.0 mm
Shipping port: Xiamen
Warranty: 12 months

View full details

Description

This variable speed drive is engineered for complex machines requiring reliable motor control and specialized safety features. Operating within a rated supply voltage range of 380...500 V alternating current (AC) across 3 phases, it delivers a nominal output current of 14.3 A and supporting a motor power of 5.5 kW designated for heavy duty operations.

The unit incorporates extensive input and output options, featuring 7 discrete inputs, 3 discrete outputs, 3 analogue inputs, and 1 analogue output. It integrates a Class C2 EMC filter and offers embedded communication over Modbus serial and CANopen. For enhanced application compatibility, optional communication modules such as EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, and DeviceNet can be utilized. Built-in functional safety capabilities include Safe torque off (STO), Safe Stop 1 (SS1), and Safely Limited Speed (SLS).

Features

Flexible Control Profiles: Supports multiple asynchronous motor control profiles (Voltage/Frequency ratios in 2 or 5 points, quadratic U/f for Energy Saving, and flux vector control without sensor) along with synchronous vector control without sensor.
Integrated Safety Capabilities: Embedded with functional safety capabilities, explicitly featuring Safe torque off (STO), Safe Stop 1 (SS1), and Safely Limited Speed (SLS).
Dynamic Torque Performance: Delivers a transient overtorque capacity of 170...200% of the nominal motor torque.
Comprehensive Protective Braking: Equipped with an integrated brake chopper and supports braking to standstill via DC injection.
Four-Quadrant Operation: Supports full 4 quadrant operation for driving and braking in both forward and reverse directions.
Adaptable Ramp Profiles: Provides customizable acceleration and deceleration ramps including linear, U, S, CUS, ramp switching, automatic stop with DC injection, and ramp adaptation.
Automatic Slip Compensation: Provides load-independent automatic motor slip compensation, which is adjustable from 0...300%.

Applications

Packaging machinery
Material handling and conveying systems
Textile manufacturing equipment
Hoisting and lifting mechanisms
Woodworking and metal processing machinery

Technical Specifications

Parameter Category	Technical Specification Parameter	Value / Details
Identification	Manufacturer	Schneider Electric
	Format of the Drive	Book
Electrical Input	Rated Supply Voltage [Us]	380...500 V (-15% to +10%)
	Network Frequency	50...60 Hz
	Relative Symmetric Network Frequency Tolerance	5%
	Line Current	20.7 A at 380 V / 14.5 A at 500 V (heavy duty)
	Maximum Input Current	20.7 A
	Prospective Line Isc	22 kA
Electrical Output	Motor Power kW	5.5 kW for heavy duty
	Nominal Output Current	14.3 A
	Base Load Current at High Overload	14.3 A
	Maximum Output Voltage	500 V
	Maximum Output Frequency	0.599 kHz
	Apparent Power	12.6 kVA at 500 V (heavy duty)
	Switching Frequency	2...16 kHz adjustable / 4...16 kHz with derating factor
	Nominal Switching Frequency	4 kHz
I/O Configuration	Discrete Input Number	7
	Discrete Input Type	STO safe torque off: 24 V DC, 1.5 kOhm DI1...DI6 logic inputs: 24 V DC (max 30 V) DI5 programmable as pulse input: 0...30 kHz, 24 V DC (max 30 V)
	Discrete Input Logic	Positive logic (source) / Negative logic (sink)
	Discrete Output Number	3
	Discrete Output Type	Open collector DQ+: 0...1 kHz, 30 V DC, 100 mA Open collector DQ-: 0...1 kHz, 30 V DC, 100 mA
	Analogue Input Number	3
	Analogue Input Type	AI1 voltage: 0...10 V DC, 30 kOhm, 10 bits AI2 bipolar differential voltage: +/- 10 V DC, 30 kOhm, 10 bits AI3 current: 0...20 mA (configurable to 4-20 mA, x-20 mA, 20-x mA), 250 Ohm, 10 bits
	Analogue Output Number	1
	Analogue Output Type	Software-configurable current AQ1: 0...20 mA, 800 Ohm, 10 bits Software-configurable voltage AQ1: 0...10 V DC, 470 Ohm, 10 bits
	Relay Output Type	Configurable relay logic R1A: 1 NO (100,000 cycles) Configurable relay logic R1B: 1 NC (100,000 cycles) Configurable relay logic R1C Configurable relay logic R2A: 1 NO (100,000 cycles) Configurable relay logic R2C
	Relay Switching Limits	Resistive load (cos phi = 1): 3 A at 250 V AC or 30 V DC (R1A, R1B, R1C) Inductive load (cos phi = 0.4, L/R = 7 ms): 2 A at 250 V AC or 30 V DC (all relays) Resistive load (cos phi = 1): 5 A at 250 V AC or 30 V DC (R2A, R2C) Minimum: 5 mA at 24 V DC (all relays)
Performance & Regulation	Regulation Loop	Adjustable PID regulator
	Speed Accuracy	+/- 10% of nominal slip from 0.2 Tn to Tn
	Power Dissipation	Fan: 195.0 W at 380 V, switching frequency 4 kHz
Mechanical	Mounting Mode	Wall mount
	Width	150 mm
	Height	308.0 mm
	Depth	232.0 mm
	Product Weight	4.4 kg
Environmental	Operating Position	Vertical +/- 10 degrees
	IP Degree of Protection	IP20
	Environmental Class	Class 3C3 and Class 3S2 according to IEC 60721-3-3
	Class 3K5 according to EN 60721-3
	Shock Resistance	Max acceleration: 150 m/s^2 at 11 ms
	Vibration Resistance	Max acceleration: 10 m/s^2 at 13...200 Hz Max deflection: 1.5 mm at 2...13 Hz
	Cooling Air Volume	60 m3/h
	Overvoltage Category	III
	Pollution Degree	2
	Ambient Air Temp (Operation)	-10...50 degC without derating 50...60 degC with derating factor
	Ambient Air Temp (Storage)	-25...70 degC
	Ambient Air Temp (Transport)	-25...70 degC

Connections/Interfaces

Terminal / Interface	Function
STO	Safe Torque Off functional safety input (24 V DC)
DI1...DI4, DI6	Digital logic inputs (24 V DC)
DI5	Digital logic input / Programmable pulse input (0...30 kHz, 24 V DC)
DQ+	Open collector discrete output (0...1 kHz, 30 V DC, 100 mA)
DQ-	Open collector discrete output (0...1 kHz, 30 V DC, 100 mA)
AI1	Analogue voltage input (0...10 V DC)
AI2	Bipolar differential analogue voltage input (+/- 10 V DC)
AI3	Analogue current input (0...20 mA / 4-20 mA configurable)
AQ1	Software-configurable analogue output (0...20 mA or 0...10 V DC)
R1A	Configurable relay outputs - Normally Open (NO) contact
R1B	Configurable relay outputs - Normally Closed (NC) contact
R1C	Configurable relay outputs - Common terminal
R2A	Configurable relay outputs - Normally Open (NO) contact
R2C	Configurable relay outputs - Common terminal
RJ45 Port	Modbus serial / CANopen integrated communication interface

Installation Guidelines

Orientation: Mount the drive vertically. Deflections must remain within +/- 10 degrees from the true vertical position.
Ventilation and Cooling: Ensure unimpeded airflow around the chassis. The internal cooling fan requires a minimum air volume flow of 60 m3/h.
Thermal Derating: For operational environments between -10 degC and 50 degC, no derating is necessary. If the ambient operating temperature rises between 50 degC and 60 degC, an appropriate technical derating factor must be applied.
Environmental Enclosure: The unit carries an IP20 rating and must be mounted inside an industrial enclosure providing protection against airborne contaminants, conforming to pollution degree 2 limits.

Compliance and Certifications

Directives & Standards: EN/IEC 61800-5-1
Product Marks & Approvals: CE, ATEX, UL, CSA, GOST, EAC, RCM, KC, NOM
Environmental & Sustainability: Green Premium Product, REACH Declaration, EU RoHS Directive, China RoHS Declaration, Mercury Free
Electromagnetic Compatibility: Immunity levels evaluated to IEC 61000-4-2 (Level 3), IEC 61000-4-3 (Level 3), IEC 61000-4-4 (Level 4), IEC 61000-4-5 (Level 3), IEC 61000-4-6 (Level 3), and IEC 61000-4-11

FAQ

What embedded communication interfaces are immediately accessible on this module?

The variable speed drive comes standard with an integrated slave CANopen and Modbus serial interface protocol via its primary communication port.
Can this unit be adapted to other industrial fieldbus networks like PROFINET or EtherCAT?

Yes. Communication modules for external networking architectures including PROFINET, EtherCAT, Profibus DP V1, Ethernet Powerlink, EtherNet/IP, and DeviceNet are fully compatible via option card slots.
What is the default pulse configuration for the discrete logic input terminals?

The unit features 7 discrete inputs where terminal DI5 can be explicitly programmed to handle pulse configurations up to 30 kHz at 24 V DC.
Does this system require an external braking chopper for heavy-duty overhauling loads?

No. An internal brake chopper is integrated directly within the unit, allowing for energy absorption and DC injection braking to standstill.
What thermal conditions must be maintained during active operation?

The operating range spans -10 degC up to 50 degC without losing performance metrics. Operation up to 60 degC is permissible provided a specific derating factor is implemente
