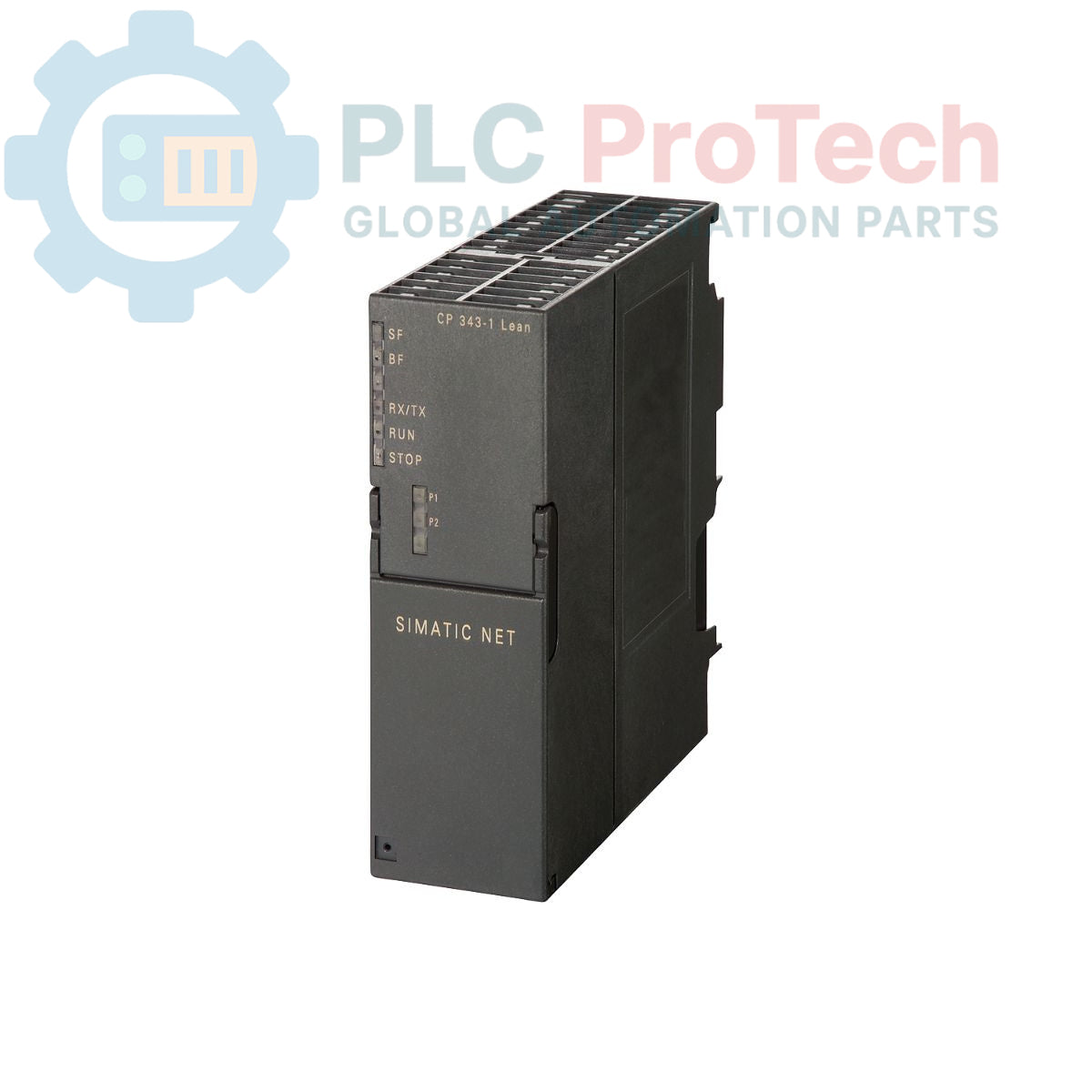

Siemens 6AG1343-1CX10-2XE0 SIPLUS NET CP 343-1 Lean Communication Module

Description

The 6AG1343-1CX10-2XE0 is a SIPLUS NET communication processor designed for connecting the SIMATIC S7-300 automation system to Industrial Ethernet. Based on the CP 343-1 Lean (6GK7343-1CX10-0XE0) architecture, this module is enhanced with conformal coating to withstand harsh industrial environments, supporting an extended operating temperature range of -25 degC to +60 degC. It features an integrated 2-port switch (ERTEC 200) for flexible network topologies and supports multiple communication protocols, including TCP/IP, UDP, and S7 communication (server). Designed for streamlined maintenance, it allows for module replacement without a programming device (PG) and provides robust SNMP diagnostics.

Features

• Robust conformal coating for operation in extreme environments
• Extended temperature range: -25 degC to +60 degC
• Integrated 2-port switch (ERTEC 200) for simplified networking
• Supports PROFINET IO device functionality
• Protocols: TCP/IP, UDP, multicast, send/receive (with/without RFC1006), fetch/write, S7 communication (server)
• Supports module replacement without a programming device (PG)
• Integrated SNMP diagnostics and LAN initialization

Applications

• Industrial Ethernet connectivity for S7-300 controllers
• Data exchange in distributed automation networks
• PROFINET IO field device integration
• Harsh industrial environments requiring conformal protection
• Machine and plant diagnostics via SNMP

Technical Specifications

Installation Guidelines

• Mounting: Install the module onto the standard S7-300 DIN rail assembly.
• Ethernet Connectivity: Use shielded Industrial Ethernet cabling connected to the integrated 2-port switch for reliable network communication.
• Initialization: Perform initial network configuration via LAN.
• Environment: While the conformal coating offers protection against harsh conditions, ensure the module is installed within an appropriate control cabinet to prevent direct exposure to extreme elements.
• Diagnostics: Utilize the integrated SNMP diagnostics tools to monitor network status and communication integrity during operation.
