Siemens 6AV6545-8DB10-0AA0 SIMATIC MP 370 Multi Panel

Description

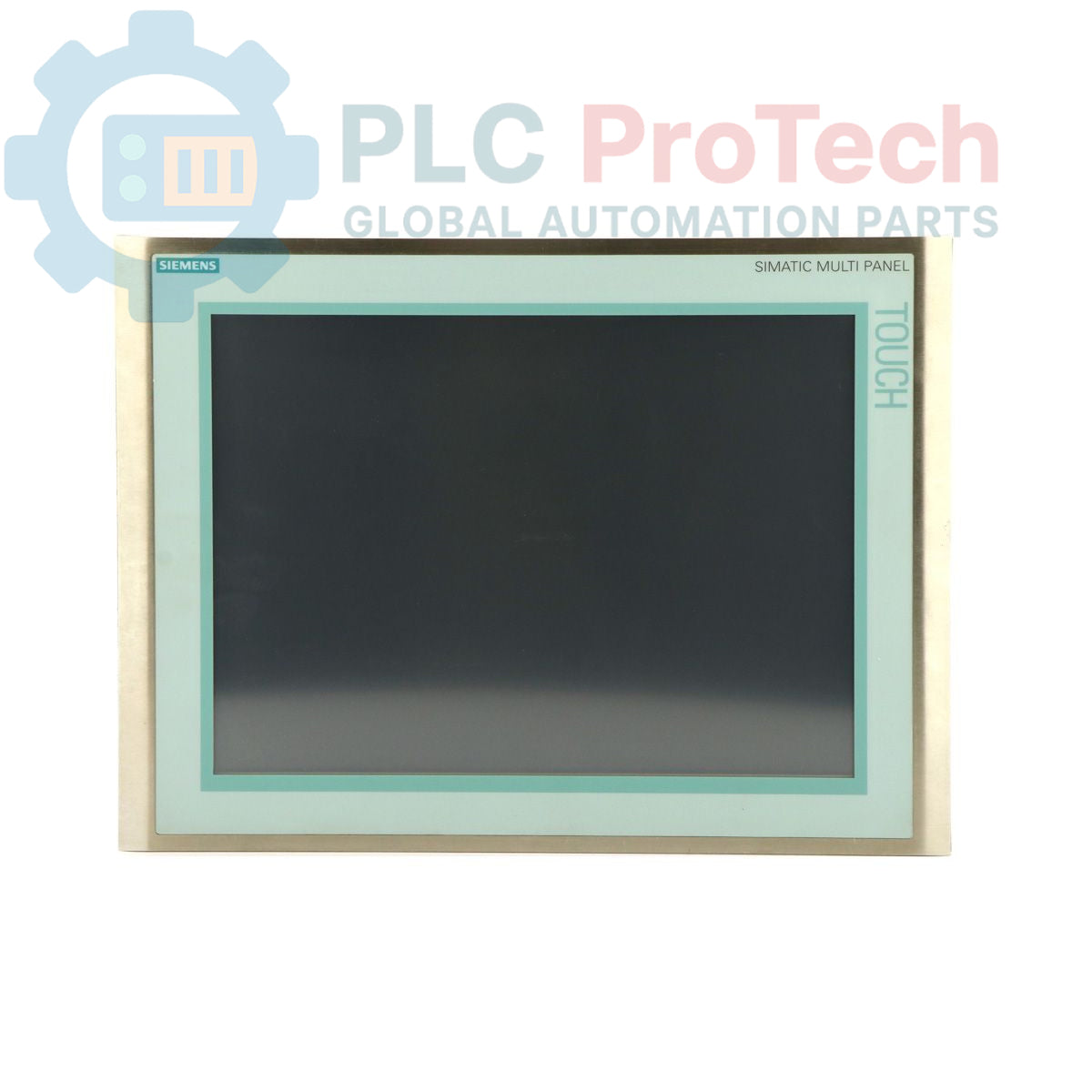

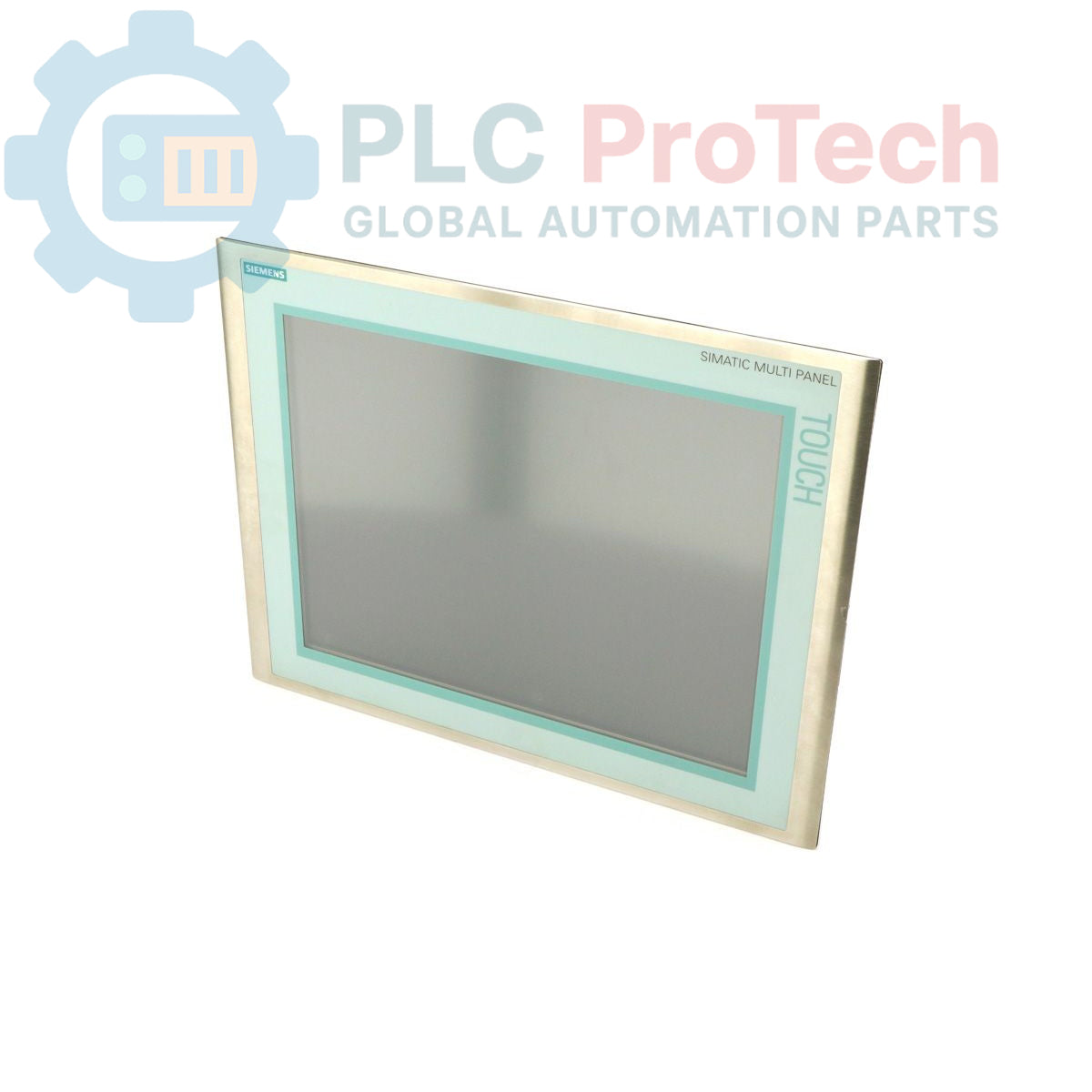

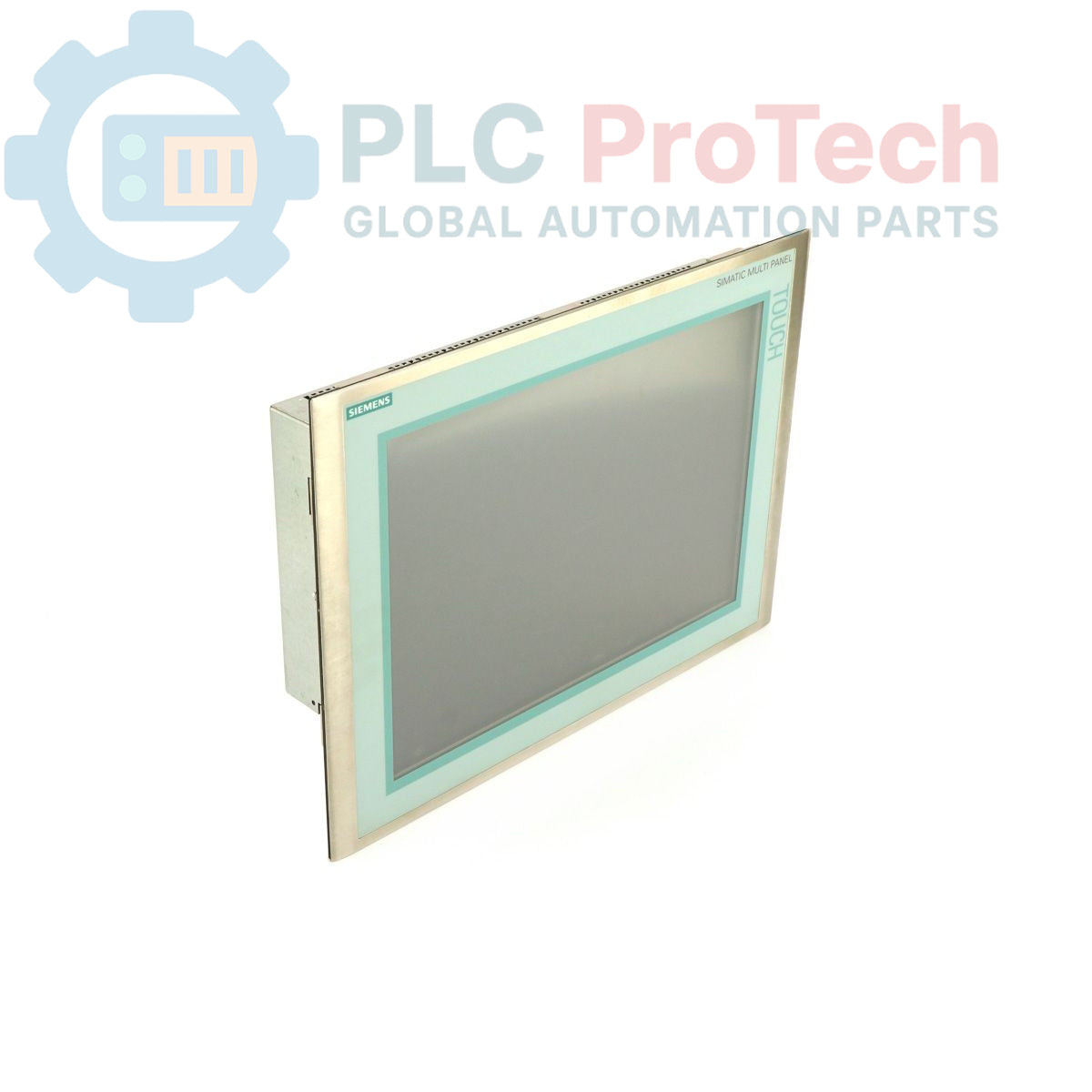

The Siemens 6AV6545-8DB10-0AA0 is a SIMATIC MP 370 Multi Panel featuring a 15-inch color TFT touch display. This Human Machine Interface (HMI) is engineered for demanding industrial environments, offering clear visual feedback and responsive operation. The unit is equipped with a stainless steel front panel and a continuous decorative film, providing an IP66 degree of protection against dust and water ingress.

Operating on Windows CE 3.0, the 6AV6545-8DB10-0AA0 is configurable with ProTool Version V6.0+SP2 or higher, ensuring compatibility with a range of automation applications where reliability and seamless integration are essential. Its robust construction and proven technology make it a suitable choice for project managers and production leaders seeking dependable HMI solutions.

Features

• 15-inch Color TFT Display with Touch Functionality
• Robust Stainless Steel Front Panel
• IP66 Front Panel Protection for Dust and Water Ingress
• Integrated Windows CE 3.0 Operating System
• Configurable with ProTool Version V6.0+SP2 or higher

Applications

• Industrial automation systems requiring reliable HMI solutions
• Control and visualization tasks in demanding production environments
• Machine operation and process monitoring where dust and water protection are critical
• Integration into existing SIMATIC automation architectures

Technical Specifications

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Mount the Multi Panel securely into the designated panel cutout. Ensure proper sealing to maintain the specified IP66 protection rating.
3. Power Connection: Connect the power supply according to the system's electrical diagrams, observing correct polarity and voltage requirements.
4. Grounding: Establish a reliable protective earth (PE) connection to the panel's chassis to ensure safety and minimize electromagnetic interference.
5. Cable Routing: Route all communication and power cables away from sources of electrical noise. Use shielded cables for communication where recommended.
6. Software Configuration: After physical installation and power-up, configure the Multi Panel using ProTool Version V6.0+SP2 or higher to load the application program.
7. Functional Test: Perform a comprehensive functional test to verify correct operation of the display, touch input, and communication with the connected PLC or control system.
