Siemens 6AV6645-0DC01-0AX0 SIMATIC Mobile Panel 277F IWLAN HMI

Description

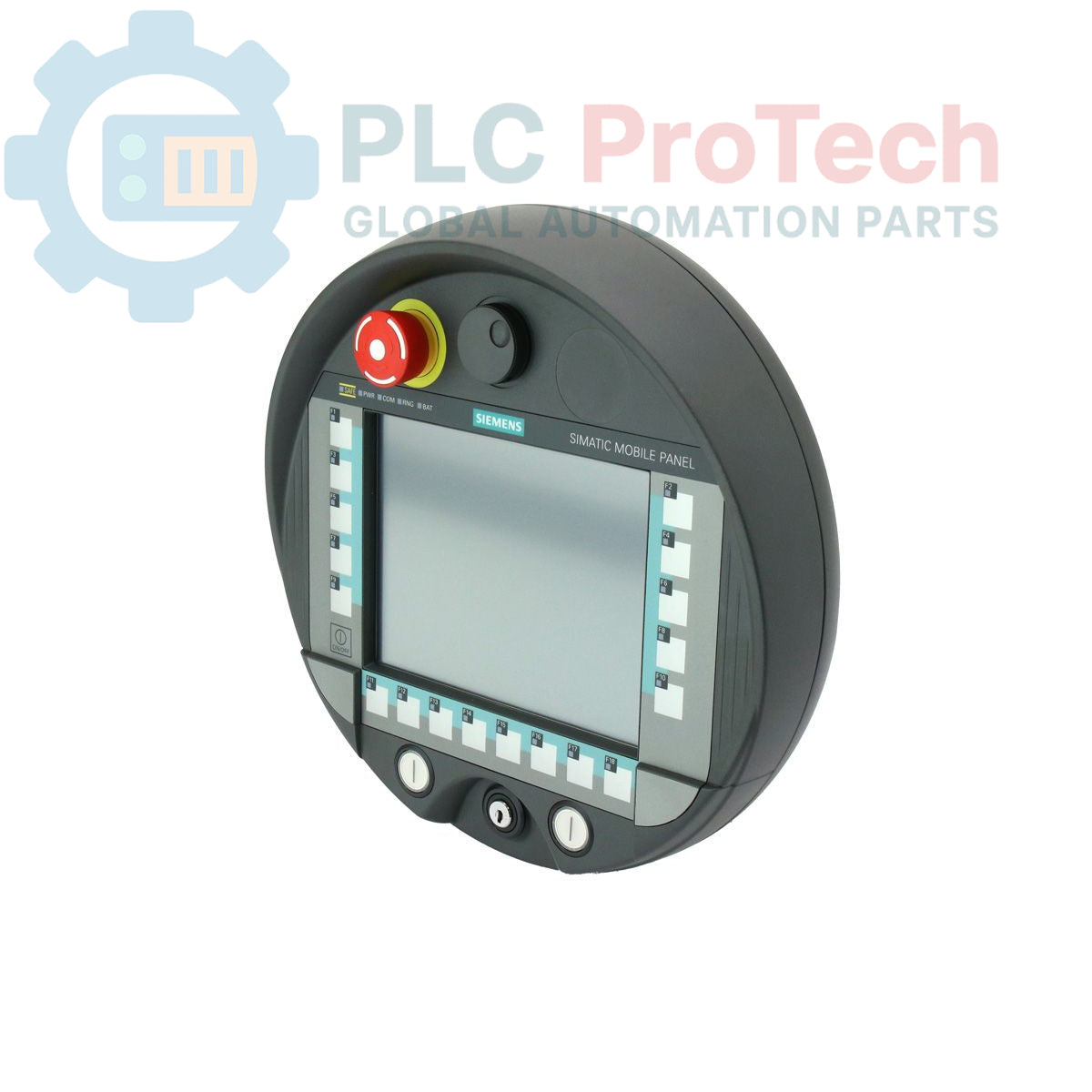

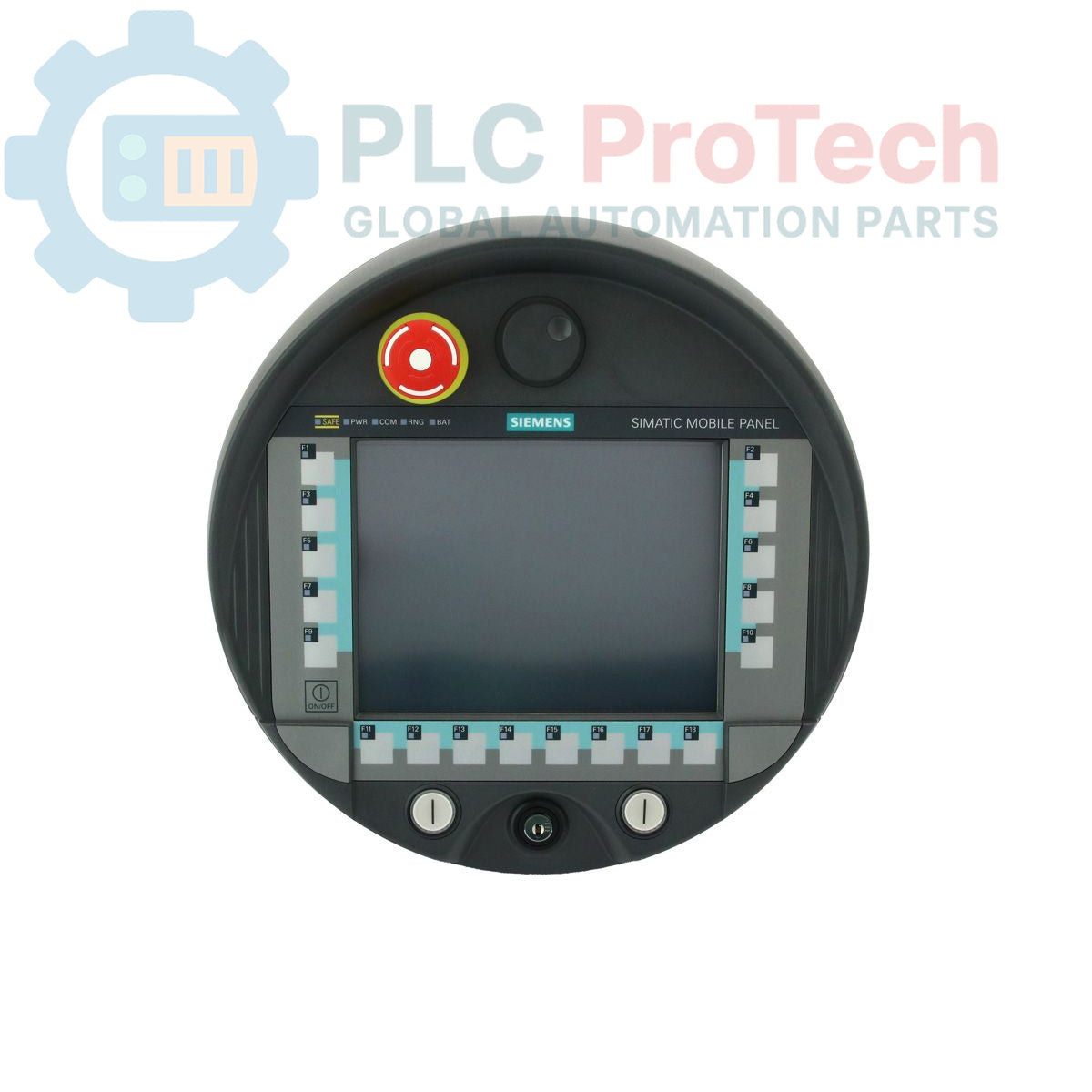

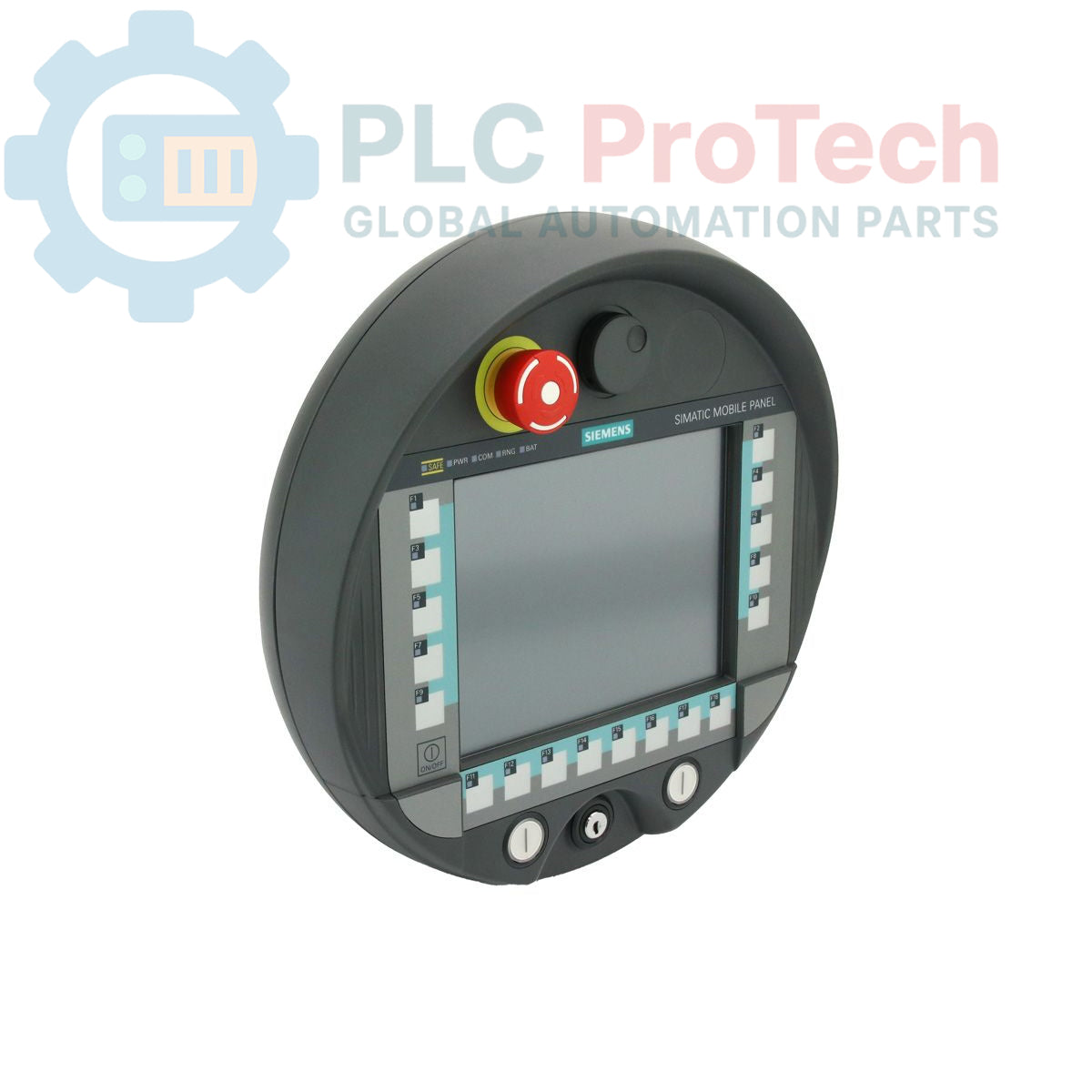

The Siemens 6AV6645-0DC01-0AX0 is a SIMATIC Mobile Panel 277F IWLAN, a portable Human-Machine Interface (HMI) designed for flexible control and monitoring in demanding industrial environments. This unit integrates critical safety and control functions, including an enabling button, an emergency-stop button, a handwheel, a key switch, and two illuminated pushbuttons. Configuration is performed using WinCC Flexible Standard Version 2007 or a higher version. Please note that the main battery and power supply are required for operation and must be ordered separately. This product is not FCC certified and is therefore not available for sale or use in the United States.

Features

• Integrated enabling and emergency-stop buttons for enhanced operator safety.
• Manual control inputs via an integrated handwheel and key switch.
• Two configurable illuminated pushbuttons for direct operator interaction and feedback.
• Wireless connectivity through Industrial WLAN (IWLAN).
• Portable, ergonomic design for mobile operation and machine diagnostics.

Applications

• Mobile machine setup, commissioning, and teaching operations.
• Process monitoring and control on large or complex production lines.
• Diagnostics and maintenance tasks requiring local operator presence.
• Robotics and material handling systems control.

Required Accessories (Sold Separately)

Technical Specifications

Installation Guidelines

1. Upon receipt, carefully inspect the mobile panel for any signs of physical damage incurred during transit.
2. Install the separately purchased main battery (e.g., P/N 6AV6671-5CE00-0AX0) into the battery compartment, ensuring it is securely seated.
3. Fully charge the battery using the compatible charging station or external power supply before the first use to ensure optimal performance and battery life.
4. Establish a connection to the facility's IWLAN network according to site-specific IT and automation network procedures.
5. Download the HMI project, previously configured with WinCC Flexible 2007 or higher, to the mobile panel.
6. Before placing the unit into service, perform a comprehensive function test to verify all safety features, including the emergency-stop and enabling buttons.
