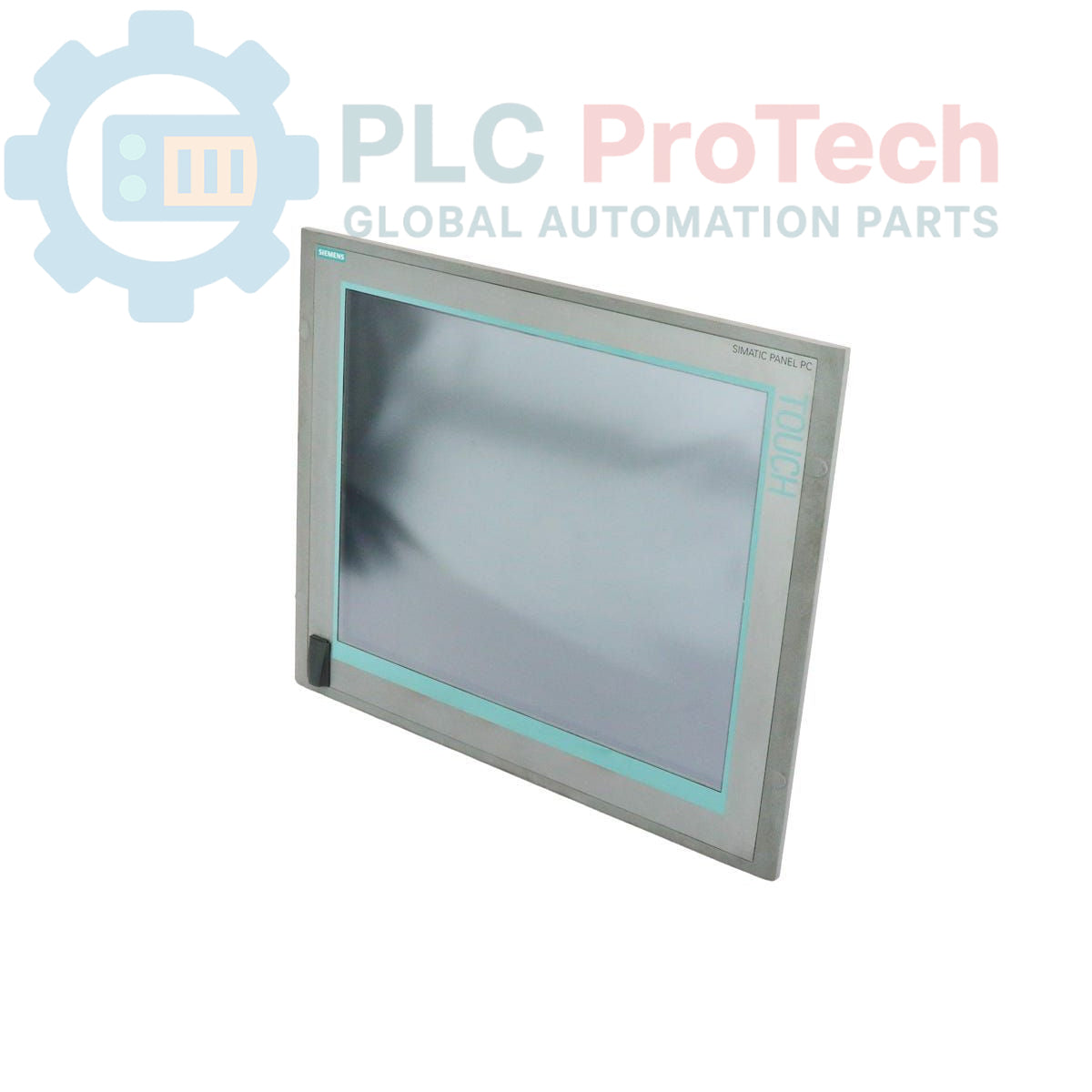

Siemens 6AV7424-0AA00-0GT0 SIMATIC HMI IPC 477C Industrial PC

Description

The 6AV7424-0AA00-0GT0 is a SIMATIC HMI IPC 477C industrial panel PC designed for high-performance visualization and control tasks in demanding industrial environments. Equipped with a 19-inch touch display featuring a resolution of 1280 x 1024 pixels, this device provides a clear interface for process monitoring. The unit is powered by a Core2Duo 1.2 GHz processor supported by 4 GB of RAM, ensuring consistent processing power for HMI applications. Storage is handled by a 50 GB SSD SLC (Single Level Cell), which offers high endurance and reliability. The system comes with the Windows Embedded Standard 2009 (WES 2009) operating system pre-installed on the SSD, providing a stable platform for integrated automation solutions.

Features

• 19-inch touch-sensitive display for intuitive operator interaction.
• Resolution: 1280 x 1024 pixels.
• Core2Duo 1.2 GHz processing architecture.
• 4 GB RAM for efficient multi-tasking of visualization software.
• 50 GB SSD SLC for high-reliability data storage.
• Pre-installed Windows Embedded Standard 2009 operating system.
• Compact, integrated panel design for space-saving mounting in control cabinets.

Applications

• Human-Machine Interface (HMI) for complex machinery and process lines.
• Data acquisition and monitoring in manufacturing environments.
• Control and visualization tasks requiring high system availability.
• Industrial automation projects using SIMATIC software environments.

Technical Specifications

Installation Guidelines

• Ensure the mounting cutout dimensions match the specifications for the 19-inch front panel to guarantee a secure IP-rated seal.
• Provide adequate clearance around the unit for air circulation to prevent overheating during operation.
• Use a stable 24 V DC power supply consistent with SIMATIC IPC requirements, ensuring correct polarity.
• Protect the touch screen surface from sharp objects and harsh chemicals to maintain functionality.
• When replacing or servicing the SSD, ensure the system is powered down and electrostatic discharge (ESD) precautions are taken.
• Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
