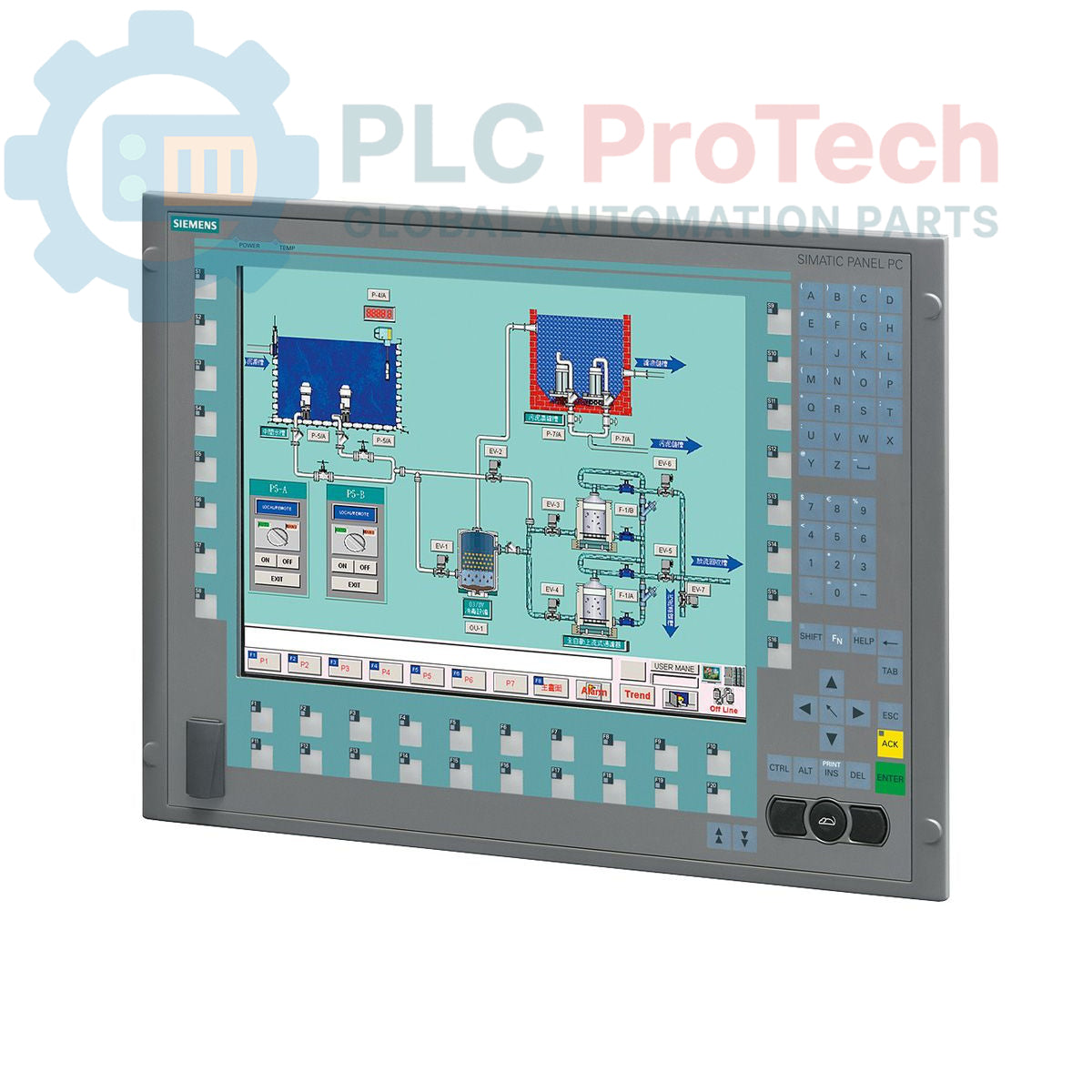

Siemens 6AV7873-0DE30-0AC0 SIMATIC Panel PC 677B

Description

The Siemens 6AV7873-0DE30-0AC0 is a SIMATIC Panel PC 677B, designed for industrial human-machine interface (HMI) and control applications. This unit integrates a 15-inch key-operated display with a resolution of 1024x768 pixels, featuring a convenient front-side USB interface. It is powered by an Intel Core 2 Duo T7400 processor running at 2.16 GHz, complemented by 2 GB of DDR2 RAM and a 160 GB SATA HDD (3.5-inch) for data storage, without an optical drive. Connectivity options include two 10/100/1000 Mbit/s Ethernet ports, four USB V2.0 ports, one serial (COM1) interface, and PROFIBUS/MP communication with 2 MB buffered SRAM. The Panel PC operates on a 110/230 V AC power supply unit with NAMUR compatibility and includes a UK power supply cable. It comes pre-installed with Windows XP Professional Multi-User Interface (MUI) supporting multiple languages (de, en, fr, es, it, ja, zh, ko).

Features

• Integrated 15-inch Key display with 1024x768 resolution.
• Equipped with Intel Core 2 Duo T7400 processor (2.16 GHz) and 4 MB SLC.
• Includes 2 GB DDR2 RAM and a 160 GB SATA HDD (3.5-inch).
• Connectivity: 2x 10/100/1000 Mbit/s Ethernet, 4x USB V2.0 (including front-side), 1x serial (COM1), PROFIBUS/MP with 2 MB buffered SRAM.
• Pre-installed with Windows XP Professional MUI (Multi-User Interface).
• Supports 110/230 V AC power input with NAMUR compatibility and UK power cable.
• Features 2x PCI expansion slots.

Applications

The Siemens SIMATIC Panel PC 677B is suitable for a range of industrial automation tasks, including:

• Machine operation and control panels.
• Process visualization and monitoring in manufacturing plants.
• Data acquisition and logging systems.
• Industrial HMI (Human-Machine Interface) solutions.
• Integration into control cabinets for system management.

Technical Specifications

Connections / Interfaces

• Ethernet: Two 10/100/1000 Mbit/s RJ45 ports for network integration.
• USB: Four USB V2.0 ports, including a convenient front-side interface for easy access.
• Serial: One COM1 serial port for connecting peripheral devices or legacy systems.
• PROFIBUS/MP: Integrated interface for PROFIBUS and Multi-Point (MP) communication protocols.

Installation Guidelines

1. Power De-energization: Before commencing any installation, ensure that all power to the installation area and the Panel PC is completely de-energized and secured against accidental re-energization.
2. Mounting: Mount the Panel PC securely into a control cabinet or panel cutout, ensuring adequate ventilation space around the unit for heat dissipation.
3. Power Connection: Connect the provided UK power cable to the 110/230 V AC power supply input. Ensure proper grounding of the unit to the cabinet's protective earth.
4. Network Connections: Connect Ethernet cables to the 10/100/1000 Mbit/s ports as required for network integration.
5. Peripheral Connections: Connect USB devices to the available USB V2.0 ports. Utilize the COM1 serial port for serial communication devices.
6. PROFIBUS/MP Connection: If PROFIBUS/MP communication is required, connect the appropriate bus cable to the dedicated interface, observing correct termination practices.
7. Cable Routing: Route all cables to prevent strain, interference, and damage. Separate power and signal cables where possible.
8. Environmental Check: Verify that the operating environment meets the specified temperature and humidity ranges for industrial PC operation.
9. Power Up: After all connections are secure and verified, restore power to the system and observe for proper boot-up and operation.
