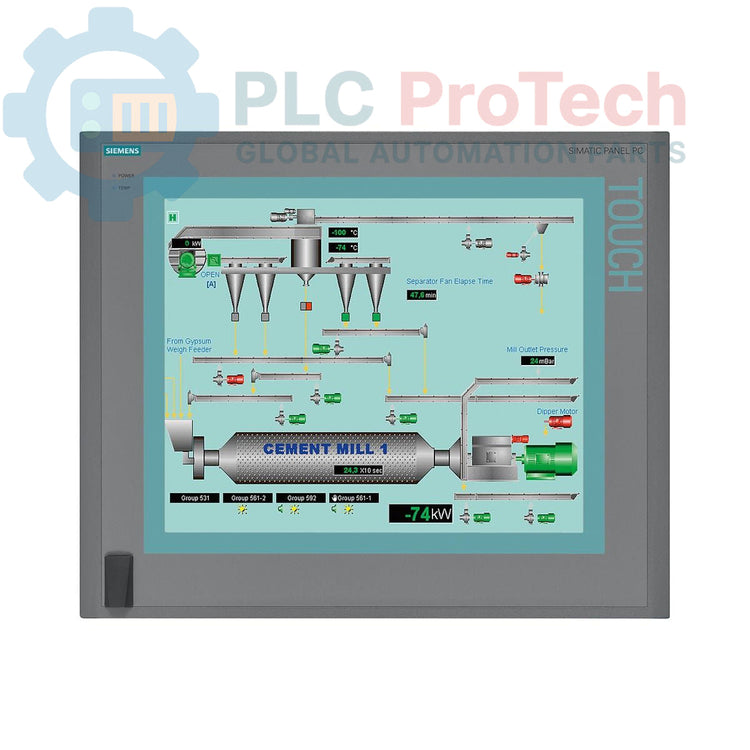

Siemens 6AV7892-0AB00-1AE0 SIMATIC IPC677C Panel PC

Description

The Siemens 6AV7892-0AB00-1AE0 is a SIMATIC IPC677C Panel PC designed for robust Human-Machine Interface (HMI) and control applications in industrial environments. This unit integrates a 15-inch touch display with a 1024x768 resolution and a convenient front-side USB port. It is powered by a 24 V DC supply and features an Intel Celeron P4505 processor. For system reliability, it includes integrated monitoring for watchdog, temperature, and fan status, along with an onboard RAID controller. The system comes pre-installed with Windows 7 Ultimate and offers extensive connectivity through dual Gigabit Ethernet ports and a PROFIBUS/MPI interface.

Features

• Processor: Intel Celeron P4505 (2 Cores/2 Threads, 1.86 GHz, 2 MB Cache)
• Memory: 1 GB DDR3 1066 DIMM and 2 MB buffered SRAM
• Storage: 250 GB SATA Hard Disk Drive (HDD)
• Optical Drive: DVD±R/±RW
• Display: 15-inch touchscreen with 1024 x 768 pixel resolution
• Communications: 2x 10/100/1000 Mbit/s Ethernet ports
• Fieldbus: PROFIBUS/MPI interface (CP 5611-A2 compatible)
• I/O Ports: 4x rear USB V2.0, 1x front USB, 1x Serial (COM1)
• Expansion: 2x free PCI slots
• Operating System: Windows 7 Ultimate 64-bit SP1, Multi-Language (DE, EN, FR, ES, IT)

Applications

• Process visualization and control
• Machine-level data acquisition and logging
• Manufacturing Execution Systems (MES) terminals
• Factory and building automation control panels
• Industrial SCADA client stations

Technical Specifications

Installation Guidelines

1. 1 Prepare the mounting location. Verify the panel cutout dimensions against the device specifications to ensure a proper fit and seal.
2. 2 Insert the Panel PC into the cutout from the front of the enclosure. Secure it from the rear using the provided mounting clamps, tightening them evenly to the manufacturer's specified torque.
3. 3 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the chassis. This is critical for operator safety and noise immunity.
4. 4 Connect the 24 V DC power supply to the power input connector. Ensure the power source is stable, correctly rated, and that polarity is correct before energizing.
5. 5 Connect all required communication cables, such as Ethernet and PROFIBUS/MPI, as well as any USB or serial peripherals. Ensure proper shielding and grounding practices are followed for all data cables.
6. 6 Once all connections are secure, remove LOTO devices and apply power to the unit. Verify that the system boots into the Windows operating system and that all connected peripherals are recognized.
